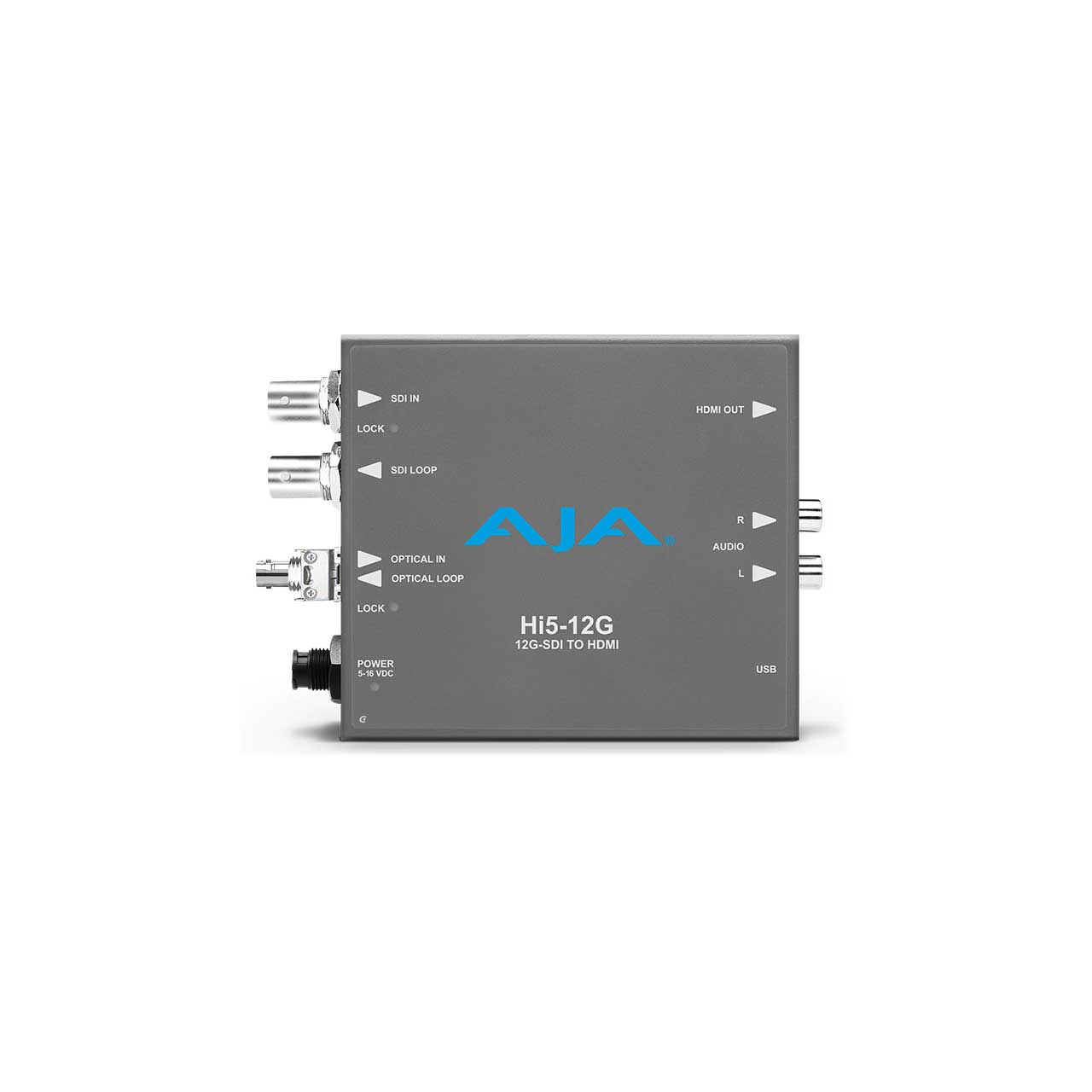

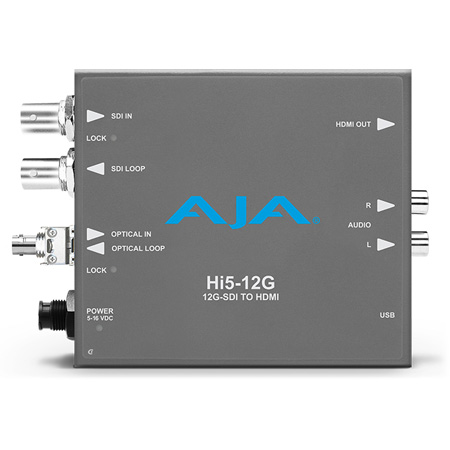

AJA Hi5-12G-R-ST 12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver

ITEM #: AJA-HI5-12G-R-ST MFG #: HI5-12G-R-ST

Primary Image
AJA Video
Free Shipping with $49 Minimum Order

Our Price:

$1,375.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HI5-12G-R-ST - Overview

The AJA Hi5-12G-R-ST is a 12G-SDI to HDMI 2.0 Converter with an ST Fiber Receiver already installed. It converts 12G-SDI to HDMI 2.0, providing an easy to deploy solution for monitoring professional 4K/UltraHD SDI signals with 4K/UltraHD HDMI 2.0 displays. The Hi5-12G supports a wide range of input video formats and frame rates with extremely low latency signal conversion and pristine image fidelity. It features a 12G-SDI single link input with a reclocked SDI loop out for signal extension to downstream SDI devices.

The Hi5-12G is a powerful tool for HDR workflows that require local HDR Infoframe generation to correctly configure a HDR monitor. The free Mini-Config application program provides an easy to use GUI interface to configure the Hi5-12G and to display input signal status information.

  • Features:

    • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
    • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
    • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
    • 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
    • Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
    • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
    • USB port used with Mini-Config software application to configure the device via PC/Mac


  • Specifications:

    • Video Input Formats
    • 1x 12 Gb SDI
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1x 6 Gb SDI
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
    • 1x 3 Gb SDI (Level A or B-Dual Link)
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p* 50, 59.94, 60
    • 1x 1.5 Gb SDI
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
    • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94
    • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
    • *1280 x 720p is Level A Only
    • Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in Documents and Manual.

      Fiber Input (Hi5-12G-R, Hi5-12G-TR)
    • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

      Fiber Input (Hi5-12G-R-ST)
    • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

      Video Output Formats
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
    • (SD) 720 x 576i 50
    • (SD) 720 x 480i 59.94
    • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
    • Notes: 1 - Raster and Frame Rate Dependent, please see Hi5-12G Video Formats on the Data Sheets Tab. 2 - If a connected monitor doesn't support HDMI protocol the unit automatically switches to DVI protocol, which does not pass audio.

      Video Output Digital
    • 1x HDMI Type A connector*, HDMI v2.0b

      Fiber Output (Hi5-12G-TR)
    • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

      Audio Input Digital
    • SDI embedded audio, 24-bit, 16-channel

      Audio Output Digital
    • HDMI embedded audio, 24-bit, 8-channel

      Audio Output Analog
    • 2x RCA style connector, 2-channel -10dBu (nominal)

      User Interface
    • USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

      Dimensions (WxDxH)
    • 4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)

      Weight
    • 0.5Lbs (0.3kg)

      Power
    • 5-16VDC regulated, 11 watts, power supply required included with purchase
    • AC Adapter: 100-240VAC, 50/60 Hz, universal input

      Environment
    • Safe Operating Temperature: 0° to 40°C (32° to 104°F)*
    • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
    • Operating Relative Humidity: 10 to 90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)


  • Warranty:

    • 5 Year Warranty


  • GTIN:

    0812321032277
