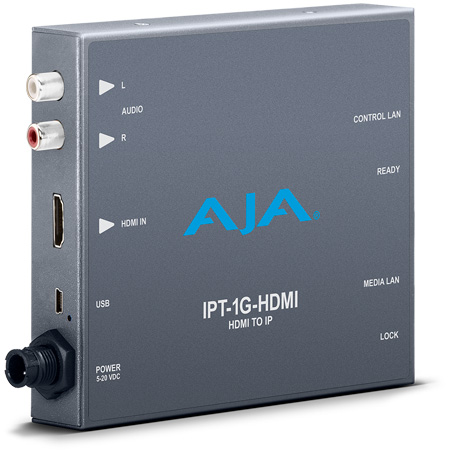

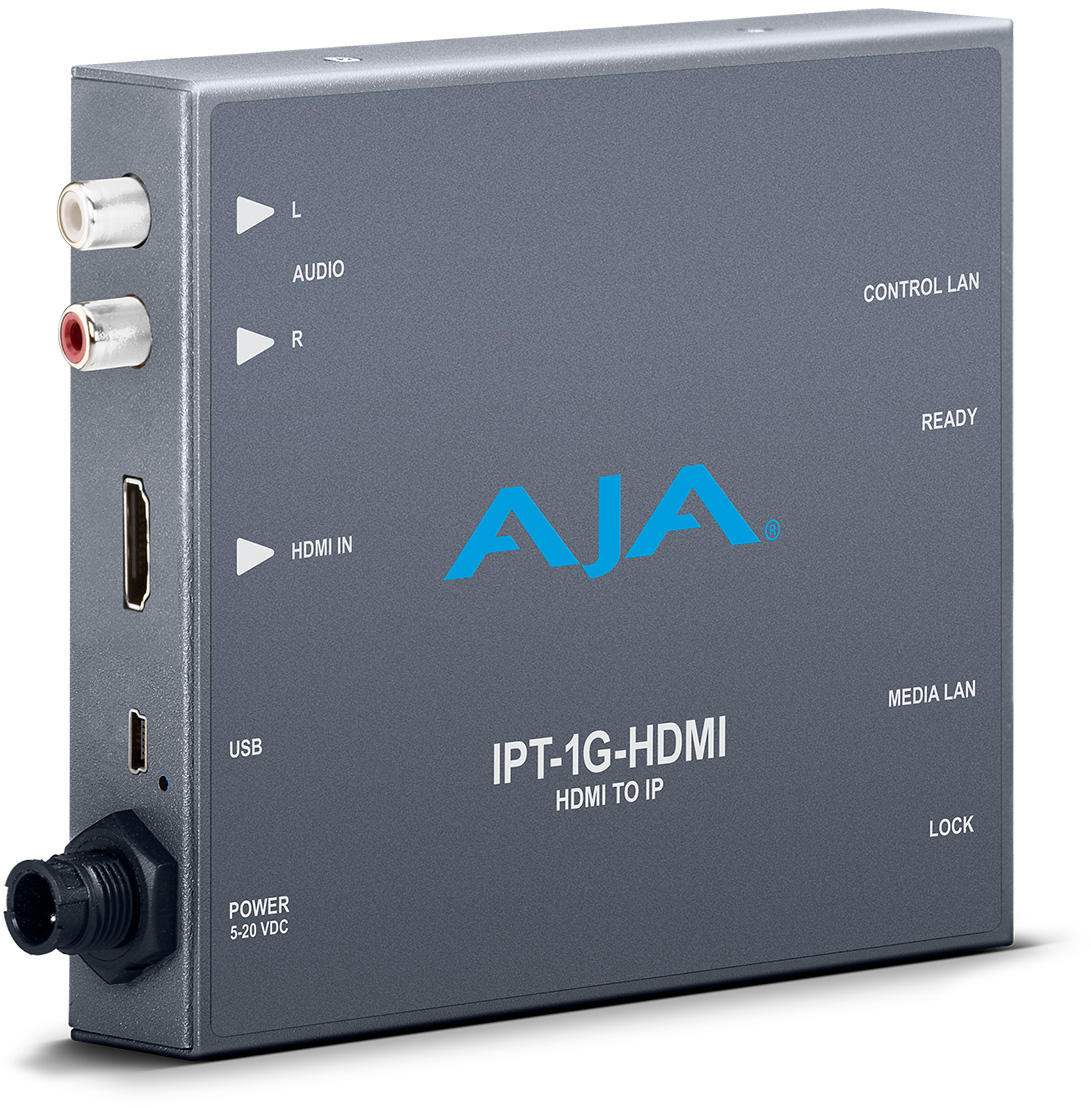

AJA IPT-1G-HDMI HDMI Video and Audio to JPEG 2000 Converter

ITEM #: AJA-IPT-1G-HDMI MFG #: IPT-1G-HDMI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-IPT-1G-HDMI

IPT-1G-HDMI - Overview

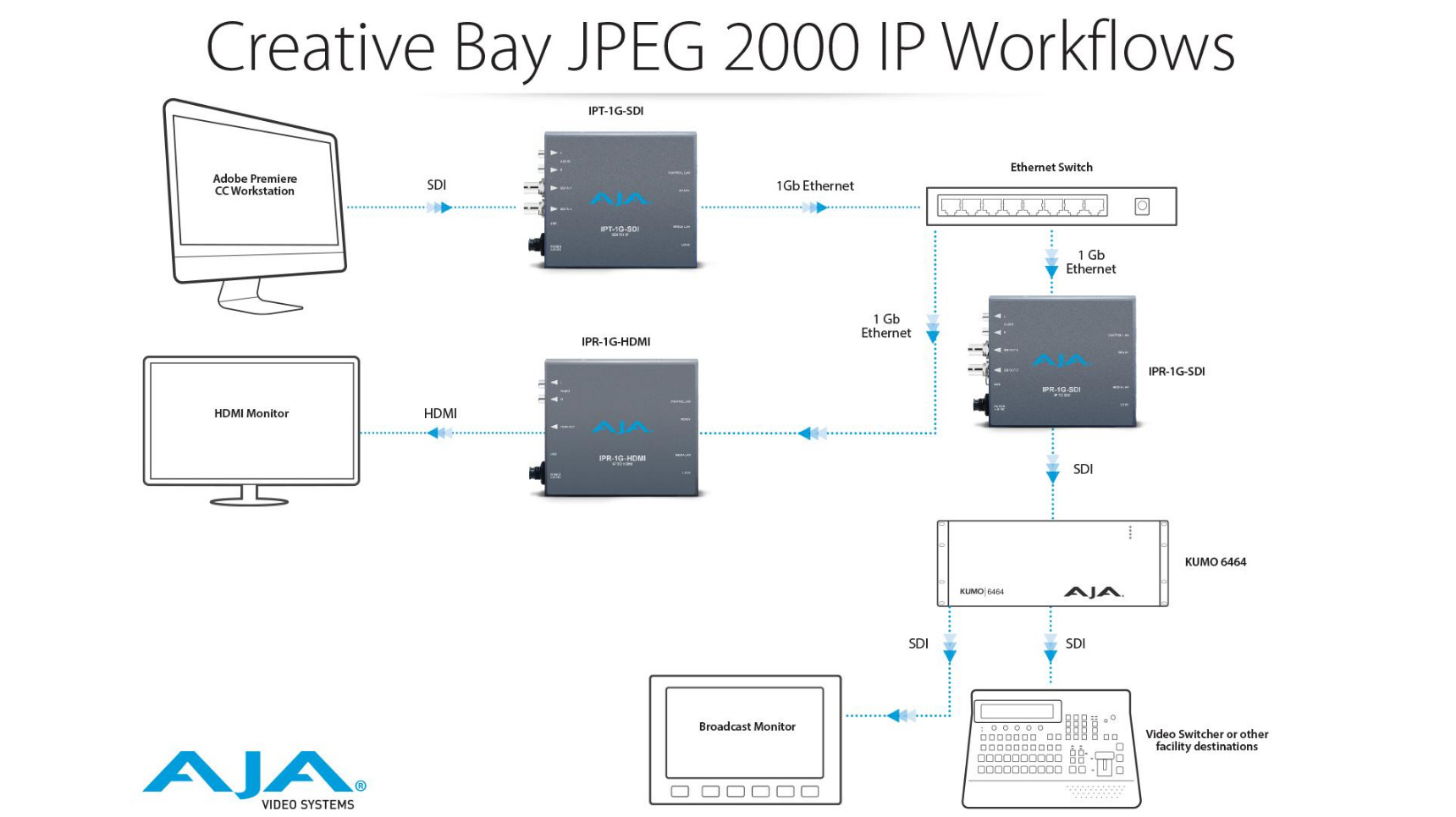

Bridging from HDMI Video and Audio to TR-01 Compliant JPEG 2000 over IP, the AJA IPT-1G-HDMI is a 3G-SDI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from HDMI based cameras, routers and digital recorders and players and distribution across an IP network for feeding to IPR-1G-SDI, IPR-G-HDMI or KONA IP receivers.

IPT-1G-HDMI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates. The IPT-1G-HDMI is a HDMI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from HDMI based cameras, routers and digital recorders and players and distribution across an IP network for feeding to IPR- 1G-SDI, IPR-G-HDMI or KONA IP receivers.

PT-1G-HDMI partners with AJA IPR Mini-Converter receivers and KONA IP for use in desktop workstations for reach throughout a facility or organization, local or remote. It also works for use in desktop workstations and simple expansion to other devices, displays and more over IP. All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

  • Features:

    • Full size HDMI 1.4 video input
    • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media ouput
    • Essence support: VSF TR-01 compliant JPEG 2000
    • Rugged, fanless, portable design
    • Full 10-bit pixel processing pipeline
    • Network (LAN) control and status
    • Quick network setup with AJA eMini-Setup software


  • Specifications:

    • Video Formats: (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920 x 1080i 25, 29.97; (HD) 1280 x 720p 50, 59.94, 60; (SD) 625i 25; (SD) 525i 29.97
    • Video Input Digital: 1 x HDMI Standard Type A connector; HDMI v1.4a 24/30 bits per pixel, RGB/YUV
    • Audio Input Digital: 2-Channel HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
    • Audio Input Analog: 2 x RCA analog audio (2-Channel); Levels at -10 dBu (nominal)
    • Essence Output: 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012); VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows
    • User Controls: 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012), HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235), Web and REST clients supported; 1 x USB 2.0 Mini-B (IEC 62680-1) connector, AJA eMini-Setup of network parameters
    • Size (w x d x h): 5.53 x 4.48 x 0.954 Inches
    • Weight: 0.6 lb
    • Power: Uses AJA power supply model DWP-U-R1, included with purchase; 100-240V, 50/60 Hz Universal input; +5 to 20V DC regulated, 12 watts max
    • Safe Operating Temperature: 32 to 104 °F
    • Safe Storage Temperature (Power OFF): -40 to 140 °F
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)


  • Item Includes:

    • 1x AJA IPT-1G-HDMI HDMI Video and Audio to JPEG 2000 Converter


  • GTIN:

    0812321030587
