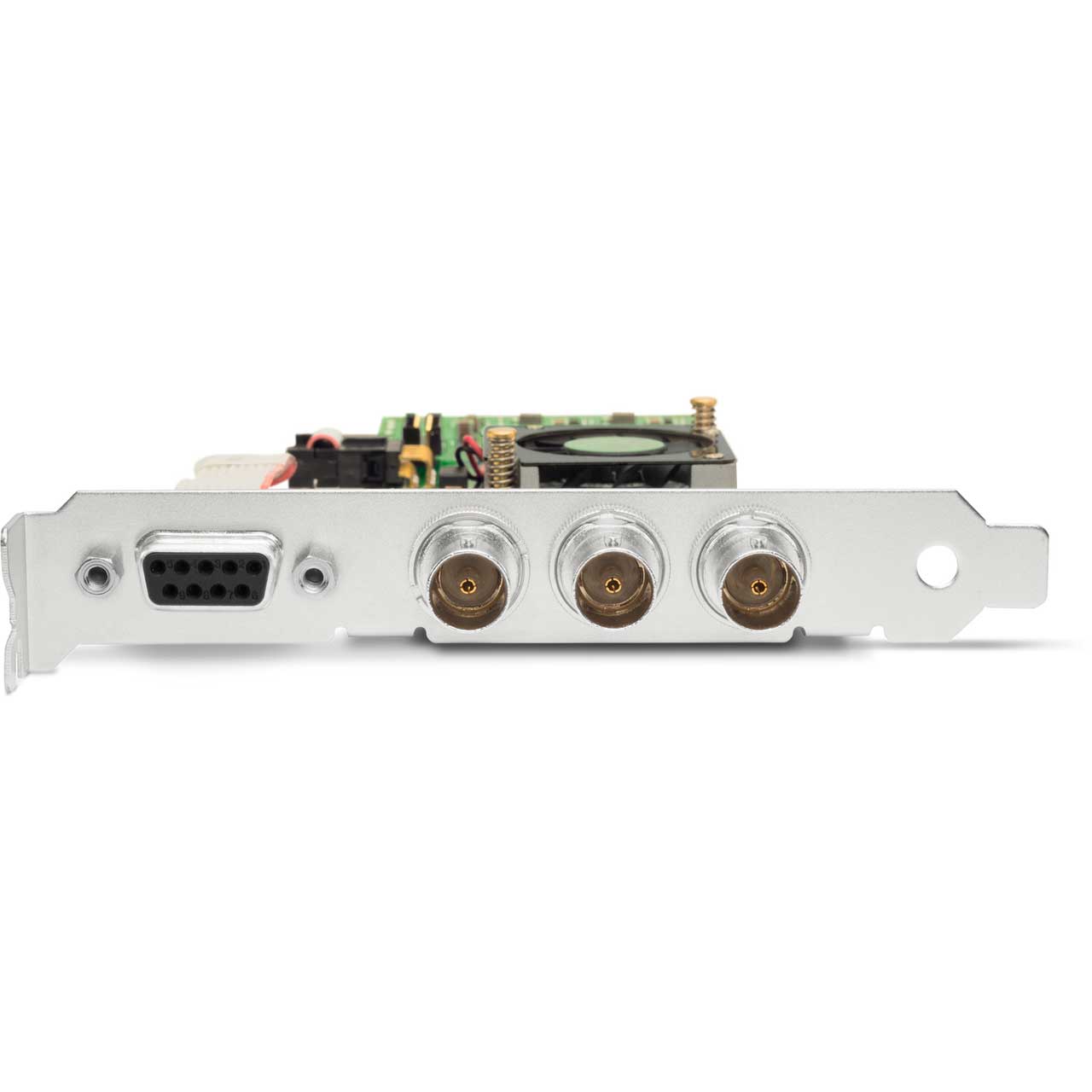

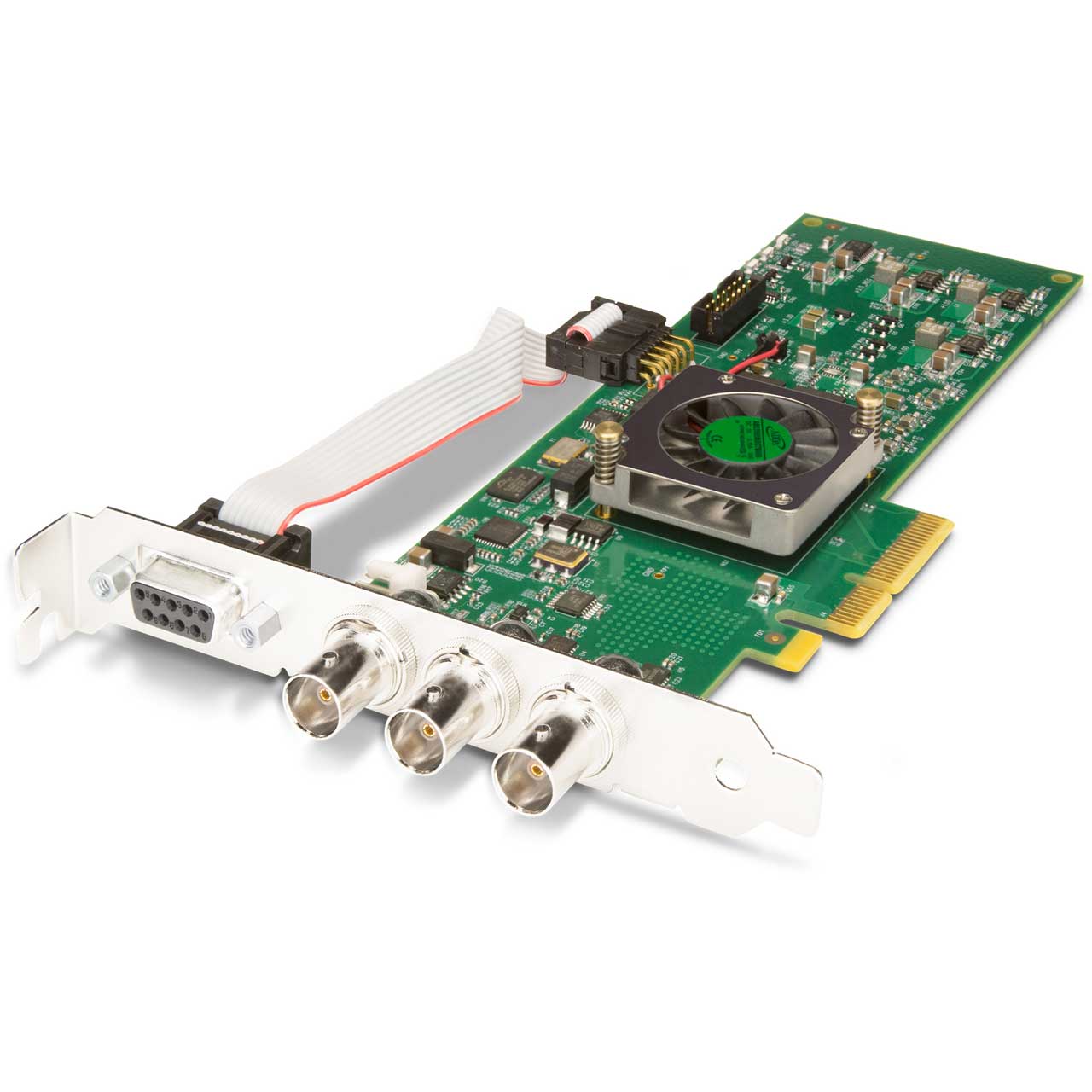

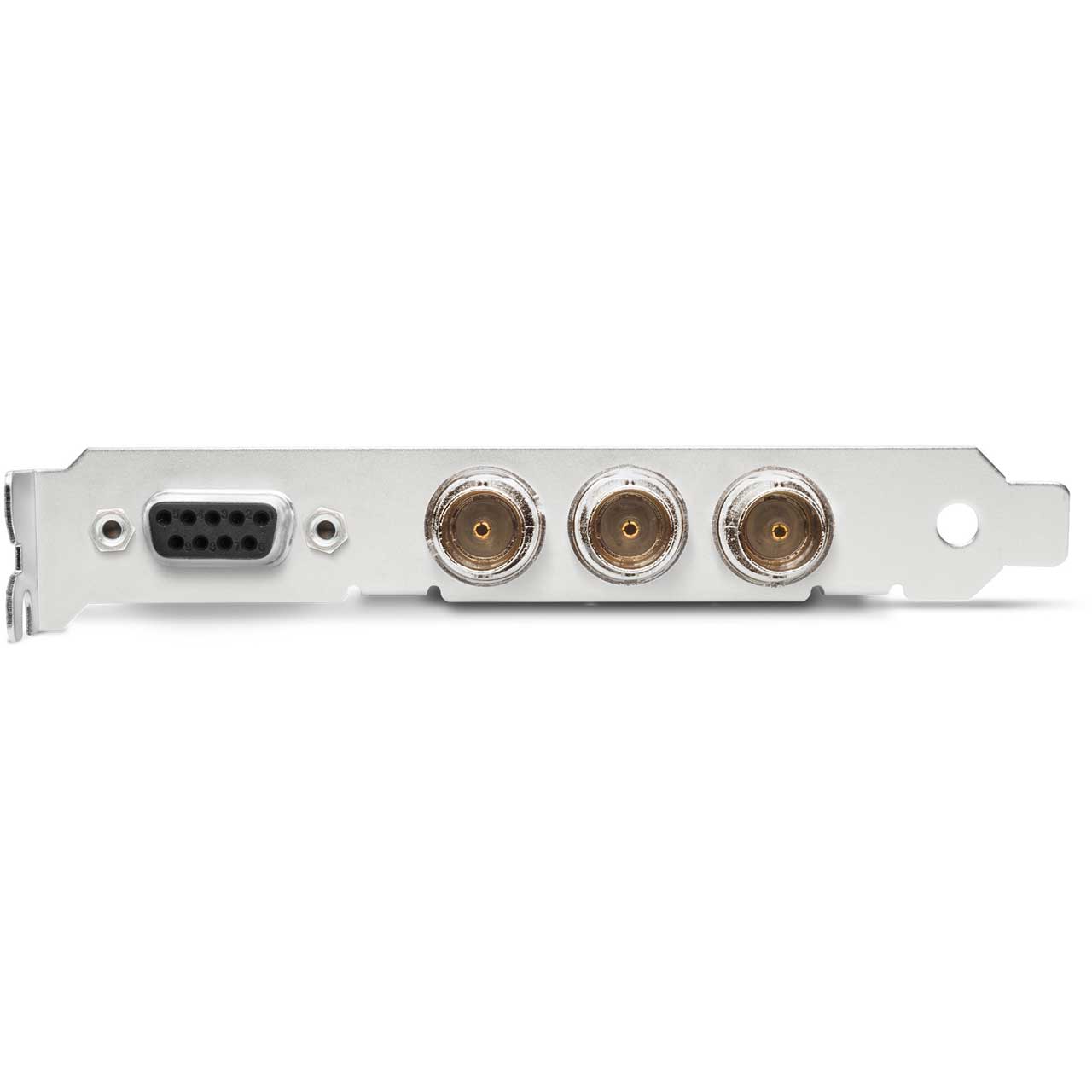

AJA KONA 1-TR0 Single Channel 3G/1.5G-SDI I/O Tall RS-422 PCIe 2.0 Card

ITEM #: AJA-KONA-1-TR0 MFG #: KONA 1-TR0

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
AJA Video
Free Shipping with $49 Minimum Order

Our Price:

$825.00

Add to Cart for Better Price

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

KONA 1-TR0 - Overview

The AJA KONA 1-TR0 is a Single Channel, 3G/1.5G-SDI,Tall RS-422 PCIe 2.0 I/O Card. Designed for broadcast, post and ProAV, as well as OEM developers, KONA 1 is a robust, cost efficient single-channel 3G-SDI 2K/HD 60p I/O card with serial control and reference/LTC. KONA 1 features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support. KONA 1 enables simultaneous monitoring during capture (pass-through) and includes: full size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio in/out, Genlock with reference/ LTC input and RS-422.

  • Features:

    • Single Channel 3G-SDI Capture or Playback 2K/HD/SD up to 50/60p
    • 2x 3G-SDI spigots (In, Out) with 16-channel embedded audio
    • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
    • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
    • PQ, HLG and Dolby Vision Support
    • HDR Metadata Capture and Auto Playback Detection
    • RS-422 support on 9-pin external connector
    • Low profile form factor also available with internal RS-422 header
    • Reference/LTC Input on card (Analog black burst or Tri-level)
    • Compatible with leading creative apps


  • Specifications:

    • Video Formats
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25
    • (HD) 1080i 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94

      Video Input Digital
    • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
    • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

      Video Output Digital
    • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
    • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
    • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
    • *Bit depth support is application dependent. Check with your software manufacturer for compatibility.

      HDR
    • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance.

      Audio Input Digital
    • 16-channel 24-bit SDI embedded, 48 kHz synchronous

      Audio Output Digital
    • 16-channel 24-bit SDI embedded, 48 kHz synchronous

      Reference / LTC Input
    • Analog Color Black or HD Tri-level sync
    • LTC

      Electrical Interface
    • 2-lane PCIe 2.0

      Machine control
    • RS-422, Sony 9-pin protocol


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    0812321030983
