OG-FIDO-TR - Overview

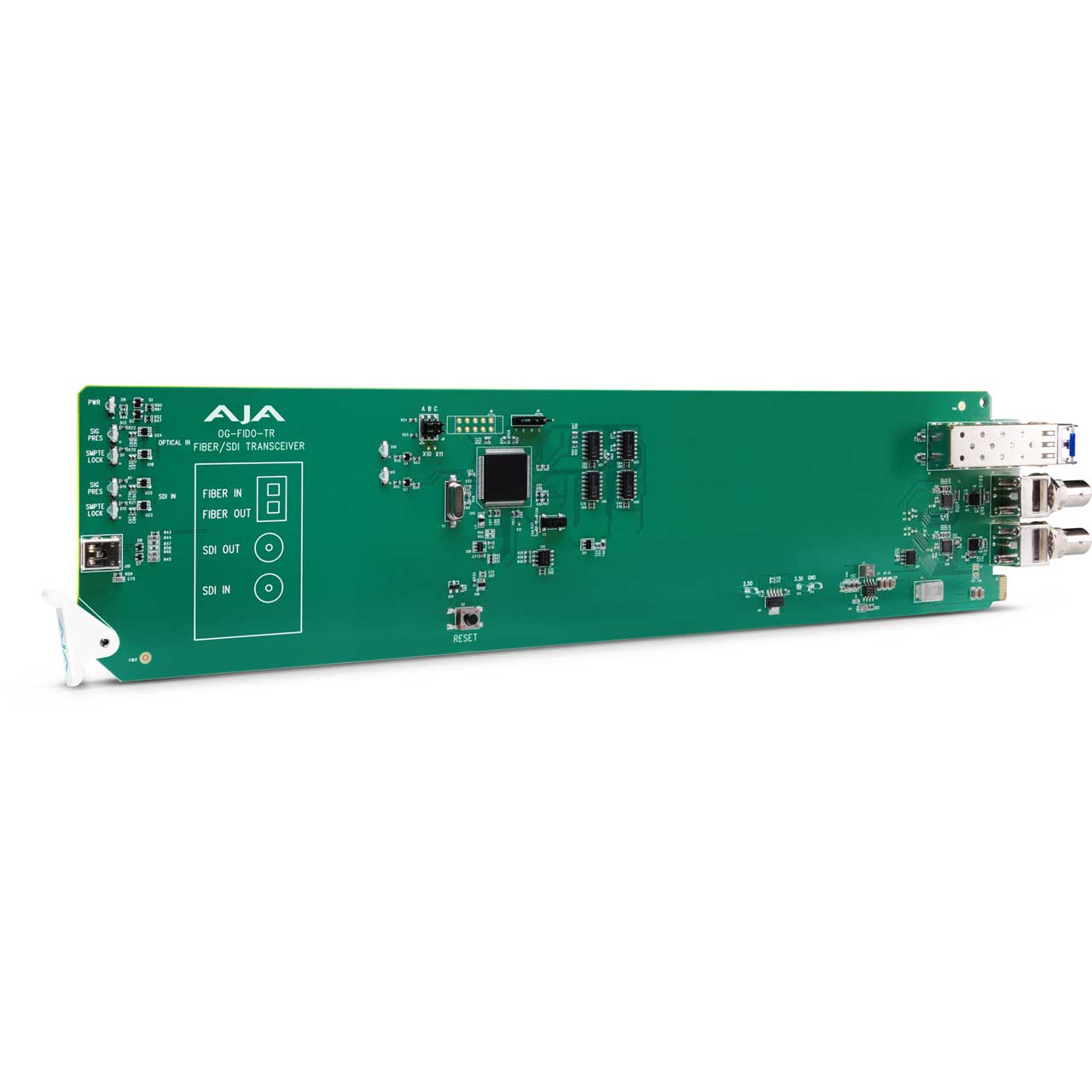

The AJA OG-FiDO-TR is a state of the art, openGear, 1-Channel, 3G-SDI/LC Single Mode LC Fiber Transceiver. Both 3G-SDI to Fiber and Fiber to 3G-SDI conversions are supported.

openGear cards offer unmatched flexibility and cost efficiency for 3G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.

Designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, new DashBoard software support on Windows®, macOS®and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features:
- 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver
- Duplex connection (LC connector)
- 3G/HD/SD-SDI input and output
- Bidirectional, dual channel fiber
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
Specifications:
- Video Formats
- 150 Mbps - 3 Gbps, format agnostic

  Video Input Digital
- 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
- 1-channel Single Mode LC Fiber Input, SMPTE-297
- Nominal Wavelength: 1260-1620 nm
- Optical Sensitivity: -18dBm (min)
- Overload Power: -3dBm (min)

  Video Output Digital
- 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
- 1-channel Single Mode LC Fiber Output, SMPTE-297
- Nominal Wavelength: 1310 nm
- Optical Power: -5dBm (min), 0dBm (max)
- Extinction Ratio: 7.5dB (Typ)

  Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked.

  User Interface
- openGear standard form factor, front slot and rear card. Two slots required for each card
- Size (w x d x h)
- openGear standard form factor, front slot and rear card. Two slots required for each card.

  Weight
- 0.4 lb (0.2 kg)

  Power
- openGear frame compatible, 2.5 watts max per card

  Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
GTIN:
0812321031829
