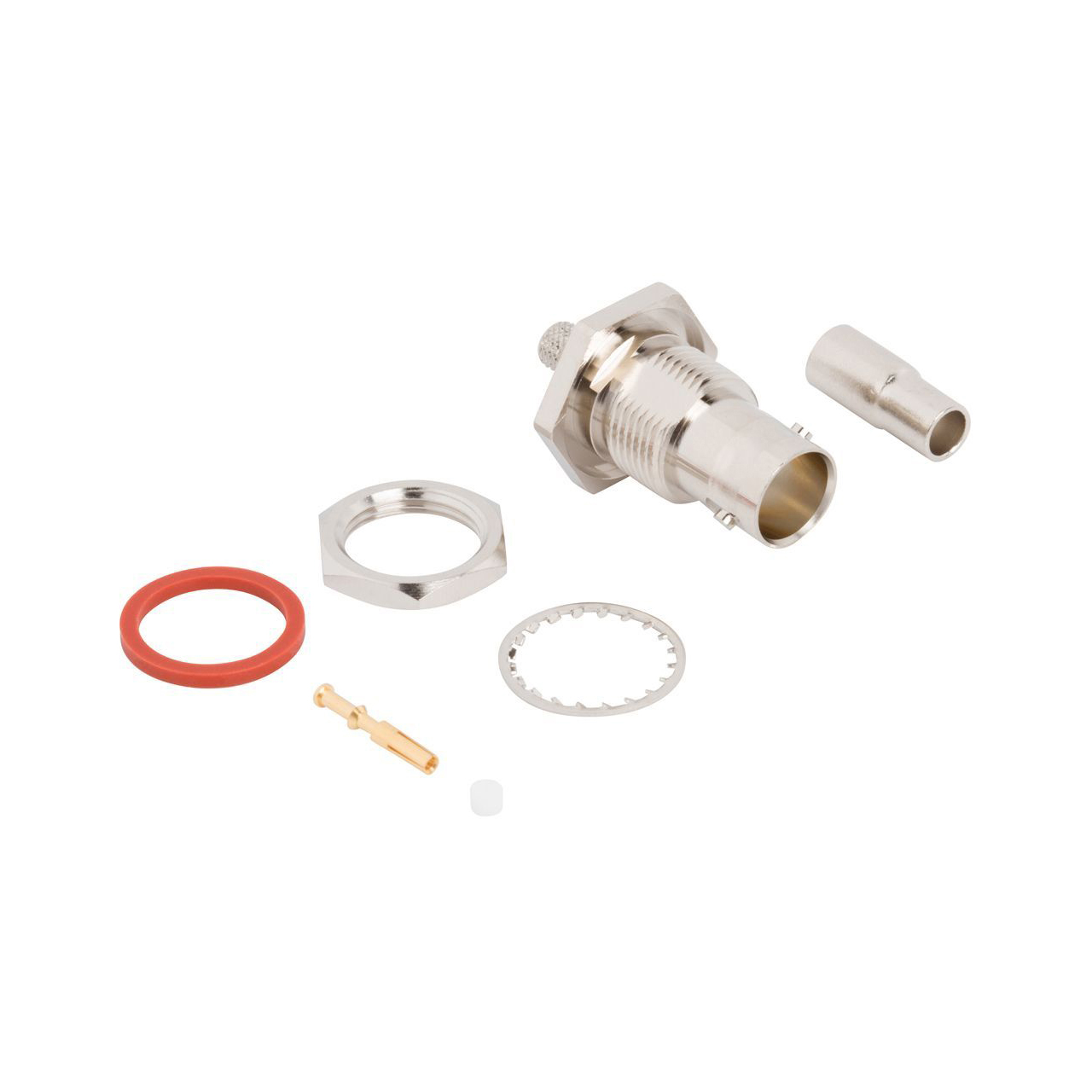

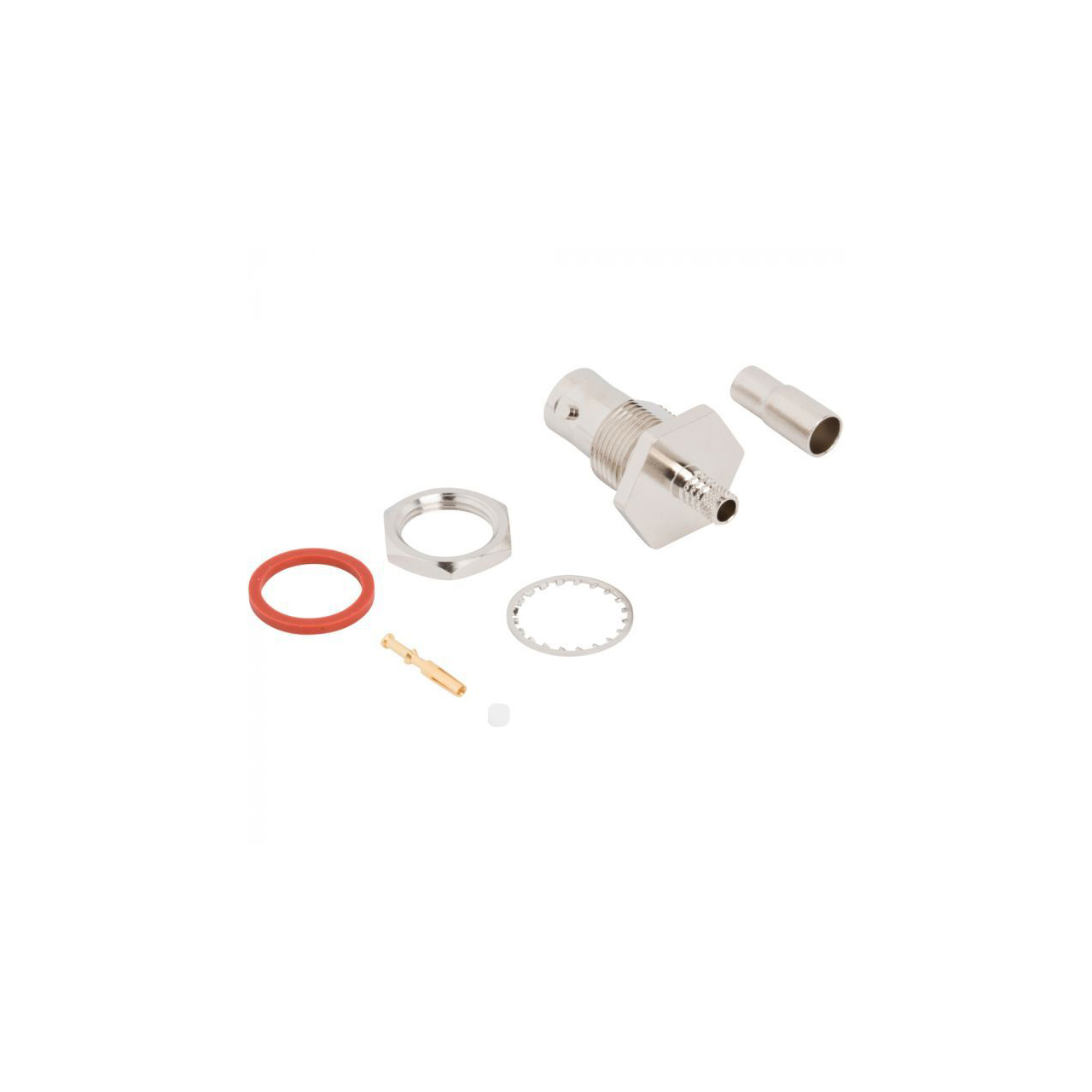

Amphenol 031-70566-12G RF Connector BNC Straight Crimp Jack for Belden 1855A/4855R/4855P - Rear Mount - 75 Ohm 12G

ITEM #: AMPH-0317056612G MFG #: 031-70566-12G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$15.00

Our Price:

$14.66

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

031-70566-12G - Overview

BNC Straight Crimp Jack connector for use with Belden 1855A Belden 4855R & Belden 4855P. Bulkhead Rear Mount 75 Ohm 12G Optimized. RF applications.

  • Specifications:

    • Body Finish: Nickel
    • Body Material: Brass
    • Cable Type (Terminates to): Belden 1855A, Belden 4855R, Belden 4855P
    • Contact Finish: Gold
    • Contact Material : Phosphor Bronze
    • Contact Termination: Crimp
    • Coupling Mechanism: Bayonet
    • Crimp Tool: 47-10180
    • Export Control Classification Number: EAR99
    • Frequency (Max GHz): 12
    • Gender: Jack
    • IP Rating: Not Rated
    • Impedance (Ohms): 75
    • Insulator Material: PTFE
    • Isolated: No
    • Low PIM: No
    • Mil Qualified: Not Mil Qualified
    • Non Magnetic: No
    • Orientation: Straight
    • Panel Mounting Feature: Bulkhead - Rear Mount
    • Ports: 1 (Single Port)
    • Size Category: Miniature
    • Temp (Max Degrees Celsius): 165°
    • Temp (Min Degrees Celsius): -65°
    • Termination Style: Cable - Crimp
