Amphenol 034-1042 High Density BNC Straight Hybrid Crimp Plug for Belden 179DT & RG-179 Cables - 75 Ohm

ITEM #: AMPH-034-1042 MFG #: 034-1042

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

034-1042 - Overview

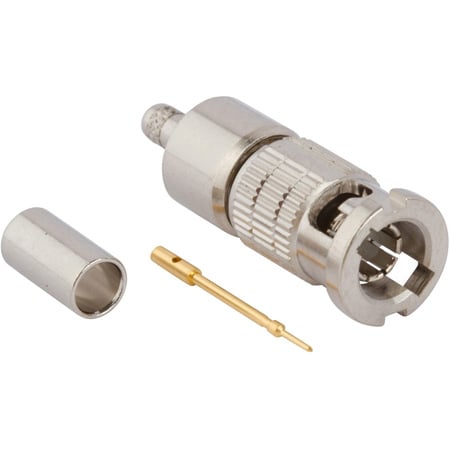

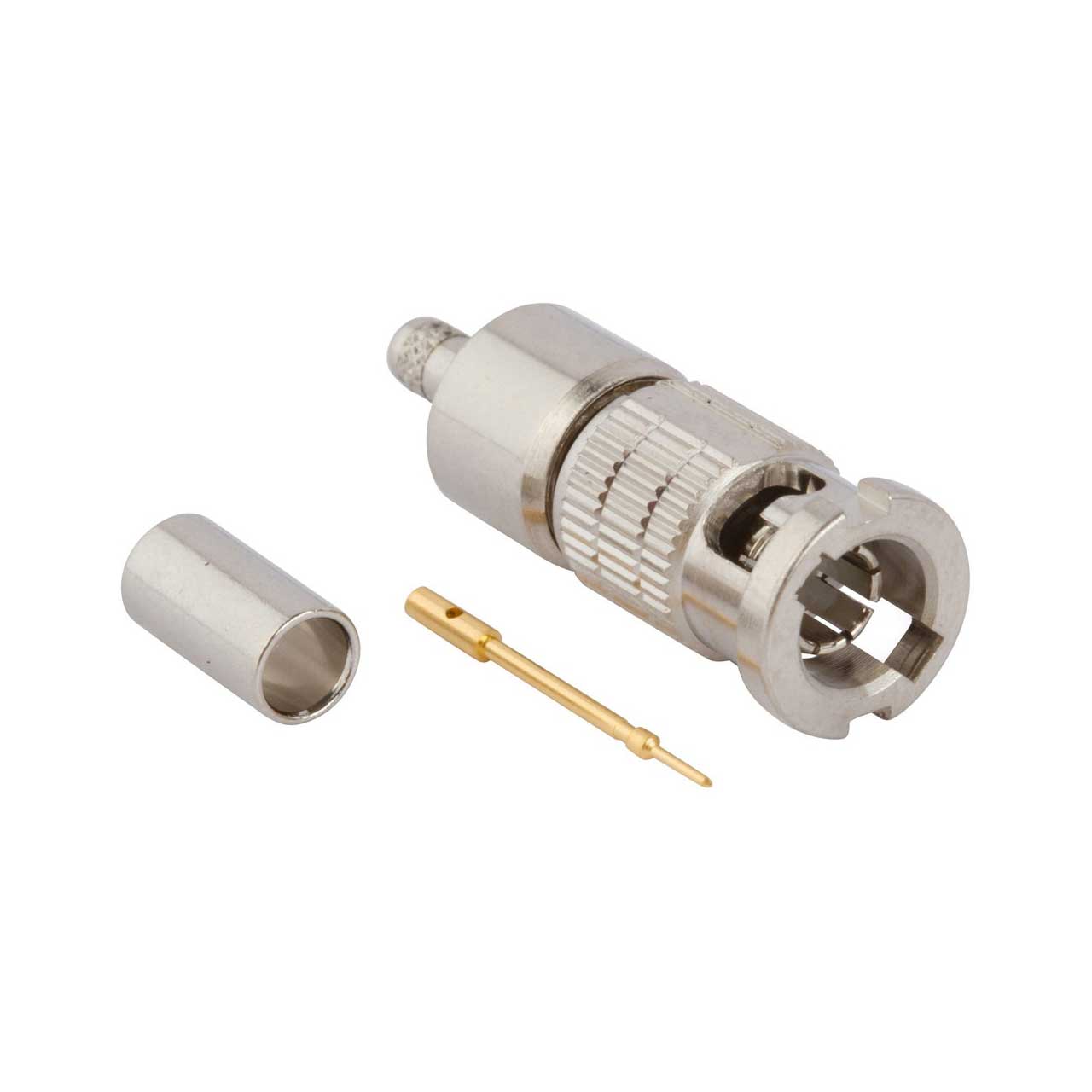

Amphenol 034-1042 is a 75 Ohm RF connector with HD-BNC straight crimp plug for the Belden 179DT/RG-179 cables.

Please note! This is considered a "hybrid" connector. It is part "Crimp" and part "Solder" . The Ferrule has a .128" hex crimp size and the pin is soldered.

  • Specifications:

    • Gender: Plug
    • Orientation: Straight
    • Termination Style Cable: Crimp
    • Impedance (Ohms): 75
    • Body finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Beryllium Copper
    • Contact Termination Style: Solder
    • Insulator Material: PTFE
    • Cable Group: B1
    • Cable Type: Belden 9221, M17/94-RG179, RG-179, RG-179A, RG-179B, RG-187, RG-187A
    • Coupling: Mechanism Bayonet
    • Max Frequency (GHz): 3
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 3.17
