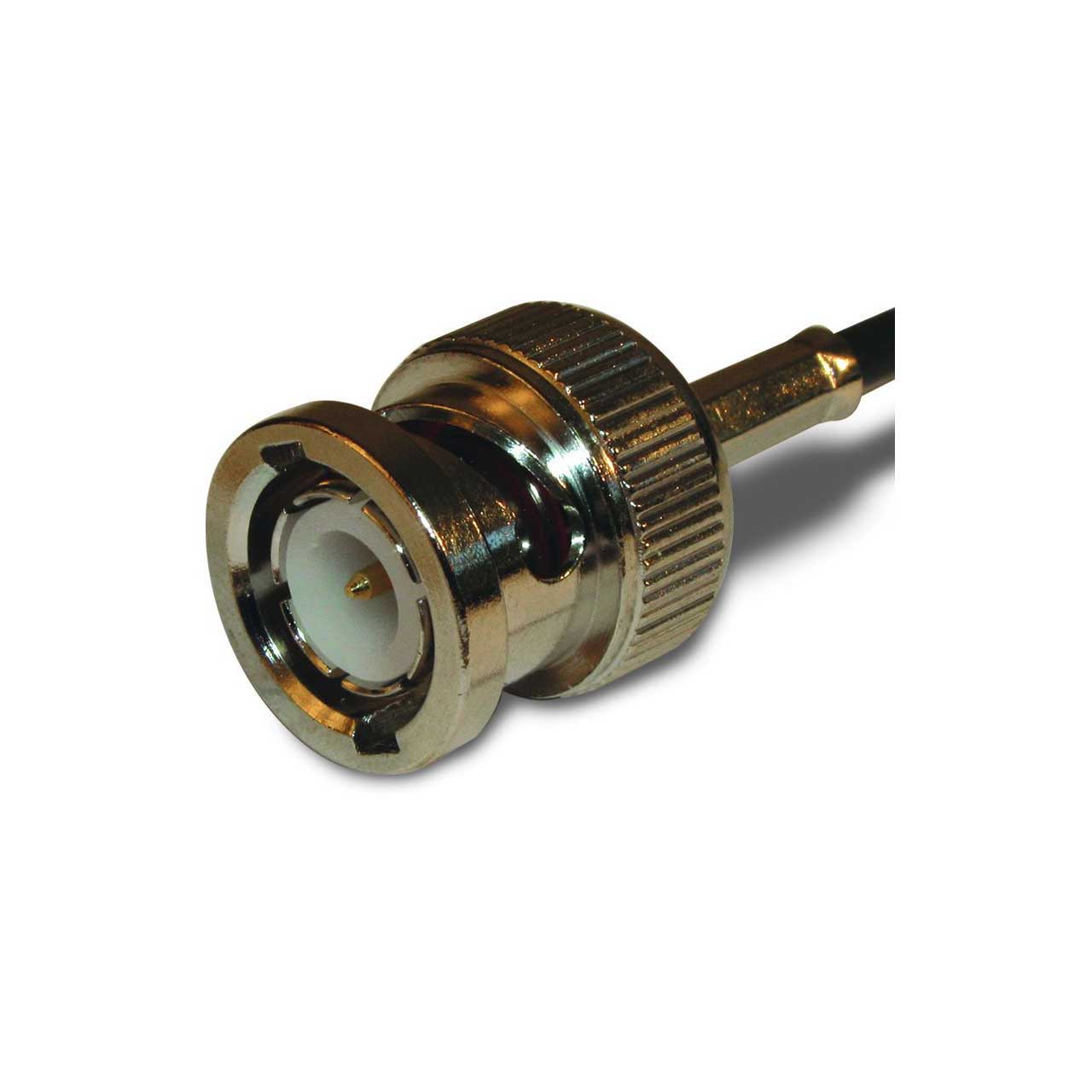

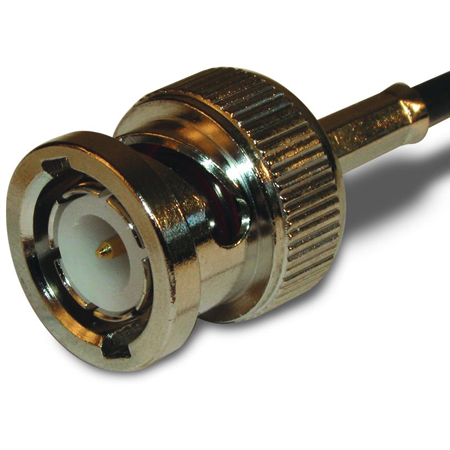

Amphenol 112136 BNC Straight RF Crimp Plug - 50 Ohm

ITEM #: AMPH-112136 MFG #: 112136

Primary Image
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

112136 - Overview

Amphenol 112136 is an RF Connector BNC Straight Crimp Plug.

Cable Type (Terminates to):
RG-174
RG-188
RG-316
Times LMR-100A
Belden 7805A
Belden 8216
Belden 83269
Belden 83284
Belden 84316
Times RG-174LL
Shikoku 1.5DS-QFB-TA
Sumitomo 1.5DS-GXC-SP
Leoni DACAR 462
Leoni DACAR 462-2

  • Specifications:

    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination: Crimp
    • Coupling Mechanism: Bayonet
    • Crimp Tool: 47-10150
    • Frequency (Max GHz): 4
    • Gender: Plug
    • IP Rating: Not Rated
    • Impedance (Ohms): 50
    • Insulator Material: Delrin
    • Isolated: No
    • Low PIM: No
    • Mil Qualified: No
    • Non Magnetic: No
    • Orientation: Straight
    • Panel Mounting Feature: Not Applicable
    • Ports: 1 (Single Port)
    • Termination Style: Cable - Crimp


  • Item Includes:

    • 1x Amphenol 112136 BNC Straight RF Crimp Plug for RG-174/RG-188/RG-316/Times LMR-100A - 50 Ohm
