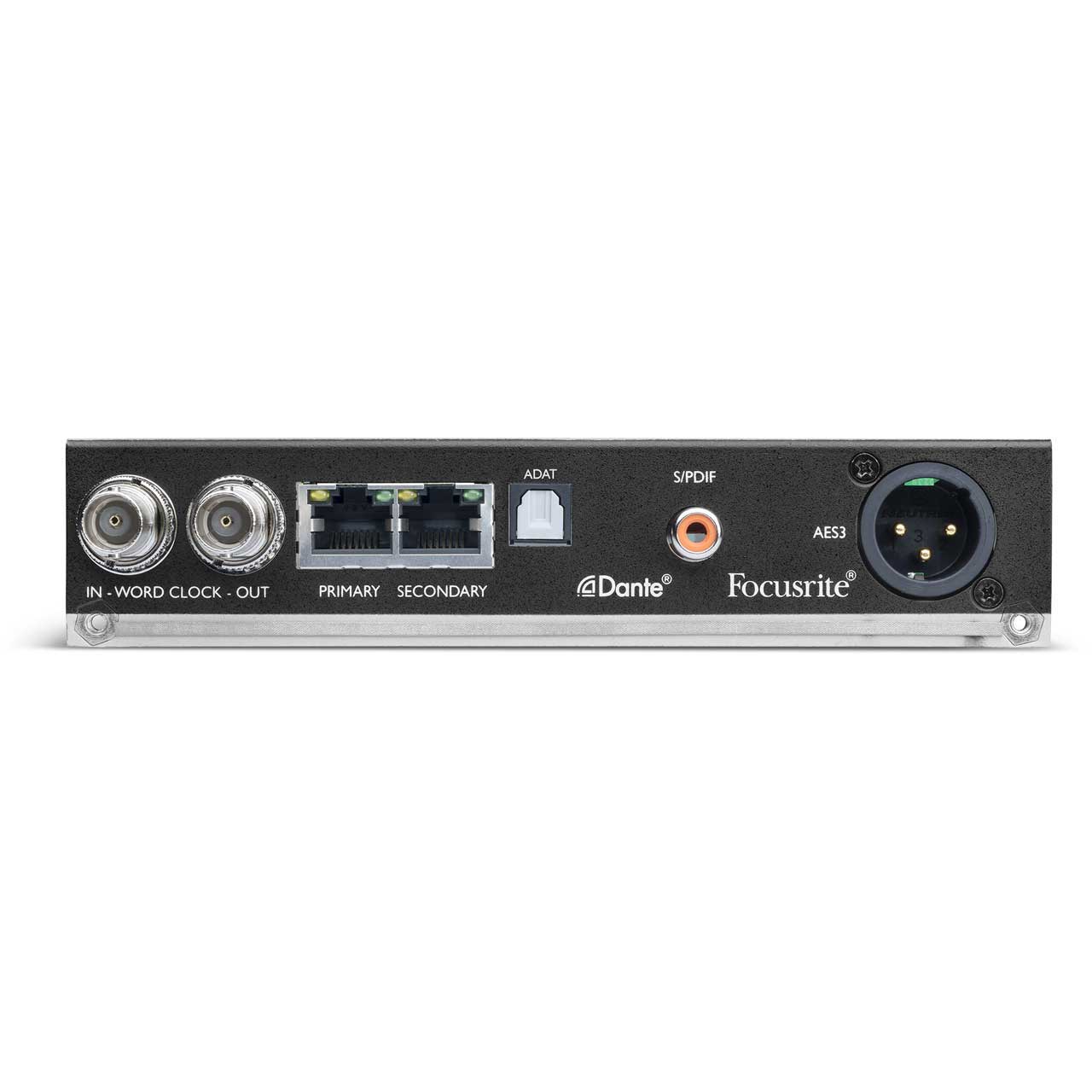

Focusrite AMS-ISA-ADN2 RedNet ISA ADN2 2 Channel A/D Card for ISA One

AMS-ISA-ADN2 - Overview

• Features:

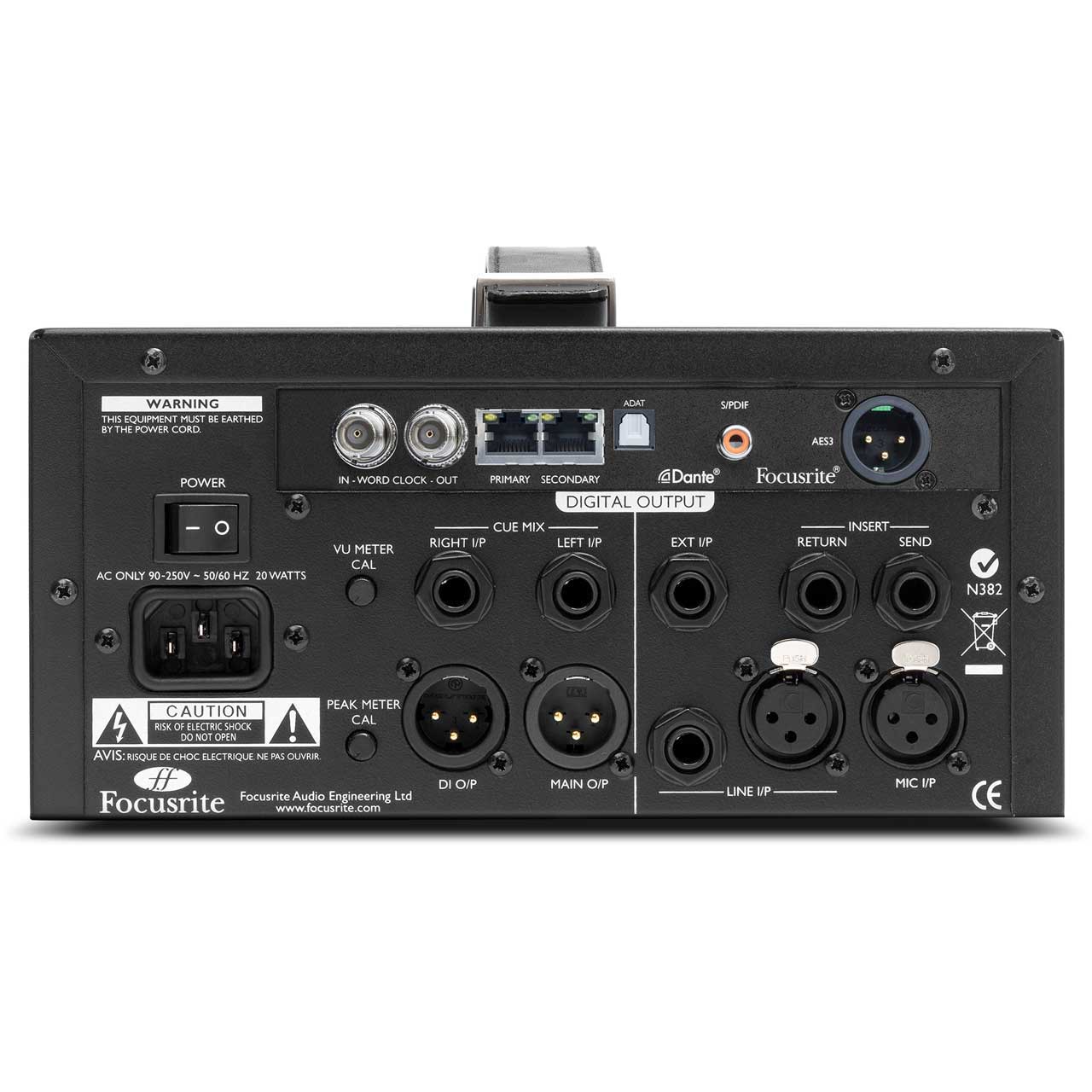

  • Two-channel analog-to-digital converter for ISA One
  • Up to 24-bit/192kHz sample rate
  • Dante connectivity via Primary and Secondary Ethernet ports with redundancy and auto switchover in case of failure
  • Two-channel XLR connection for AES3 output
  • Two-channel RCA connection for S/PDIF output
  • Two-channel TOSLINK connector for ADAT output
  • Word Clock I/O on BNC connectors allows for synchronisation to multiple digital sources, for syncing the Dante network to house clock, or for syncing external equipment to the Dante network
  • RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required
  • Brainworx bx_console Focusrite - exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.


• Specifications:

  • Audio Performance
  • 0 DBFS Reference Levels: 22dBu
  • Frequency Response: 20Hz - 20kHz ±0.1dB
  • THD+N: -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
  • Noise In Presence Of Signal: -121dBu 'A'-Weighted (typical)
  • Dynamic Range: 121dB 'A'-weighted (typical), 20Hz - 20kHz

    Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources: Internal or Word Clock

    Crosstalk
  • Input To Input: < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)

    Front Panel Output Connectivity
  • Channel Count: 2x Dante channels
  • Output: 1x Male XLR

    DANTE
  • Output: 2x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).
  • Channel Count: 2x Dante channels

    AES3
  • Channel Count: 2x Dante channels
  • Output: 1x Male XLR

    ADAT
  • Channel Count: 2x ADAT channels
  • Output: 1x TOSLINK connectors
  • Channel Assignments @ 44.1 KHz, 48 KHz: Port 1 = Channels 1 - 2
  • Channel Assignments @ 88.2 KHz, 96 KHz: SMUXI: Port 1 = Channels 1 - 2
  • Channel Assignments @ 176.4 KHz, 192 KHz: SMUXII: Port 1 = Channels 1 - 2

    S/PDIF
  • Channel Count: 2x S/PDIF channels
  • Output: 1x RCA phono socket

    World Clock
  • Word Clock Input: 1x BNC 75Ω port (Switchable Termination)
  • Word Clock Output: 1x BNC 75Ω port


• Item Includes:

  • 1x ISA ADN2 Two-channel A-D Card
  • 1x Safety Information cut sheet
  • 1x Focusrite Pro Important Information Guide:
  • 1x Focusrite Pro Important Information Guide provides links to: RedNet Control 2, Audinate Dante Controller (installed with RedNet Control 2)


• Warranty:

  • Three Year
