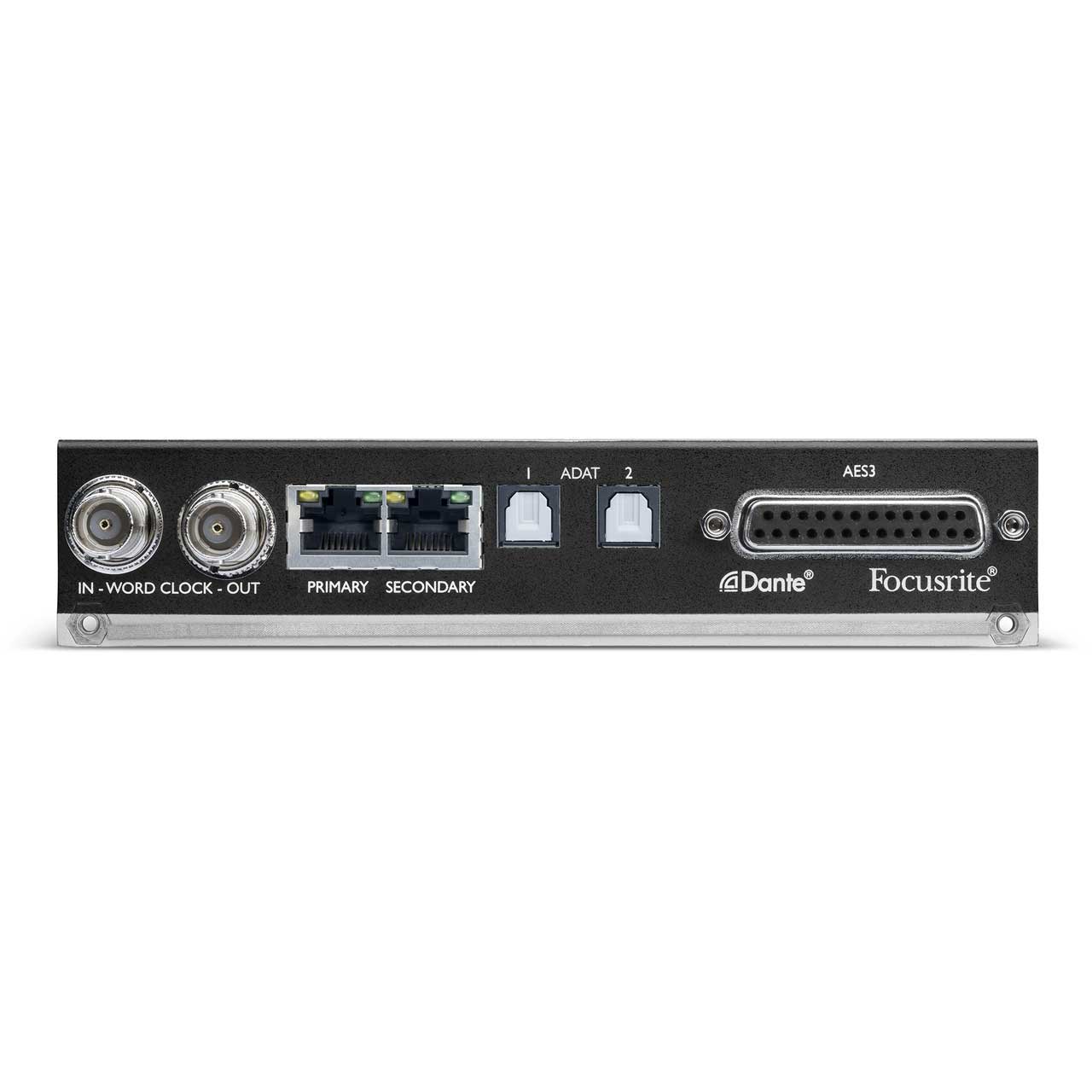

Focusrite AMS-ISA-ADN8 RedNet ISA ADN2 8 Channel A/D Card for ISA 428 MkII and 828 MkII

AMS-ISA-ADN8 - Overview

• Features:

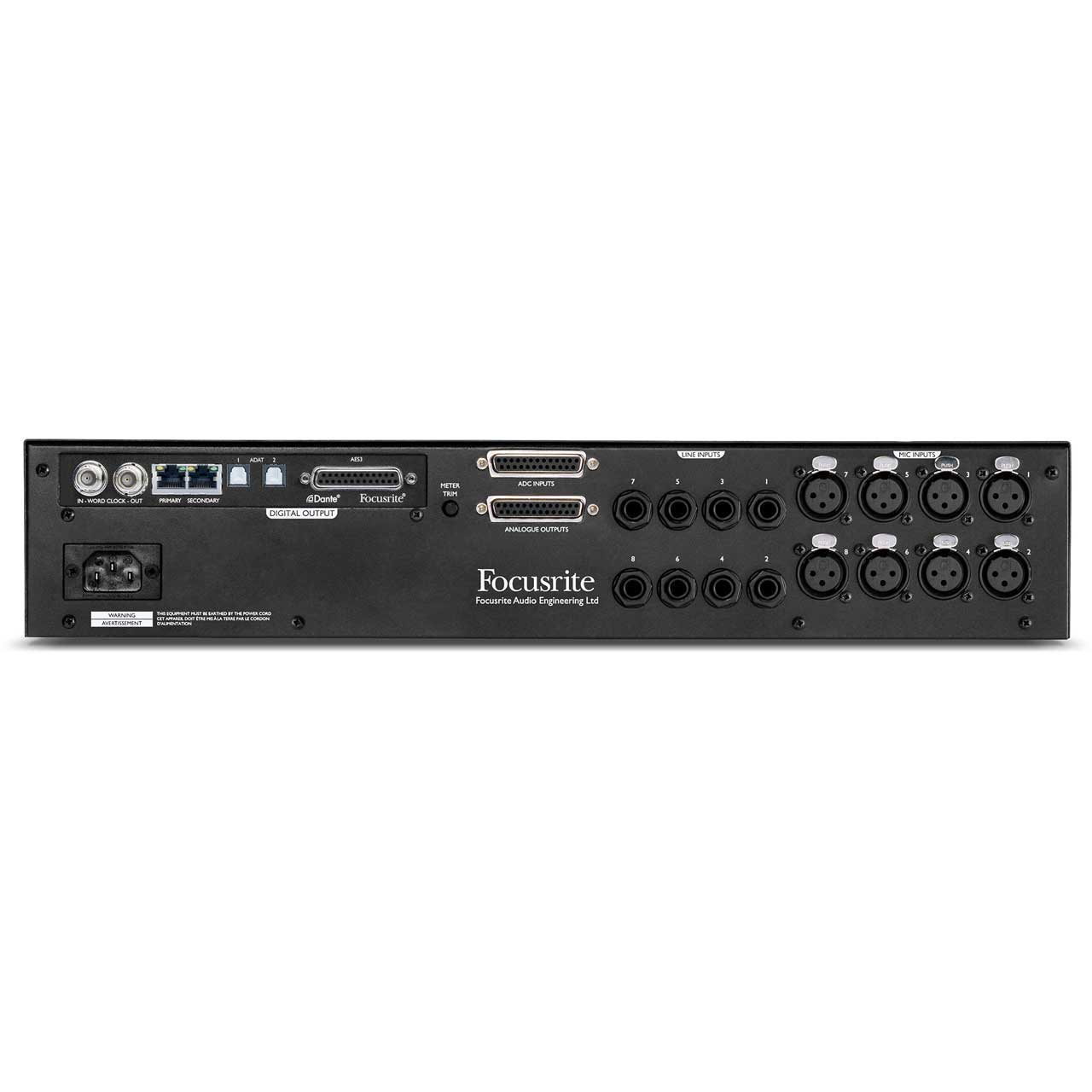

  • Eight-channel analogue to digital interface for ISA 428 MkII and ISA 828 MkII
  • Up to 24-bit/192kHz sample rate
  • Dante connectivity via Primary and Secondary Ethernet ports for redundancy and auto switchover in case of failure
  • Eight-channel AES59 DB25 output connection for AES3
  • Two TOSLINK connectors for ADAT (8 channels at up to 96kHz; 4 channels at 192kHz)
  • Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources, for syncing the Dante network to house clock, or for syncing external equipment to the Dante network
  • RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required
  • Brainworx bx_console Focusrite - exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.


• Specifications:

  • Audio Performance
  • 0 DBFS Reference Levels: 22dBu
  • Frequency Response: 20Hz - 20kHz ±0.1dB
  • THD+N: -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
  • Noise In Presence Of Signal: -121dBu 'A'-Weighted (typical)
  • Dynamic Range: 121dB 'A'-weighted (typical), 20Hz - 20kHz

    Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources: Internal or Word Clock

    Crosstalk
  • Input To Input: < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)

    DANTE
  • Channel Count: 8x ADAT channels
  • Output: 2x TOSLINK connectors

    AES3
  • Channel Count: 8x AES3 channels
  • Output: 1x DB-25 connectors (AES59 Combined I/O / Tascam Digital)

    ADAT
  • Channel Assignments @ 44.1 KHz, 48 KHz: Port 1 = Channels 1 - 8 , Port 2 = Channels 1 - 8
  • Channel Assignments @ 88.2 KHz, 96 KHz: SMUXI: Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
  • Channel Assignments @ 176.4 KHz, 192 KHz: SMUXII: Port 1 = Channels 1 - 2 , Port 2 = Channels 3 - 4
  • Channel Count: 8x ADAT channels
  • Output: 2x TOSLINK connectors

    Word Clock
  • Word Clock Input: 1x BNC 75O port (Switchable Termination)
  • Word Clock Output: 1x BNC 75O port

    Dimensions
  • Height: 33.2mm / 1.31"
  • Width: 158.5mm / 6.24"
  • Depth: 202.4mm / 7.97"

    Weight
  • Weight: 0.59kg / 1.3lbs


• Item Includes:

  • 1x ISA ADN8 Two-channel A-D Card
  • 1x Safety Information cut sheet
  • 1x Focusrite Pro Important Information Guide:
  • 1x Focusrite Pro Important Information Guide provides links to: RedNet Control 2, Audinate Dante Controller (installed with RedNet Control 2)


• Warranty:

  • Three Year
