ANDIAMO.AES SRC BNC/SC - Overview

Compact Size. Uncompromised Sound!

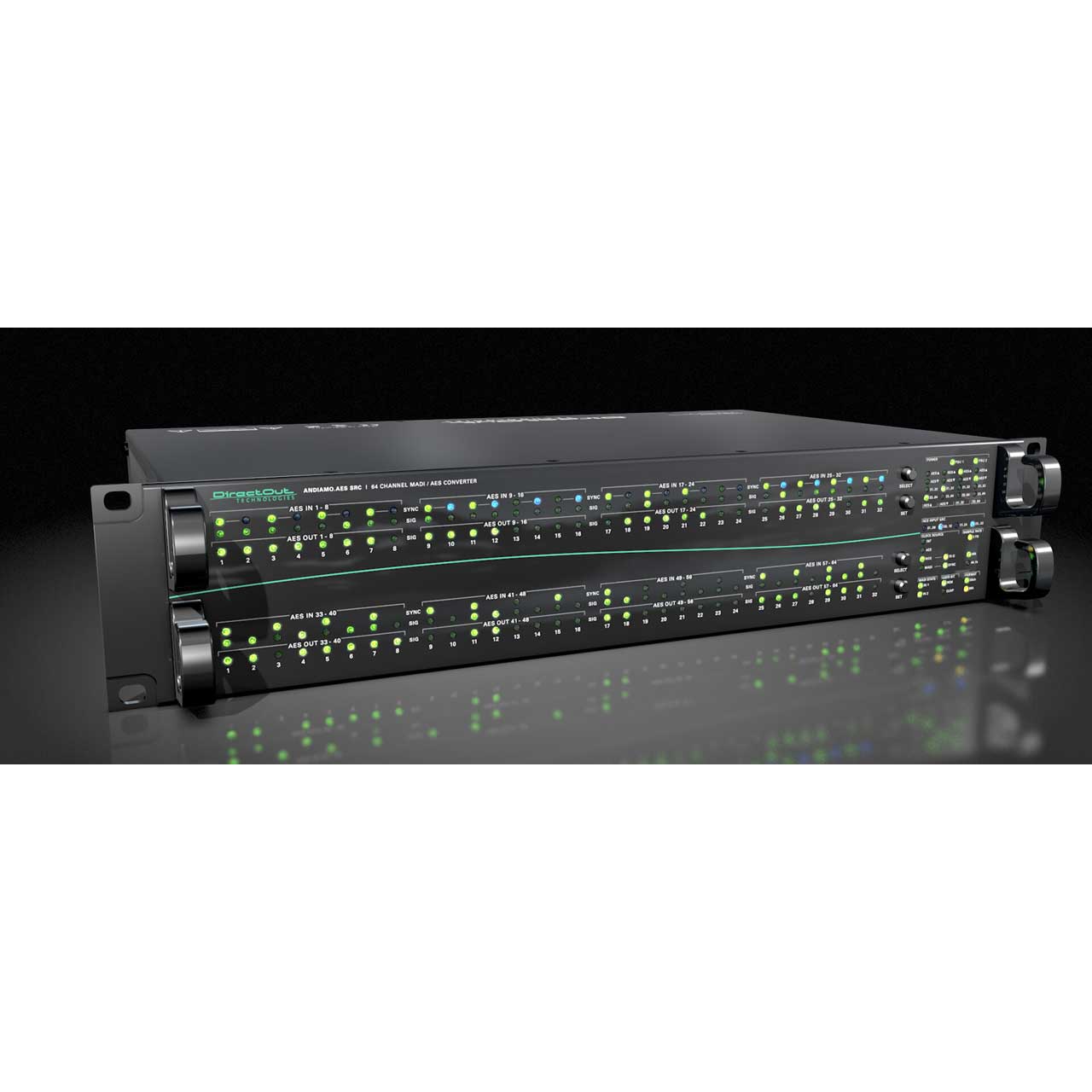

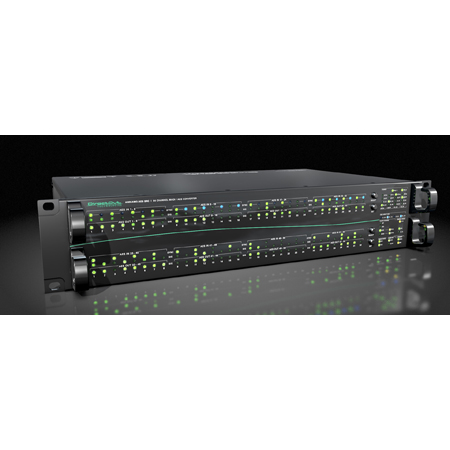

The DirectOut Technologies ANDIAMO.AES SRC BNC/SC is a bi-directional, 64-channel AES3/MADI interface with a built-in routing matrix. It is equipped with 2 MADI Ports and 32 AES3 I/Os and can simultaneously convert 64 channels of audio from AES3 to MADI and vice-versa. ANDIAMO.AES SRC adds sample rate converters for 16 AES inputs switchable in groups of eight channels to handle asynchronous signals and the BNC/SC adds 1x coaxial BNC and 1x optical SC. The unit is housed in a 2 RU 19 Inch, compact casing to save rack space. You can operate the device locally or remotely using ANDIAMO Remote software. Supported remote methods are USB, D.O.NET, `MIDI over MADI' and `Serial over MADI'.

ANDIAMO Remote (Windows® / OS X®) offers access to the following features (and many more):

Matrix Mode which offers free signal routing on a per-channel basis.
4 FS support - the device supports sample rates from 44.1 kHz up to 192 kHz to meet the highest sonic demands
Level control - output gain/level trim for individual channels
The settings and the routing matrix are stored inside the device.

  • Features:

    • Port redundancy
    • Extended routing
    • Bit transparency
    • Quick overview
    • Clocking
    • Safe operation


  • Specifications:

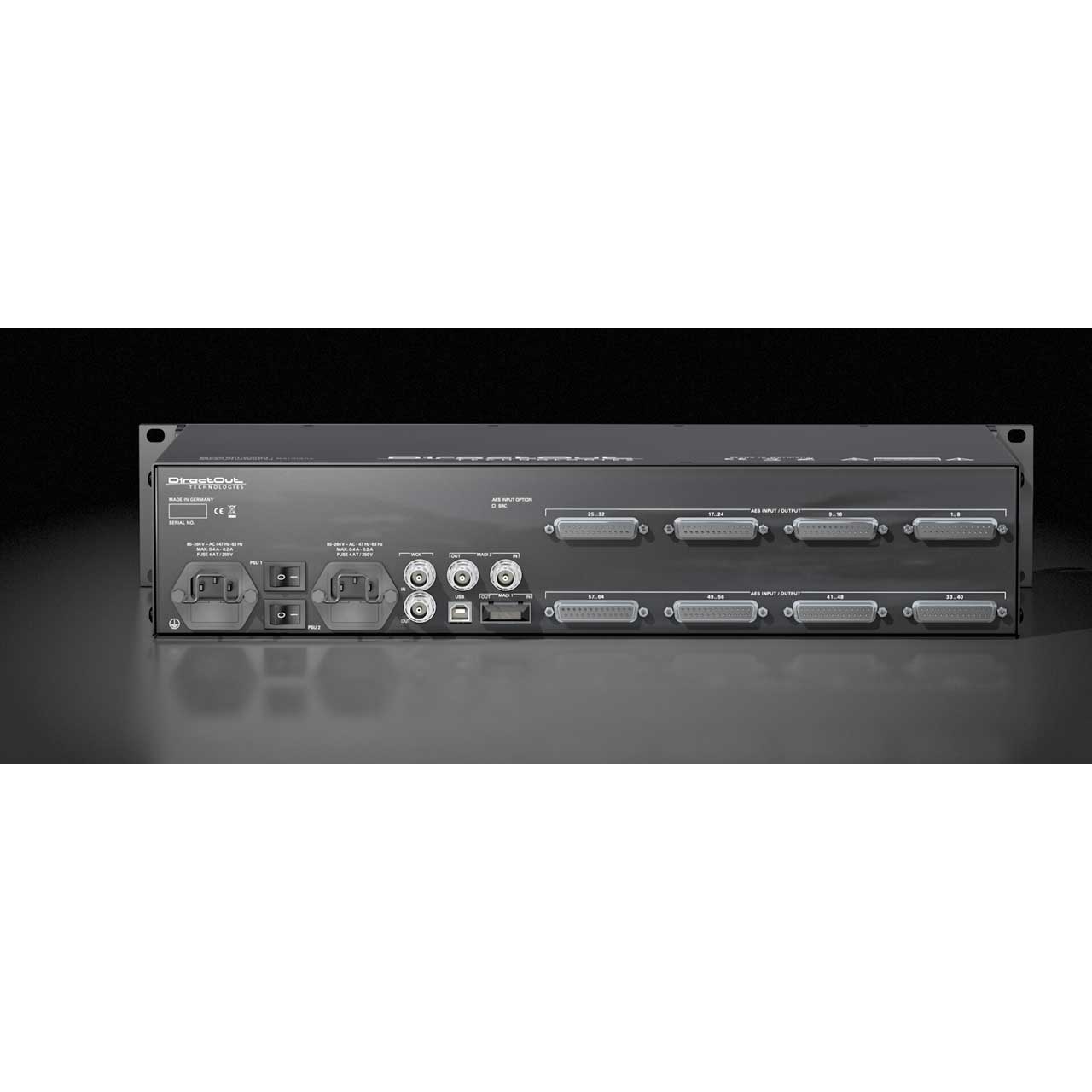

    • Interfaces
    • MADI ports (I/O): 2 x SC-Socket multi-mode or
    • 1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω
    • AES3 ports (I/O): 8 x DSUB-25 (32 x AES3), AES59 compliant

      Digital
    • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
    • MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX
    • Sample rate conversion: 16 x stereo @ AES inputs (switchable)*
    • THD+N: 140 dB Frequency response ripple: < 0.025 dB
    • Latency: <140 samples

      Sync
    • Word clock (I): 1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)
    • Word clock (O): 1 x coaxial BNC

      Communication
    • Remote Software: ANDIAMO REMOTE (Windows® & OS X®), globcon
    • Remote Methods: USB, Serial over MADI, MIDI over MADI, DONet

      Global
    • Service: USB 2.0 for firmware updates (Windows®) and remote control (Windows® & OS X®)
    • Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant
    • Power Consumption: 40 W

      Dimensions:
    • Width 19"
    • Height 2 RU
    • Depth 10"
    • Weight: about 4 kg

      USB Serial driver:
    • Windows® & OS X®

      Device variants
    • Single-mode: MADI port: SC-Socket single-mode

      Notes
    • * ANDIAMO.AES SRC only


  • Item Includes:

    • ANDIAMO.AES SRC BNC/SC Matrix Routing Interface
    • Globcon software for unified control via OS X, Windows


  • Warranty:

    • 3 Year Extended Warranty
