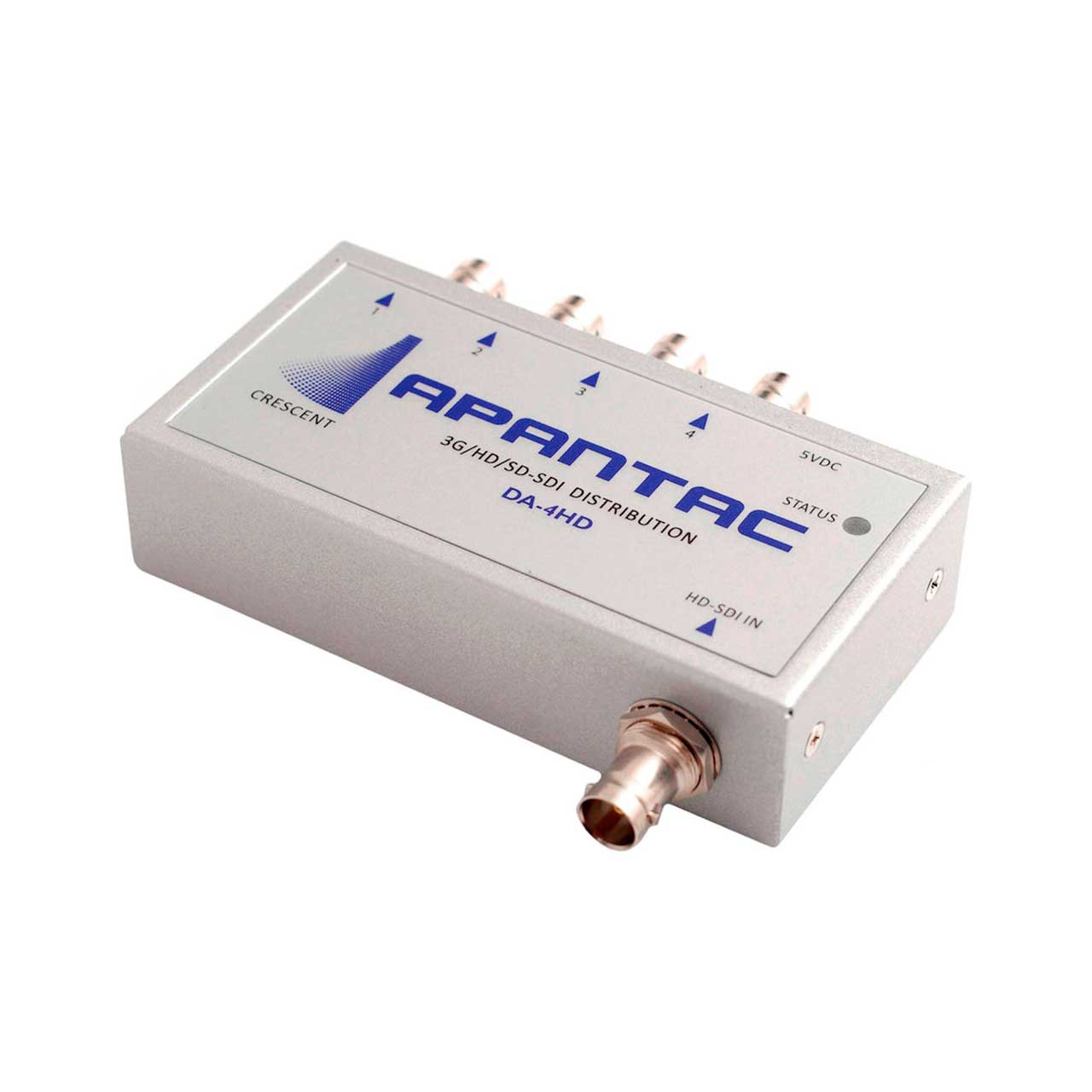

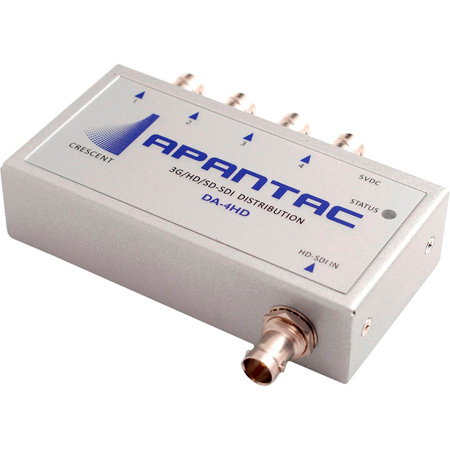

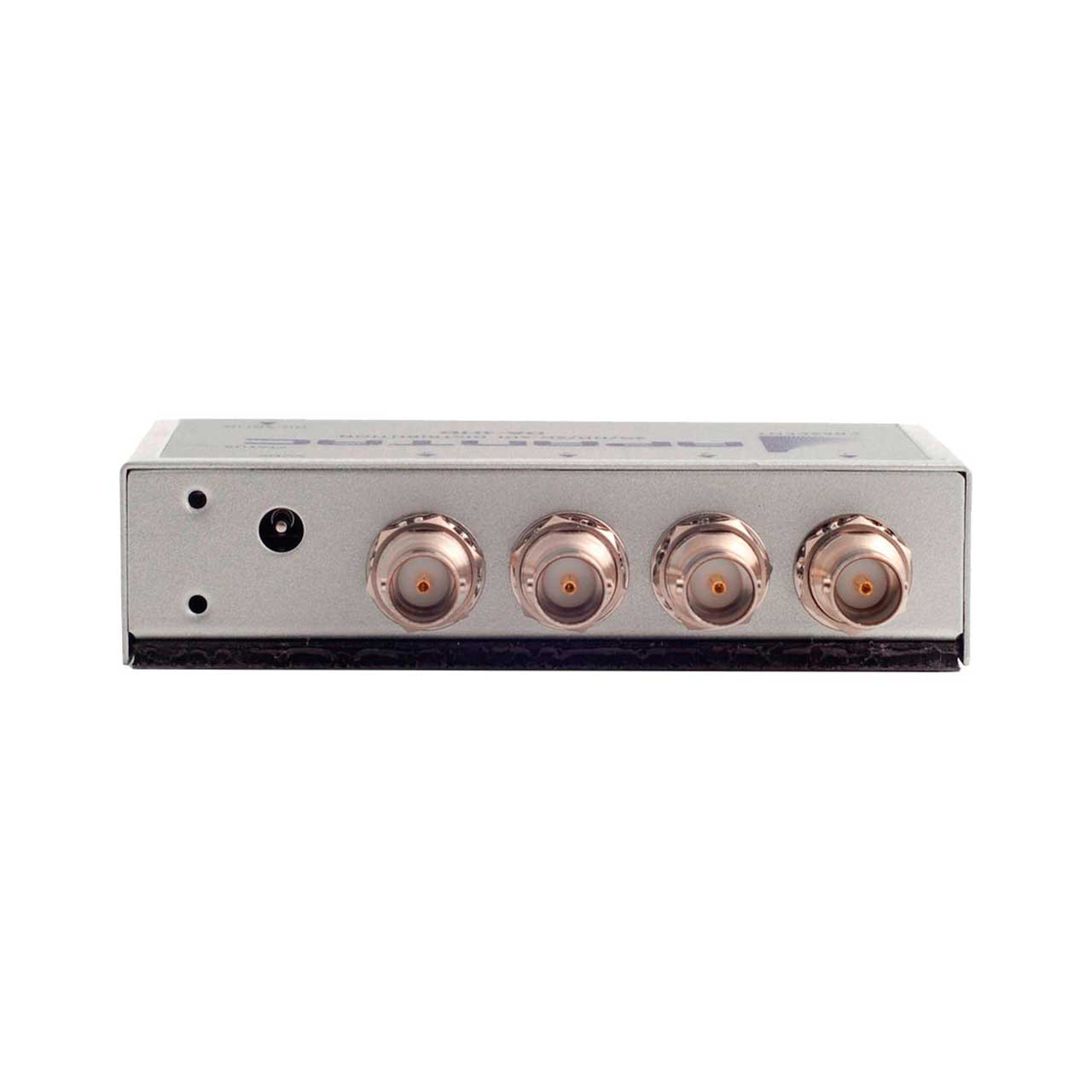

Apantac DA-4HD Stand alone One to Four Reclocking SDI Distribution Amplifier

ITEM #: APA-DA-4HD MFG #: DA-4HD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Apantac
Free Shipping with $49 Minimum Order

List Price:

$265.00

Our Price:

$248.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

DA-4HD - Overview

Stand alone One to Four Reclocking SDI Distribution Amplifier. SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant. Data rates: 125 Mbps to 2.97 Gbps. Equalizes up to 120 meters of Belden 1694A at 2.97 Gbps, up to 140 meters of Belden 1694A at 1.485 Gbps, or up to 400 meters of Belden 1694A at 270 Mbps. Supports DVB-ASI at 270 Mbps for output 1 and 3. Comes with 5 VDC, 1A Power Supply (Connector locking mechanism). 62x113x29 mm (WxDxH) - Magnetic base

  • Features:

    • Compact design
    • Reclocking
    • Compatible for 3G/HD/SD-SDI and ASI*
    • Cable reach up to 120 meters for 3G, 140 meters for HD-SDI
    • *Output 1, 3, 5 and 7


  • Specifications:

    • INPUT 1 x SDI Data Rate: 125 Mbps to 2.97 Gbps
    • OUTPUT 4 x SDI up to 2.97 Gbps
    • AUDIO Passes through 16 channels of Embedded Audio
    • POWER 5V DC
    • WEIGHT 1 lb (0.45 kg)
    • DIMENSIONS 62 mm W x 113 mm D x 29 mm H
    • MOUNT Magnetic
