Apantac KVM-IP-Rx-P KVM Receiver over IP - HDMI with POE USB Mouse & USB Keyboard over Gigabit Ethernet

KVM-IP-RX-P - Overview

• Features:

  • KVM-IP-Tx/Rx are based on Gigbit Ethernet (IGMP and Jumbo frame) technology
  • Supports up to 170 meters point to point with CAT6 cables
  • Supports up to 100 meters when using with a GigE Switch
  • Supports HDMI, DVI or analog VGA (slide switch) input and output signals
  • Supports point-to-point (Unicast), one-to-many (Multicast) for Audio/Video distribution
  • Supports KVM extension/switching connected via USB
  • Receiver unit has 4 USB ports to easily extend peripherals such as flash drives, keyboard and mouse
  • Supports data transfer (USB attached drives) from Rx to Tx
  • Supports USB touch screen extension
  • Supports bi-directional stereo audio. (Example, speakers or microphones on the Rx)
  • Supports IR transmission (Rx to Tx). (Example, IR remote control at Rx to control the DVD player or set-top box connected to Tx)
  • Supports RS-232 communication between Tx and Rx
  • Built-in webpage for basic configuration (setting of IP address, device name, Multi/Unicast, Baud Rate and etc)
  • Connection Manager Software for Tx/Rx management.
  • Supports resolution up to 1920x1080 (HDMI/VGA) / 1920X1200 (DVI).
  • EDID Copy function
  • Built-ion scaler function
  • LED status indicators
  • Plug-and-play


• Specifications:

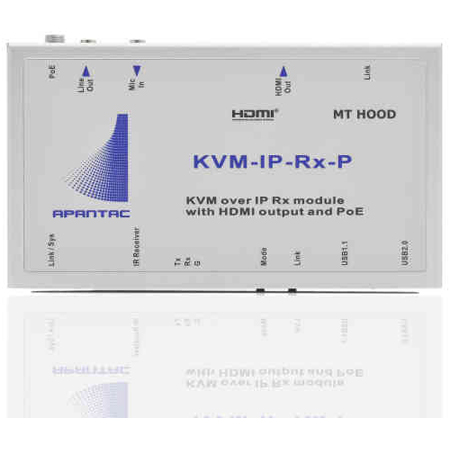

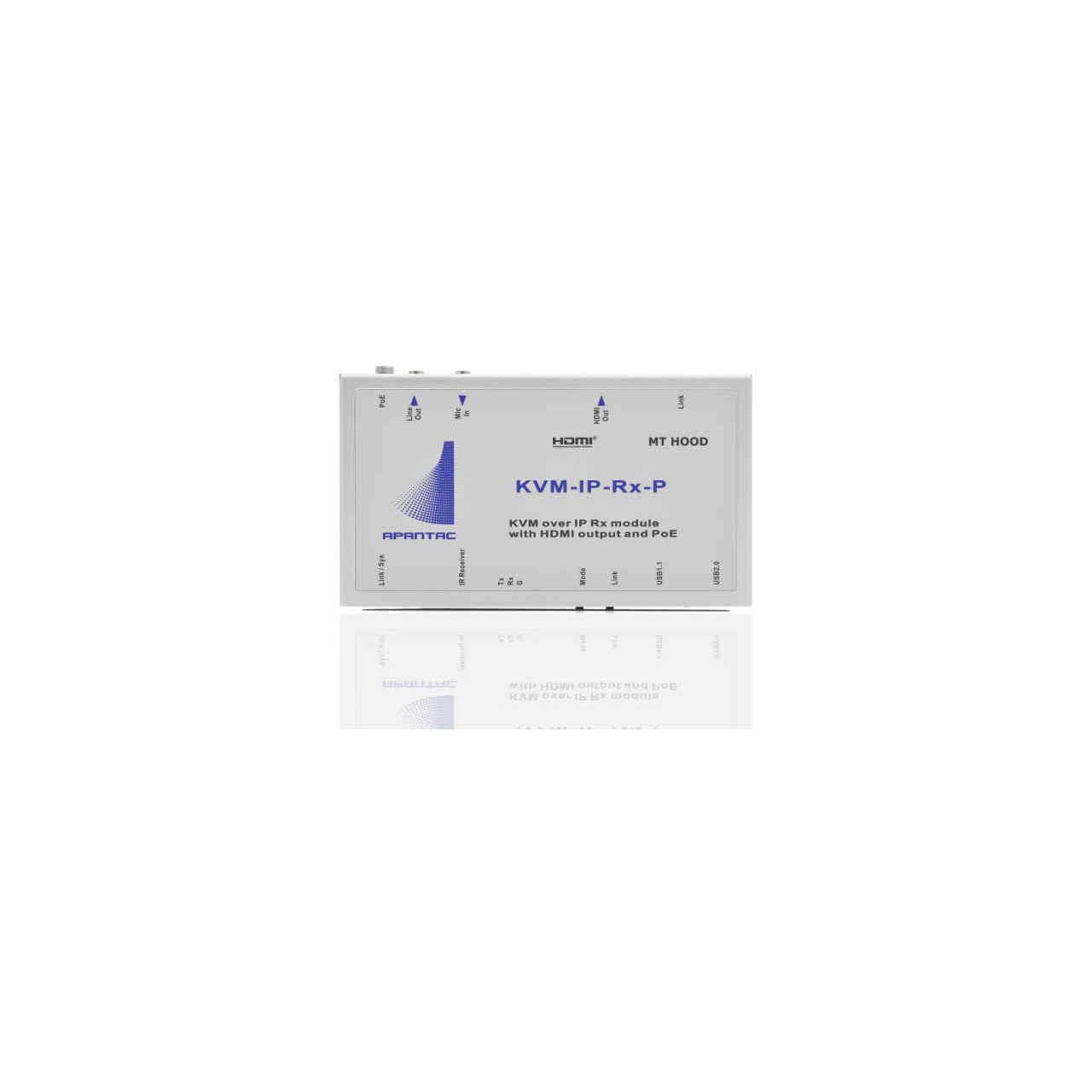

  • Front View
    1x System Status LED
    1x Link Status LED
    1x IR Receiver
    1x 3 Pin - RS-232
    2x buttons - Function & Mode
    2x USB Type A inputs - 2 HID
    2x USB Type A inputs - 2 USB 2.0

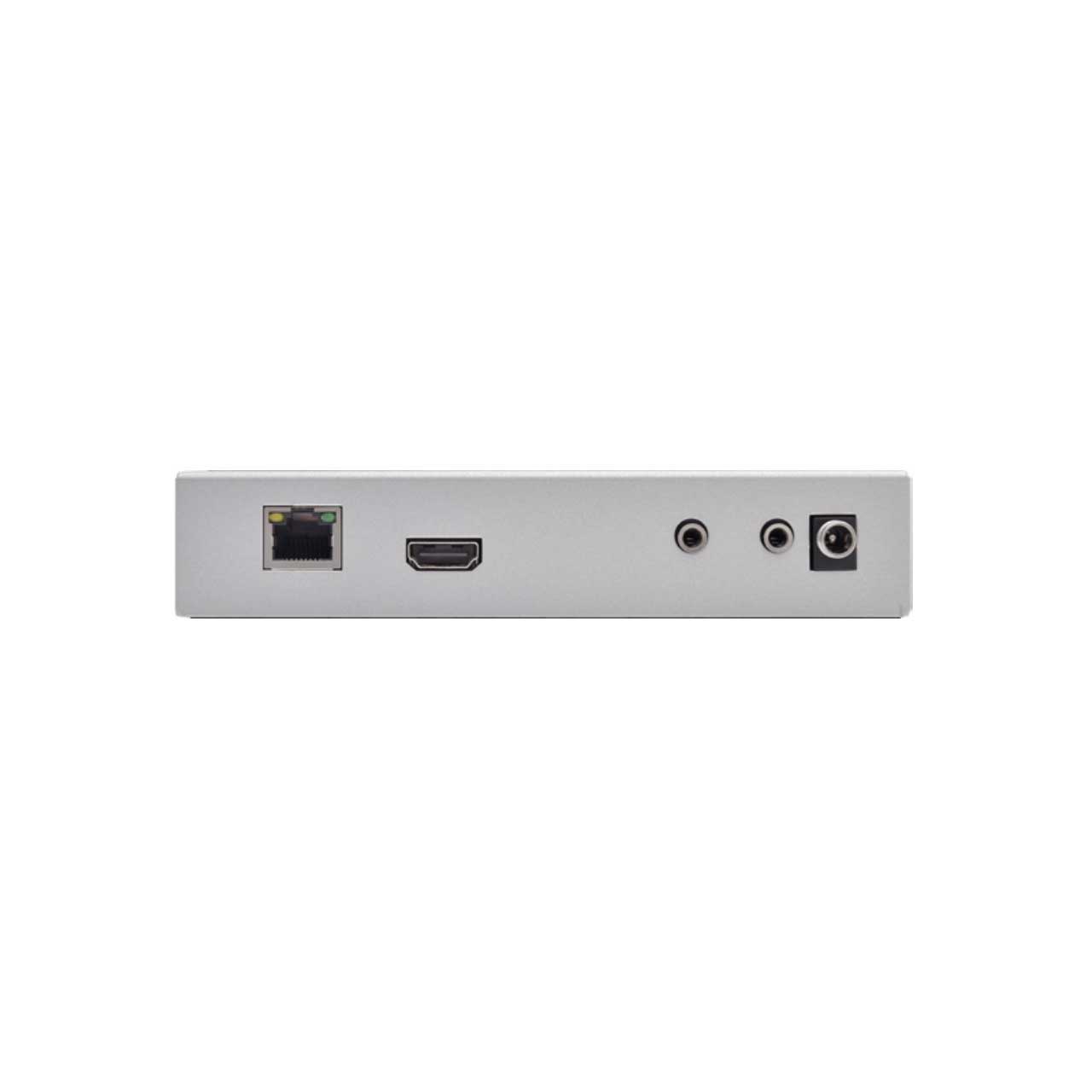

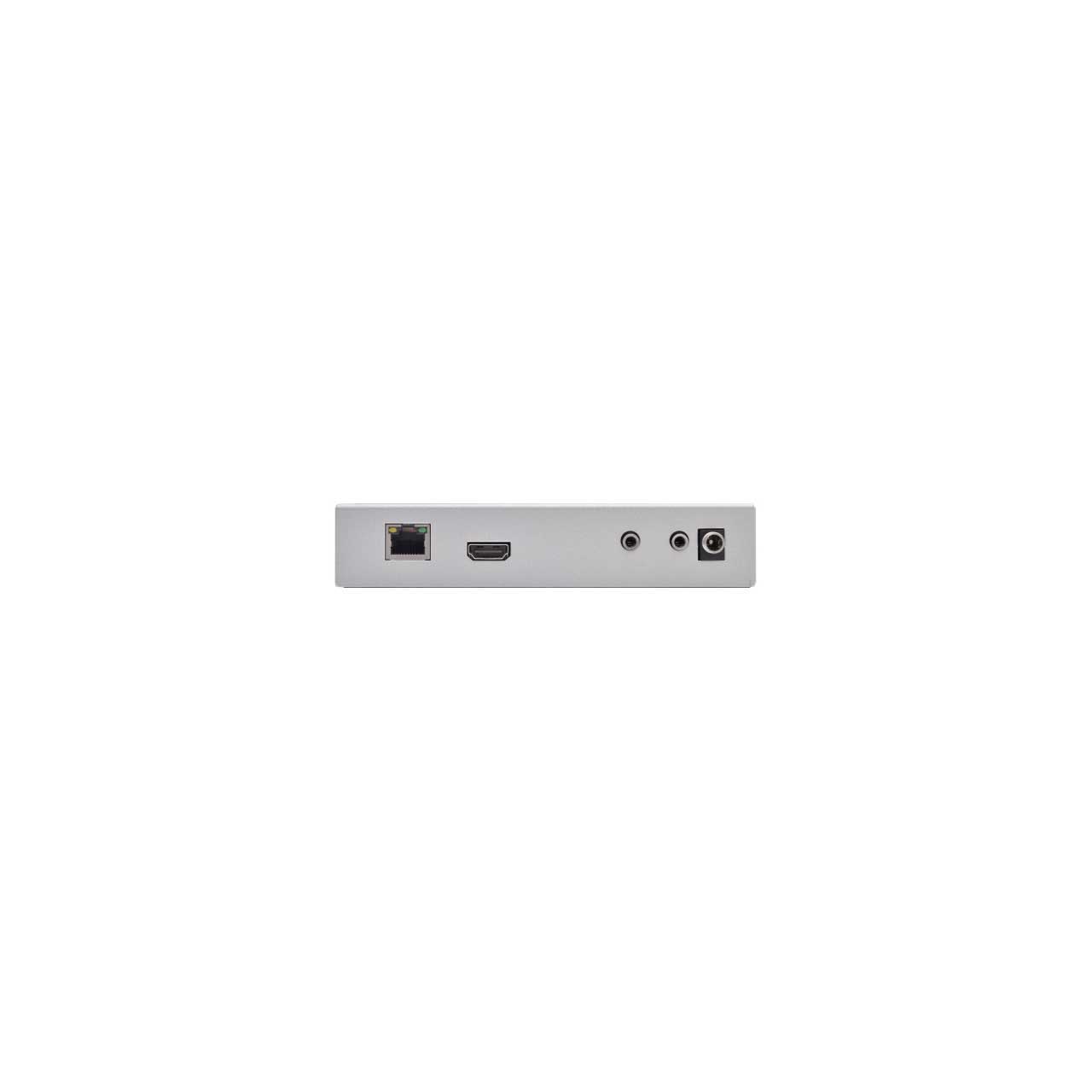

  • Back View
    1x RJ45 Link In with POE
    1x HDMI Output
    1x phone jack - Microphone In
    1x phone jack - Audio Line Out
    1x 24V DC (Optional)
  • Video
    Input: RJ45
    Output: HDMI
  • Audio
    Input: 3.5 mm Stereo Phone Jack
    Output: N/A
  • Microphone Input: 3.5 mm Stereo Phone Jack
  • USB
    TX: N/A
    RX: 4x USB Type A (Female)
  • System Link
    Input: RJ45
    Output: N/A
  • RS-232 Baud Rate: 3-pin Pheonix Connector / up to 115,200 bps / Full Duplex
  • Video Resolution: Maximum 4K/UHD@30Hz
  • Interconnect Cable: Standard CAT6/CAT6a/CAT7 network cable
  • Maximum Cable Length: 170m point to point, 100m when connected to a switch
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 185°F (-20° to 85°C)
  • Environmental Humidity: 0 to 80% (non-consensing)
  • Power: DC 12V, 1.5A
  • Power Consumption: 400 mA
  • Weight: 1.32Lbs (600g)
  • Dimension: 6.03 x 3.47 x 1.24" (153.4 x 88.2 x 31.5mm)


• Item Includes:

  • 1x KVM-IP-RX-P Receiver


• Warranty:

  • 1 Year
