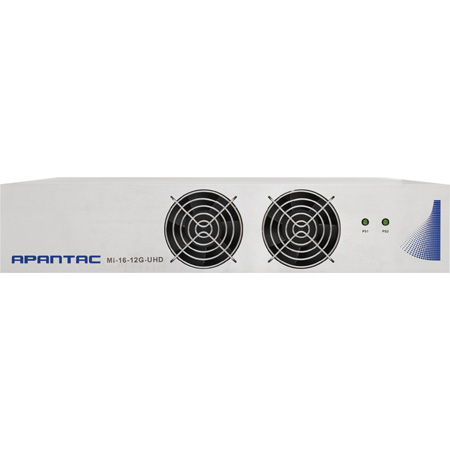

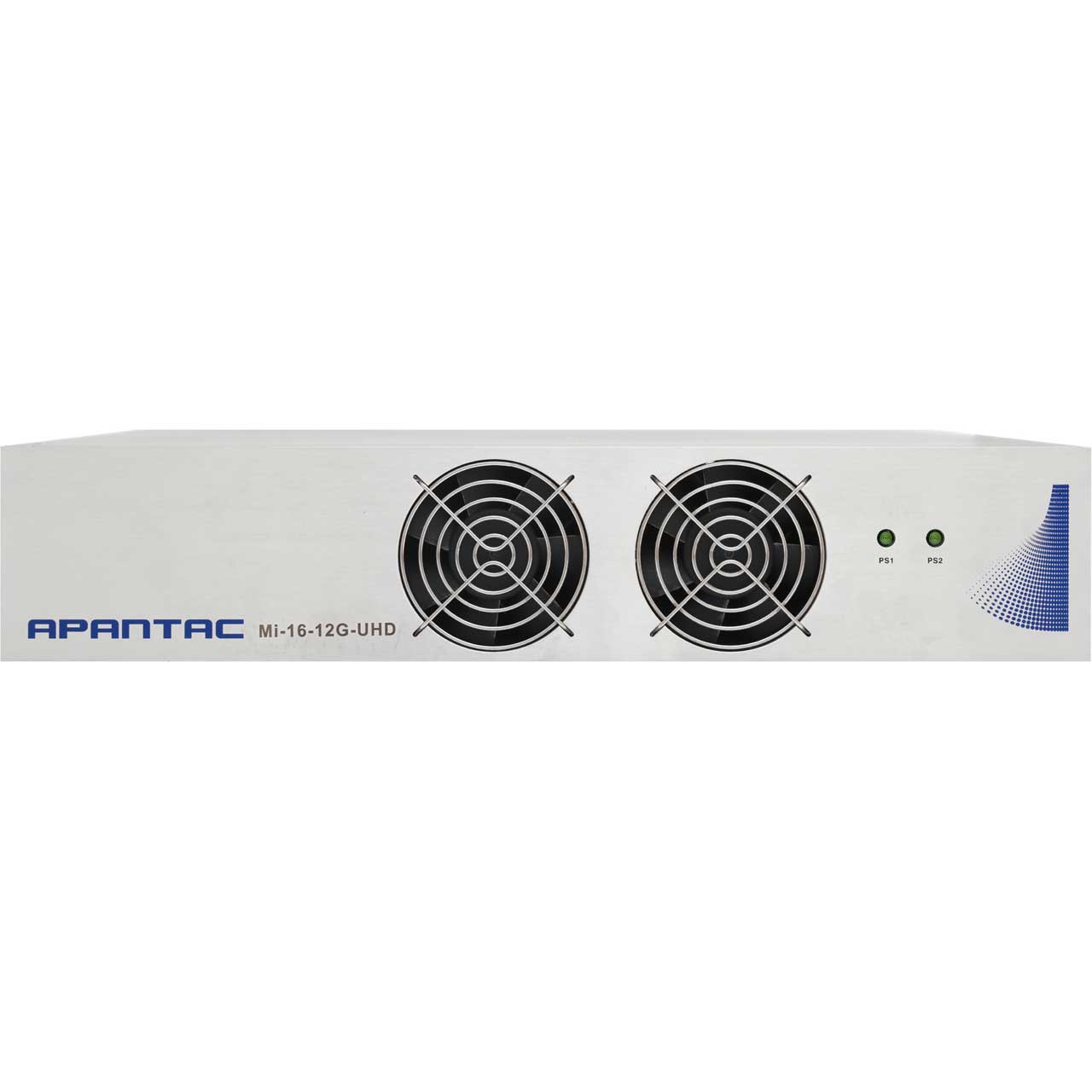

Apantac Crescent MI-16 12G-UHD 2RU 16x1 12G/3G/HD-SDI Input Multiviewer with HDMI 2.0 (UHD) Output

ITEM #: APA-MI-16-12GUHD MFG #: MI-16 12G-UHD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$12,125.00

Our Price:

$11,515.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MI-16 12G-UHD - Overview

Apantac MI-16 12G-UHD 16x1 multiviewer in 2 RU with UHD Output. Accepts 16 x 12G, 3G, HD SDI Inputs, auto detect. One Output available in 50/60 Hz as HDMI 2.0 (2160p), 12G SDI and down converted 3G SDI. Windows can have multiple sizes and can be moved freely. UMDs, OMDs and standalone labels. Analog, Digital Clocks/Counters and Logos. 32 GPI for tally/presets. Supports the TSL protocol over IP and serial. 30 internal presets.

  • Features:

    • Low latency - single frame processing delay
    • Low energy - only uses 75 W of power
    • Accepts 16 auto-detect 12G/3G/HD-SDI Inputs
    • Supports 16 2SI or 8 square division
    • Windows can be sized and moved freely
    • Decodes up to 16 embedded audio per Input
    • Total of 128 audio meters
    • 1 x HDMI 2.0 (UHD) Output, 1 x HDMI 1.4 (1080P) Output
    • 1 x 12G-SDI and 1 x 3G-SDI Output
    • Output resolution up to 3840x2160@60Hz
    • Ethernet for configuration and external control
    • Dynamic UMD/Label and Tallies (TSL)
    • Standalone labels and 2 customizable logos
    • 2 digital and 2 analog clocks can by synced with LTC or NTP
    • 32 GPIs for tallies, count up/down triggers or preset recalls
    • Borders can be turned on or off
    • 2 sets of safe area markers
    • Visual alarm tags for format, video/audio presence
    • Audio monitoring Outputs - stereo, AES, SDI or HDMI
    • 2 RU with standard redundant power supply
    • 3 year limited warranty

  • Specifications:

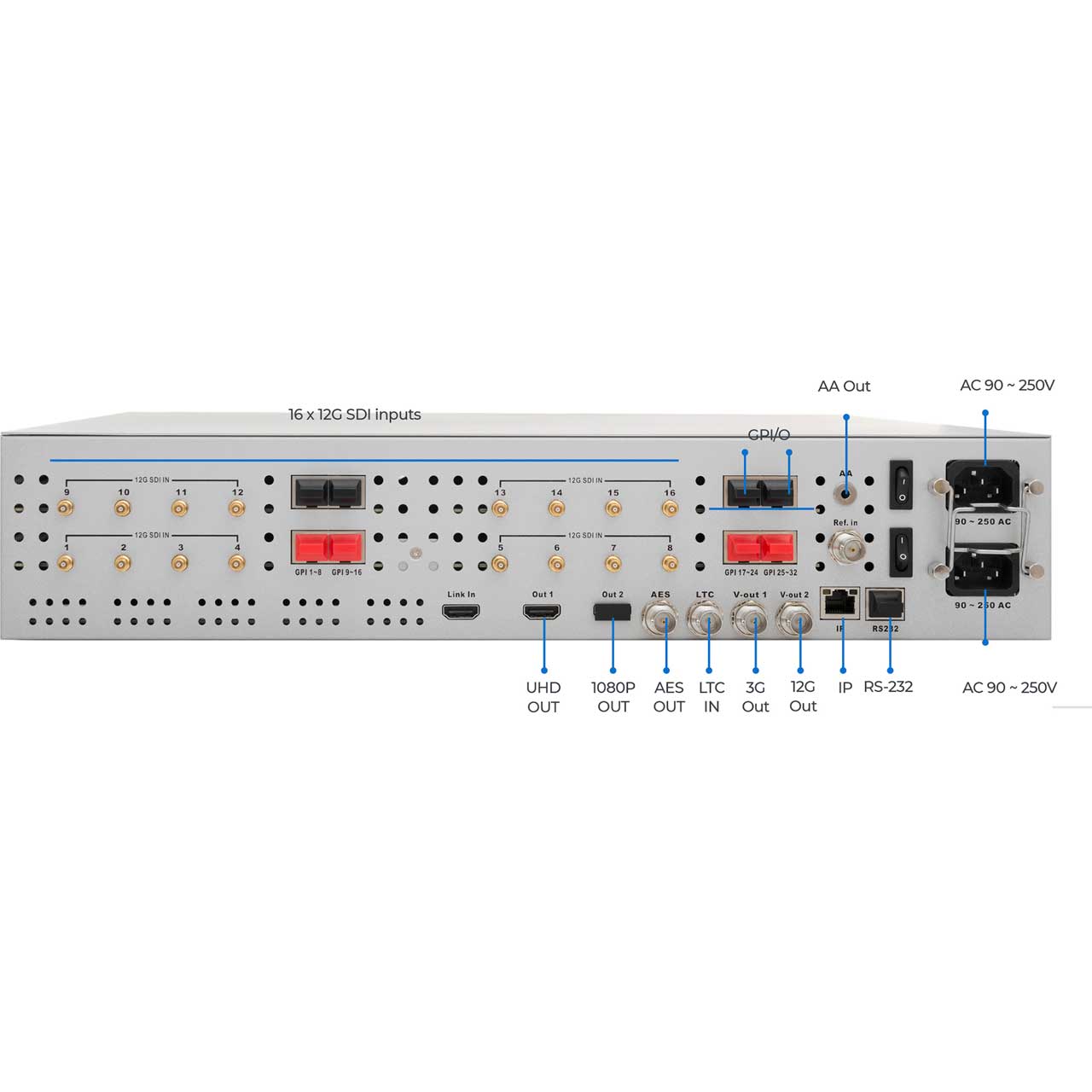

    • Video Inputs: Up to 16 12G/3G/HD-SDI. Outputs 1x HDMI 2.0, 1 x HDMI 1.4, 1 12G, 1 3G
    • Connectors: BNC IEC, 61169-8 Annex A Output Resolutions 3840x 2160 and 1920x1080P@50/60Hz
    • Total Windows: 16
    • On Screen Displays: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
    • Serial Digital: SMPTE ST-2082
    • General Purpose IO: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
    • Equalization: 70 m at 11.88 Gbps, 120m at 2.97 Gbps, 140m at 1.485 Gbps
    • Serial Port: RS-232. Connector: RJ45, Baud Rate up to 115,200. Format: TSL, AXP
    • Electrical: 100 W, 90 ~ 250 V 50/60 Hz
    • EMI/RFI: Complies with FCC Part 15 Class A, CE, EU, EMC, C-tick
    • Size / Weight: 2 RU. 446 x 452 x 87 mm (L x W x H)
    • Alarms: No audio, no video, video formats Environment
    • Operating Temperature: 0 ~ 45 C
    • Operating Humidity: 20 ~ 90% RH
    • Storage Temperature: -20 ~ 60 C

  • Item Includes:

    • 1x Apantac MI-16 12G-UHD 2RU 16x1 12G/3G/HD-SDI Input Multiviewer with HDMI 2.0 (UHD) Output
    • 1x Rack-mounts
    • 4x RJ50 to DB9 cables for GPI
    • 4x Breakout terminal blocks
    • 1x RJ45 to DB9 cable for serial (RS-232)
    • 1x Analog audio breakout cable

  • Warranty:

    • 3 year limited warranty
