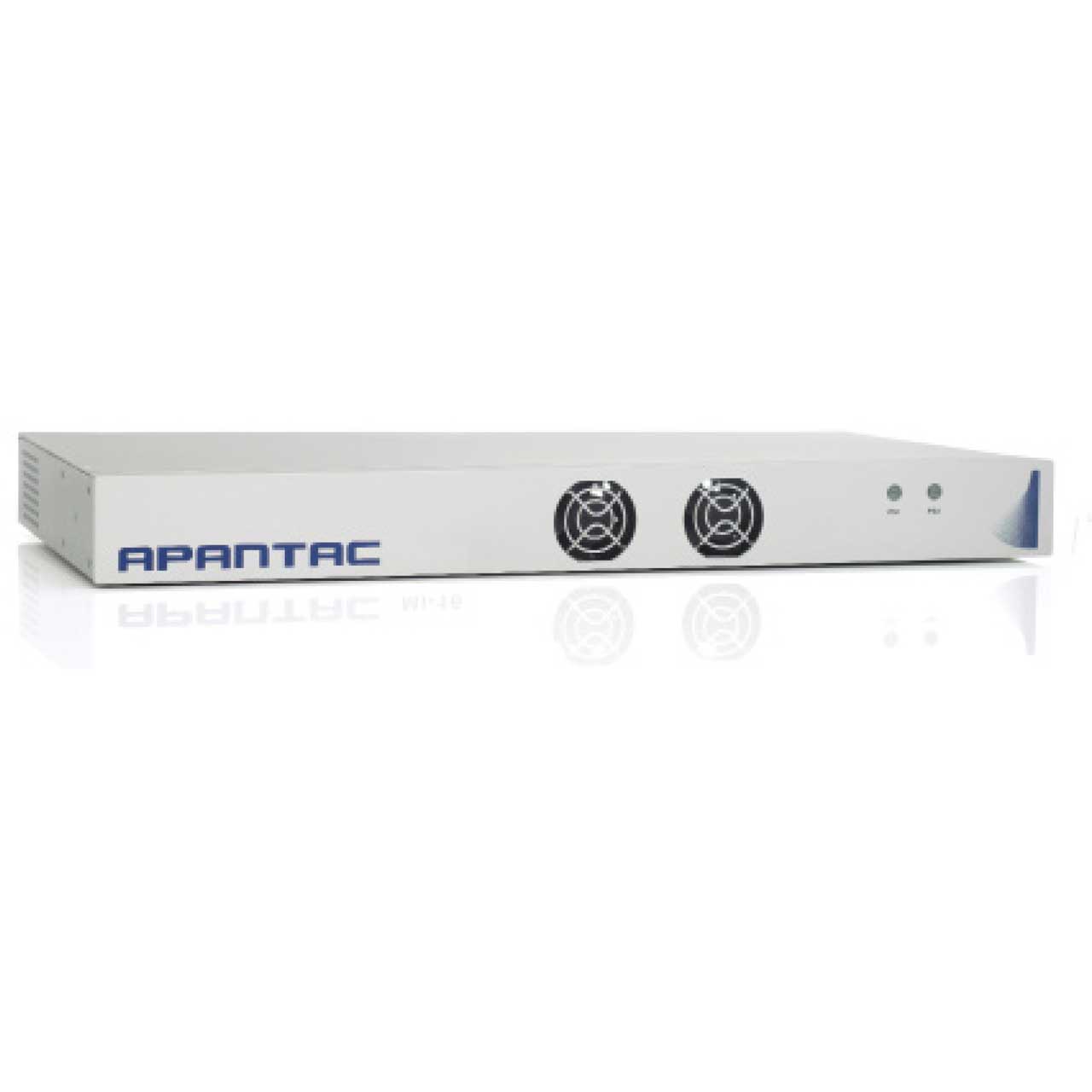

Apantac MI-8 12G 1RU 8x1 12G/3G/HD-SDI Input Multiviewer

MI-8-12G - Overview

• Features:

  • Low latency - single frame processing delay
  • Low energy - only uses 15W of power
  • Accepts 8 auto-detect 12G/3G/HD-SDI inputs
  • Supports 8 2SI or 4 square division
  • Windows can be sized and moved freely
  • Decodes up to 16 embedded audio per input
  • Total of 64 audio meters
  • 2 simultaneous and identical HDMI and SDI outputs
  • Output resolution up to 1080P@60Hz
  • Ethernet for configuration and external control
  • Dynamic UMD/Label and Tallies (TSL)
  • Standalone labels and 2 customizable logos
  • 2 digital and 2 analog clocks can by synced with LTC or NTP
  • 32 GPIs for tallies, count up/down triggers or preset recalls
  • Borders can be turned on or off
  • 2 sets of safe area markers
  • Visual alarm tags for format, video/audio presence
  • Audio monitoring outputs - stereo, AES, SDI or HDMI
  • 1 RU with optional redundant power supply
  • Optional redundant power supply
  • 3 year limited warranty


• Specifications:

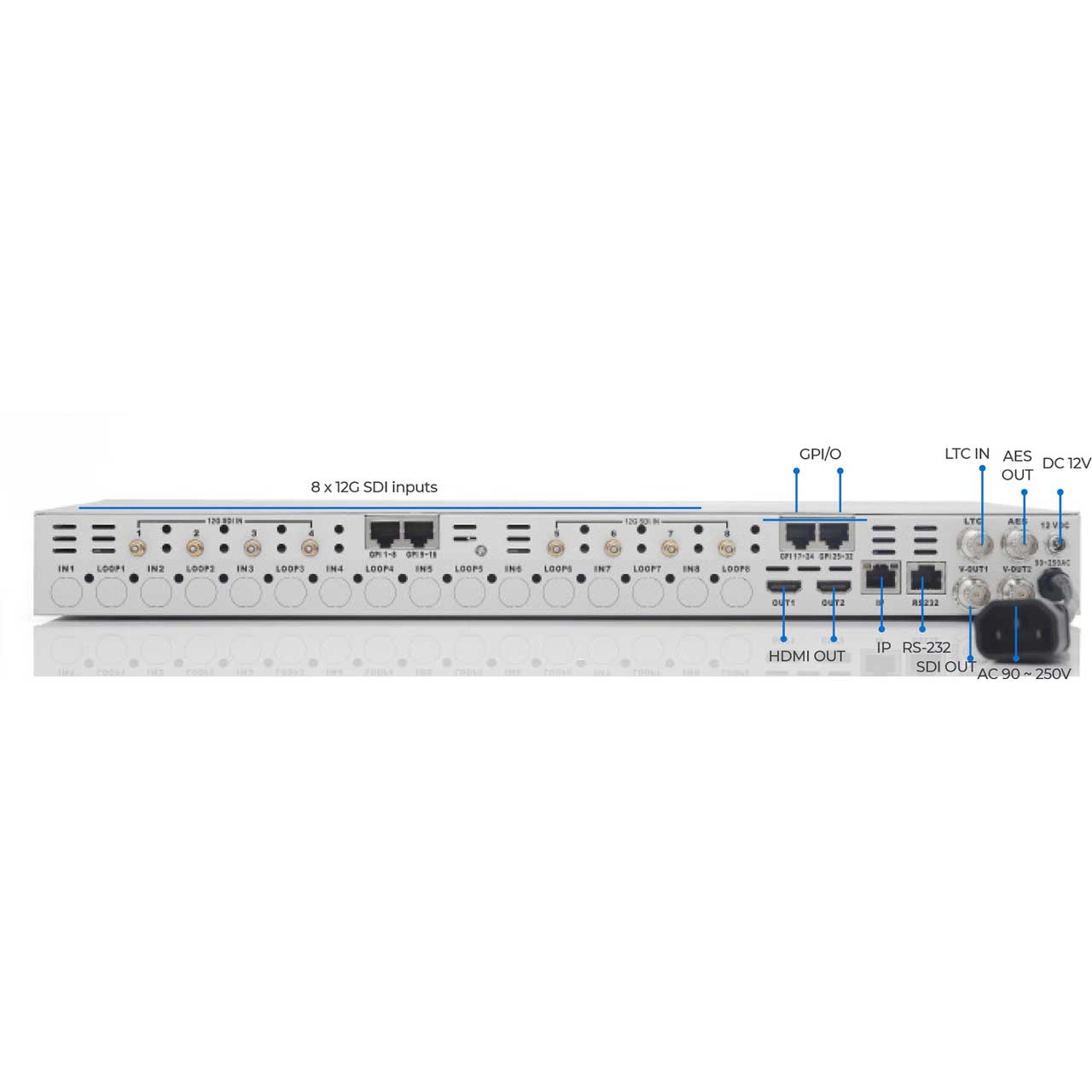

  • Video Inputs: Up to 8 12G/3G/HD-SDI.
  • Video Outputs: 2 HDMI 1.4 + 2 SDI
  • Connectors: BNC IEC, 61169-8 Annex A
  • Output Resolutions: 1920x1080P@50/60Hz
  • Total Windows: 4, 8
  • On Screen Displays: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
  • Serial Digital: SMPTE ST-2082
  • General Purpose IO: Borders, labels (4 per window), fonts, tally LED, analog and digital clocks, logos, UMD, OMD, IMD
  • Equalization: 70 m at 11.88 Gbps, 120m at 2.97 Gbps, 140m at 1.485 Gbps
  • Serial Port: RS-232. Connector: RJ45, Baud Rate up to 115,200. Format: TSL, AXP
  • Electrical: 100 W, 90 ~ 250 V 50/60 Hz
  • EMI/RFI: Complies with FCC Part 15 Class A, CE, EU, EMC, C-tick
  • Size: 1 RU. 446 x 452 x 87 mm (L x W x H)
  • Alarms: No audio, no video, video formats Environment
  • Operating Temperature: 0 ~ 45 C
  • Operating Humidity: 20 ~ 90% RH
  • Storage Temperature: -20 ~ 60 C


• Item Includes:

  • 1x Apantac MI-8 12G 1RU 8x1 12G/3G/HD-SDI Input Multiviewer
  • 1x Rack-mounts
  • 4x RJ50 to DB9 cables for GPI
  • 4x Breakout terminal blocks
  • 1x RJ45 to DB9 cable for serial (RS-232)
  • 1x Analog audio breakout cable


• Warranty:

  • 3 year limited warranty
