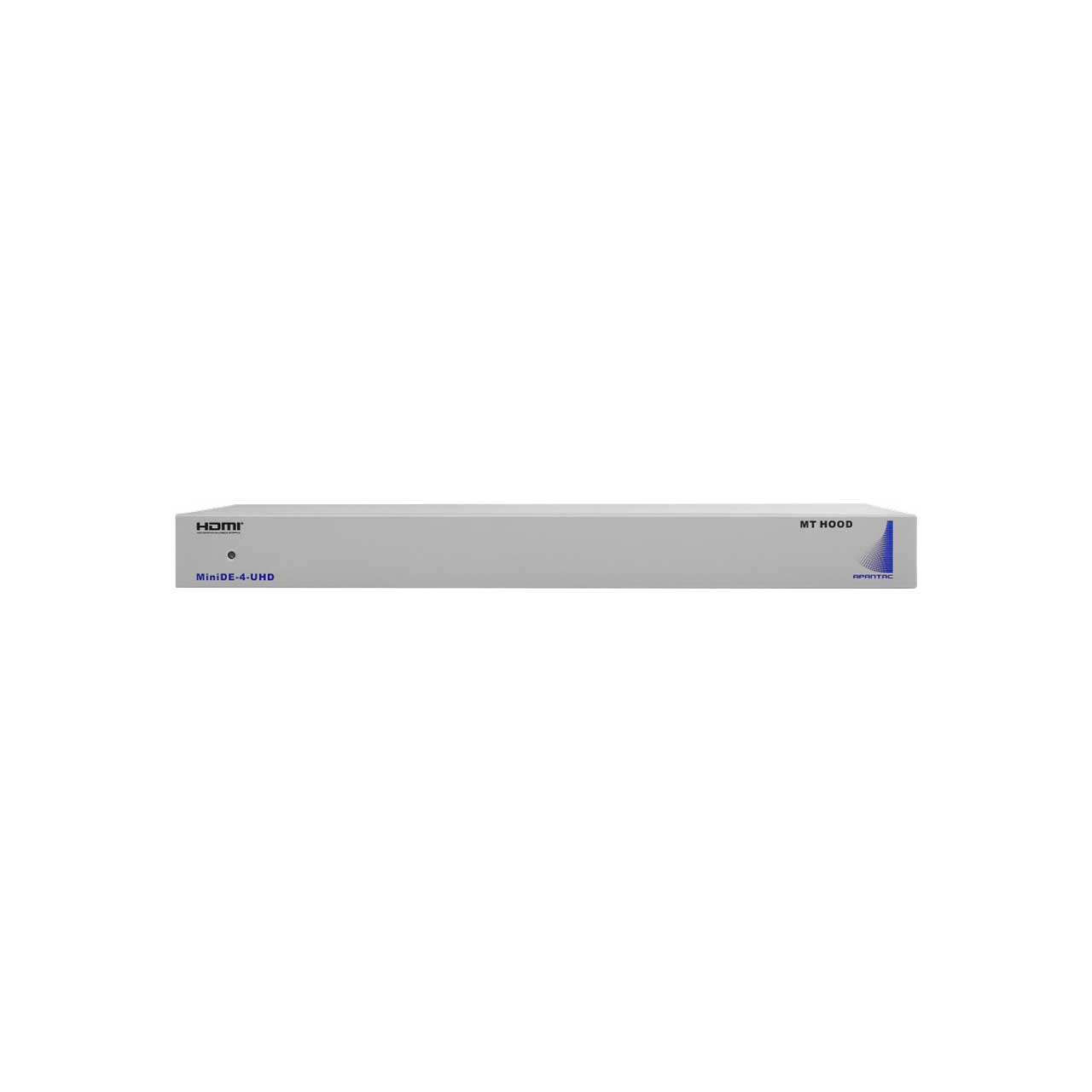

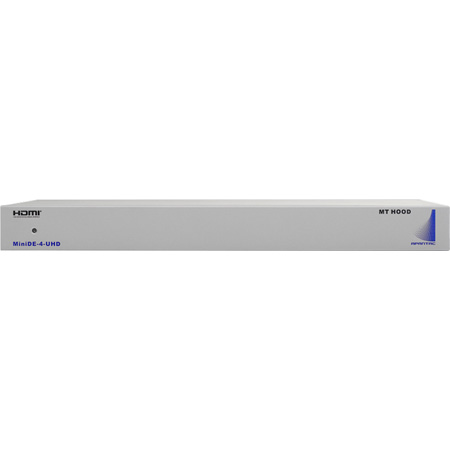

Apantac MiniDE-4-UHD 4K/UHD Compact HDMI 2.0 Multiviewer

MINIDE-4-UHD - Overview

• Features:

  • Can display up to 4 source windows
  • Supports 4 x HDMI inputs (HDMI/DVI resolutions up to 4096x2106p60)
  • Window position, size and aspect ratio can be adjusted freely (auto-source aspect ratio can be enabled)
  • Built-in web interface
  • Can be controlled externally with ASCII protocols over serial and IP
  • Supports true 4K/UHD inputs up to 4K@60Hz at 4:4:4
  • Supports true 4K/UHD output up to 4K@60Hz at 4:4:4
  • Supports deep color, HDCP 1.4 and 2.2
  • Supports Dolby Digital 5.1 and uncompressed 7.1
  • Analog stereo audio monitoring output
  • 2 predefined and 8 custom layout presets


• Specifications:

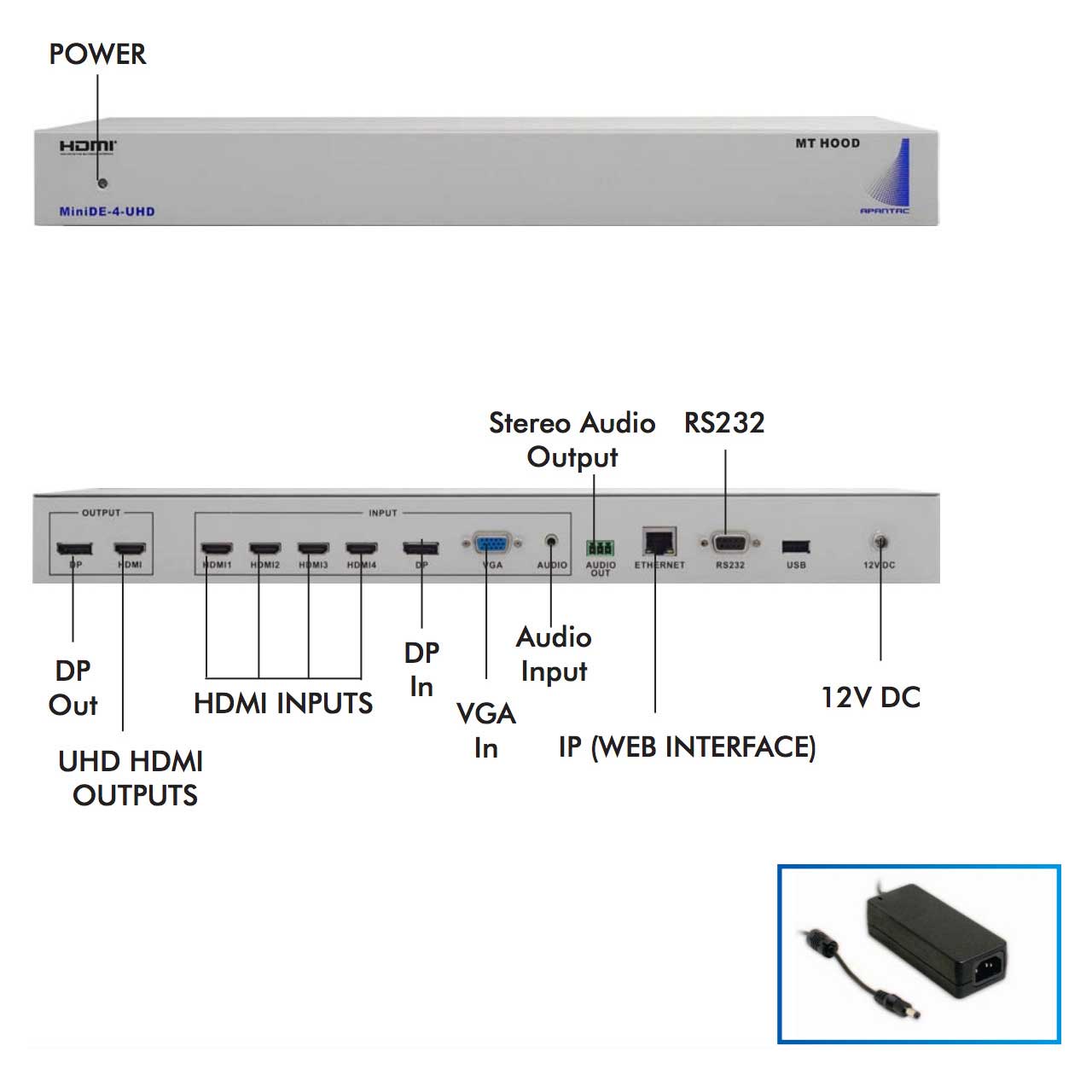

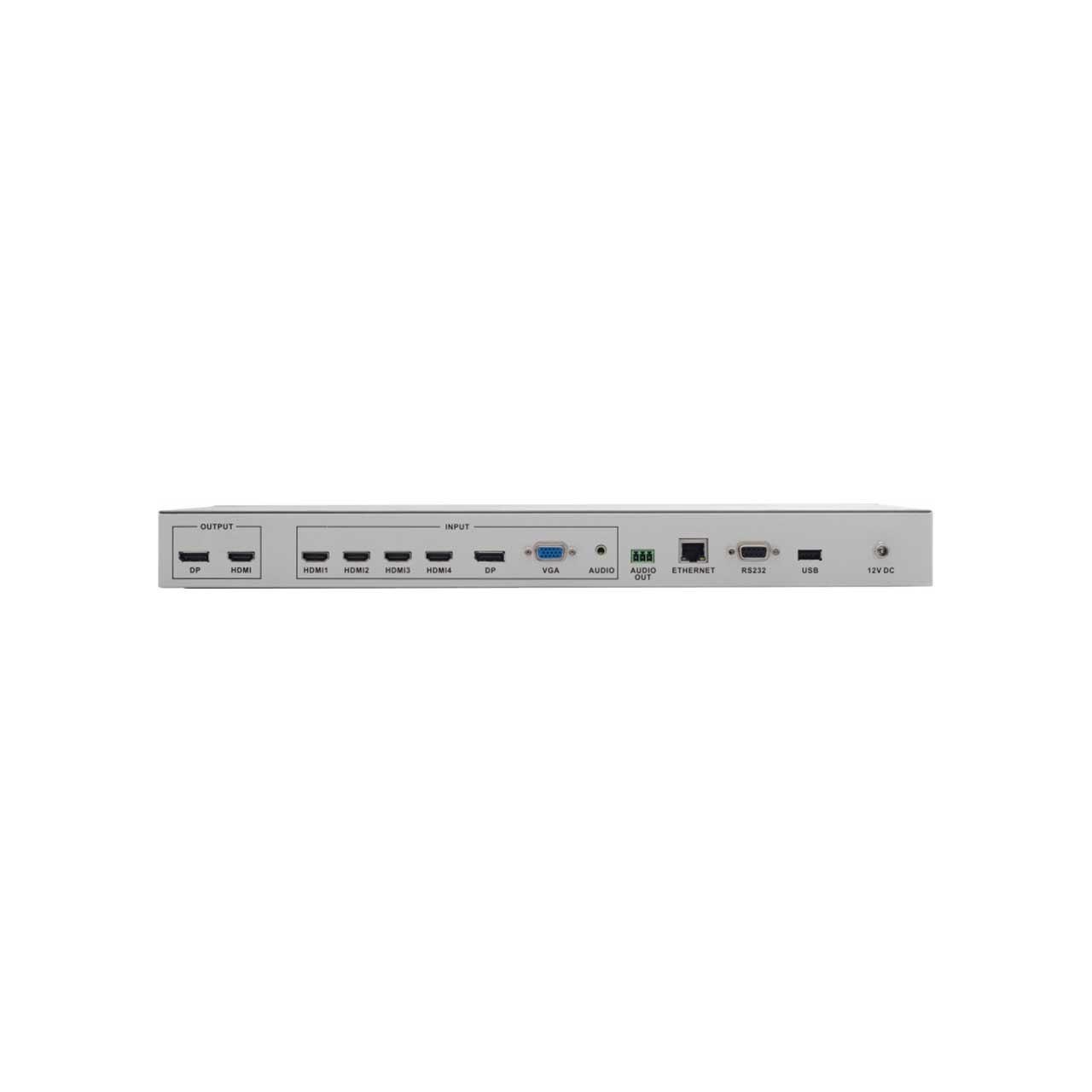

  • Inputs: 4x HDMI 2.0
  • Output: HDMI 2.0 UHD 4:4:4 with quad-split multiviewer
  • Max Resolution: 4096x2160 @ 60Hz 4:4:4
  • Power: DC 12V, 3.34A, 40W
  • Power Consumption: 15W
  • Dimension (LxWxH): 1RU - 17.34 x 9.05 x 1.78"
  • Weight: 6 lb

    Environment
  • Operating temperature: 32 to 113°F
  • Operating humidity: 20 - 90% RH
  • Storage temperature: -4 to 140°F
