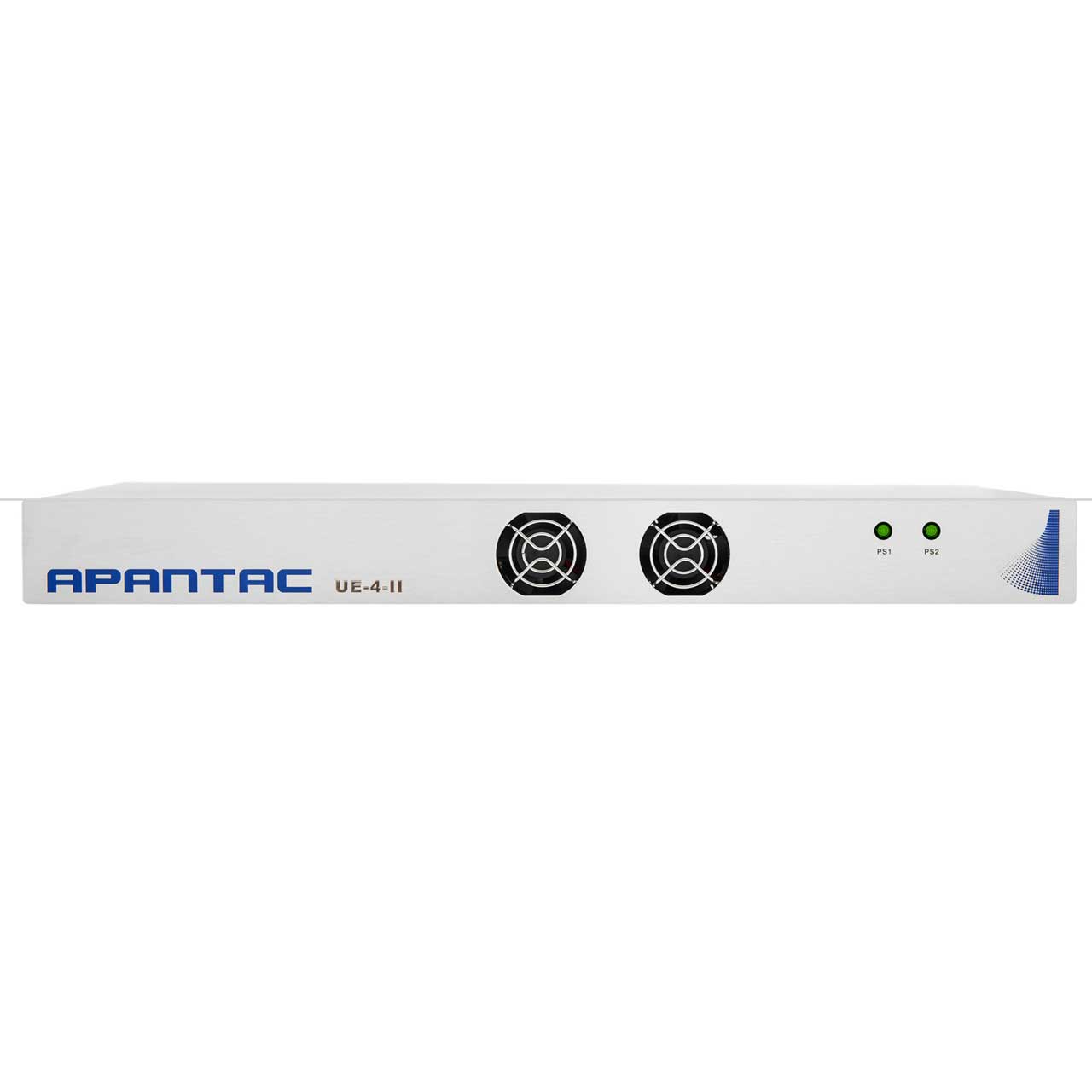

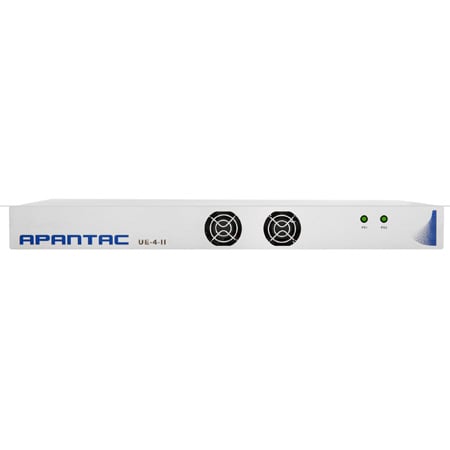

Apantac Crescent UE-4-II 1RU 4 HDMI 2.0 Input Multiviewer with HDMI 2.0 (UHD) Output

UE-4-II - Overview

• Features:

  • Low latency - single frame processing delay
  • Low energy - only uses 55W of power
  • Accepts UHD (HDMI 2.0) Inputs
  • Windows can be sized and moved freely
  • 1 x HDMI 2.0 (UHD) Output, 1 x HDMI 1.4 (1080P) Output
  • 1 x 12G-SDI and 1 x 3G-SDI
  • Output resolution up to 3840x2160@60Hz
  • Ethernet for configuration and external control
  • Dynamic UMD/Label and Tallies (TSL)
  • Standalone labels and 2 customizable logos
  • 2 digital and 2 analog clocks can by synced with LTC or NTP
  • 32 GPIs for tallies, count up/down triggers or preset recalls
  • Borders can be turned on or off
  • 2 sets of safe area markers
  • Visual alarm tags for format, video/audio presence
  • Audio monitoring Outputs - stereo, AES, SDI or HDMI
  • 1 RU with optional redundant power supply
  • 3 year limited warranty


• Specifications:

  • Model: UE-4-II
  • Description: 4 HDMI 2.0 UHD multiviewer with advanced on-screen display (OSD)

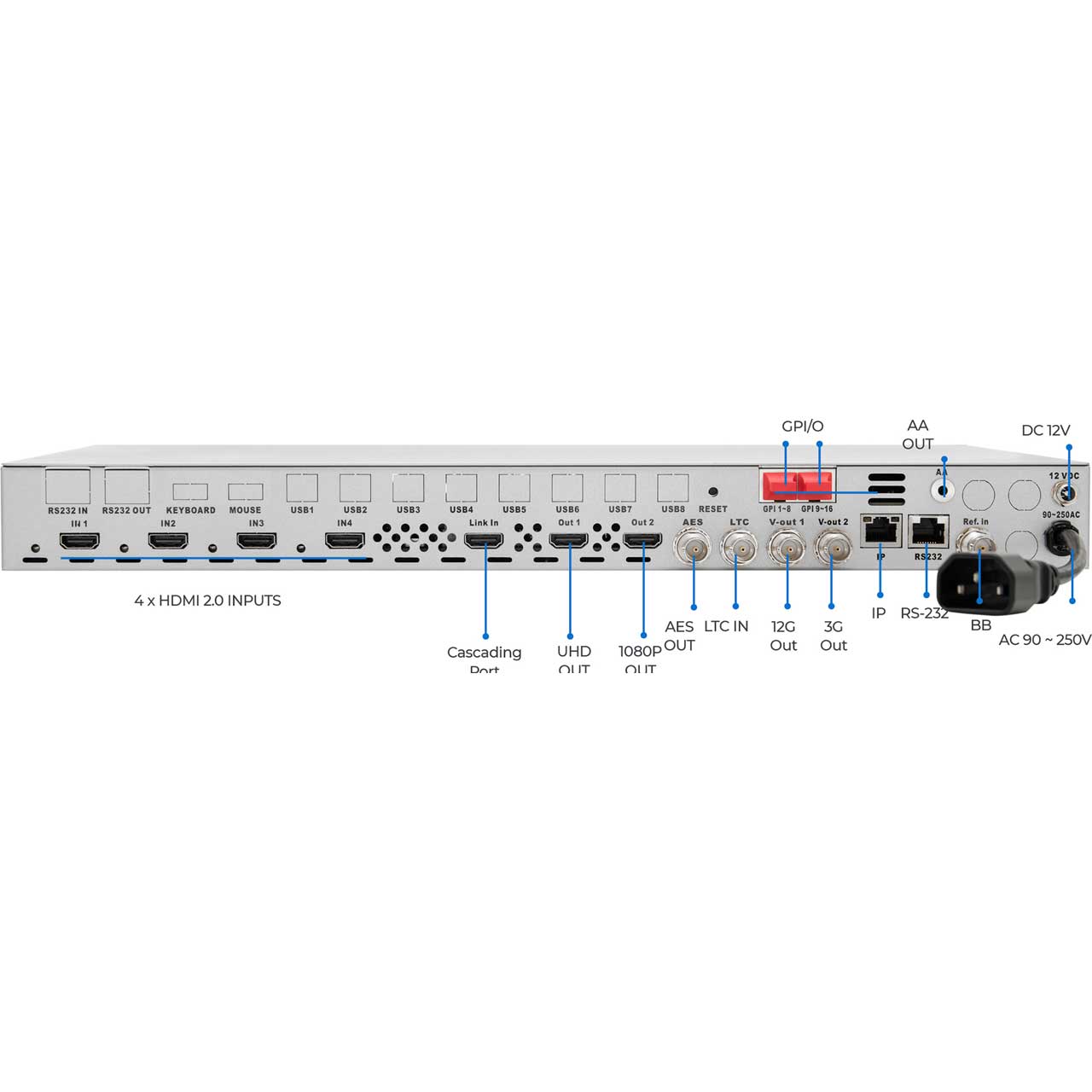

  • Inputs: 4 x HDMI 2.0 with 1 x HDMI 2.0 cascading Input
  • Output: 1 x HDMI 2.0, 1 x HDMI 1.4
  • Max Resolution: 4096x2160 @ 60Hz 4:4:4
  • Power: AC 90 to 240V, optional DC redundant power supply
  • Power Consumption: 55W

    Environment
  • Operating temperature: 0 ~ 45 C
  • Operating humidity: 20 ~ 90% RH
  • Storage temperature: -20 ~ 60 C

    Dimensions
  • Size: 1RU. 446 x 452 x 87 mm (L x W x H)
  • Weight: 4.3 kg


• Item Includes:

  • 1x Apantac UE-4-II 1RU 4 HDMI 2.0 Input Multiviewer with HDMI 2.0 (UHD) Output
  • 1x Rack-mounts
  • 4x RJ50 to DB9 cables for GPI
  • 4x Breakout terminal blocks
  • 1x RJ45 to DB9 cable for serial (RS-232)
  • 1x Analog audio breakout cable


• Warranty:

  • 3 year limited warranty
