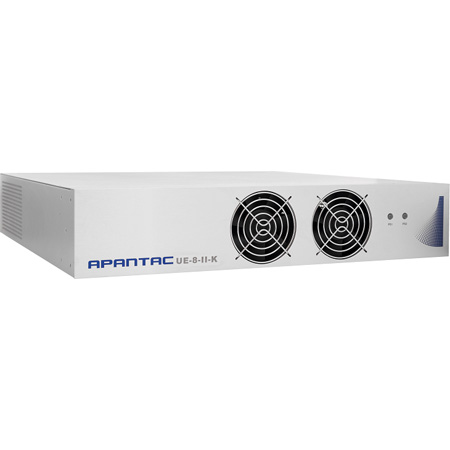

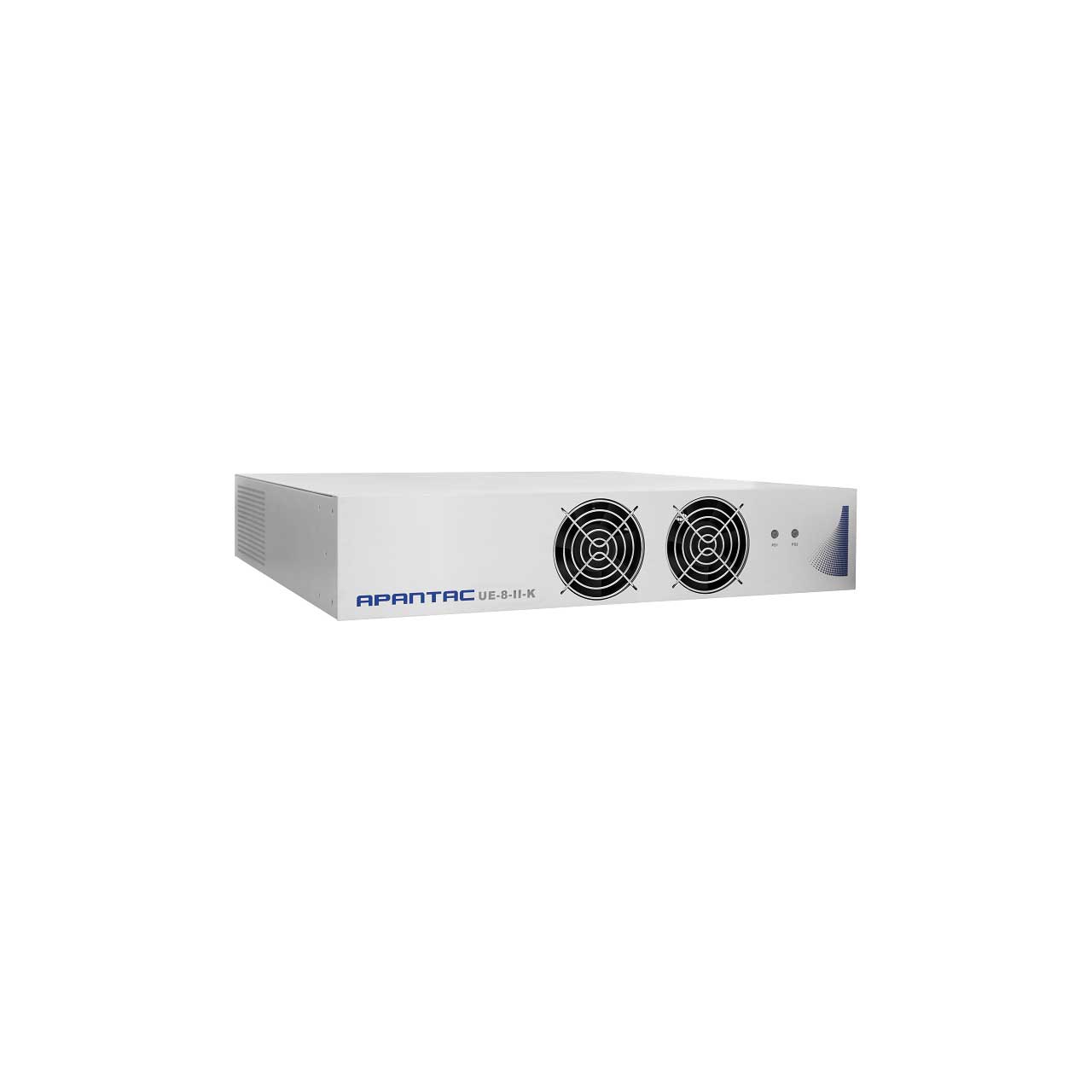

Apantac Crescent UE-8-II-K 8 Input 4K/UHD HDMI Multiviewer with Advanced On-Screen Display (OSD) and KVM

UE-8-II-K - Overview

• Features:

  • 8x HDMI 2.0 inputs
  • Built-in KVM functionality
  • 2x HDMI 2.0 outputs
  • Windows can be sized and moved freely
  • Decodes up to 8 embedded audio per HDMI input
  • Ethernet for configuration and external control
  • Dynamic UMD/Labels & Tally (TSL)
  • Standalone labels
  • Customizable logos
  • 16 GPI triggers for Tally and count up/down triggers or preset recalls
  • 1 digital and 1 analog clocks can be sync'ed with LTC and NTP
  • Borders can be turned on or off
  • Visual alarm tags for video/audio detection and resolution
  • 2 rack units
  • Redundant power supplies
  • 3 year limited warranty


• Specifications:

  • Model: UE-8-K
  • Description: 8 input UHD HDMI multiviewer with advanced on-screen display (OSD) and KVM
  • Inputs: 8x HDMI
  • Output: 2x HDMI 2.0 UHD 4:4:4 with quad-split multiviewer
  • Control Inputs: 8 USB Type B to connect to computers
  • Control Outputs: 2 USB Type A connectors for keyboard and mouse
  • Max Resolution: 4096x2160 @ 60Hz 4:4:4
  • Power Redundant: AC inlet, 90 to 240V
  • Power Consumption: 70W

    Environment
  • Operating Temperature: 0 ~ 45 C
  • Operating Humidity: 20 ~ 90% RH
  • Storage Temperature: -20 ~ 60 C

    Weight/Dimensions
  • Size: 2RU. 446 x 452 x 87 mm (L x W x H)
  • Weight: 8.6 kg


• Item Includes:

  • 1x Apantac UE-8-II-K 8 Input 4K/UHD HDMI Multiviewer with Advanced On-Screen Display (OSD) and KVM


• Warranty:

  • 3 year limited warranty
