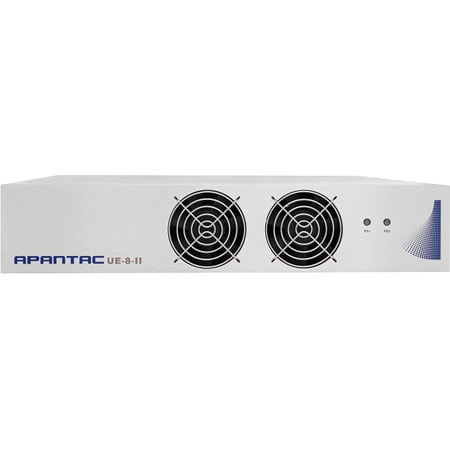

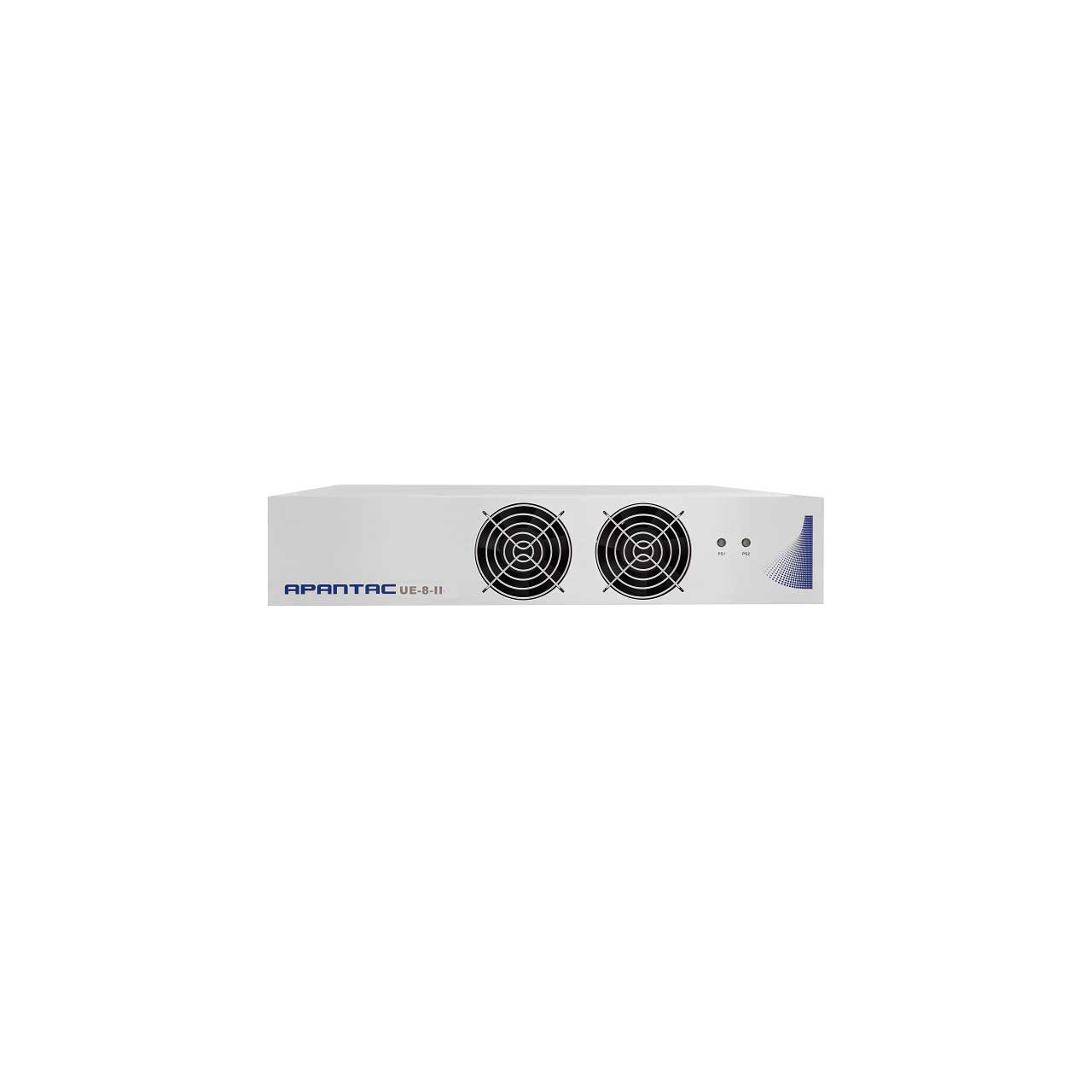

Apantac Crescent UE-8-II 2RU 8 HDMI 2.0 Input Multiviewer with HDMI 2.0 (UHD) Output

UE-8-II - Overview

• Features:

  • 8 x HDMI 2.0 Inputs
  • 2 x HDMI 2.0 Outputs
  • Windows can be sized and moved freely
  • Decodes up to 8 embedded audio per HDMI Input
  • Ethernet for configuration and external control
  • Dynamic UMD/Labels & Tally (TSL)
  • Standalone labels
  • Customizable logos
  • 16 GPI triggers for Tally and count up/down triggers or preset recalls
  • 1 digital and 1 analog clocks can be synced with LTC and NTP
  • Borders can be turned on or off
  • Visual alarm tags for video/audio detection and resolution
  • 2 Rack units
  • Redundant power supplies
  • 3 year limited warranty


• Specifications:

  • Model: UE-8
  • Description: 8 Input UHD HDMI multiviewer with advanced on-screen display (OSD)
  • Inputs: 8x HDMI
  • Output: 2x HDMI 2.0 UHD
  • Max Resolution: 4096x2160 @ 60Hz 4:4:4
  • Power Redundant: AC inlet, 90 to 240V
  • Power Consumption: 70W

    Environment
  • Operating temperature: 0 ~ 45 C
  • Operating humidity: 20 ~ 90% RH
  • Storage temperature: -20 ~ 60 C

    Dimensions/Weight
  • Size: 2RU. 446 x 452 x 87 mm (L x W x H)
  • Weight: 8.6 kg


• Item Includes:

  • 1x Apantac UE-8-II 2RU 8 HDMI 2.0 Input Multiviewer with HDMI 2.0 (UHD) Output


• Warranty:

  • 3 year limited warranty
