Artel FiberLink 5100A-B7L Ethernet Transceiver SM & MM - 1310nm SFP Module & Power Supply Included

5100A-B7L - Overview

• Features:

  • Auto-sensing 10/100/1000 Mbps Ethernet port with Auto MDIX
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3az & IEEE 802.3z
  • Full-duplex and half-duplex
  • Supports Jumbo frames to 9K Bytes
  • LEDs indicate Link Activity, SPD, Fault
  • Detection/ Collisions, and Power
  • Single mode & multimode versions available
  • One or two fiber versions available
  • To 1km on Multimode
  • To 40km+ on Single mode*
  • Compact design, wall mountable

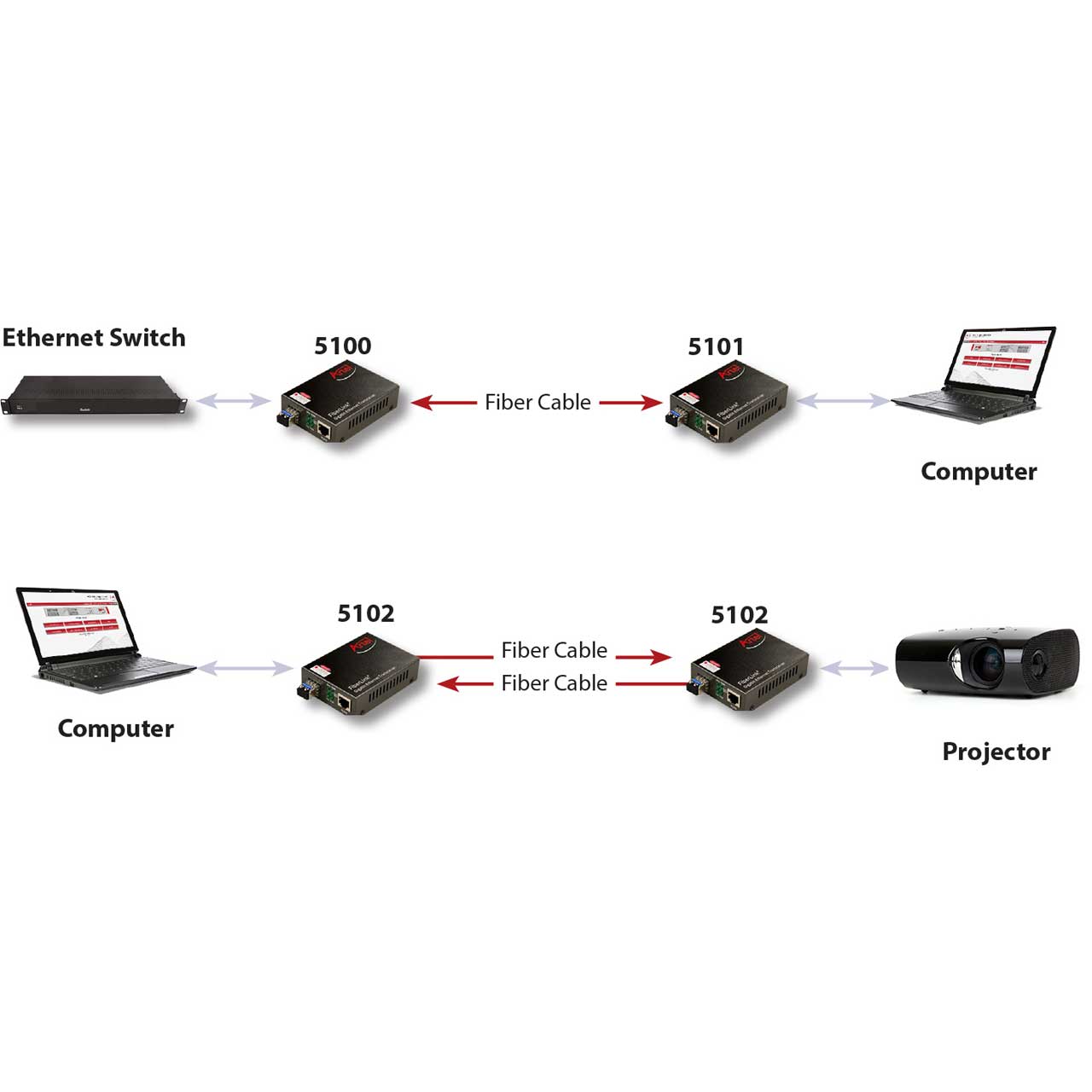

  • Ideal for IT, broadcast, pro A/V and any application that requires reliable transmission of 10/100/1000 Ethernet data


• Specifications:

  • Maximum Speed (1000Base-Tx/Rx): Full Duplex: 2000Mbps
  • Half Duplex: 1000Mbps
  • Packet Forwarding Rate: 14,880 pps@10Mbps, 148,800 pps@100Mbps, 1,488,000 pps@1000Mbps
  • Connectors Copper: RJ-45(Auto-MDI / MDI-X)
  • Fiber Optic: LC type
  • Power: Coaxial 5.5 x 2.5 mm, center (+)
  • LEDs Power: Full/Half Duplex, Speed 1 Gb/s, 100 Mb/s,\SFP Link, RJ-45 Link
  • Power Input: 5V @ 500ma, 2.5 watts 8.5 BTU/Hr
  • Operating Temperature Range: 0 to +50 C
  • Operating and Storage: Humidity 10% to 90% relative humidity(non-condensing)
  • Weight: 1 pound, 0.5 kg
  • Dimensions: 3.7" x 2.7" x 1" (93mm x 68mm x 25mm)

    PDPS-USB-5V1A Power Supply
  • Voltage: 100 - 250 VAC 50/60 Hz
  • Current: 0.2 Amps
  • Compliance: Level VI, CoC Tier 2, UL, FCC, CE
  • Mains Connection: interchangeable blades (North America, Europe, UK, Australia, China)
  • Output Connector: USB type A, 5V @ 1Amp maximum (DC Output Cable included)


• Item Includes:

  • 1x 5100A-B7L FiberLink Ethernet Transceiver SM & MM
  • 1x PDPS-USB-5V1A Universal AC-DC Power Supply for 5100A Series


• Warranty:

  • 3 Yeasr Limited Warranty
