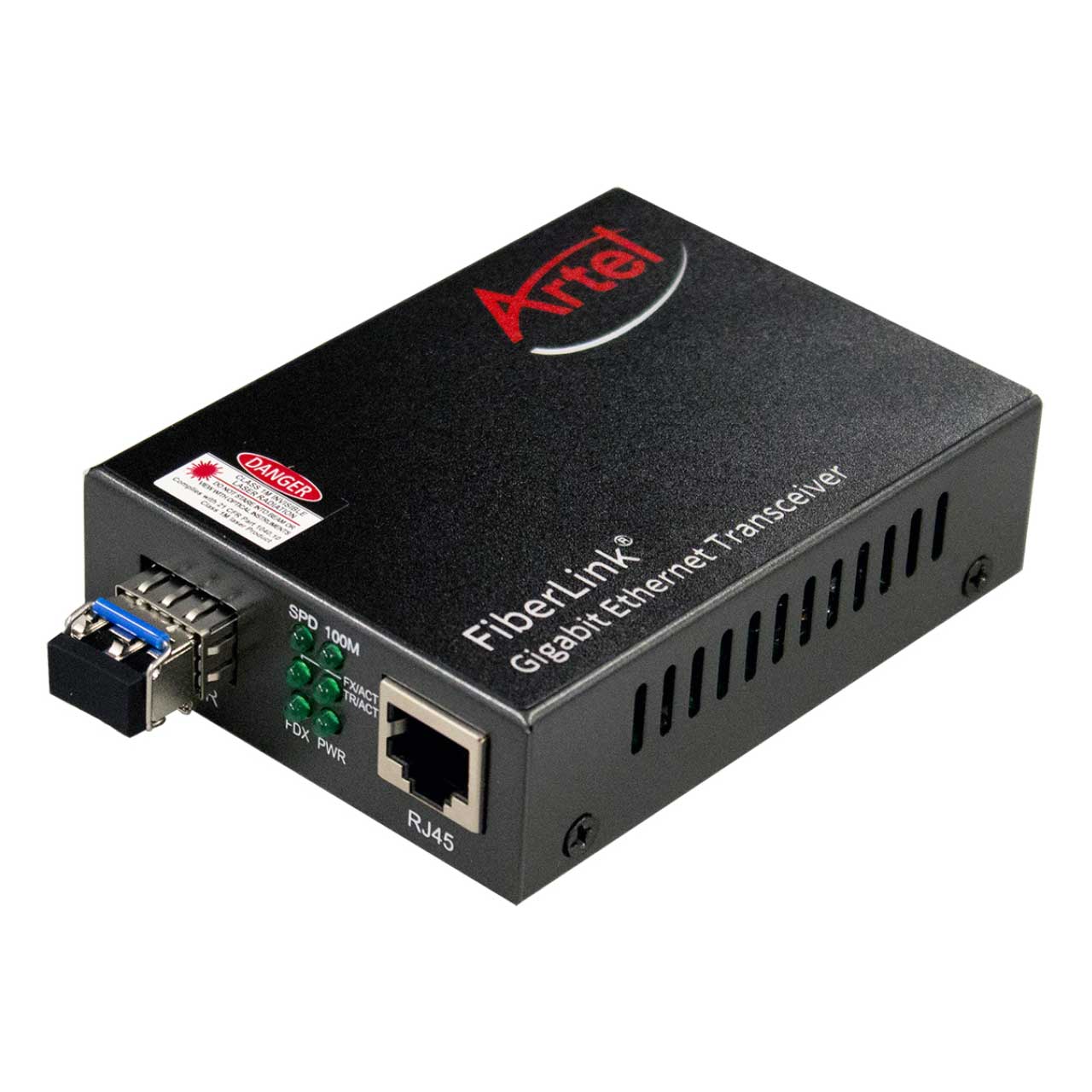

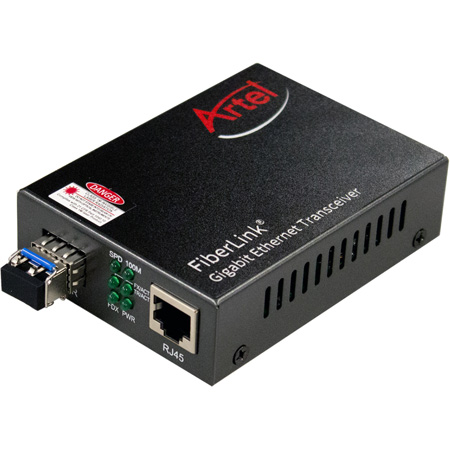

Artel 5101A-B7L FiberLink Ethernet Transceiver - SM or MM 1490nm SFP - Power Supply

5101A-B7L - Overview

• Features:

  • Auto-sensing 10/100/1000 Mbps Ethernet port
  • with Auto MDIX
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3az & IEEE
  • 802.3z
  • Full-duplex and half-duplex
  • Supports Jumbo frames to 9K Bytes
  • LEDs indicate Link Activity, SPD, Fault
  • Detection/ Collisions, and Power
  • Single mode & multimode versions available
  • One or two fiber versions available
  • To 1km on Multimode
  • To 40km+ on Single mode*
  • Compact design, wall mountable

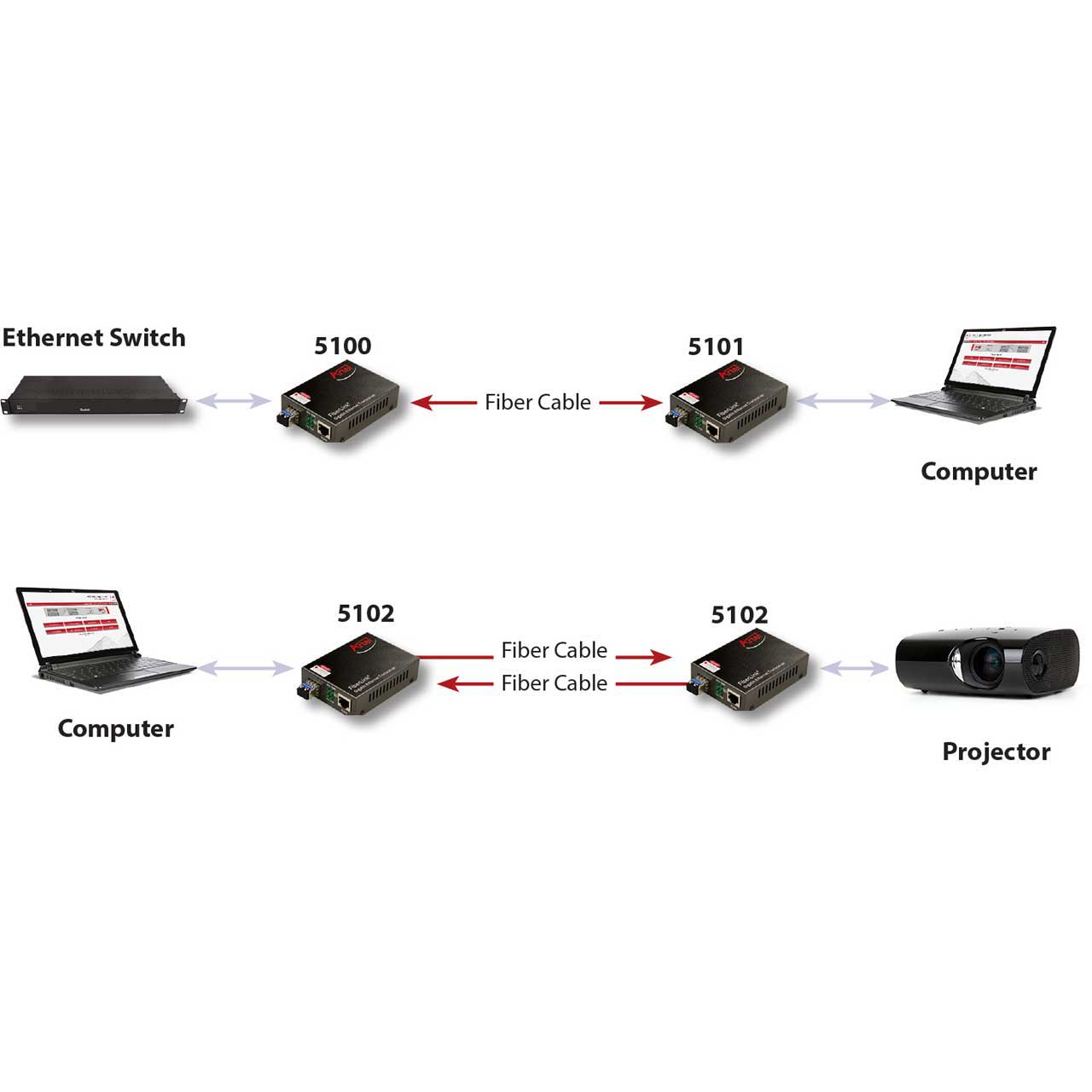

  • Ideal for IT, broadcast, pro A/V and any application that requires reliable transmission of 10/100/1000 Ethernet data


• Specifications:

  • TX Wavelength: 1490nm
  • Fiber Cores and Type: 1 SM or MM
  • Class: BX-D
  • Artel Loss Budget: 14dB min
  • Artel Typical Distance: 1k MM, 40km SM
  • Maximum Speed (1000Base-Tx/Rx)
    Full Duplex: 2000Mbps
    Half Duplex: 1000Mbps
  • Packet Forwarding Rate
    14,880 pps@10Mbps
    148,800 pps@100Mbps
    1,488,000 pps@1000Mbps
  • Connectors
    Copper: RJ-45(Auto-MDI / MDI-X)
    Fiber Optic: LC type
    Power: Coaxial 5.5 x 2.5 mm,
    center (+)

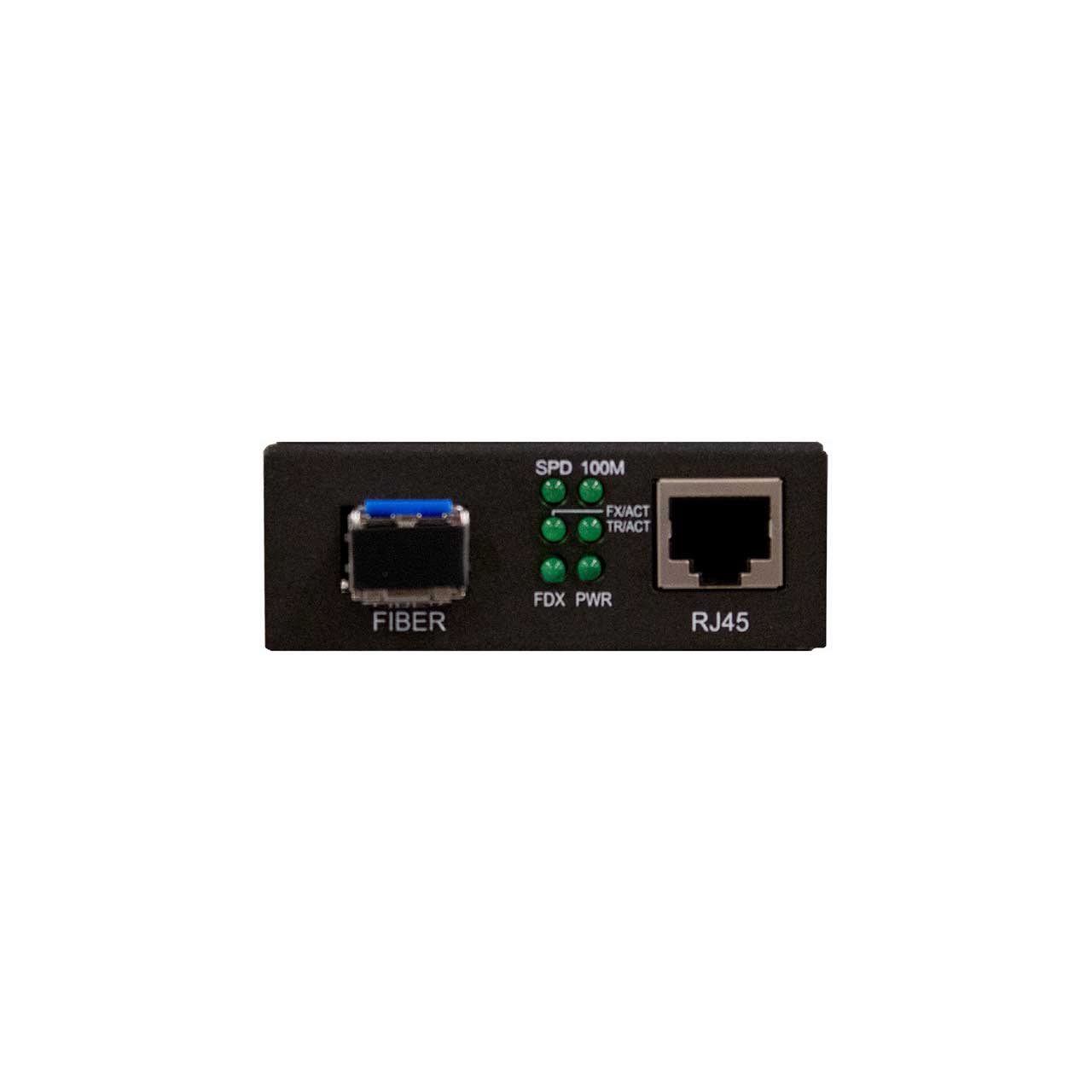

  • LEDs
    Power, Full/Half Duplex,
    Speed 1 Gb/s, 100 Mb/s,
    SFP Link, RJ-45 Link
  • Power Input: 5V @ 500ma, 2.5 watts,8.5 BTU/Hr
  • Operating Temperature Range: 0 to +50 C
  • Operating and Storage Humidity: 10% to 90% relative humidity, (non-condensing)
  • Weight: 1 pound, 0.5 kg
  • Dimensions: 3.7" x 2.7" x 1",(93mm x 68mm x 25mm)
