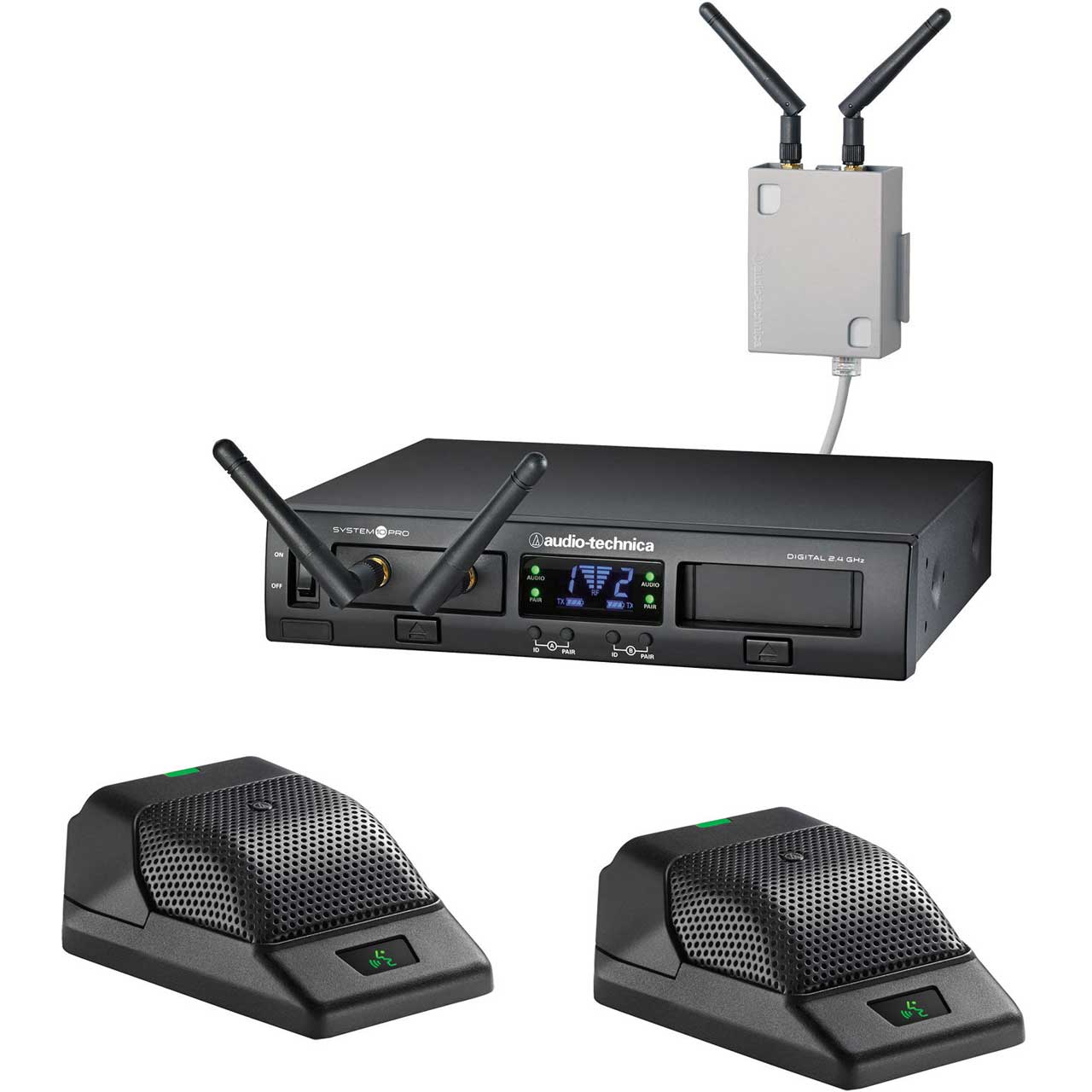

Audio-Technica ATW-1366 Conference System 10 Wireless Boundary Mic System w/Receiver Chasis/2 Receiver Units/2 Desk Mics

ITEM #: AT-ATW-1366 MFG #: ATW-1366

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: In Stock
iAvailability Description Popup


ATW-1366 - Overview

The Audio-Technica ATW-1366 System 10 PRO Rack-Mount wireless system brings new versatility to the System 10 family of 2.4GHz digital wireless products. With remote-mountable receiver units and the simultaneous use of up to 10 channels, System 10 PRO combines innovation with rock-solid performance, easy setup and clear, natural sound quality.

ATW-RC13 Receiver Chassis

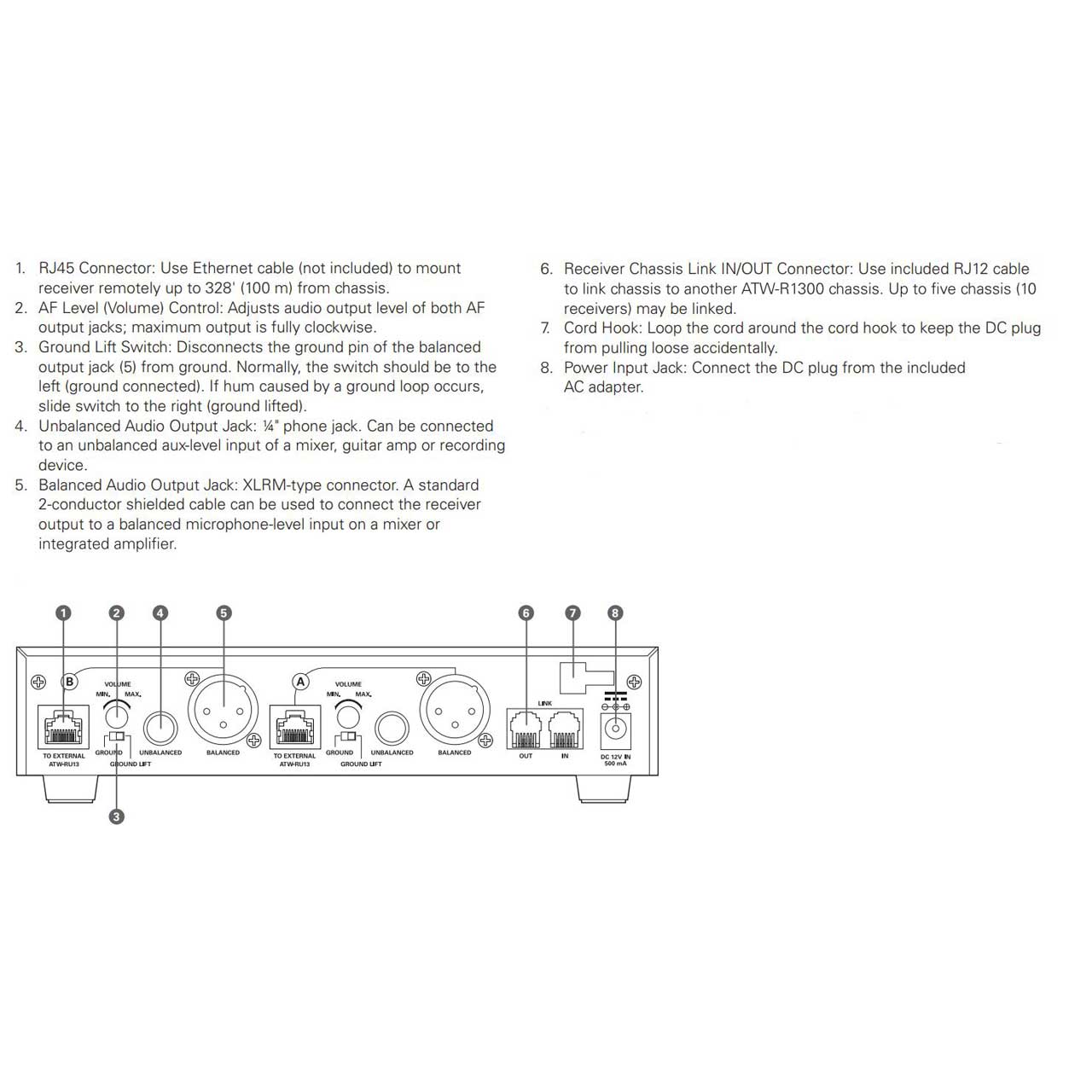

The ATW-RC13 half-rack receiver chassis features two receiver unit docks, each designed to house an ATW-RU13 receiver unit. Two RJ45 connectors on the rear of the chassis allow each receiver unit to be released from the chassis and mounted up to 328ft (100m) away via standard UTP cable. The chassis is also equipped with IN/OUT RJ12 connectors that can be used to link the chassis to another chassis (up to five chassis - 10 receiver units - can be linked together) allowing for simultaneous use of all receivers and increased stability of a multichannel system. The front of the chassis is equipped with a System ID Display that indicates the RF signal strength, System ID number and battery level for the transmitter currently engaged with each receiver unit. The display also shows if the chassis is currently linked to another chassis. Additionally, the chassis features an AF level control, ground lift switch, unbalanced 1/4" output connection and balanced XLRM-type output connection for each receiver unit.

ATW-RU13 Receiver Unit
The ATW-RU13 receiver unit features two detachable antennas that screw onto the face of the unit via SMA connectors. The rear of the unit is equipped with a 1/4"-20 thread socket for mounting the receiver unit remotely to a tripod or other device with a 1/4" screw. An RJ45 connector, also on the rear of the unit, allows a remotely mounted receiver unit to be connected to the chassis with UTP cable. An LED status indicator, located between the mounting socket and the RJ45 connector, blinks slowly when the receiver unit is not paired with a transmitter, blinks quickly during the pairing process, and illuminates solidly green once the receiver unit is paired with a transmitter.

ATW-T1006 Boundary Mic/Transmitter
A perfect fit for conference rooms and other meeting spaces, the ATW-T1006 System 10 Boundary Microphone/Transmitter pairs with any System 10 or System 10 PRO digital wireless receiver to provide rock-solid, 2.4GHz wireless performance with clear, natural sound quality. This cardioid condenser boundary mic is equipped with a touch-sensitive user switch that can toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button. Two red/green LEDs - one visible from the front of the unit, the other from the rear - indicate toggle/talk/mute mode, battery level, and charging status.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
    • Operates in the 2.4GHz range - completely free from TV interference
    • Receiver units can be docked in the chassis or mounted remotely (up to 328ft) via Ethernet cable for added versatility
    • Up to five chassis (ten receiver units) can be linked and used simultaneously
    • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
    • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
    • Automatic frequency selection for seamless, interference-free operation
    • Three levels of diversity assurance: frequency, time & space
    • Ground-lift switch helps eliminate audible hum caused by ground loops

      ATW-T1006
    • Pairs with any System 10 or System 10 PRO digital wireless receiver
    • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
    • Operates in the 2.4GHz range - completely free from TV interference
    • User switch can be set to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button
    • Gain Control switch allows selection of three input gain levels: -6dB (for loudest voices), 0dB and +6dB (for softest voices)
    • Two red/green LEDs - one visible from the front of the unit, the other from the rear - indicate toggle/talk/mute mode, battery level, and charging status
    • Switchable low-cut filter

  • Specifications:

    • Overall System
    • Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
    • Dynamic Range: >109dB (A-weighted), typical
    • Total Harmonic Distortion: <0.05% typical
    • Operating Range: 200ft (60m)
      *Open range environment with no interfering signals
    • Operating Temp. Range: 32°F - 104°F (0°C - 40°C)
      *Battery performance may be reduced at very low temperatures
    • Frequency Response: 20Hz - 20kHz
      *Depending on microphone type
    • Audio Sampling: 24-bit/48kHz
    • Latency: 3.8mS

      ATW-RC13
    • Max. Output Level:
      XLR, balanced: 0dBV
      1/4", unbalanced: +6dBV
    • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC 0.5A power supply switched mode external
    • Dimensions (HxWxD): 1.73" x 8.26" x 6.67" (44mm x 209.8mm x 169.3mm)
    • Weight: 33.2oz (940g)
    • Remote Receiver Connector: RJ45
    • Link Connector: RJ12

      ATW-RU13
    • Receiving System: Diversity (frequency/time/space)
    • Dimensions (HxWxD): 0.75" x 2.24" x 3.06" (19mm x 57mm x 7.6mm)
    • Weight: 2.3oz (64g)
    • Remote Receiver Connector: RJ45
    • Mounting Thread Insert: 1/4" x 20

      ATW-T1006
    • RF Power Output: 10mW
    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Half-cardioid
    • Frequency Response: 20Hz - 20kHz
    • Low Frequency Roll-Off: 80Hz, 18dB/octave
    • Maximum Input Sound Level: 139dB SPL, 1kHz @ 1% T.H.D.
    • Switches: Touch-sensitive user switch function: toggle (mute on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: -6dB, 0dB, +6dB
    • Internal Battery: 3.7V rechargeable Li-ion battery
    • Battery Life: 9 hours
      *Depending on environmental conditions
    • Battery Charging Time: 4 hours 30 minutes
      *Depending on environmental conditions
    • Dimensions (HxWxD): 1.50" x 3.78" x 4.83" (38mm x 96.1mm x 122.8mm)
    • Weight: 14.4oz (408g)

  • Item Includes:

    • 1x ATW-RC13 Receiver chassis
    • 2x ATW-RU13 Receiver unit
    • 2x ATW-T1006 Boundary Mic/Transmitter
    • AT8690 RU13 holder
    • ATW-RC13 AC adapter
    • ATW-T1006 AC adapter (USB-type)
    • Power supply
    • USB cable
    • Antennas
    • Link cable
    • Rackmount adapters
    • Joining plate
    • Rubber feet

  • Warranty:

    • 2 Year Limited End-User

  • GTIN:

    0042005193257
