Audio-Technica BP898cH Subminiature Cardioid Condenser Lav Microphone w/ 4-Pin Connector for AT cH Style Transmitters

ITEM #: AT-BP898CH MFG #: BP898CH

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BP898CH - Overview

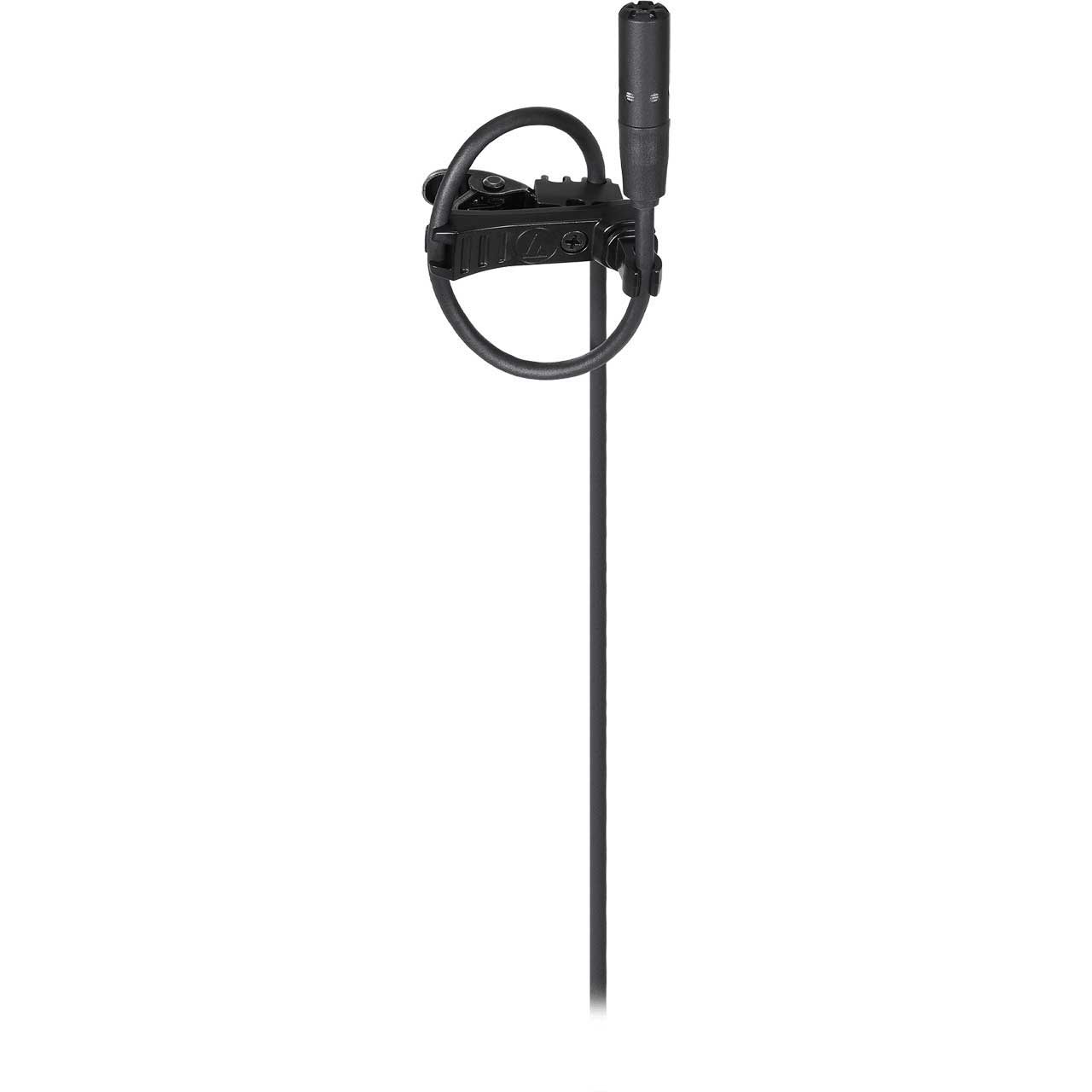

The BP898 is a low-profile lavalier cardioid condenser available with terminations for wired or wireless use. The microphone's wide dynamic range and tolerance for high sound pressure levels ensures intelligible, natural-sounding audio that's ideal for use by stage and television talent, lecturers, and worship leaders.

The directionality of the BP898 cardioid element has a pronounced proximity effect when used at close range, enhancing the user's voice. This low-frequency enhancement drops off when the microphone is used at a distance. If the mic needs to be used at a greater distance or a less focused pickup is desired, the BP899 with an omnidirectional capsule is recommended.

The mic's cable is made of a robust urethane elastomer that provides ultimate flexibility and strength, while resisting abrasion and moisture. The mic comes with a clothing clip that features two strain-relief points that isolate the mic from mechanical noise transferred over the cable. Two included windscreens each feature a clasp that secures the windscreen to the mic, preventing it from blowing off in critical situations, such as at sporting events.

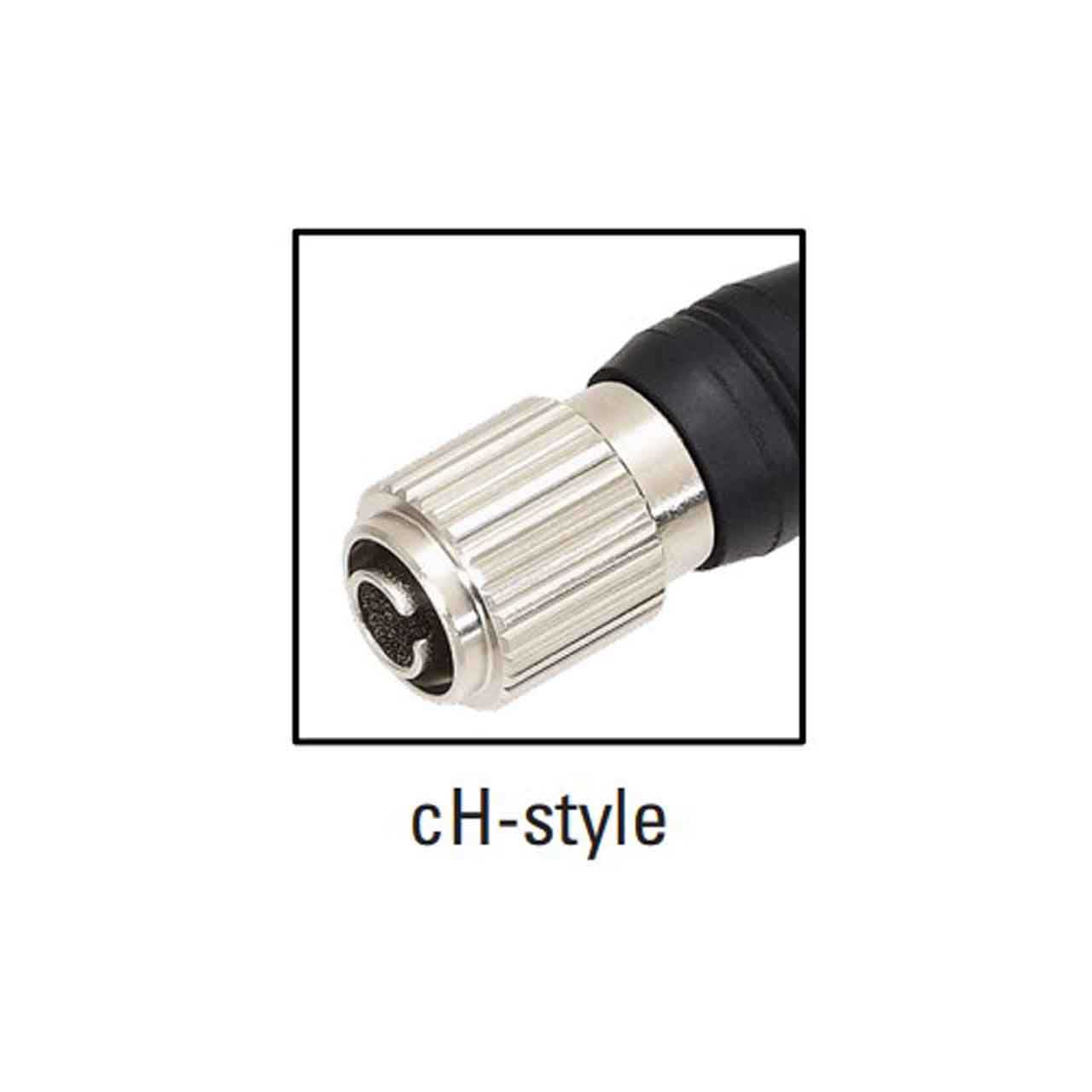

Note: The BP898cH has a 55" (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; No Power Module.

  • Features:

    • Maximum intelligibility and clean, accurate reproduction for vocalists, lecturers, stage and television talent, and worship leaders
    • Cardioid capsule provides directional pickup with pronounced proximity effect at close range that enhances the user's voice
    • Low-profile design (a mere 5.3 mm in diameter) is ideal for applications requiring minimum visibility
    • Urethane elastomer cable with a double-spiral shield wire provides ultimate flexibility, strength, and resistance to abrasion and moisture
    • RoHS compliant - free from all substances specified in the EU directive on hazardous substances
    • The microphone capsule is housed in a rugged metal structure to shield the electronic circuitry from external electromagnetic noise
    • The signal line of the cable is made of a high-durability CuSn (copper and tin) alloy that greatly enhances corrosion resistance and
      increases longevity
    • Two included windscreens each feature a plastic structure that keeps the windscreen secured to the microphone
    • Clothing clip includes 16 distinct angle adjustments over 360° and two strain-relief clips for easy cable routing

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Cardioid
    • Frequency Response: 270-17,000 Hz (50 cm (1.64')), 60-17,000 Hz (10 cm (0.33'))
    • Low Cut*: 80 Hz, 18 dB/octave
    • Open Circuit Sensitivity: -42 dB (7.9 mV) (0 dB=1 V/Pa, 1 kHz)
    • Impedance*: 250 ohms
    • Maximum Input Sound Level: 140 dB SPL (1 kHz at 1% THD)
    • Noise: 28 dB SPL (A-weighted)
    • Dynamic Range: 112 dB (1 kHz at Max SPL)
    • Signal-To-Noise Ratio: 66 dB (1 kHz at 1 Pa, A-weighted)
    • Phantom Power Requirements*: 11V-52V DC, 2 mA
    • Switches*: Low cut: on/off
    • Weight: 1.6 g (0.06 oz) (Microphone body)
    • Dimensions: 22.3 mm (0.88") long, 5.3 mm (0.21") diameter (Microphone body)
    • Cable: 1.4 m (4.6')
      *Products with power modules

  • Item Includes:

    • 1x BP898CH Microphone

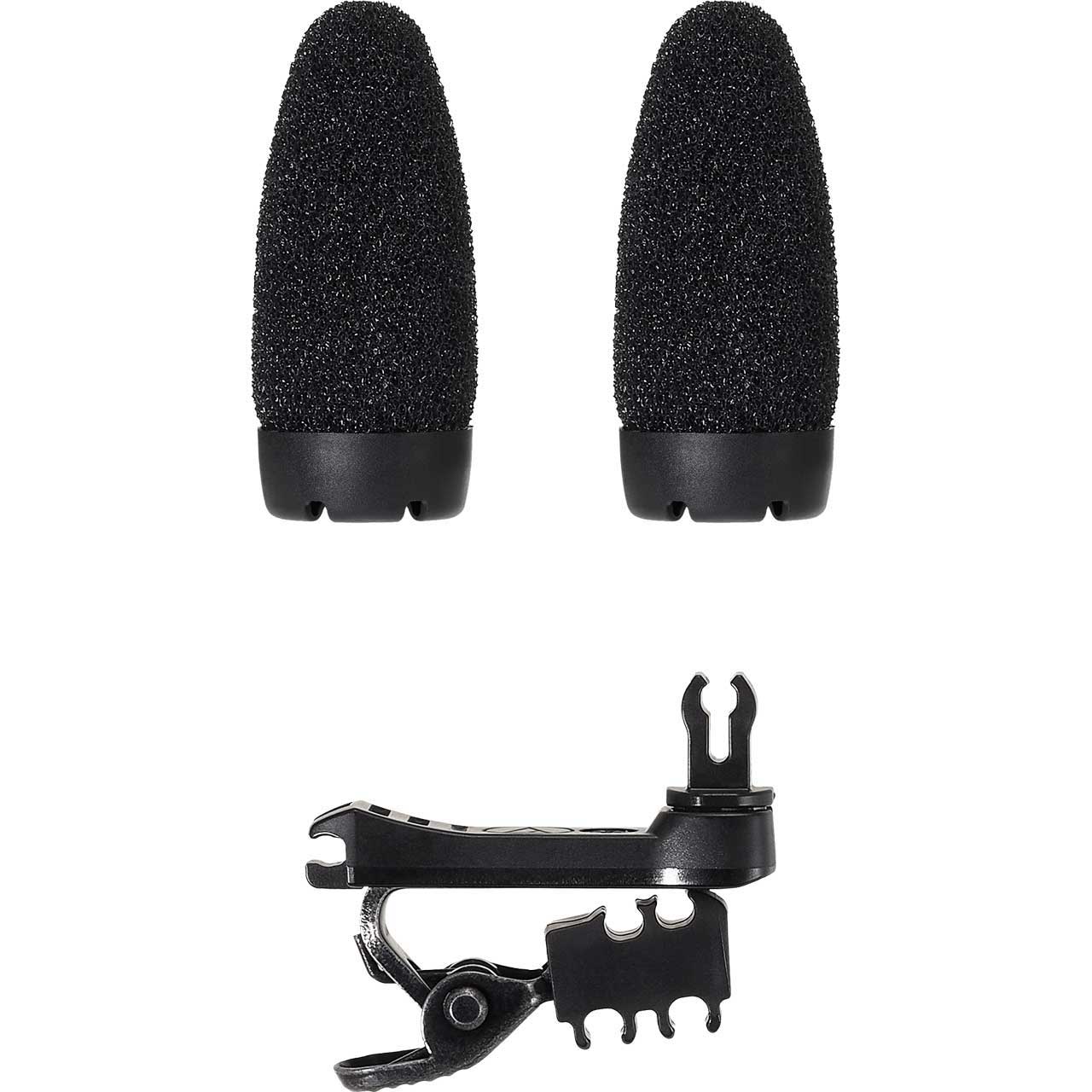

    • 1x Clothing clip base (AT8461a, AT8461a-TH)
    • 2x Windscreens (AT8151a, AT8151a-TH)

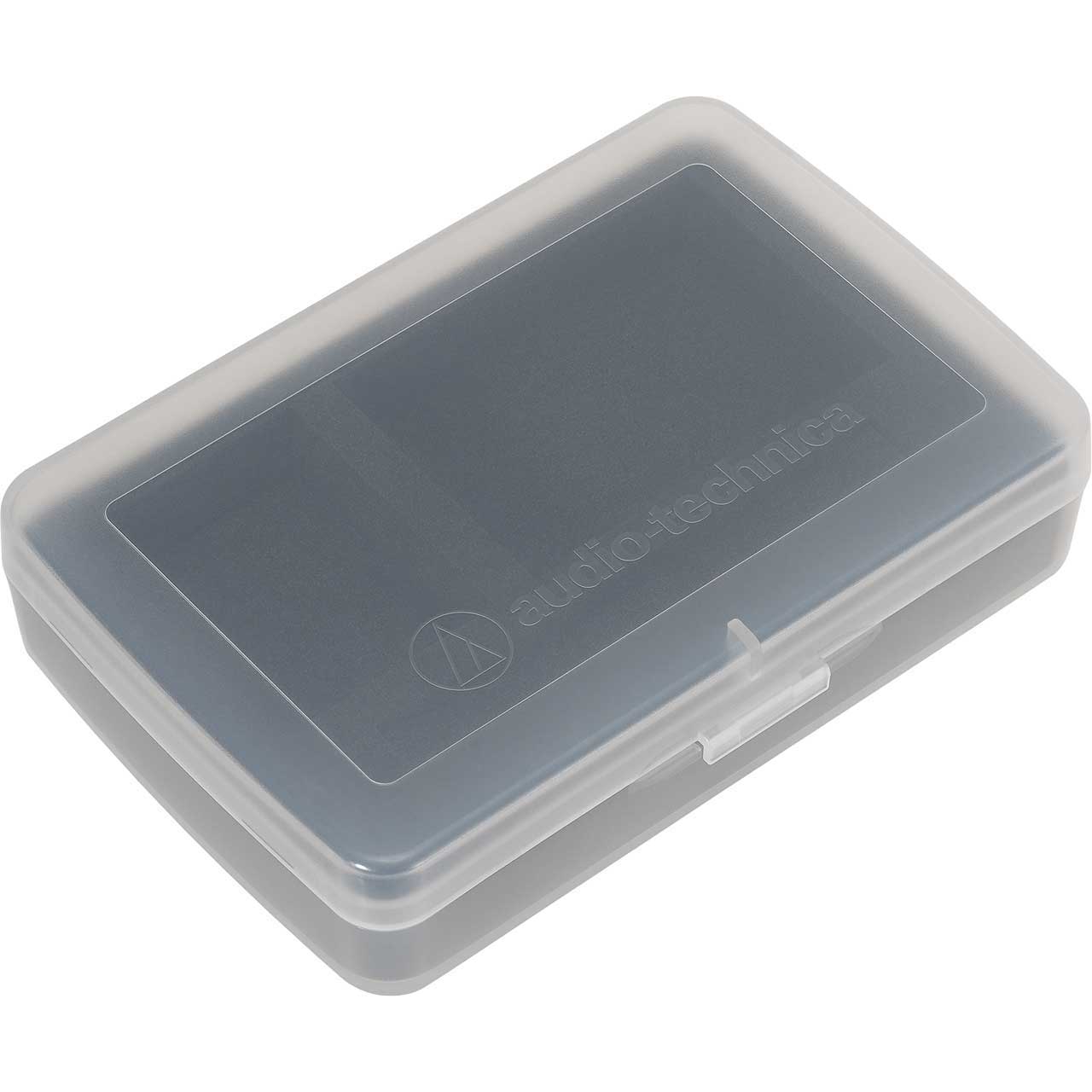

    • 1x Case

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0042005209279
