Attero Tech UNDX2IOplus 4x2 Channel 2 Gang US Dante/AES67 Wall Plate 2 Mic/Line In x 2 Out (XLR) Phoenix I/O PoE

ITEM #: ATEC-UNDX2IOPLUS MFG #: UNDX2IOPLUS

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Attero Tech
Free Shipping with $49 Minimum Order

Our Price:

$1,070.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

UNDX2IOPLUS - Overview

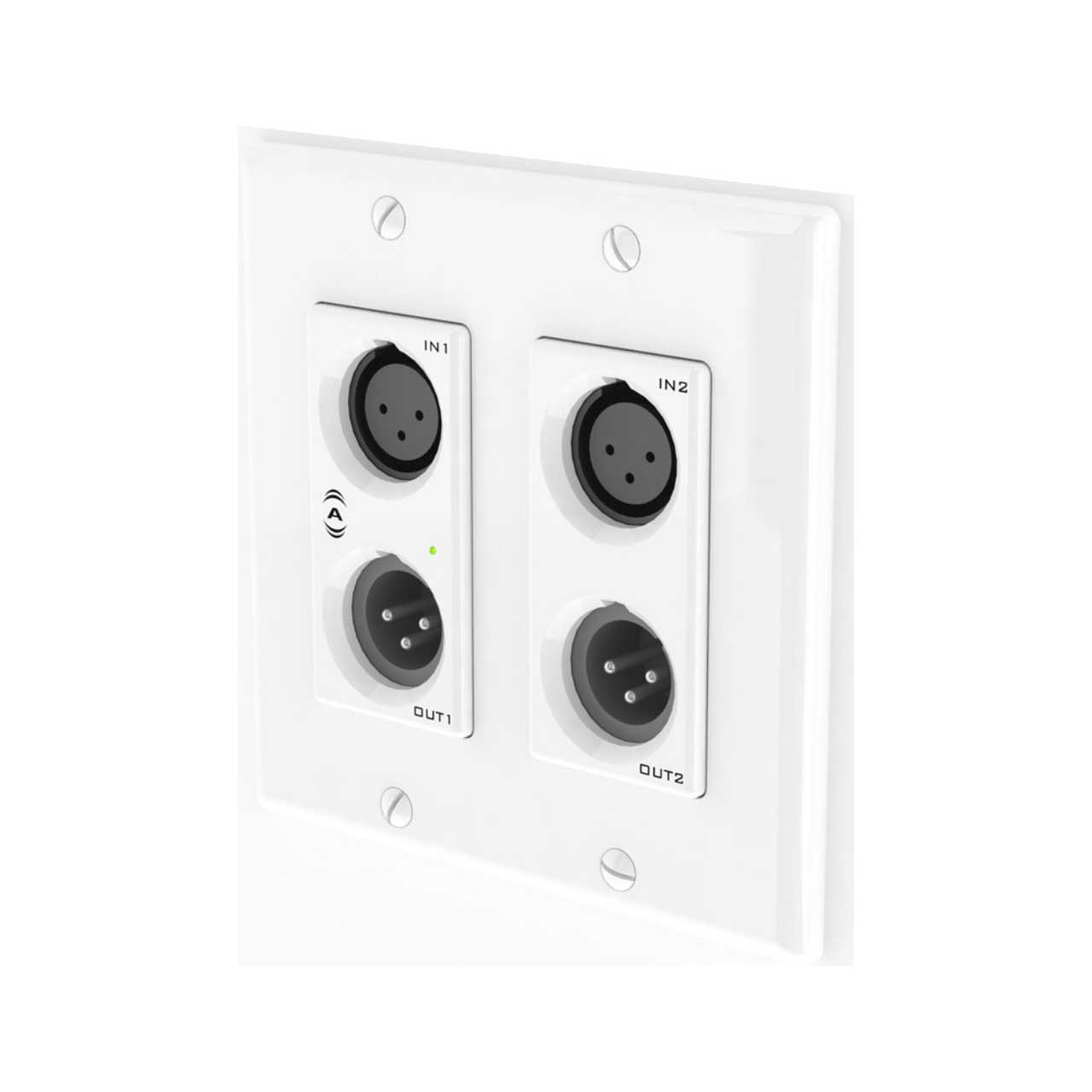

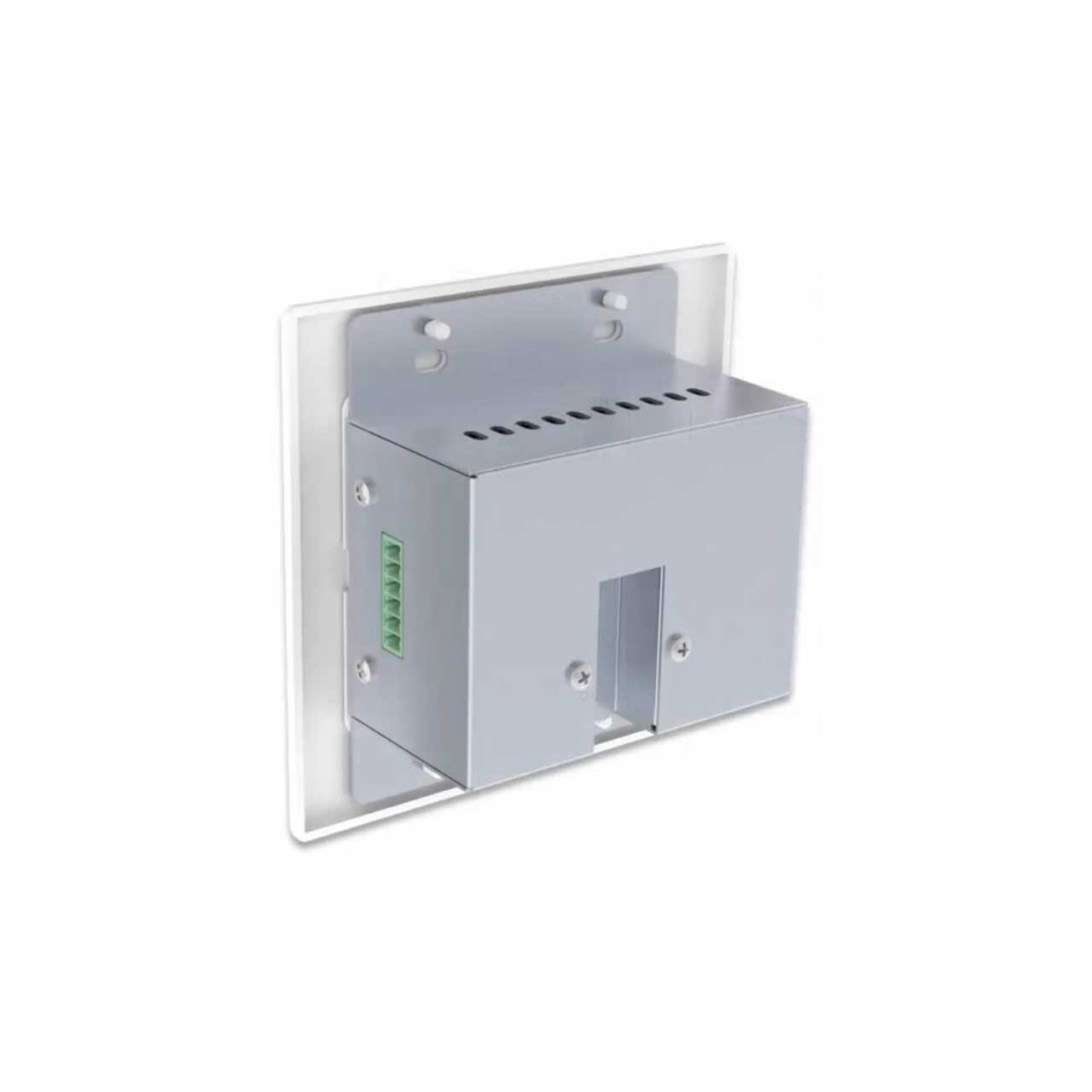

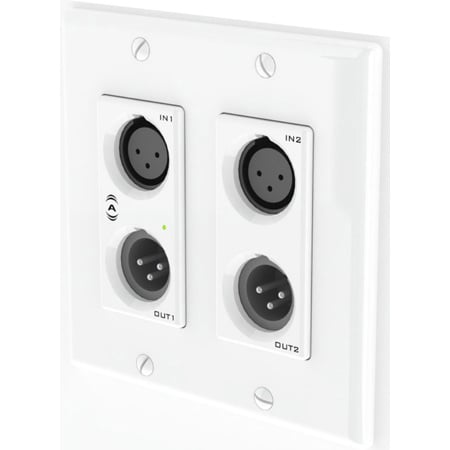

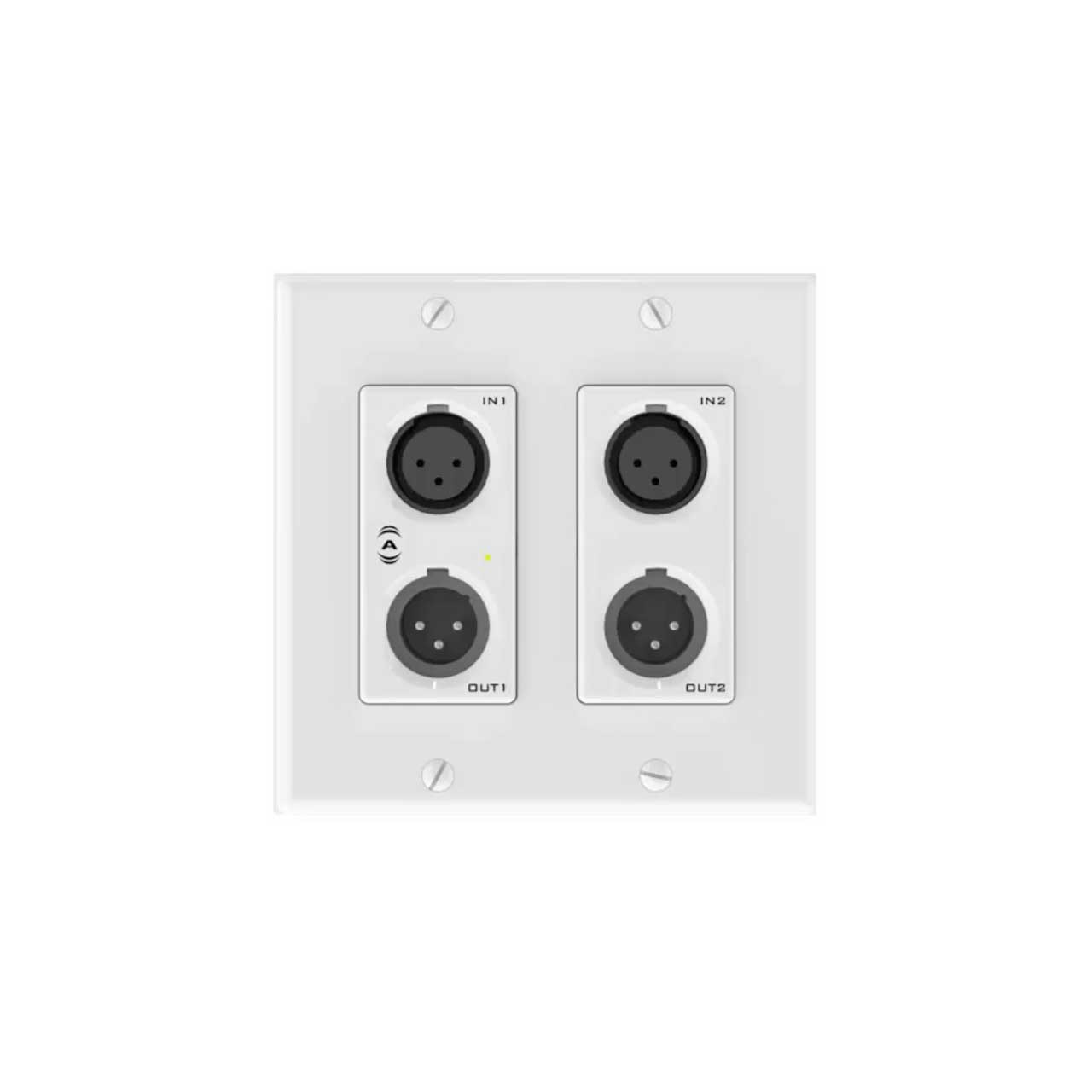

The Attero unDX2IO+ Dante™ Audio Interface is a cost effective multi-IO wall box. The unDX2IO+ features two balanced mic/line XLR inputs, two balanced XLR line outputs, and a further two balanced line inputs on de-pluggable connectors on the side of the unit. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual gang US junction boxes, mud rings, and old work brackets. The unDX2IO+ is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable. The unDX2IO+’s size and I/O density make it easy to put Dante™ connectivity wherever it's needed.

Applications:

  • Easily accessible microphone audio interface for presentation audio systems in meeting spaces, classrooms, theaters and hospitality venues
  • House of worship Dante™ connectivity for musicians and worship leaders
  • Conveniently located audio network I/O for portable AV systems in convention spaces and hospitality venues

    • Features:

      • Small form factor, can be unobtrusively located near analog sources or sinks
      • Four input gains to accommodate common line levels, dynamics, and phantom powered mics
      • +48V phantom power per channel - powers all types of phantom powered microphones typically used in installed AV systems
      • Analog output gain is software adjustable between 0dB and -60dB plus mute to accommodate all types of line input levels (at 0dB input gain) and +20dBu maximum output levels
      • Full Dante™ system status LEDs on the front panel


    • Specifications:

      • Mic/Line Input Type: Balanced and RF filtered XLR
      • Phantom Power: +48V, software selectable
      • Mic/Line Gain: -15dB (pad active), 0dB, +25dB, +40dB, software selectable
      • Input Impedance: >1.8kΩ at any gain setting
      • Equivalent Input Noise: -115dBu (+40dB gain)
      • Maximum Input Levels: +20dBu @ 0dB gain (pad active), +5dBu @ 0dB gain, -22dBu @ +25dB gain, -38dBu @ +40dB gain
      • Side Line Input Type: Balanced and RF filtered 3-pin depluggable, with software selectable pro or consumer input sensitivity
      • Output Type: Balanced line level on XLR. with automatic muting on loss of Dante signal
      • Output Gain: 0dB - -60dB plus mute, software selectable
      • Output Noise: <-85dBu @ 0dB gain
      • Maximum Output Level: +20dBu (@ 0dB output gain)
      • System THD: <.05% at any gain, input signal 3dB below maximum
      • PoE Class: Class 0 802.3af PoE PD compliant
      • Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
      • Dimensions (WxHxD): 3.54" x 4.2" x 1.88"
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
