Atlona AT-OME-ST31A-KIT HDBaseT TX/RX for HDMI and USB-C

ATOMEST31AK - Overview

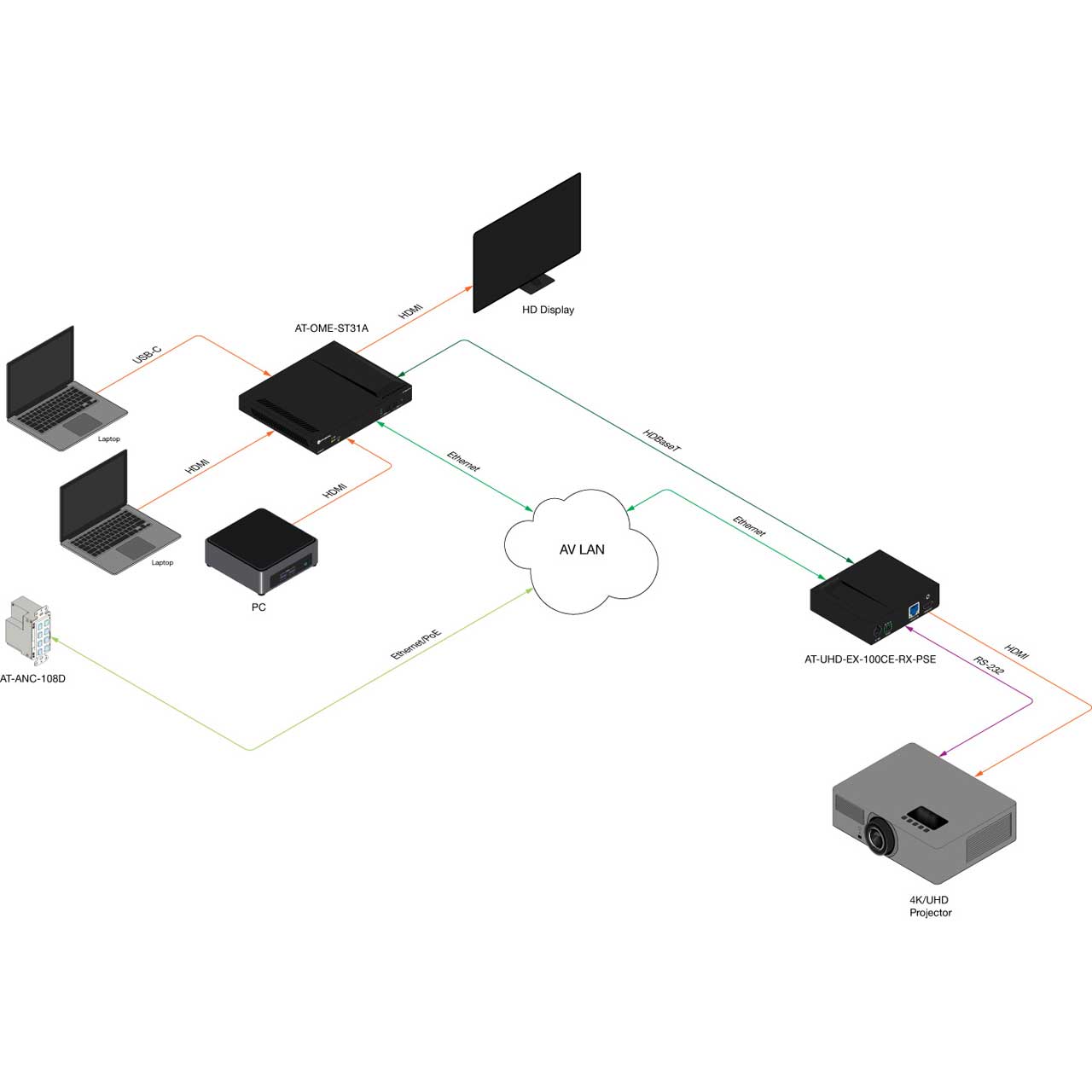

• Features:

  • 3x1 HDBaseT switcher with HDMI & USB-C inputs
  • Video, audio, power, & data over category cable utilizing HDBaseT technology
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Mirrored HDMI output at transmitter with integrated 4K to 1080p downscaling
  • Transmitter powered by receiver via PoE (Power over Ethernet)
  • Automatic display control
  • Automatic input selection using hot plug detect & video detection technology
  • Multi-ch audio compliant
  • EDID management
  • HDCP management
  • Integrated HDBaseT link status monitoring
  • Intuitive GUI-based configuration using integrated web server (transmitter)
  • TCP/IP & RS-232 control (transmitter)
  • Easy to configure & manage with AMS (Atlona Management System) - transmitter
  • Field-updatable firmware
  • Front panel power & signal status LEDs
  • Low-profile, 1 inch (25 mm) high enclosures


• Specifications:

  • AT-OME-ST31A
  • HDMI Specification HDMI 2.0(1); HDCP 1.4, 2.2
  • UHD/HD/SD: 4096x2160 (DCI) @60(1)/30/25/24Hz, 3840x2160 (UHD) @60(1)/30/25/24Hz, 1080p @60/59.9/50/30/29.97/25/24/23.98Hz, 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz, 576p @50Hz, 576i @50Hz, 480p @60/59.96Hz, 480i @60Hz
  • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
  • Scaler: IN: 4K @24Hz, 4K @30Hz, 4K @60Hz, 4:2:0 OUT: 1080p @24Hz, 1080p @30Hz, 1080p @60Hz (YUV/RGB, 4:4:4)
  • USB-C: Up to 4K/UHD @ 60Hz
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8bit, 10bit, 12bit
  • HDR: HDR10, Hybrid-Log Gamma (HLG), & Dolby® Vision™ @ 60Hz; HDMI & USB-C ports only
  • Audio
  • Pass-Through Formats: PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, & DTS:X®
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Rate: 24Mbits/s max
  • Format: 2-ch stereo
  • Balanced Output: +4dBu, nominal gain; +20dBu headroom
  • Frequency Response: 20Hz to 20kHz, ±0.5dB
  • THD+N: <0.004% @20Hz to 20kHz
  • SNR: >105dB @1kHz, 0 clipping @0dBFS, unweighted
  • Protocols, Control, Connectors
  • Supported: HTTP, Telnet
  • Addressing: DHCP, static
  • Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS
  • RS-232: Device control & configuration; supports baud rates from 2400 to 115200
  • IP & CEC: Device control & configuration
  • HDMI IN: (2)Type A, 19-pin female
  • HDMI OUT: (1)Type A, 19-pin female
  • USB-C: (1)USB Type-C v3.1, 24pin female
  • HDBaseT OUT: (1)RJ45
  • LAN: (1)RJ45, 10/100/1000 Mbps
  • RS-232: (1)3pin captive screw (bidirectional)
  • AUDIO OUT: (1)5pin captive screw, bal/unbal, 2-ch
  • DC 24V: (1)4pin, locking
  • USB: USB-C Device Charging Capability: 60W@20V/3A, 36W @12V/3A, & 15W @5V/3A
  • Controls & Indicators
  • Input/Display: (2)momentary/tact-type
  • IP Mode/Reset: (2)momentary/tact-type/recessed
  • PWR Indicator: (1)LED/green
  • LINK Indicator: (1)LED/yellow
  • INPUT Indicators: 1,2,3 (3)LED/green
  • Resolution/Distance: 4K/UHD/1080p
  • HDMI In/Out: 15'/30'
  • CAT5e: 295'/330'
  • CAT6/6a/7: 330'/330'
  • Signal: Max TMDS Clock: 600MHz (300MHz over HDBaseT) HDBaseT: 10Gbps
  • Power Consumption: 101.5W (w/USB charging) 24.2W (w/o USB charging)
  • Operating/Storage Temp: 32 - 113°F/-4 - 140°F
  • Humidity (RH): 20 - 95% non-condensing
  • Dimensions (HxWxD): 1.02x8.62x5.98" (26x219x152mm)
  • Weight: 1.95Lbs
  • Safety: CE, FCC, RoHS

    AT-UHD-EX-100CE-RX-PSE
  • Resolution
  • Video: 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
  • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
  • Color Space: YCbCr, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8bit, 10bit, 12bit
  • HDR: 4K HDR10 @24Hz, 4:2:0 chroma subsampling, 10bit color (Source signal delivered from Ultra HD Blu-ray as 4K@24Hz 4:2:2. Not compatible with HDR10 @60Hz)
  • Audio: Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X; Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz; Bit Rate: up to 24bit
  • CAT5e/6 @4K: up to 230'
  • CAT6a/7 @4K: up to 328'
  • CAT5e/6 @1080p: up to 328'
  • HDMI IN/OUT @4K: up to 15' @1080p: up to 30'
  • Signal: Bandwidth: 10.2Gbps; CEC: Pass through; HDCP: Supports up to 2.2
  • Operating/Storage Temp: 32 - 122°F/-4 - 140°F
  • Humidity: 20 - 90% non-condensing
  • Power Consumption: 15.2W (paired w/TX) Supply Input: AC100~240V 50/60Hz Output: DC 48V/0.83A
  • Dimensions (HxWxD): .98x4.29x5" (25x109x127mm)
  • Weight: 0.86Lbs
  • Certification: Power Supply: CE, FCC, RoHS, cULus, RCM, CCC; Product: CE, FCC


• Item Includes:

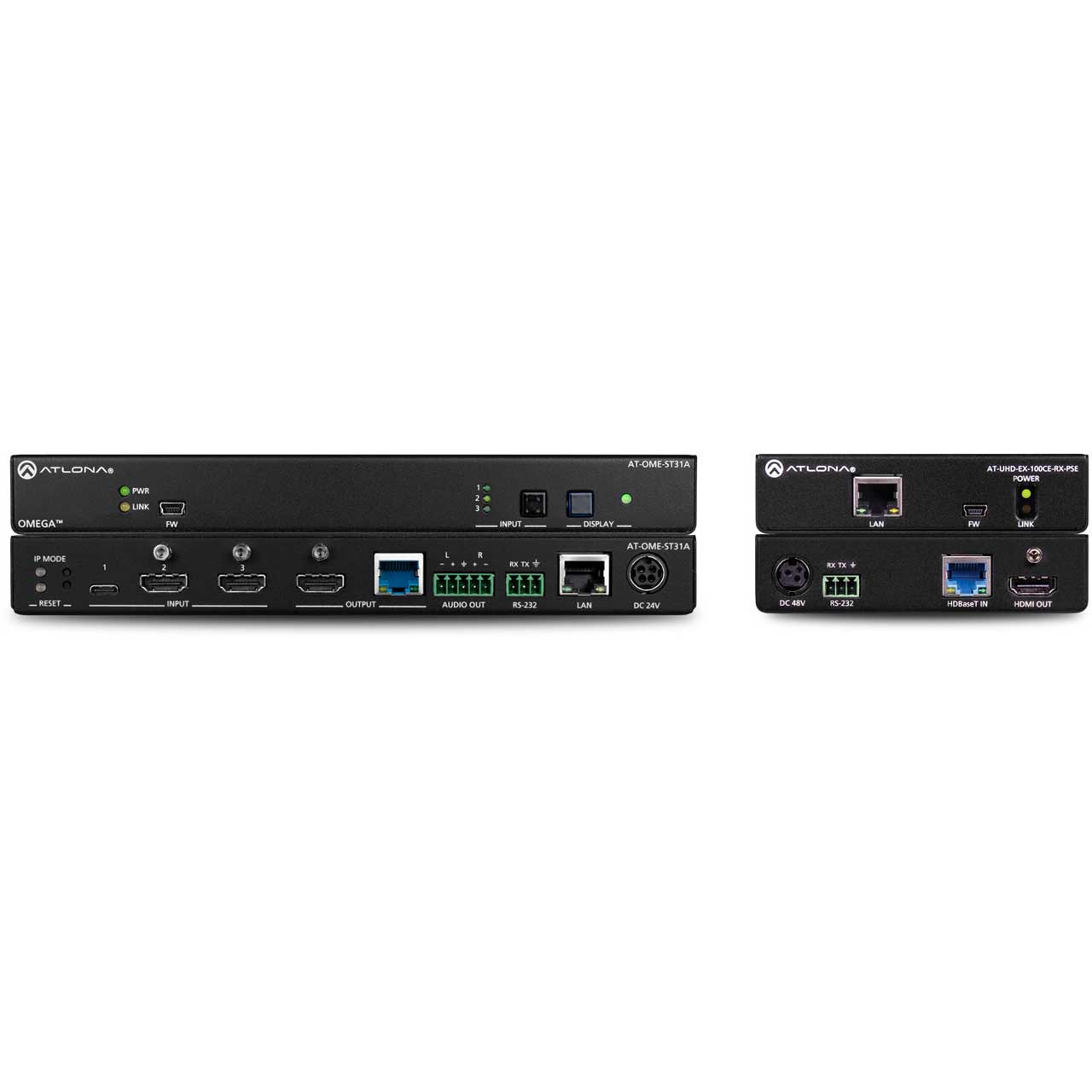

  • 1x AT-OME-ST31A
  • 1x AT-UHD-EX-100CE-RX-PSE
  • 1x Installation guide
  • 1x 2m (6.5') USB-C male-to-male cable (USB 3.1 Gen 1)
  • 1x Surface mounting hardware
  • 1x External universal power supply (for receiver)


• Warranty:

  • Award-Winning 10 Year Limited Product Warranty


• GTIN:

  0846352006334
