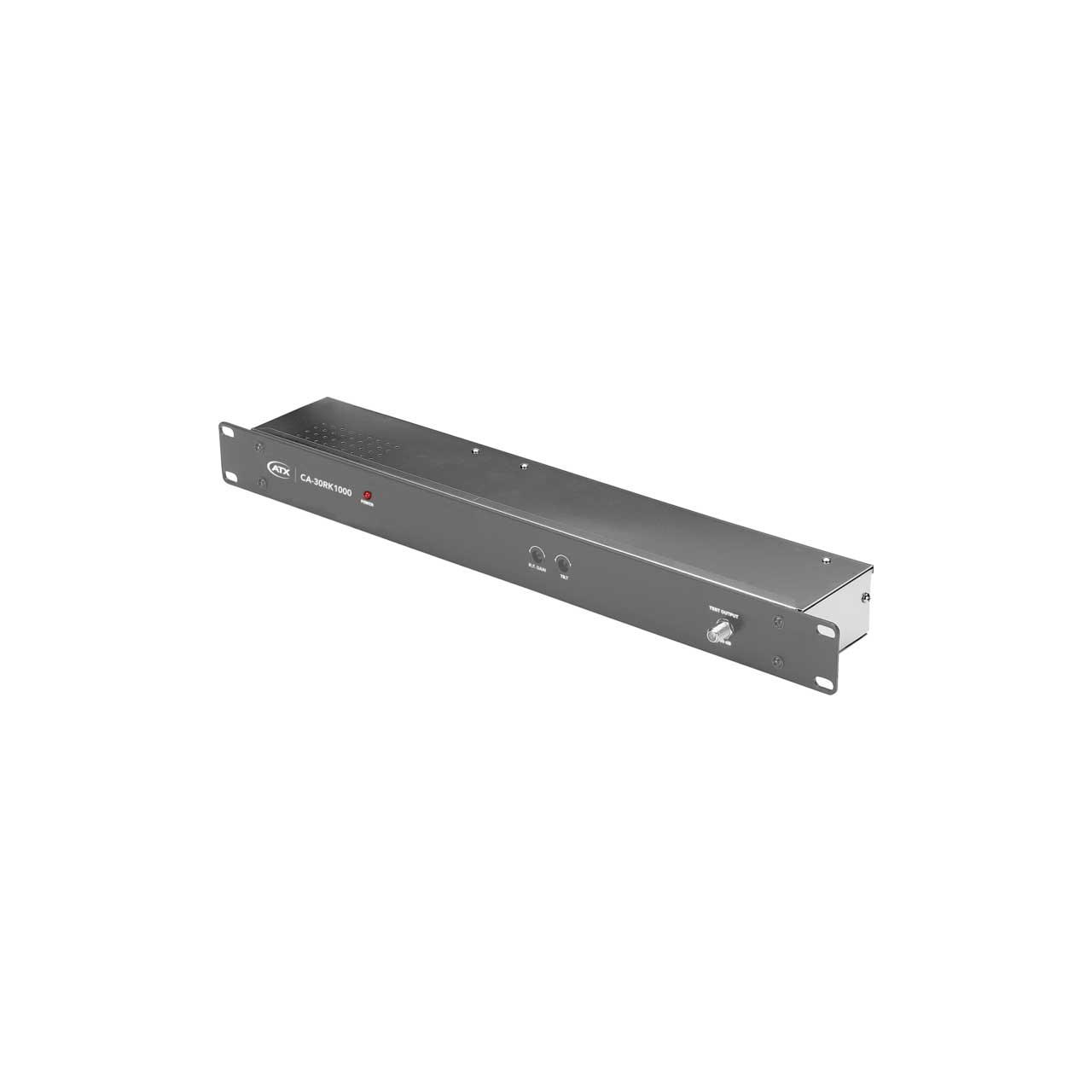

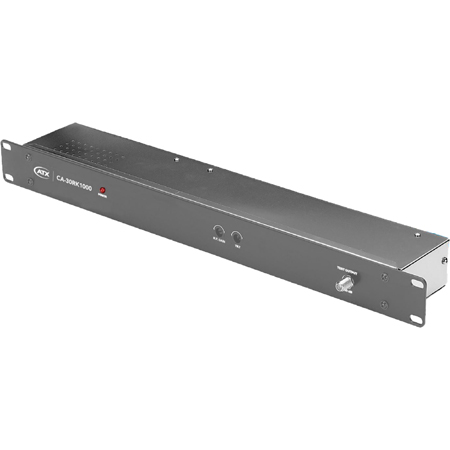

ATX Networks CA-30RK1000 1-GHz Broadband Push-Pull Headend RF Amplifier

ITEM #: ATX-CA30RK1000 MFG #: CA-30RK1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATX-CA30RK1000

CA-30RK1000 - Overview

ATX Networks CA-30RK1000 is a 1-GHz broadband push-pull headend amplifier with 158 Channel frequency range. With 30dB Gain, and ±0.5dB flatness across ban the CA-30RK1000 is designed for optimal carrier to noise ratio and superior picture quality.

  • Features:

    • 158 Channel frequency range
    • 30dB Gain
    • ±0.5dB Flatness
    • Front panel controls and test point
    • Built-in lightning and line voltage surge protection
    • Low noise performance


  • Specifications:

    • Bandwidth (CA-30RK1000): 54~1000MHz
    • Gain: 30dB
    • Flatness: 0.5dB
    • Composite Second Order: 70dB
    • Composite Triple Beat: 75dB
    • Output Test Point Loss: -30dB
    • Voltage Input: 115VAC
    • Power Frequency: 60Hz
    • Power Required: 4Watt
    • Dimensions (LxDxH): 19 x 3 x 1.75"
    • Weight: 3.8 lbs


  • Item Includes:

    • 1x 1GHz Broadband Push-Pull Headend Amplifier
