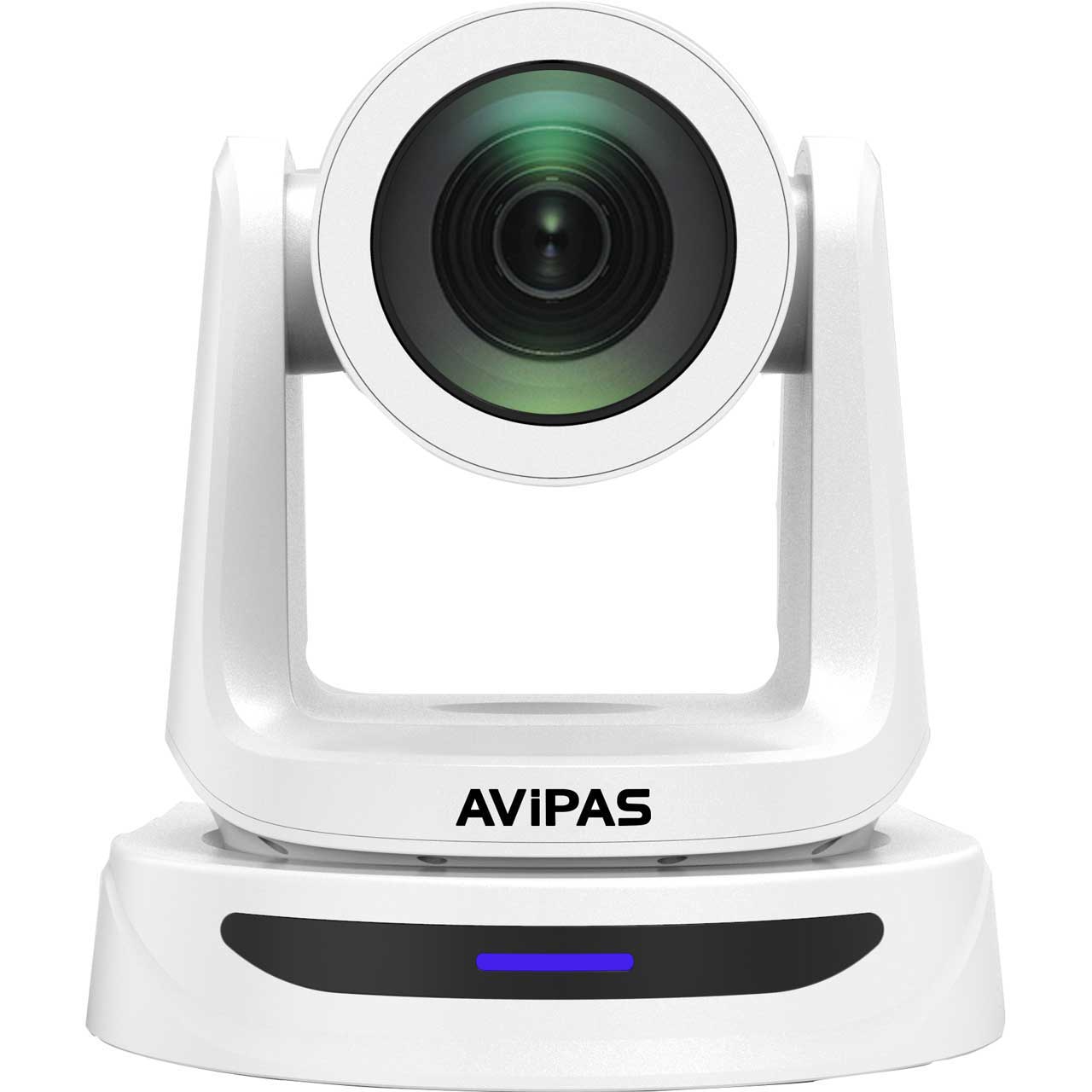

AViPAS AV-2020W 20X-3GSDI/HDMI/USB2.0 PTZ Camera with IP Live Streaming and PoE+ Supported - White

AV-2020W - Overview

• Features:

  • Advanced ISP, 1/2.8 inch 2.07MP sensor, providing full HD video.
  • 20x optical zoom lens, 2x digital zoom with 60-degree FOV.
  • IP (PoE+), HDMI, 3G-SDI, USB2.0 video output interface.
  • White Balance/ Exposure/ Focus/ Iris can be adjusted manually.
  • Support PoE: one single CAT5/6 for video, control, and power.
  • Support line-in audio function: through IP stream only. AAC and LPCM audio encoding.
  • Control options: RS232/UVC1.1; Control protocol options: VISCA, PELCO-P, PELCO-D, VISCA over IP and ONVIF.
  • Support daisy chain, max 7 cameras connected under VISCA protocol.


• Specifications:

  • Video Format
    HDMI: 1920*1080P60/59.94/50/30/29.97/25/24; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
    SDI: 1920*1080P60/59.94/50/30/29.97/25/24; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
    USB: 1280*720P25; 1024*576P30; 960*540P30; 640*360P30, 512*288P30
    RJ45: 1920*1080@1~30 / 1280*720@1~30 / 1024*576 @1~30 (Main stream) 1280*720@1~30 / 1024*576@1~30 / 640*360 @1~30 (Sub stream)

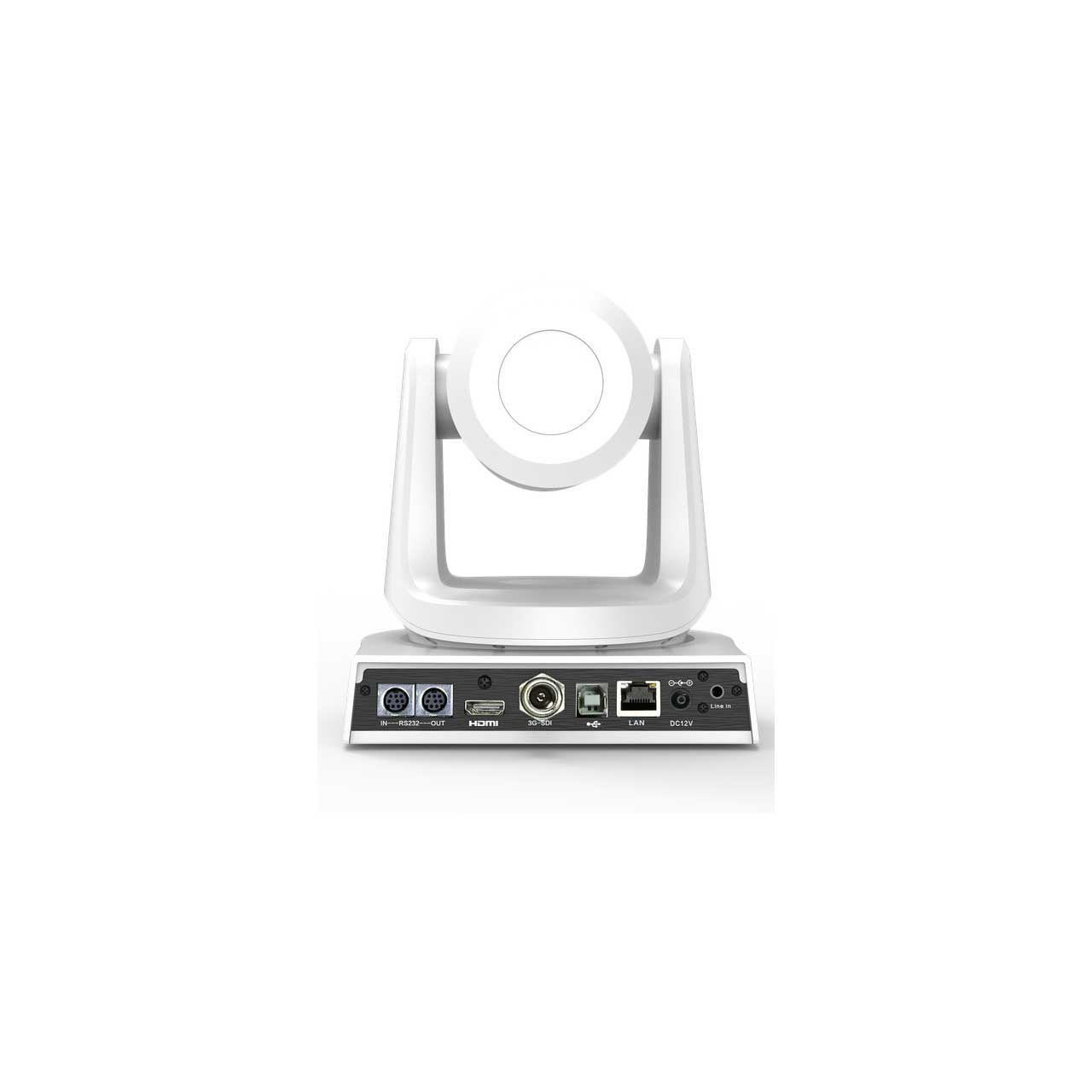

  • Video Interface: HDMI,3G-SDI, RJ45, USB2.0
  • Sensor: 1/2.8" 2.07MP CMOS sensor
  • Zoom:
    f4.9~98mm, F1.5~3.0
    View angle: 60°(Far)~3.23°(Near)
  • Rotation Angle:
    Pan: -170° ~ +170°
    Tilt: -90° ~ +90°
  • Rotation Speed:
    Pan: 0°~120°/s
    Tilt: 0°~80°/s
  • Preset:
    Remote Controller: 10; RS232: 128
    Accuracy: 0.1°
  • Control Port: RS232, RJ45 (VISCA over IP, ONVIF), USB2.0(UVC1.1)
  • Network Speed: 100M
  • Video Encode: H.264/H.265 (default: H.264)
  • Bit Rate Control: Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate: 0Kbps~15360Kbps
  • IP Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif
  • PoE+: Support
  • Daisy Chain: RS232 serial daisy chain (up to 7 units under VISCA protocol)
  • Minimum Lux: 0.1 Lux ( F1.5)
  • White Balance: Auto/Indoor/Outdoor/Manual/AWT/PUSH
  • Exposure: Auto/Manual/Bright/Shutter/Iris
  • Focus: Auto/Manual
  • Iris: Auto/Manual
  • Electric Shutter: Auto/Manual
  • Gamma: Support
  • WDR: Support
  • BLC: Support
  • 2D/3D Noise Reduction: Support
  • Anti-Flicker: OFF/50Hz/60Hz
  • H/V Flip: Support
  • Input Voltage: DC12V/ PoE+
  • Power Consumption: 11W
  • Dimension: 6.6 x 6.6 x 7.1" (67.5 x 168 x 180.5mm)
  • Net Weight: 3.1Lbs (1.4kg)


• Item Includes:

  • 1x AV-2020G
  • 1x AC power adapter
  • 1x Power cord
  • 1x RS232 cable
  • 1x USB cable
  • 1x IR remote control
  • 1x User manual


• GTIN:

  0858738005640
