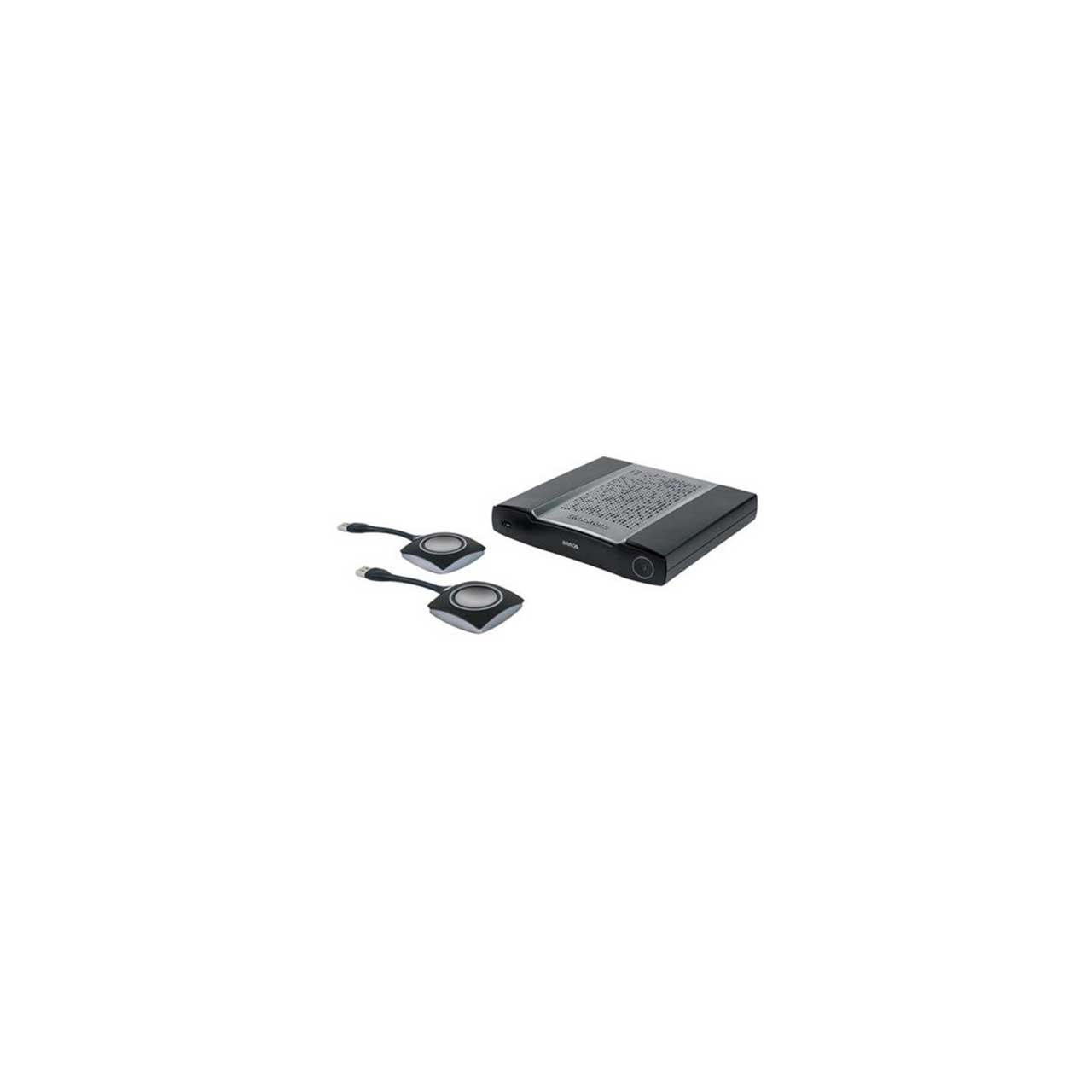

Barco CSE-200plus ClickShare Set - includes CSE-200plus Base & 2 Buttons

ITEM #: BARC-CSE-200PLUS MFG #: R9861521US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BARC-CSE-200PLUS

R9861521US - Overview

Creativity boosts businesses. Enabling creative meetings, brainstorms and discussions enhance team collaboration and business outcomes. With the wireless collaboration solution, ClickShare, you bring effortless ideation and efficient collaboration in your enterprise.

Enriched Sharing
The CSE-200+ offers interactive collaborative experiences for medium-sized meeting rooms. It allows up to 2 persons to share content simultaneously. Users simply plug a USB-powered device - the ClickShare Button - into their PC or Mac and click the button to get the content from their laptop on the large meeting room screen. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have firmware version 1.7 installed on your Base Unit to enable the best experience with the Desktop App.

Stimulate Creativity in your Entire Enterprise
The CSE-200+ was designed for enterprise rollouts. It offers a HDMI input for legacy equipment, easy switching between wireless and wired sources, enhanced security features, full network integration, a wide range of interactivity features - including annotation, blackboarding and touch back support on a 4K canvas and central management. Allowing up to 2 persons to share content simultaneously, the CSE-200+ encourages brainstorming and productivity in your enterprise.

The CSE-200+ is a product created with ISO 27001 certified flows and processes.

  • Features:

    • Up to 2 users on-screen
    • Share from laptop, tablet or smartphone
    • Smooth switching between wired and wireless sources
    • Enhanced security features
    • Annotation, blackboarding and touch back support on a 4K canvas
    • Central management
    • Delivered with 2 Buttons

  • Specifications:

    • Operating System:
      Windows 7/8/8.1/10 32 & 64 bit
      macOS 10.14/10.15 (Catalina)
      Android 9 & 10 (ClickShare app)
      iOS 11, 12 & 13 (ClickShare app)
    • Video Outputs: 1x HDMI 1.4b
    • Video Inputs: 1x HDMI 1.2
    • Output Resolution: 4K UHD (3840*2160) @ 30Hz
    • Input Resolutions: 1920x1080 @60Hz
    • Audio: Via HDMI, analog via Audio Jack 3.5mm, S/PDIF
    • AirPlay Support: iOS 11, 12 & 13 / macOS 10.14, 10.15
    • Google Cast Support: Android 9, 10
    • Miracast Support: Miracast R2 support on Windows 10
    • Frame Rate: Up to 30fps
    • Number of Sources Simultaneous on screen: 2
    • Number of Simultaneous Connections: 16
    • iPad, iPhone and Android Compatibility: Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app
    • Extended Desktop: Available for Windows, requires ClickShare Extension Pack.
    • Authentication Protocol:
      WPA2-PSK in stand-alone mode
      WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
    • Wireless Transmission Protocol: IEEE 802.11 a/b/g/n/ac and IEEE 802.15.1
    • Reach: Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
    • Frequency Band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
    • Connections:
    • 1x Ethernet LAN 1Gbit
      1x USB Type-C 2.0 (back)
      2x USB Type A 2.0 (back)
      1x USB Type A 2.0 (front)
      Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
    • Noise Level:
      Max. 25dBA @ 32° to 86°F (0 to 30°C)
      Max. 30dBA @ 86° to 104°F (30 to 40°C)
    • Temperature Range:
      Operating: 32°F to +104°F (0° to 40°C)
      Max: 95°F (35°C) at 9842' (3000m)
      Storage: -4° to 140°F (-20° to 60°C)
    • Humidity (RH, Non-Condensing):
      Storage: 0 to 90%
      Operation: 0 to 85%
    • Anti-Theft System: Kensington lock
    • Certifications: FCC/CE
    • Warranty: 3 years standard
    • Dimensions (HxWxD): 1.53 x 7.87 x 7.95" (39 x 200 x 202mm)
    • Power Supply: Standard 110/220 V AC plug
    • Power Consumption:
      Operational: 50W (max)
      Standby: <8W (networked standby), < 0.5W (deep standby mode)
    • Weight: 1.98Lbs (900g)

  • GTIN:

    5415334026179
