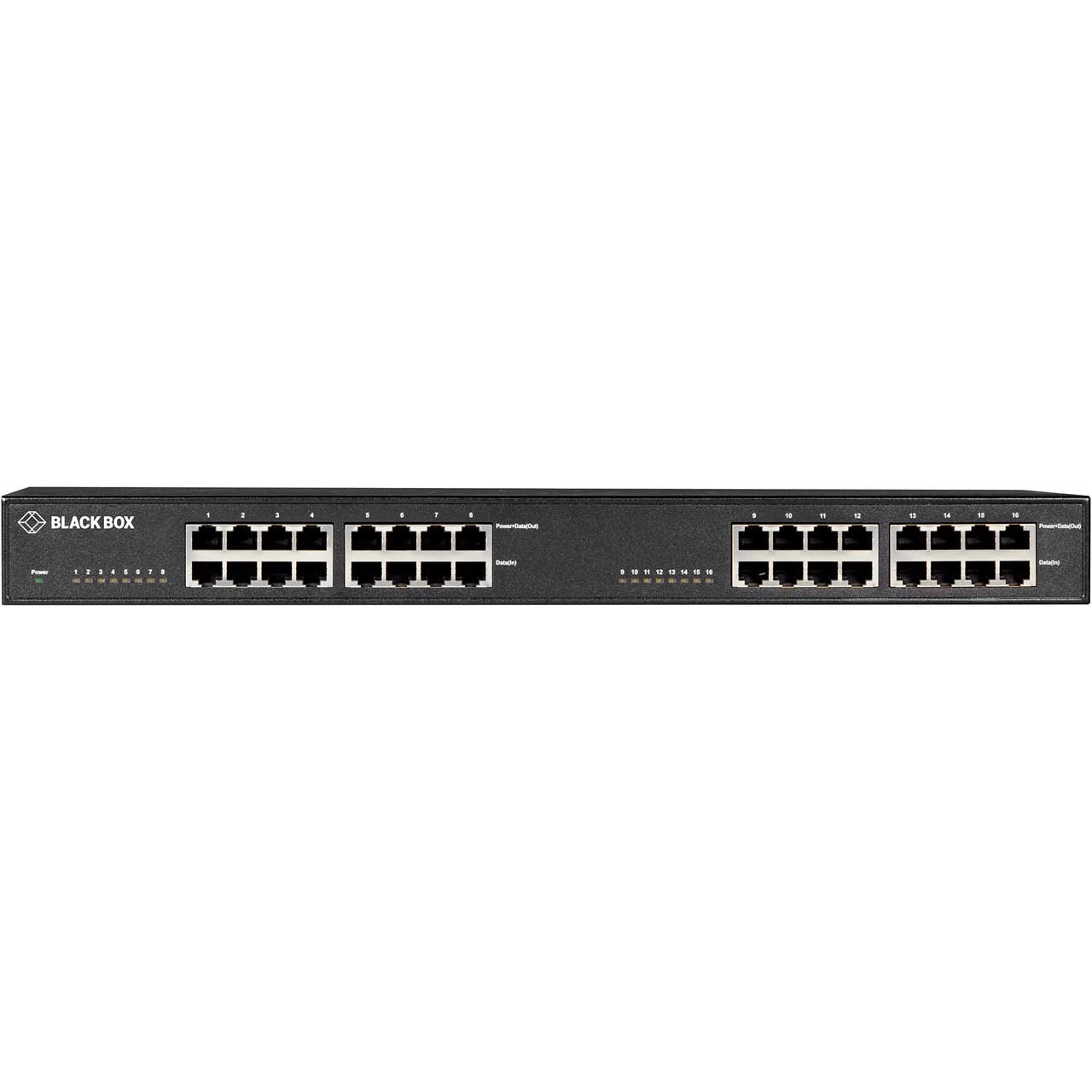

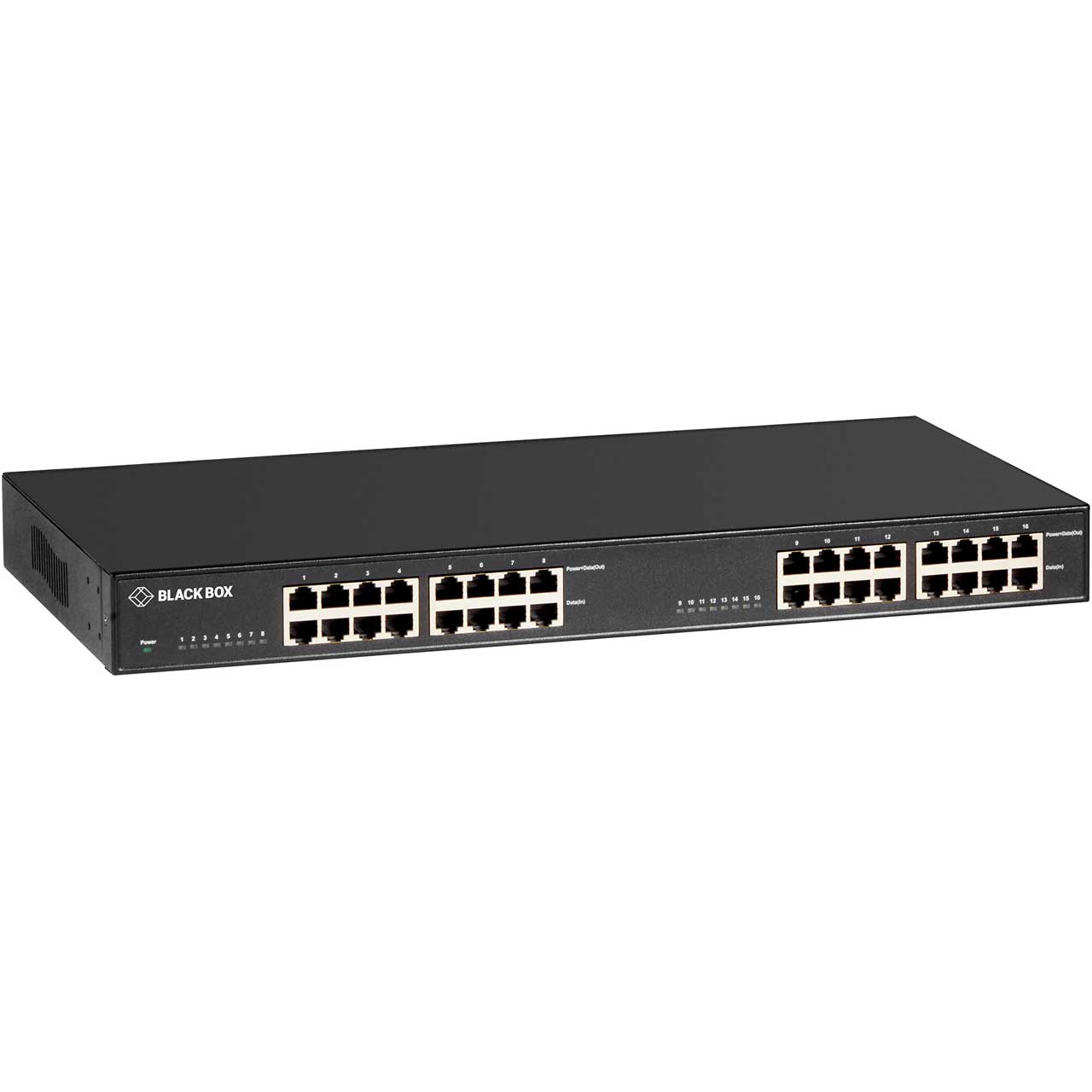

Black Box LPJ016A-T-R2 10/100/1000BASE-T RJ45 POE Gigabit Ethernet Injector - 802.3at - 16-Port

LPJ016A-T-R2 - Overview

• Features:

  • An economical wiring solution. Carries both data and power over a single Ethernet cable
  • Powers 802.3at and 802.3af compliant devices
  • Ideal for multi-radio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs
  • Enables you to avoid installing AC power at a remote camera, access point, or thin client
  • Move equipment from room to room without costly, time-consuming rewiring
  • Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output
  • Provides overvoltage/overcurrent overload protection as well as short circuit protection on the power output (per 802.3at specifications)
  • Diagnostic LEDs indicate 802.3at device detection and alert you to faults
  • Backward compatible with 802.3af standard equipment
  • Simple plug-and-play installation
  • RoHS compliant


• Specifications:

  • Standards
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

    Connectors (16)
  • 10/100/1000BASE-T data-in ports, (16) 10/100/1000BASE-T data-out and power-out ports
  • LED INDICATORS:
    Per Port: PD Link, Link ACT/Speed
    Per Unit: Power

    L2 FEATURES
  • Auto-negotiation
  • Auto MDI/MDI-X
  • Flow Control (duplex): 802.3x (Full), Backpressure (Half)

    Power
  • Input: 100 to 240 VAC, 50 to 60 Hz;
  • Output: 56 VDC per port output, 30 W maximum per port, 16 ports at full 30 W;
  • Consumption: 500 Watts (max.),
  • PoE standards: IEEE 802.3af/at

    Environmental
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Storage Temperature: -4 to 194°F (-20 to 90°C)
  • Relative Humidity: 10 to 90% relative humidity, non-condensing
  • Dimensions (HxWxD): 1.7 x 17.3 x 8.7" (4.4 x 44 x 22 cm)
  • Weight: 7.0LBs (3.2kg)
  • Certifications: FCC Class A, CE

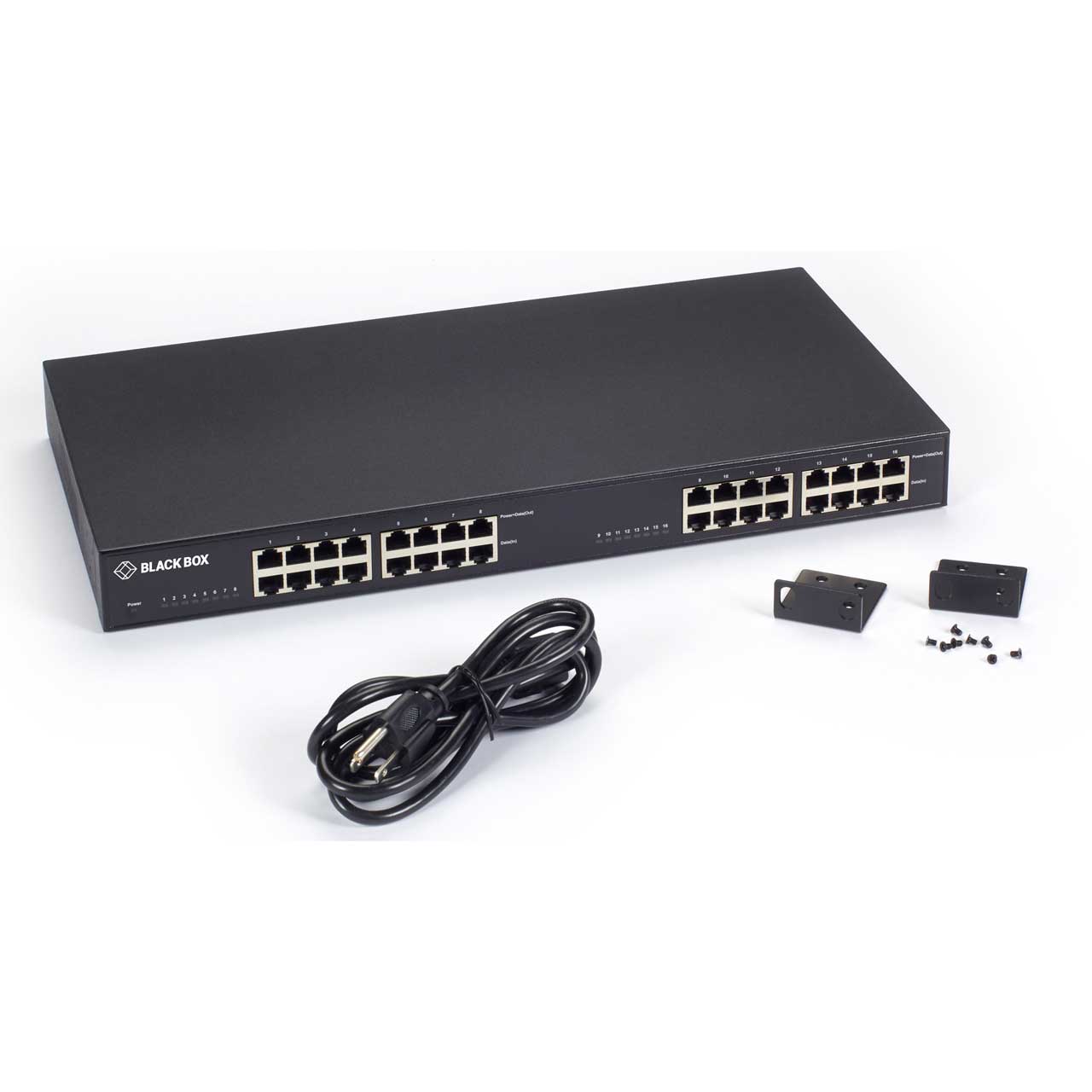

• Item Includes:

  • 1 x 16-Port 10/100/1000 POE Injector
  • 1 x Rackmount Kit (2 Brackets and 8 Screws)
  • 1 x Power Cord


• GTIN:

  0822088135005
