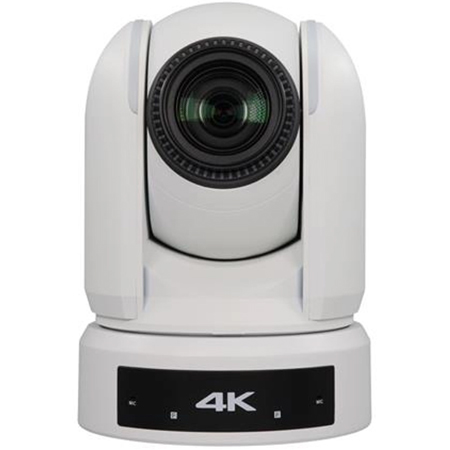

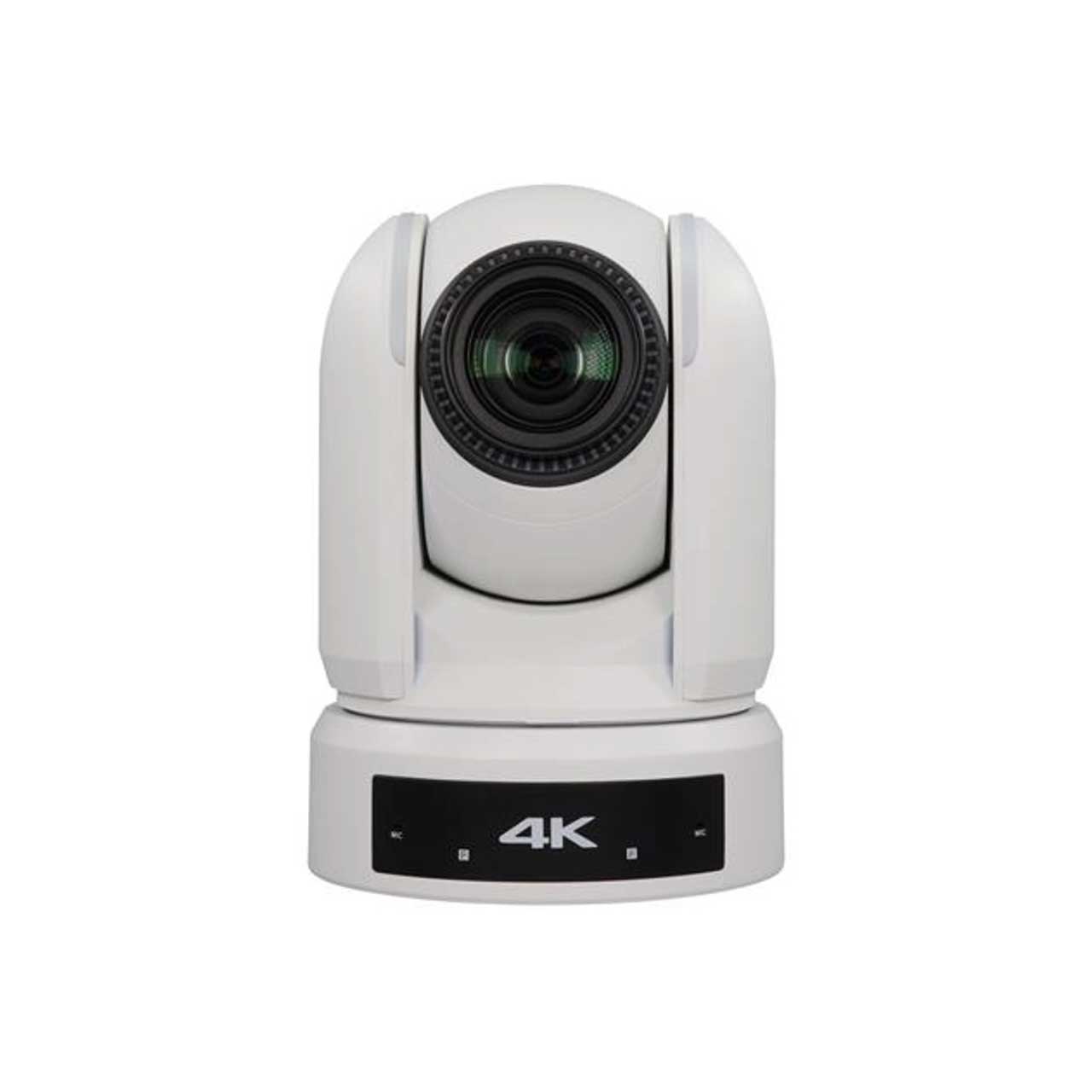

Bolin Technology BC-9-4K12S-S6MN Ultra HD 4K PTZ Camera with 1 Inch CMOS Sensor - 12x Zoom - White

BC-904K12S-S6MN - Overview

• Features:

  • Simultaneous 4K HDMI1.4, 6G-SDI/3G-SDI, 4K IP streaming. Optional Video Card: HDBaseT and Optical 6G-SDI
  • Super High Resolution with Full HD 1080p60 Frame Rate Image
  • Full Resolution Frame Rate and Cinematic Pictures
  • Made for Broadcast Use
  • Industry Standard and Compatibility
  • Always up to date
  • Audio Embedded with Video Output
  • FHD - 4K Upgradable


• Specifications:

  • Camera 12x 4K Sony Block
  • Image Sensor: 1 Inch "Exmor R" CMOS sensor, Effective pixel number: 14.4 Megapixels
  • Lens: Optical Zoom 12X,Digital Zoom 12X, F=9.3(W)~111.6mm(TELE)
  • SRZ (Super Resolution Zoom): With SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
  • With Tele Convert Mode: Gain 2X-24X zoom range with 1080p resolution, up to 48X with SRZ
  • Horizontal Angle of View: 64.6°(W)~6.1°(T)
  • Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On); 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off)
  • Aperture: F2.8 Constant (W)~(T), 16 Steps
  • Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
  • White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
  • Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,
  • Features A: Image Stabilizer. Black Level, Color Matrix, True WDR(VISIBILITY ENHANCER), ND Filter, High Sensitivity,
  • Features B: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
  • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D

    Video Format
  • SDI/HDMI video format: 3840 x 2160/29.97p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI)); 3840 x 2160/25p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI)) 3840 x 2160/23.98p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI)); 3840 x 2160/24p (HDMI, 6G-SDI x 2 / Dual Link 3G-SDI(2SI)) 1920 x 1080/59.94p/60p (HDMI, SDI) 1920 x 1080/59.94i/60i (HDMI, SDI) 1920 x 1080/50p (HDMI, SDI) 1920 x 1080/50i (HDMI, SDI) 1920 x 1080/29.97p/30p (HDMI, SDI) 1920 x 1080/25p (HDMI, SDI) 1920 x 1080/23.98p/24p (HDMI, SDI) 1280 x 720/59.94p/60p (HDMI, SDI) 1280 x 720/50p (HDMI, SDI)
  • SDI Standard: SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081 With SMPTE352 SDI Metadata Supported
  • Color Precision: 10bit(SDI), 8bit(HDMI), YCbCr, 4:2:2
  • Color Space: YUV( YCbCr),RGB
  • IP Video Format: True Dual Output : IP format can be set independently of SDI video format, 3840x2160p30/25/24, 1920x1080p60/50/30/25/24, 1280x720p60/50
  • IP Video Format: 3840x2160p30/25/24, 1920x1080p60/50/30/25/24, 1280x720p60/50

    Mechanical
  • Pan Movement: Horizontal:±175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°?100°/S )
  • Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°?50°/S)
  • Preset Position: 128(Speed adjustable: Up to 150°/S, 6 presets on remote controller.), motionless preset supported
  • Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters)
  • Environmental: Indoor

    Interface
  • 4K Video Output: Main 4K HDMI 1.4a Type-A X1, 6G-SDIX2 or Dual Link 3G-SDI(2SI only) x1, 4K IP H.265/264
  • HD Video Output: Main HD HDMIX1, 3G-SDI x2, Sub HD HDMIX1 (Not available, for future AI Auto Tracking video output)
  • LAN: RJ45X1(1000Mb), 4k IP video streaming, System upgrade, POE(IEEE802.3bt)
  • Control Interface: RS232/RS-422/RS485(RJ45X2), IP Control (RJ45), HDBaseT (RJ45), IR Remote Control
  • Control Protocol: VISCA, VISCA Over IP, Pelco D, IP Onvif,
  • Audio Output: Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo.
  • External Sync. (Genlock): Genlock, BNCX1, 75O, BBS (Black Burst Sync), tri-level sync supported
  • Edge Storage (Beta): Micro SD, Class 10, Up to 128GB
  • Tally Light: Two lamps, Red color, Front and Back
  • System Firmware Upgrade: Upgrade for camera system (MCU upgrade via USB) and IP/FPGA firmware upgrade (via IP);
  • Optional Video card slot: HDBaseT output card (Optional): 1XRJ45-HDBaseT(4K), With HDBaseT video output transmission distance up to 80-100 meters. HDBaseT interface delivers camera power, up to 4K Video signal, RS232/422 and IR control and Audio over one CAT5e/6 cable.
  • Optional video card slot: Optical SDI video (Optional): Connector: Duplex LC , Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.

    IP Network
  • Video Compression: MJPEG,H.264/H.265
  • IP Video Format: True Dual Output : IP format can be set independently o


• Item Includes:

  • 1x BC-9-4K12S/S6MN 4K PTZ Camera - White
