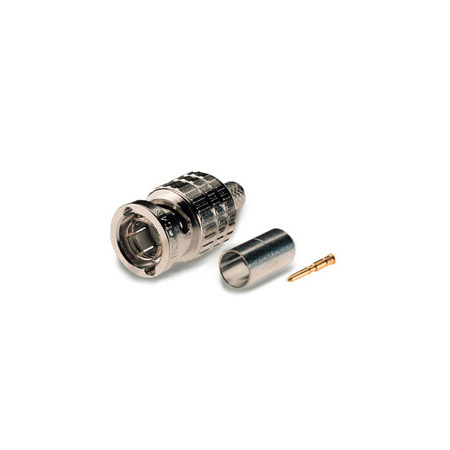

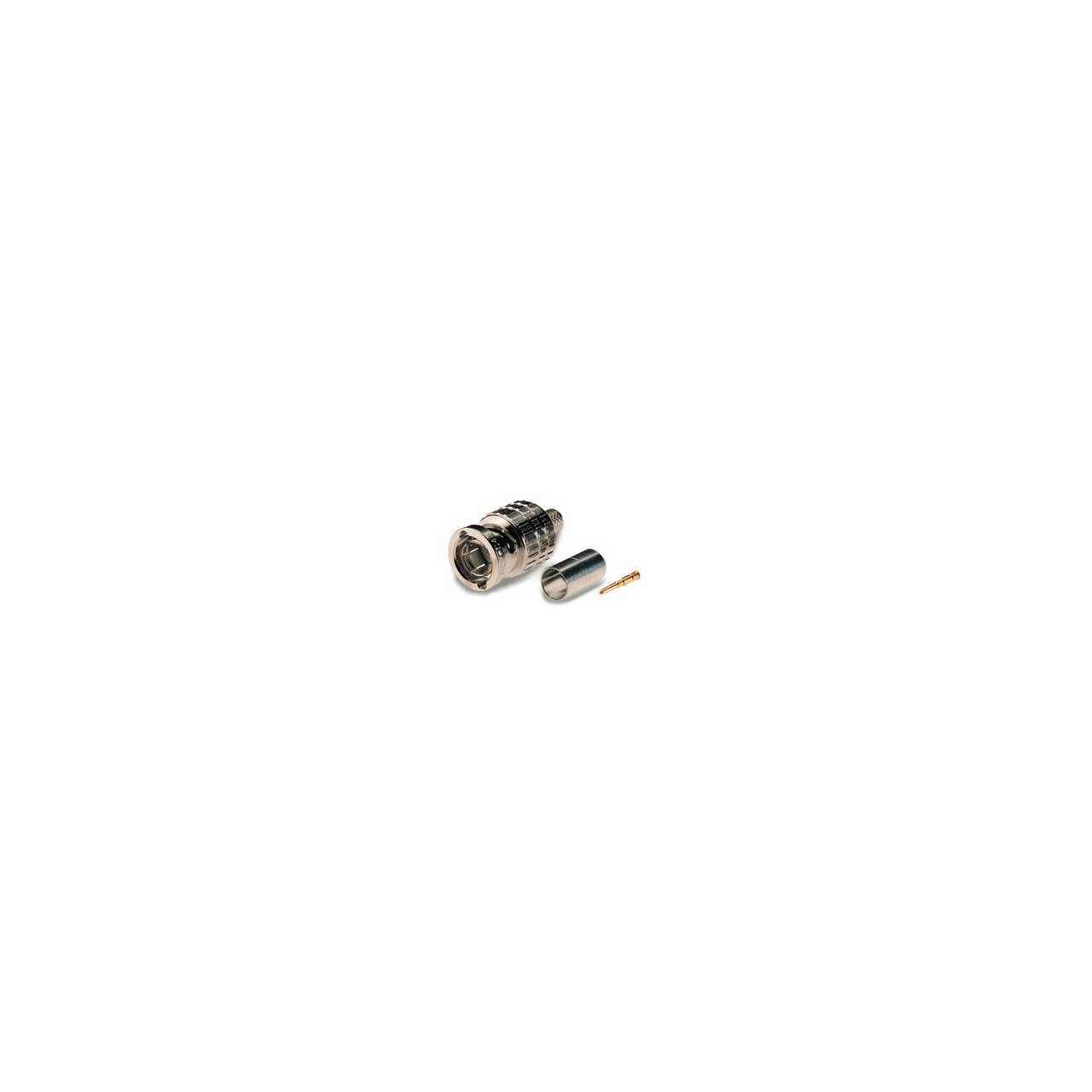

Canare BCP-C71A 3-Piece Crimp 75 Ohm BNC Connector Plug for Belden 9292 Cable

ITEM #: BCP-C71A MFG #: BCP-C71A

Primary Image
Canare
Free Shipping with $49 Minimum Order

List Price:

$7.94

Our Price:

$7.05

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BCP-C71A - Overview

Canare true 75-Ohm BCP connectors are widely used in a number of video formats from analog to digital with outstanding electrical and mechanical performance. Exceeding 3.0Gbps HD-SDI requirements specified in SMPTE424M. The highest quality BNC in the market. This high performance BNC connector is housed around a die-cast body and boasts 1.1 or less VSWR up to 3GHz.

  • Features:

    • SMPTE 259M & 292M Compliant
    • Serial Digital Video
    • HDTV Upgrades
    • NTSC Analog
    • Test Equipment
    • Satellite Headends
    • TELCOM


  • Specifications:

    • True 75 ohm construction; Crimp Pin & Sleeve
    • DC to 2.0 GHz; >26dB Return Loss (<1.1 VSWR)
    • Mechanically mates with common 50 ohm BNC
    • Elongated Body for better finger grip
    • Superior cable pull strength
    • Gold plated center pins 'snap lock' in place
    • Beryllium copper outer contact
    • Easy Assembly using Canare Strip & Crimp Tools
    • Operating temperature -20 to +60 degrees Celsius
    • Designed for Belden 7731A, 9064, 9292, 1617A and 9011
