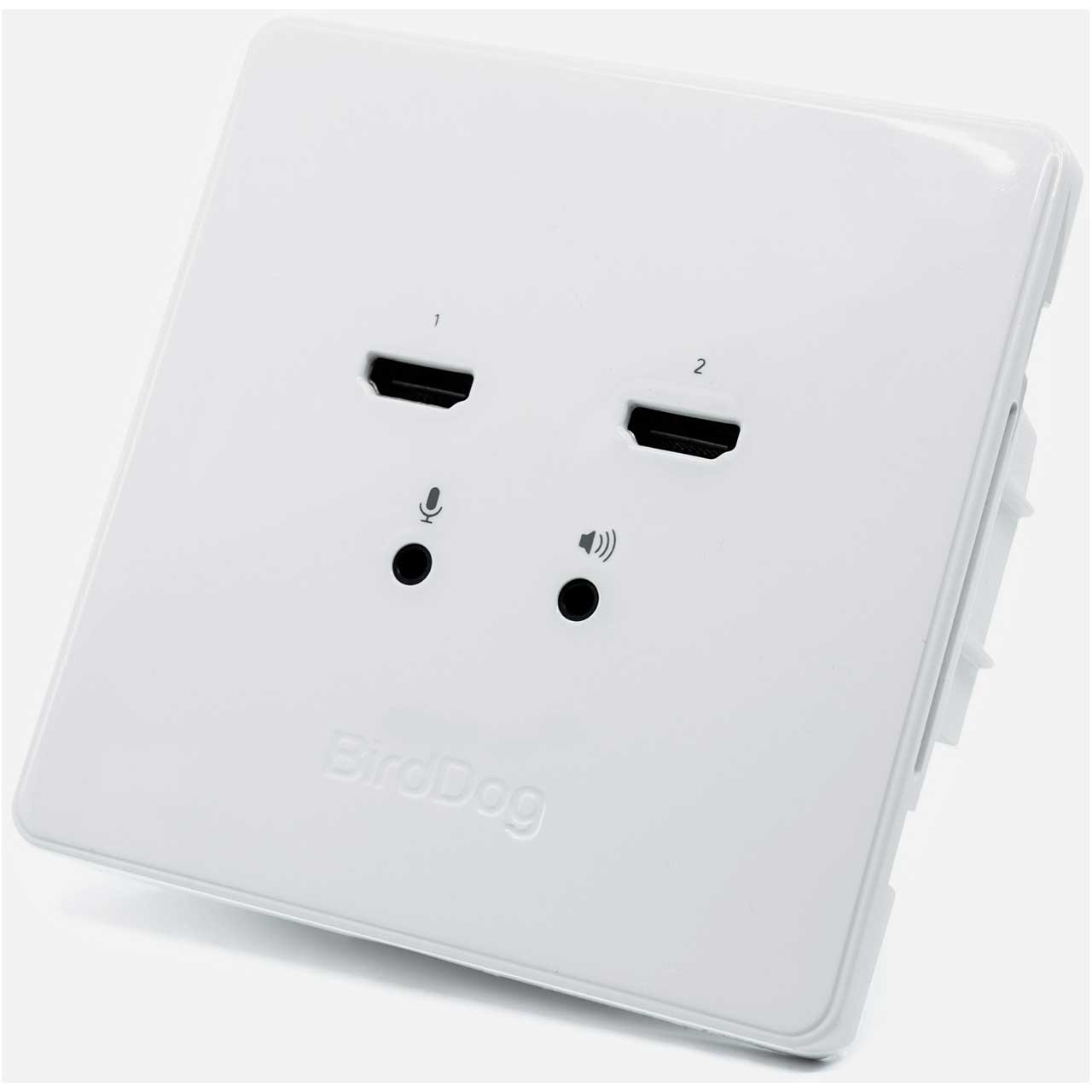

BirdDog BDWPOUT NDI Wallplate with Dual Output

ITEM #: BDS-BDWPOUT MFG #: BDWPOUT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$729.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BDWPOUT - Overview

NDI® Wallplates for Building the Ultimate AV Experience.
NDI® Wallplates are the answer to elegant and permanent NDI® installations. With two models to choose from, Dual Input or Dual Output, they have been designed to make boardroom setups a breeze. Install the Dual Output in the wall to drive content to the TV screens and install the Dual Input into the meeting table to take inputs from laptops and other devices.

Wallplates are all built upon BirdDog's custom NDI® chip and can be completely automated via the programmable RESTful API, and also feature PoE for single Ethernet cable functionality, interchangeable faceplates, soft glow status indicators, and an easy to use web management console to change settings.

Wallplate Output.

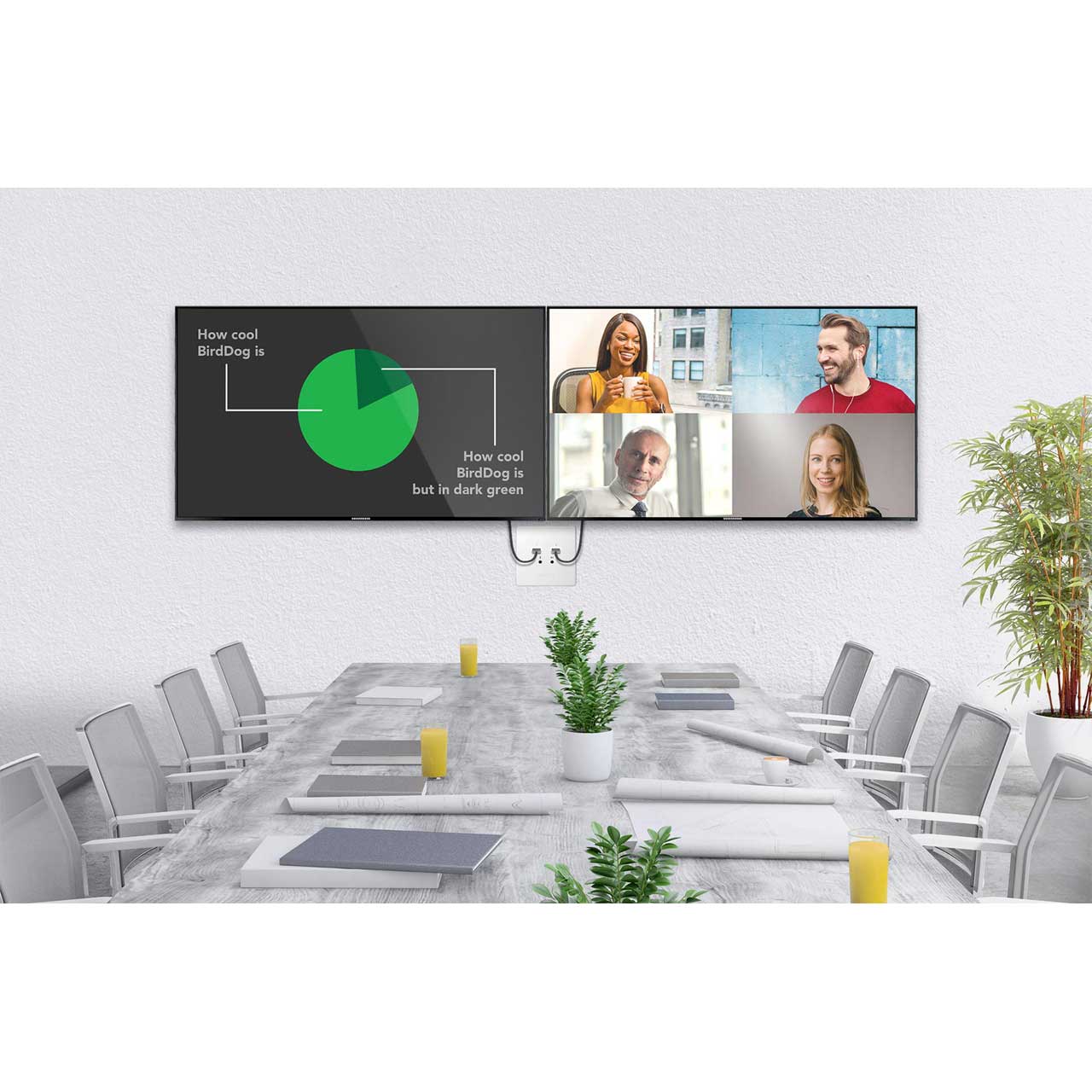

Wallplate Output features two independent outputs and is designed for driving content to screens. Output the video conferencing group to one screen and output the presentation or laptop screen share to another screen to make for super engaging meetings. Use the RESTful API to automate the workflow.

RESTful API. DIY automation.
BirdDog Wallplates are programmable via the free RESTful API. It's never been easier to integrate NDI into automated and integrated AV solution no matter what the overarching system is.

Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

Flush Mounted.

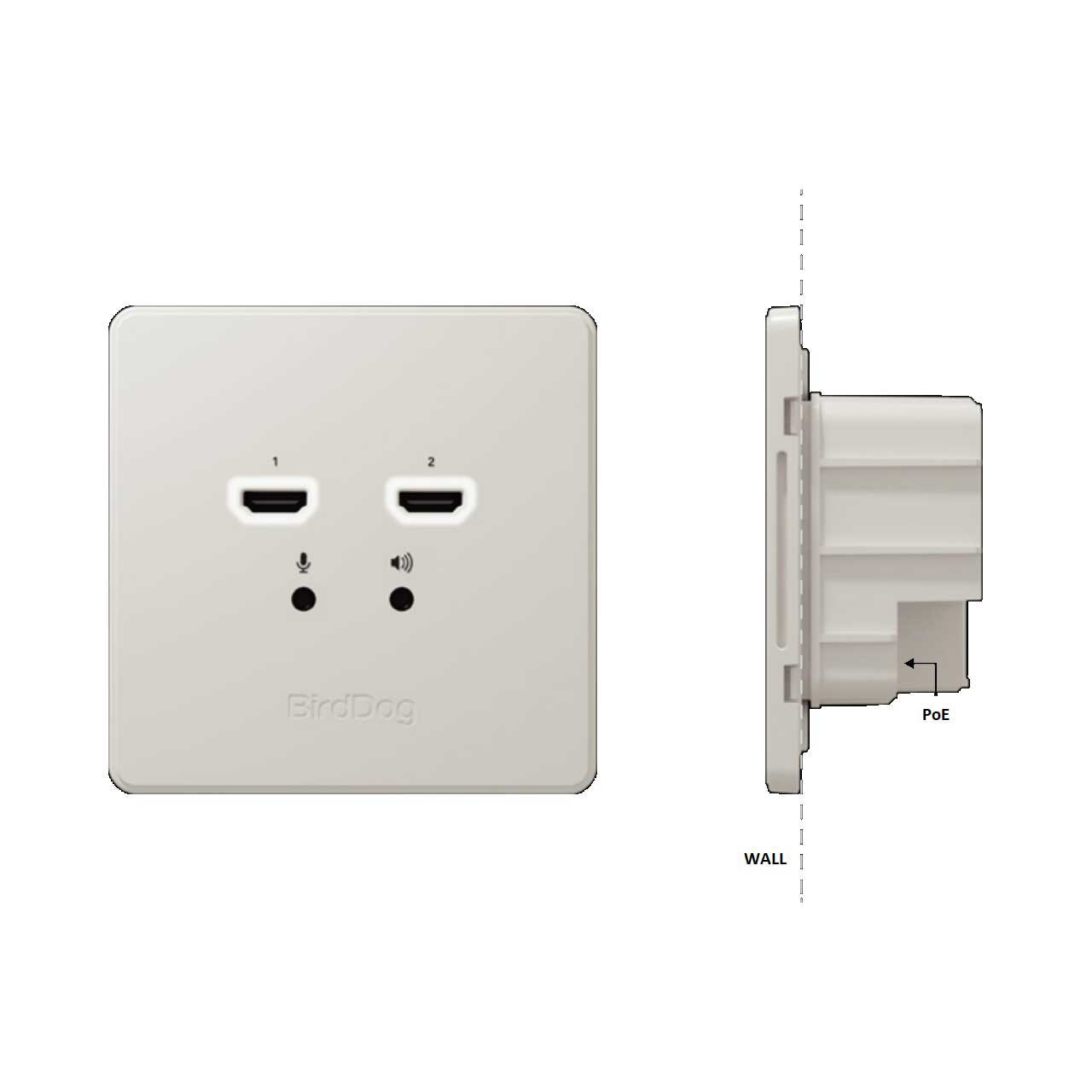

Wallplate can be flush mounted in almost every wall or surface such as boardroom walls, boardroom tables, and lecterns.

One Cable for PoE, Video, Audio.
NDI Wallplates are powered by PoE, so you only need to run a single Ethernet cable to power the units, along with carrying video and audio. One cable to rule them all.

Extreme Speed. It's all about the silicon.
BirdDog's revolutionary custom silicon chip is what drives the best NDI® products on the planet. Only BirdDog's hardware can do line-based processing to give the fastest possible NDI® Encoding or Decoding technically possible.

Interchangeable Faceplates. Soft Glow Indicators.
Beautiful rooms should look beautiful. Wallplate has a variety of Faceplate options in various colours and textures. Faceplates can be clicked on and off quickly and easily for maximum convenience. The elegant soft glow indicators that can be configured in any colour schematic.

  • Features:

    • Flush Mounted.
    • One Cable for PoE, Video, Audio.
    • Interchangeable Faceplates and Soft Glow Indicators.
    • Web Management Console for easy configuration.

  • Specifications:

    • Video Format
    • (HD) 1080p 23.98, 25, 29.97, 50, 59.94
    • (HD) 1080i 50, 59.94
    • (HD) 720p 50, 59.94

      Video Output
    • 2 x HDMI Standard Type A connector HDMI v1.4a, RGB or YCbCr

      Audio digital
    • 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

      Audio analog
    • 3.5mm microphone input
    • 3.5mm stereo output

      Video Codec support
    • Realtime, ultra-low latency, full-bitrate NDI (i-frame)

      Soft glow Indicators
    • User definable status indicators to show active/non-active connections.

      Network Interface
    • 10/100/1000 Ethernet (RJ-45) with PoE (Power over Ethernet) Embedded web configuration panel for control and firmware updates

      Power
    • Power over Ethernet (PoE) 802.3af/at

  • Item Includes:

    • 1x BirdDog Studio BDWPOUT Wallplate with Dual Output

  • GTIN:

    9354873000485
