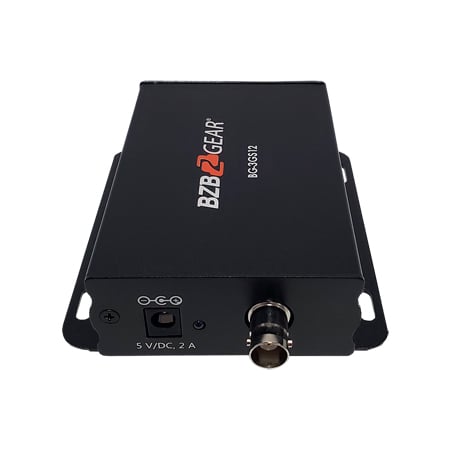

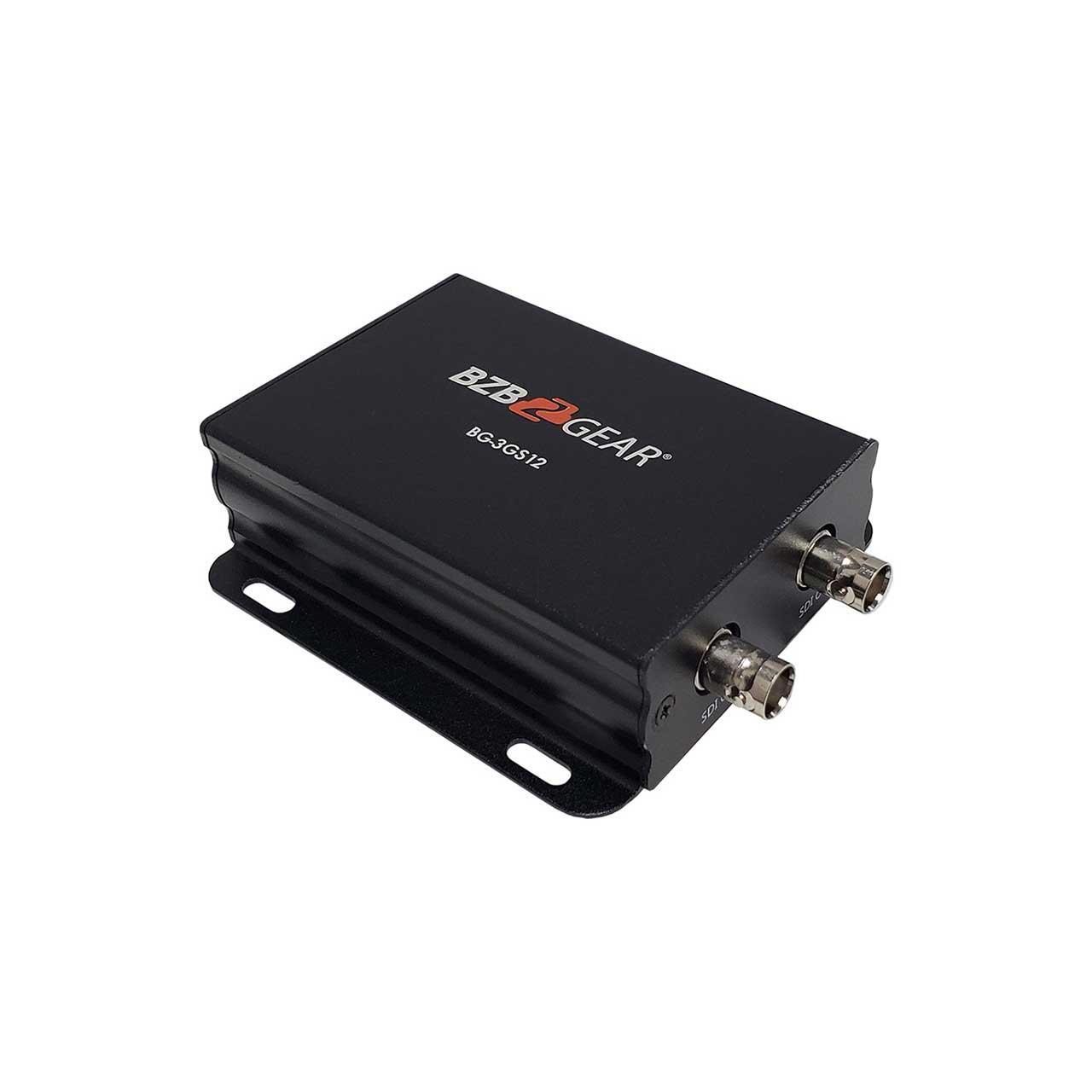

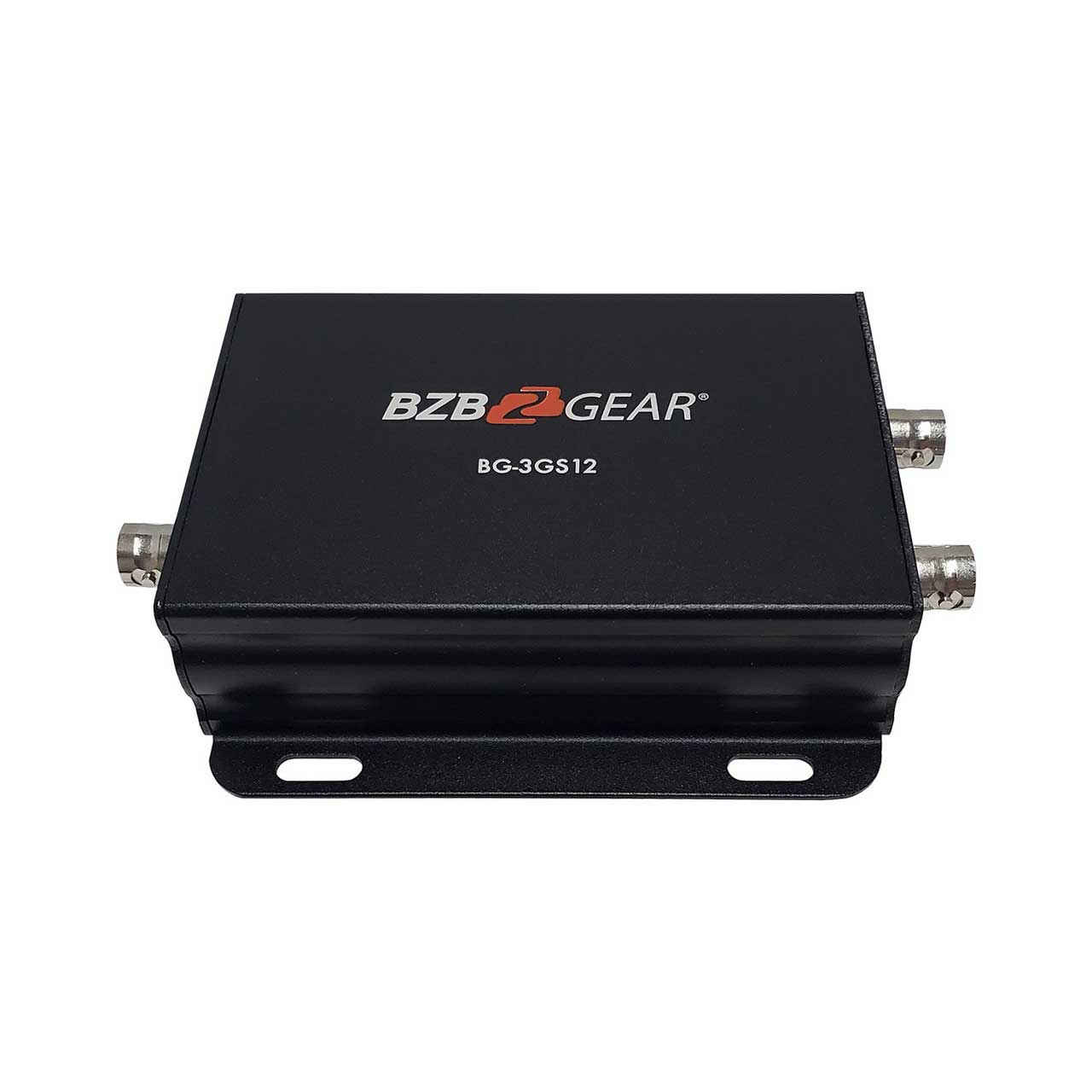

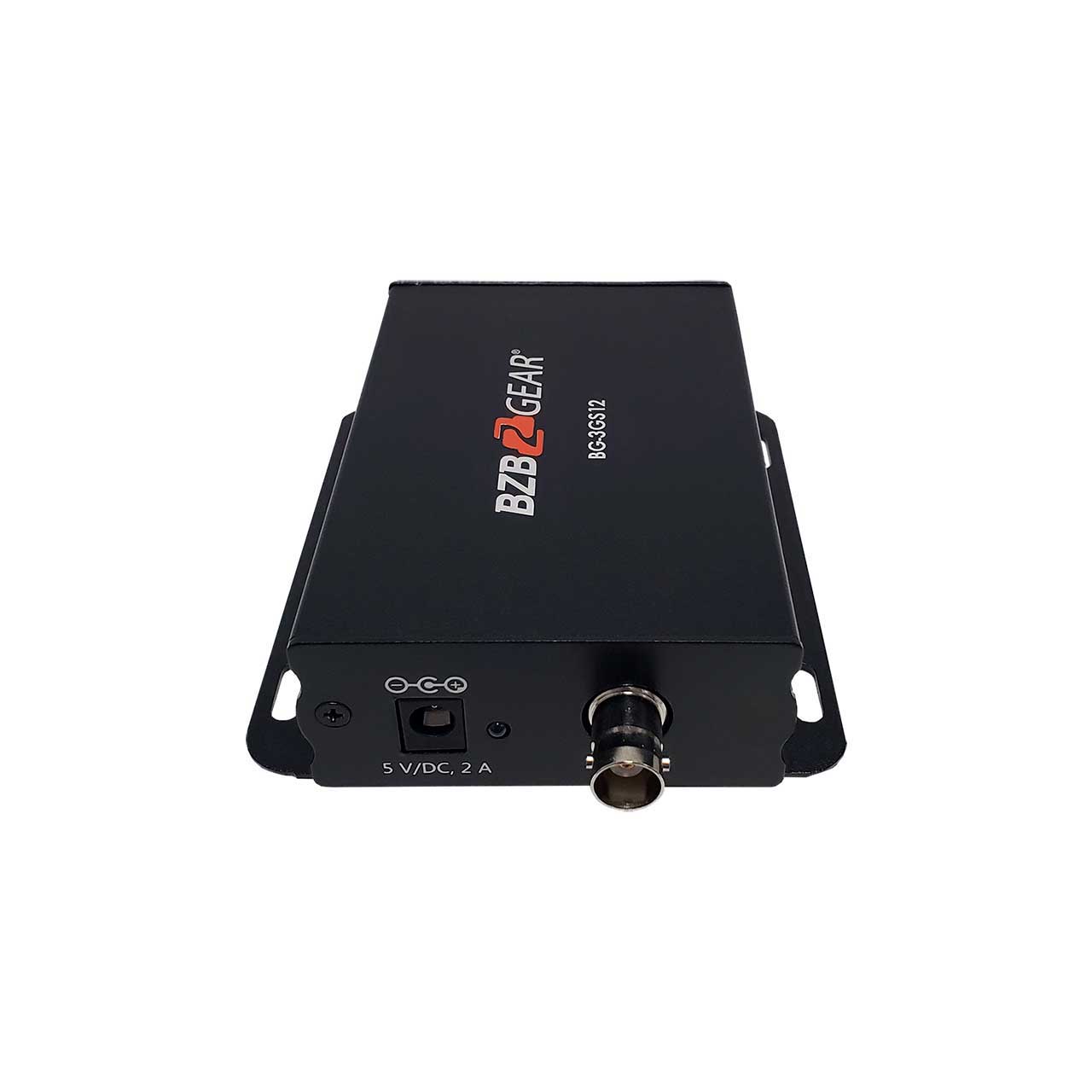

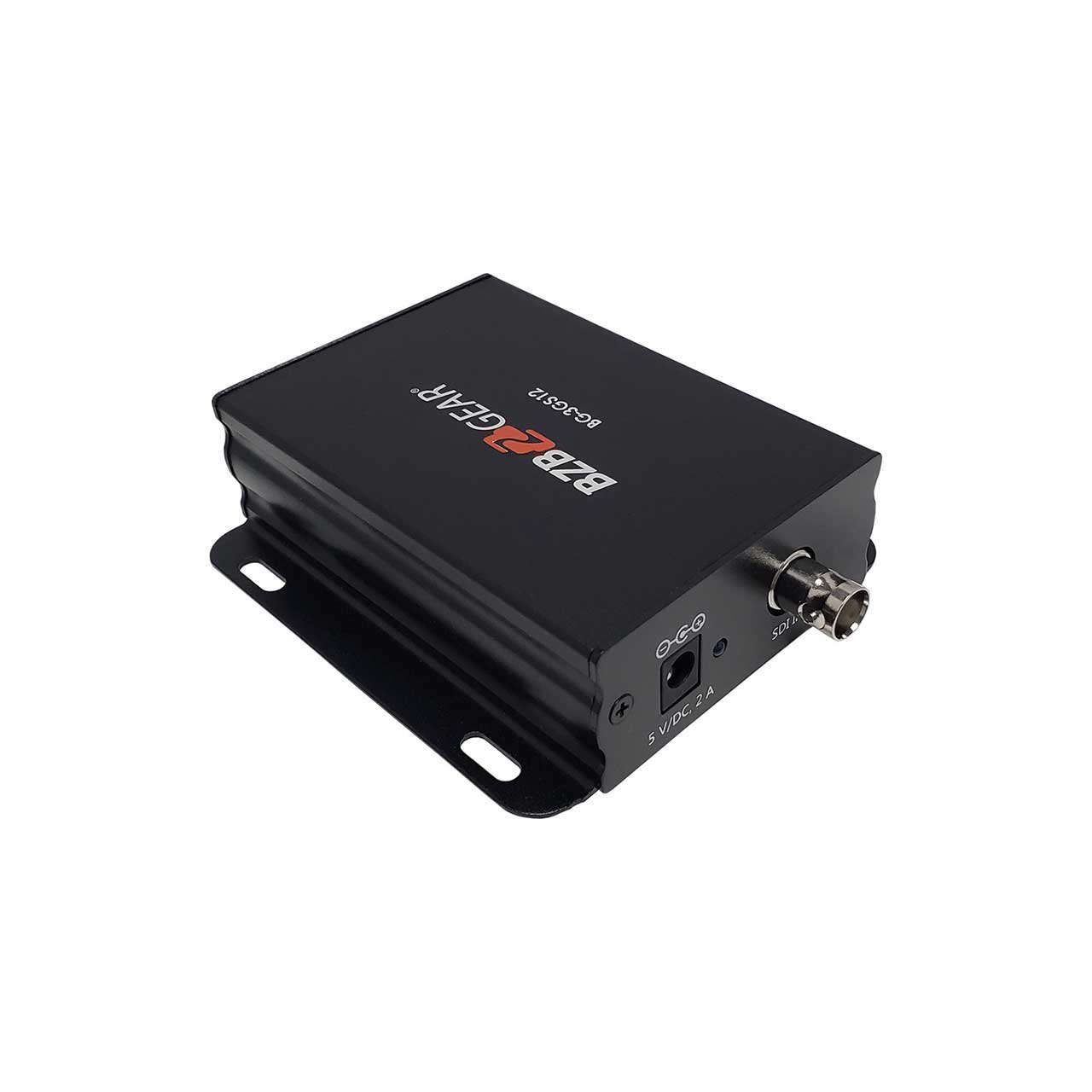

BZBGEAR BG-3GS12 1x2 3G SDI Splitter Amplifier with Long Distance Support

BG-3GS12 - Overview

• Features:

  • Supports multiple color space:
    - RGB or YCbCr 4:4:4 sampled
    - YCbCr 4:2:2 or 4:2:0 sampled
  • This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable
  • Supports wide range data rates: 270Mbps - 2.97Gbps


• Specifications:

  • Signal Inputs/Output
  • Input Connector: 1x SDI BNC Male
  • Output Connector: 2x SDI BNC Male
  • SDI Cable Distance (RG59 cable):
    - 3G Mode: Up to 80m
    - HD Mode: Up to 120m
    - SD Mode: Up to 200m

    Mechanical
  • Size (LxWxH): 4.41" x 3.54" x 1.15" (112mm x 90mm x 29.3mm)
  • Weight (Net): 5.29oz (150g)

    Environmental
  • Operating Temperature: 32°F - 158°F (0°C - 70°C)
  • Operating Humidity: 10% - 85% RH (no condensation)
  • Storage Temperature: 14°F - 176°F (-10°C - 80°C)
  • Storage Humidity: 5% - 90% RH (no condensation)

    Power Requirement
  • External Power Supply: 5V DC@ 2A
  • Power Consumption (max): 1W


• Item Includes:

  • 1x BG-3GS12
  • 1x Power adapter 5V@2A
  • 1x Quick Installation Guide


• GTIN:

  0850023208125
