Bittree DAF32FX Video Distribution Amplifier Frame

ITEM #: BIT-DAF32FX MFG #: DAF32FX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$2,594.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

DAF32FX - Overview

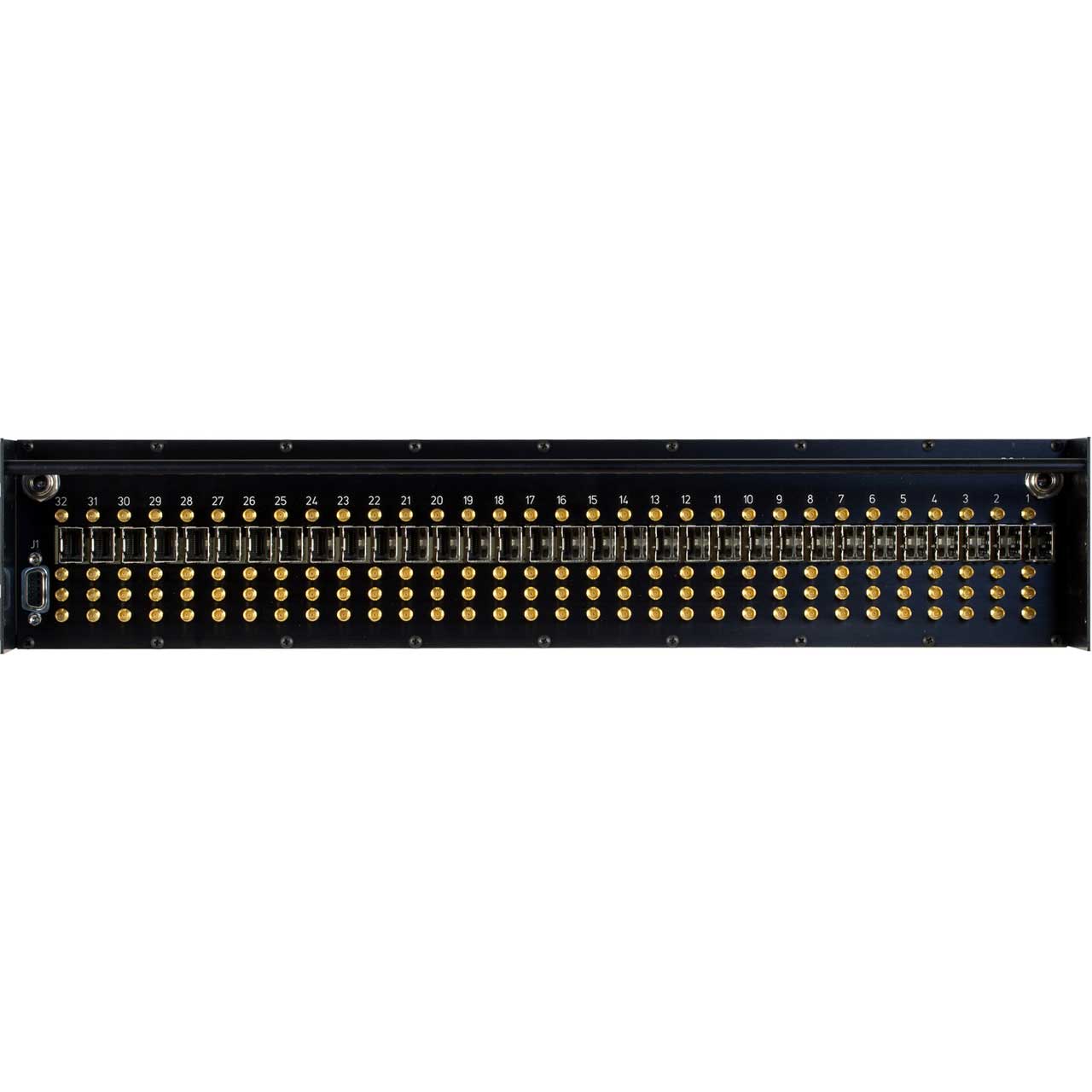

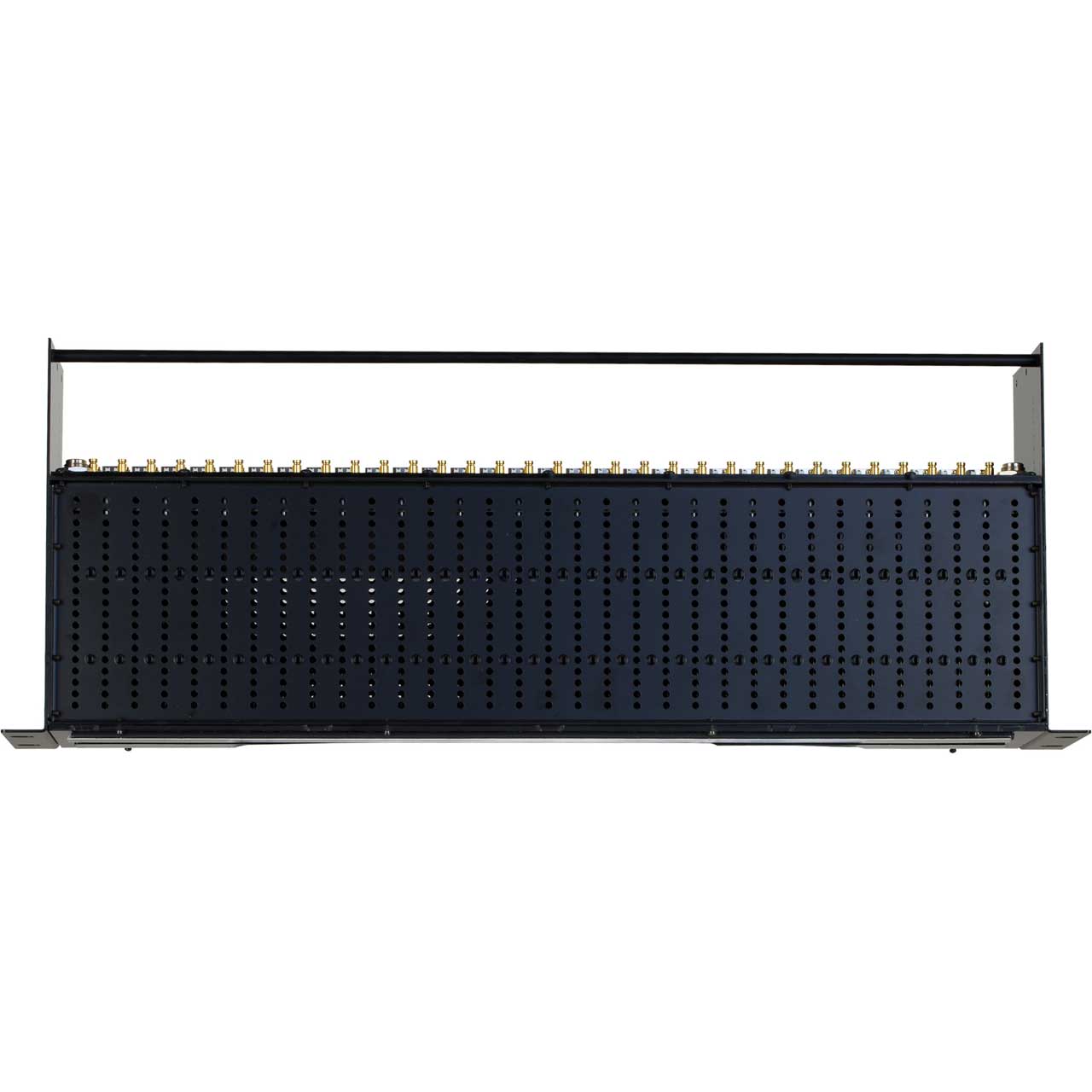

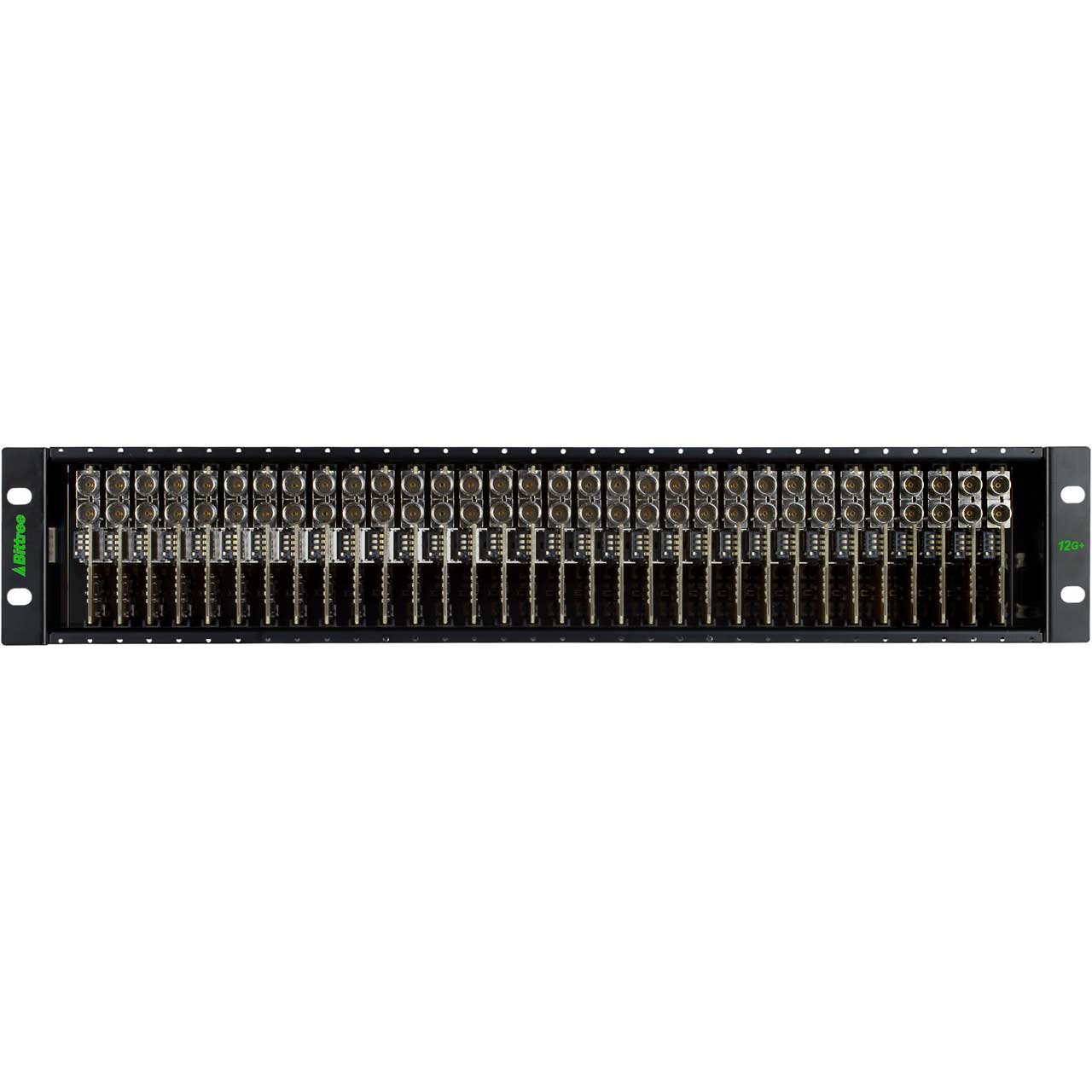

The DAF32FX is a 2RU frame which houses the DABFX video distribution amplifiers.

  • Features:

    • Up to 32 1-in by 4-out distribution amps per frame
    • Compact design offers high module density
    • Accepts all Bittree FX modules
    • Wideband frame for in/out SFP sd-sdi, and hd-sdi & 4K UHD 12G SDI IP

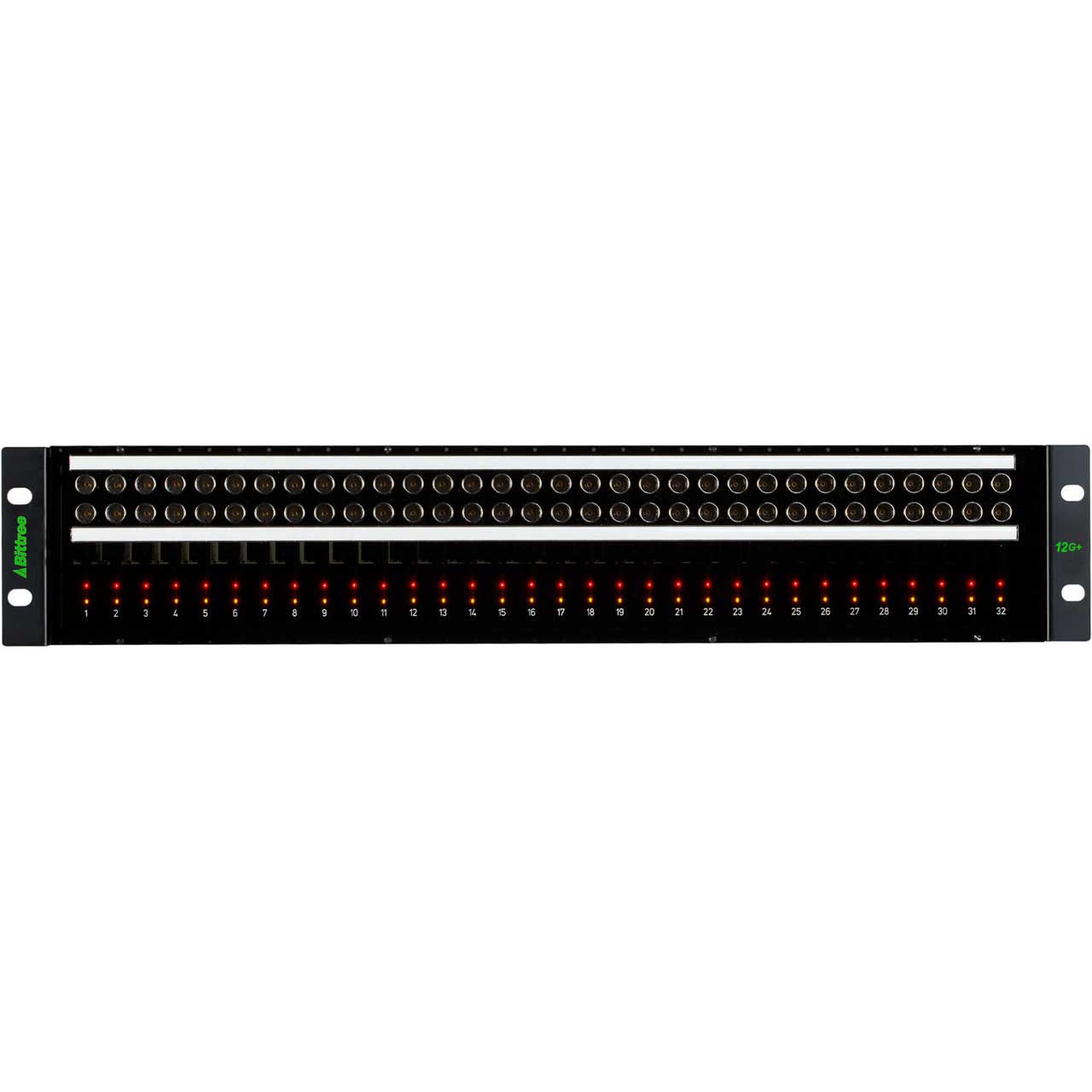

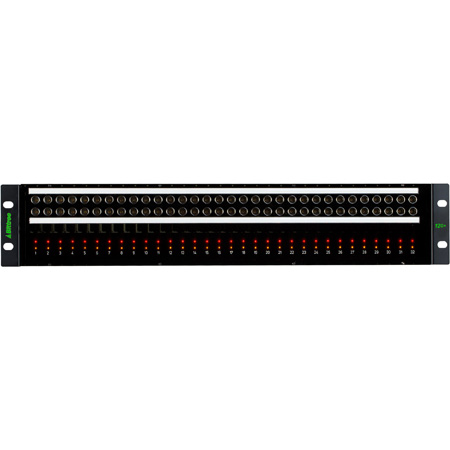

    • See thru front cover allows quick status indication


  • Specifications:

    • Height: 3.5 inches (2RU)
    • Width: 19 inches
    • Depth: 7 inches
    • Nominal: Weight 18 lbs. FULLY LOADED
    • Input: Coax and SFP
    • Connectors: DIN 1.0/2.3, 75 ohm, and SFP
    • Number of inputs: up to 32
    • Number of outputs: up to 128

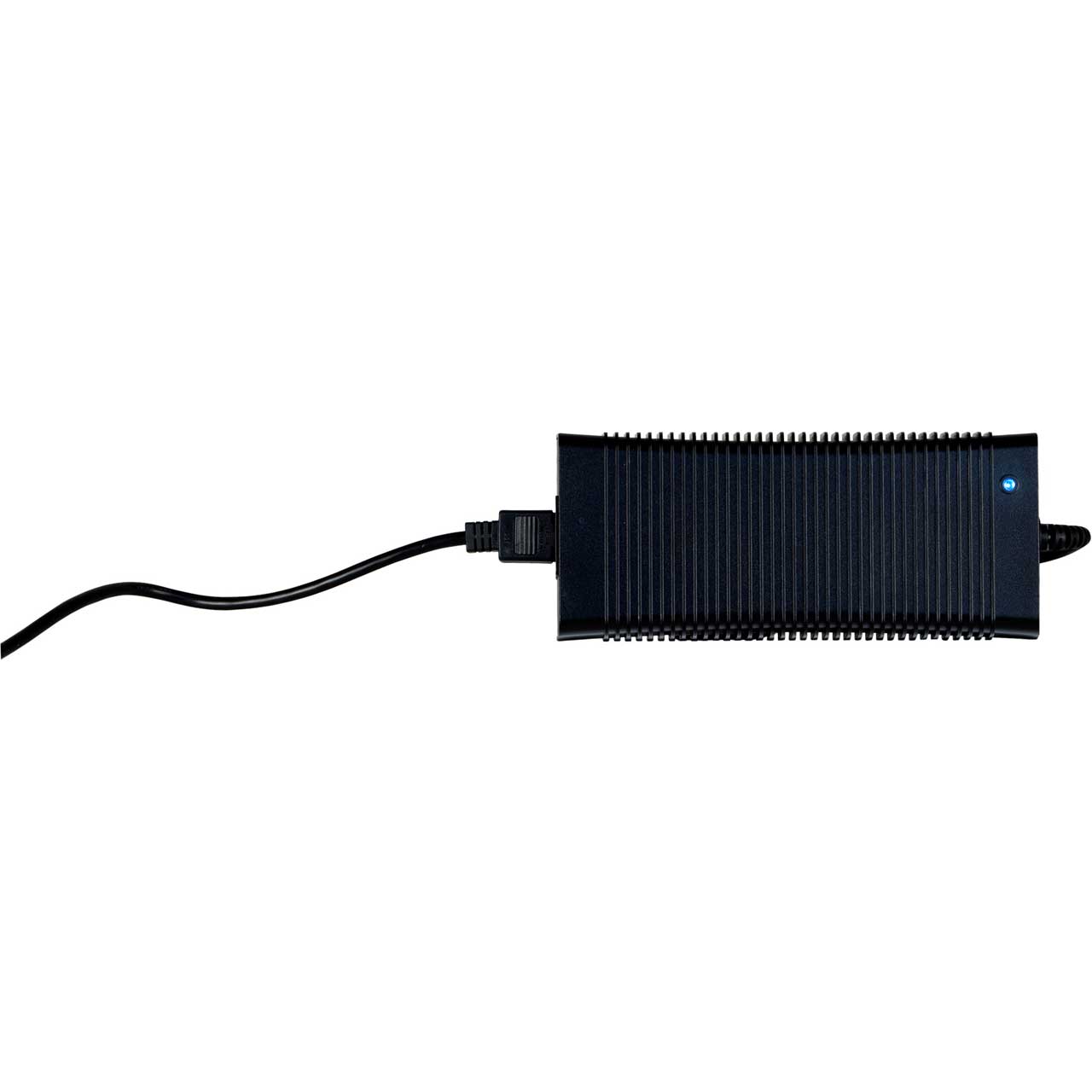

    • Type: External, 48Vdc Input Voltage 90-264 Vac, 47-63 Hz, Single Phase
    • Card slot power: independently isolated from each other
    • Redundancy: N+1, hot swappable modules
    • Power Factor: >.99
    • EMI: complies with EN55022 & FCC Class A
