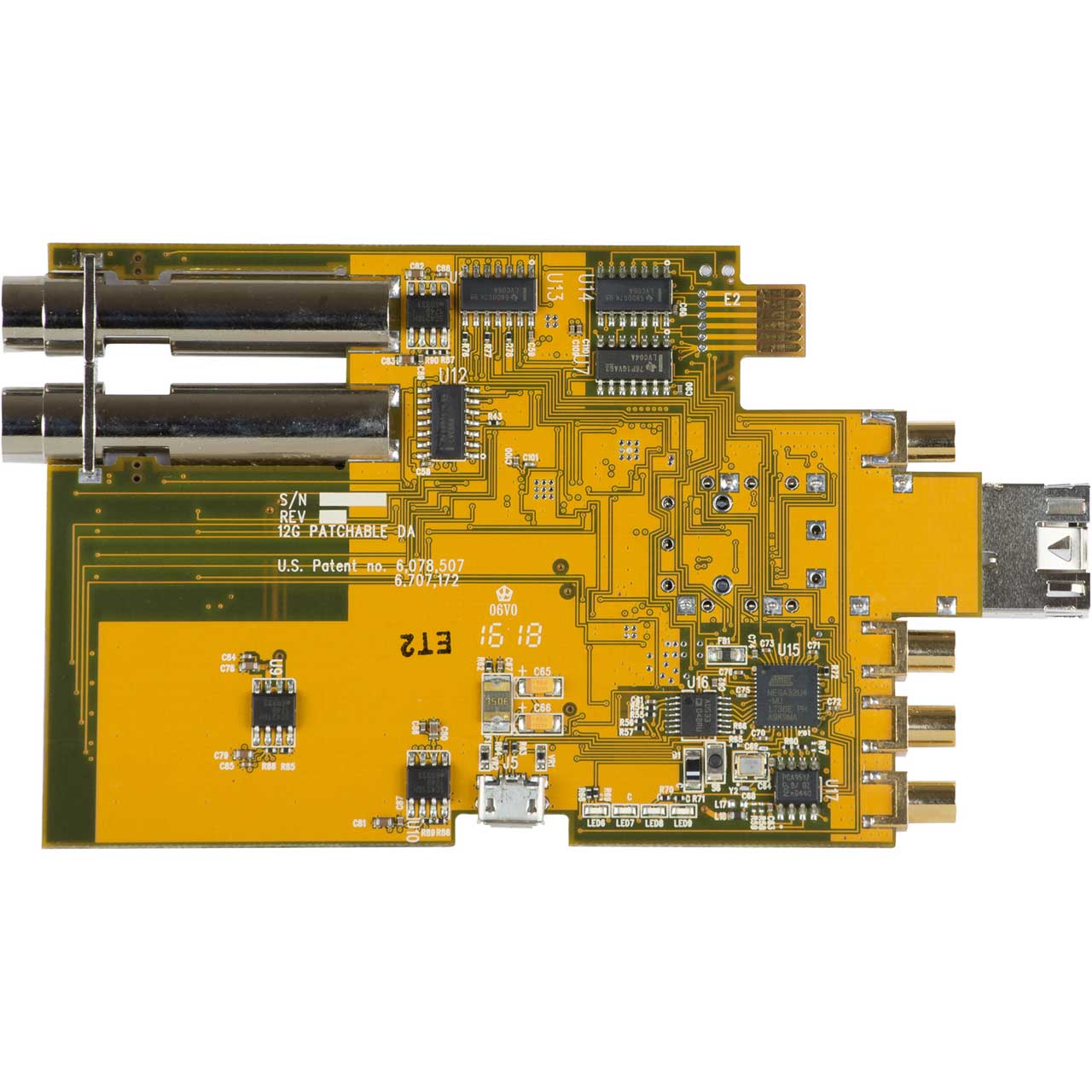

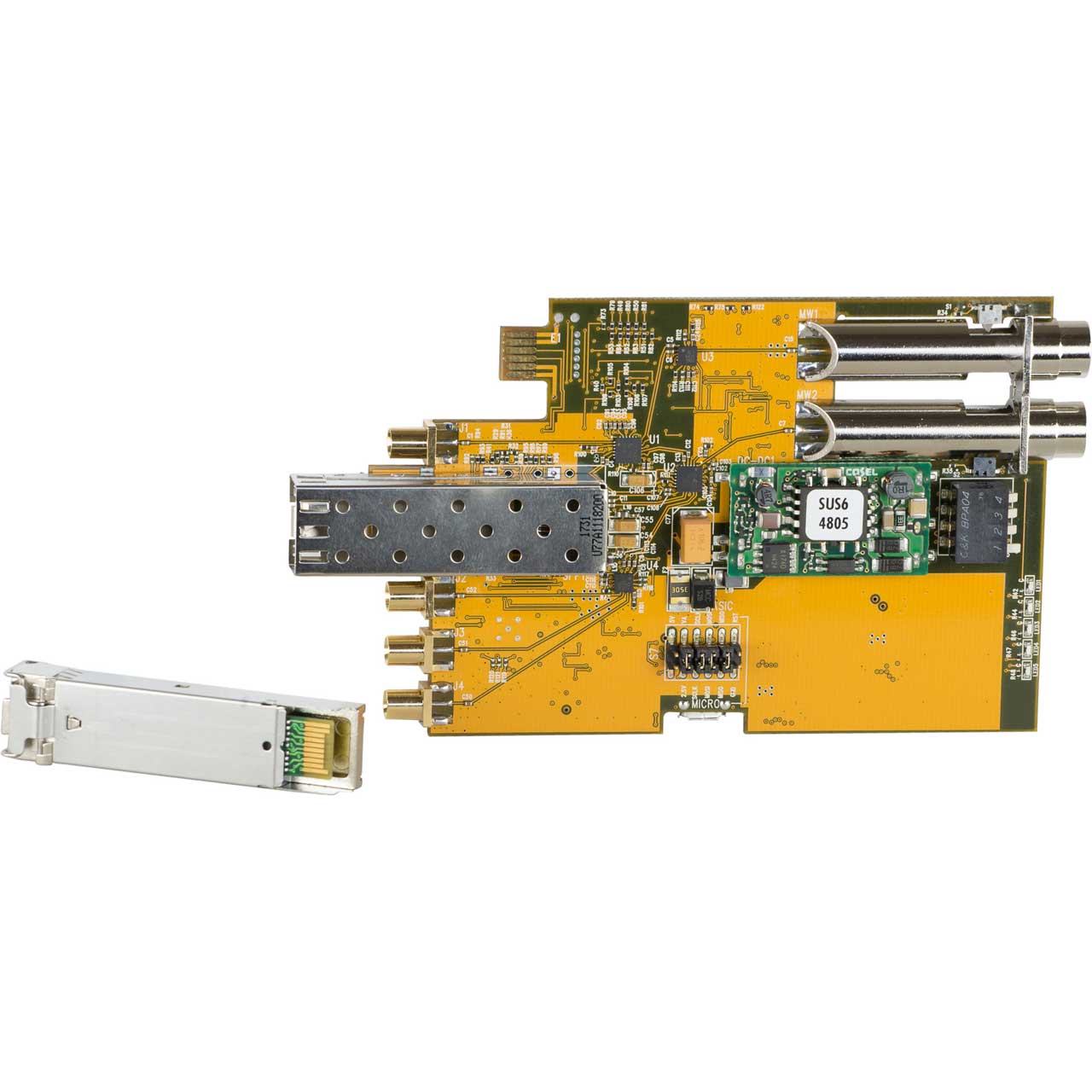

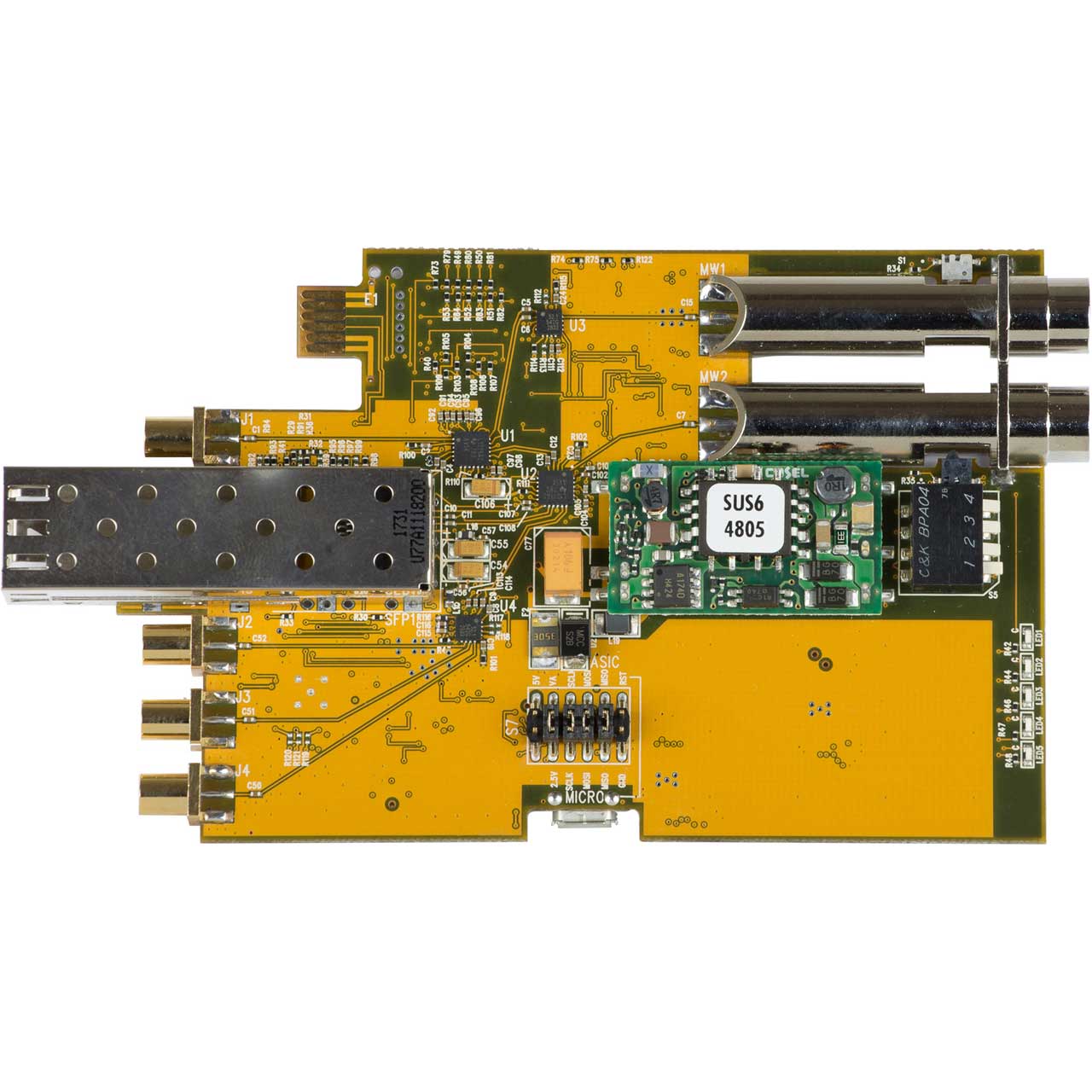

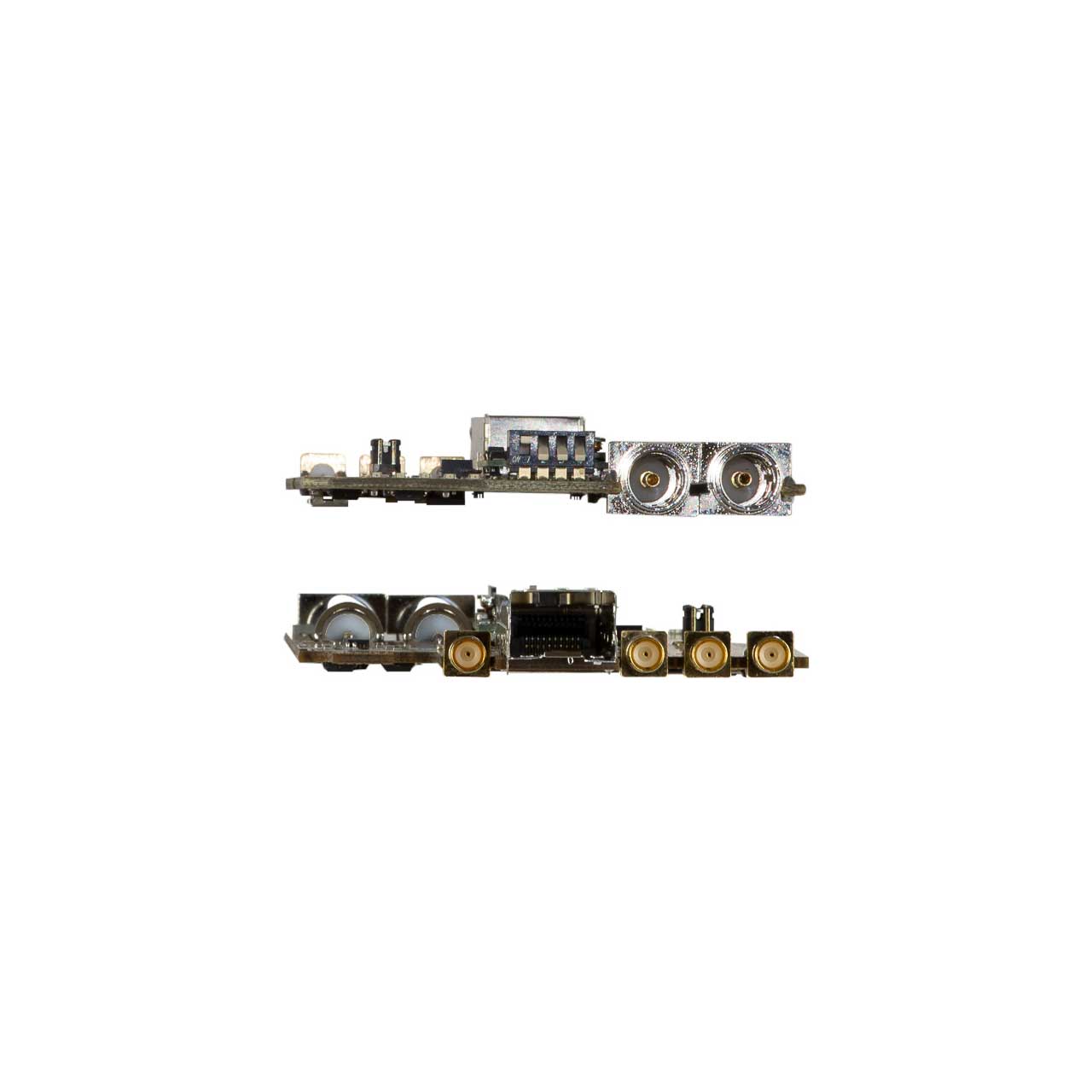

Bittree DABFX 1 In x 4 Out 12G DA Card with DIN 1.0/2.3 Connectors and SFP Cage For DAF32FX

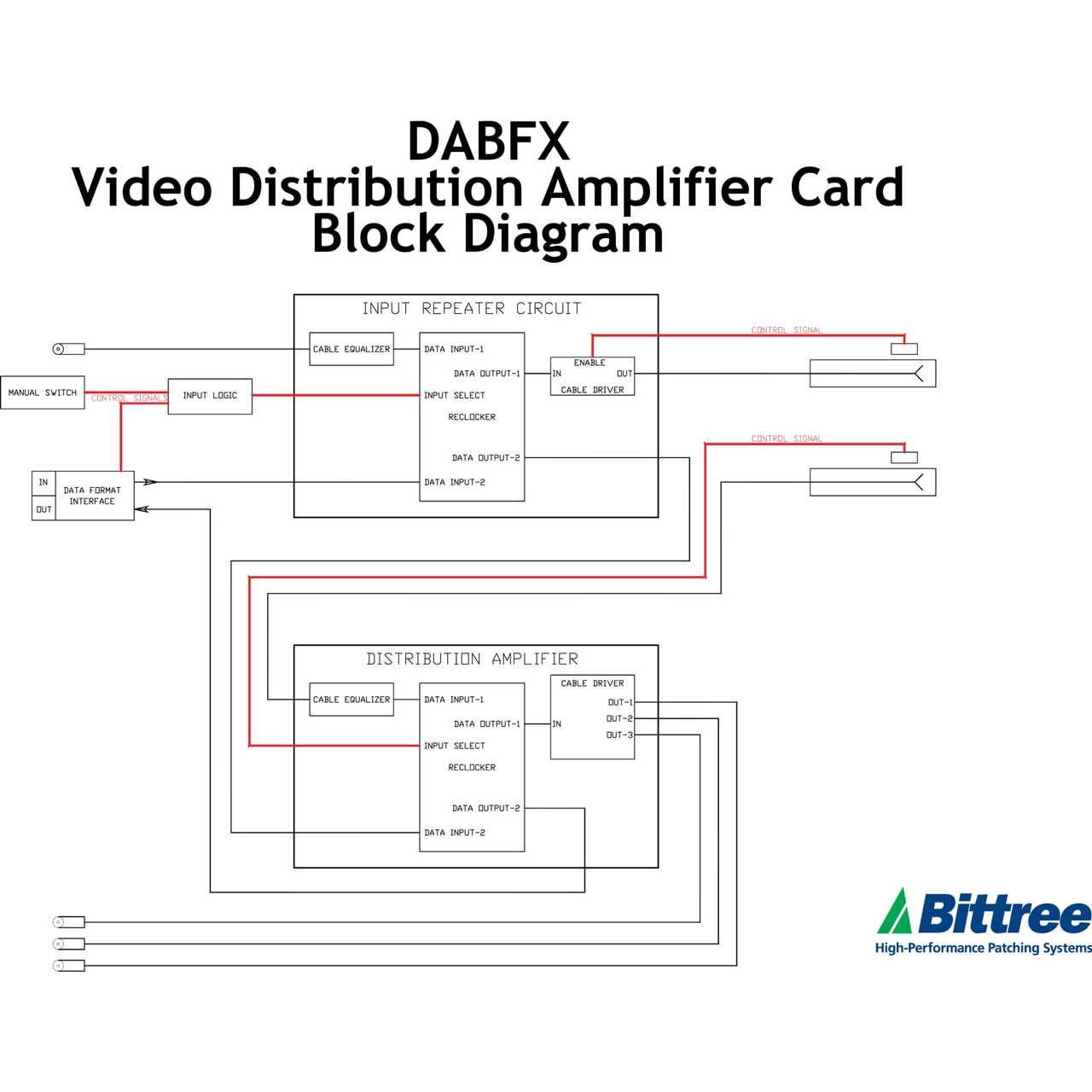

DABFX - Overview

• Features:

  • 1 in x 4 out
  • Half normaling source jack
  • DA input jack
  • Copper or Fiber in (w/optional SFP)
  • Copper and Fiber out (w/optional SFP)
  • Hybrid Capable of being IP Host to Digital Video (w/optional SFP)
  • Auto equalizing
  • Multi-rate reclocking up to 12Gb/s
  • Supports all HD/SD formats
  • Supports AES & Madi


• Specifications:

  • Number of Inputs: 1
  • Input Connection: DIN 1.0/2.3 or Fiber/Copper (w/optional SFP)
  • Input Impedance: 75Ω
  • Input Return Loss: > 15dB to 1.5GHz > 10dB to 3GHz > 5dB to 12GHz
  • Signal Level: 800mV ±10%
  • Outputs: 3 Coax, 1 Fiber
  • Output Connection: DIN or Fiber/Copper (w/optional SFP)
  • Output Impedance: 75Ω
  • Output Return: Loss > 15dB to 1.5GHz > 10dB up to 3GHz > 5dB to 12GHz
  • Standards: SMPTE 424M, 292M, 259M, 344M, ST2081, ST2082, ST2110
  • Data Rates: 143, 177, 270, 360, 540,1485, 2970, 5940, 11880Mb/s
  • Equalization Mode: Automatic Multi-Rate Re-clocking
  • Signal Level: 800mV Nominal
  • DC Offset: 0V ±0.5V
  • Rise & Fall Time: 200ps nominal
  • Overshoot: < 10% of amplitude
  • Wideband Jitter: < 0.1 UI @ 3G
