Belden 1352A CMP/Plenum F/UTP DataTwist 4-Pr Cat 6 Premise Horizontal Multi-Conductor Cable - White - 1000 Foot

ITEM #: BL-1352A-1000 MFG #: 1352A 0091000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1352A 0091000 - Overview

Nonbonded-Pair

Belden 1352A is a Plenum-CMP, Foil Shielded, 4 Pair, Category 6, F/UTP, Premise Horizontal Multiconductor Cable (250MHz). It's 23 AWG with Solid Bare Copper Conductors in a Flamarrest® PVC-LS Jacket.

DataTwist® 6 F/UTP shielded cables have thick, 100% coverage foil shields that protect systems from harsh EMI environments which improves data throughout. DataTwist 6 Shielded Cables consist of 4-pair F/UTP cables that meet or exceed ANSI/TIA/EIA-568-C.2’s requirements for Category 6.

Applications
Networking Horizontal Cable
Microphone
Surveillance
Conference Room Audio
Multimedia and Lighting automation
NTSC/PAL Component or Composite Video
AES/EBU
Digital Video
RS-422
PoE++, PoE+, PoE
Noisy Environments
Gigabit Ethernet 1000BASE-T
Fast Ethernet 100BASE-TX
Ethernet 10BASE-T

  • Features:

    • F/UTP Four unshielded twisted pairs encased in an overall foil shield
    • High Performance: Belden microphone cables are made with high-conductivity copper
    • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
    • Experience Less Distortion: Cables feature low capacitance

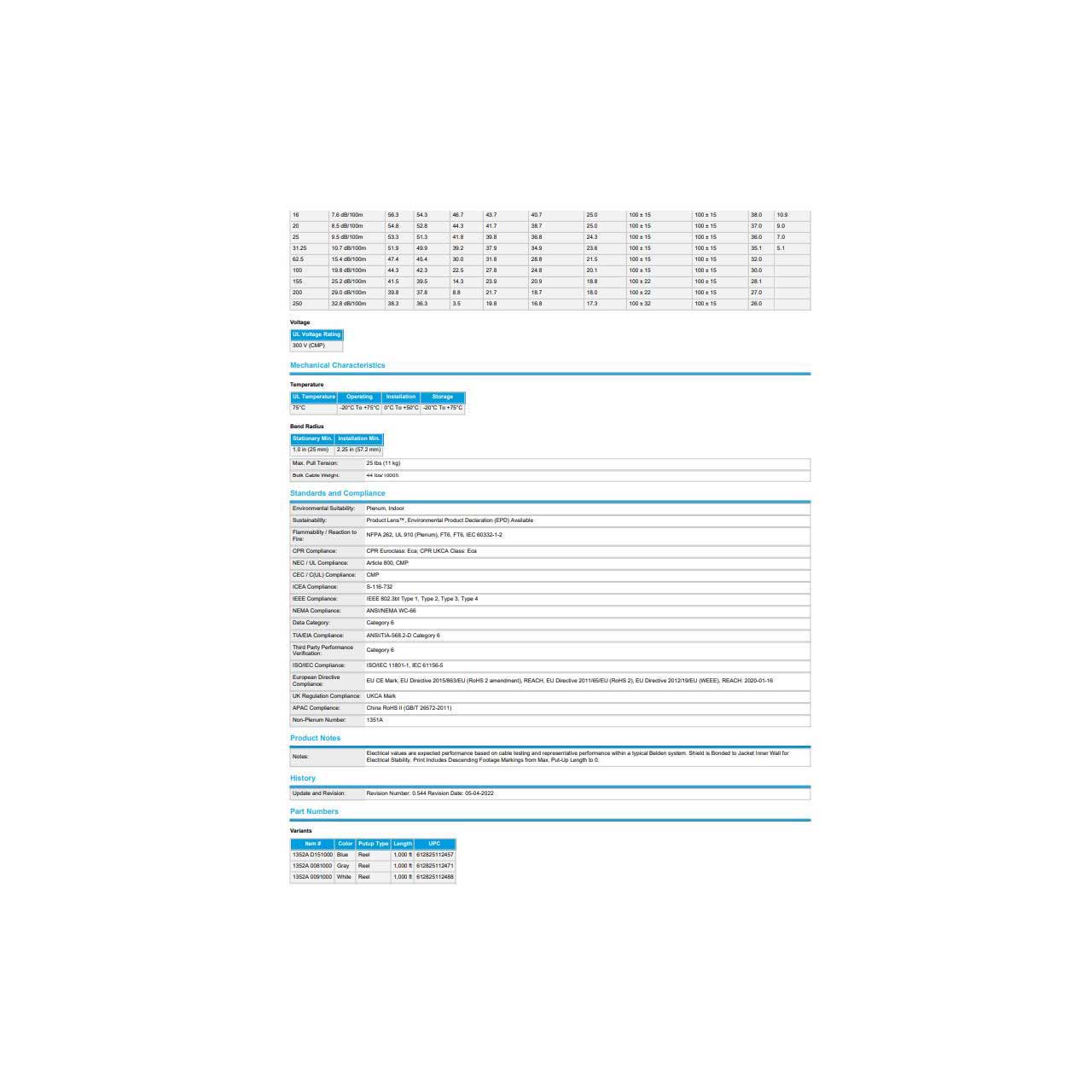

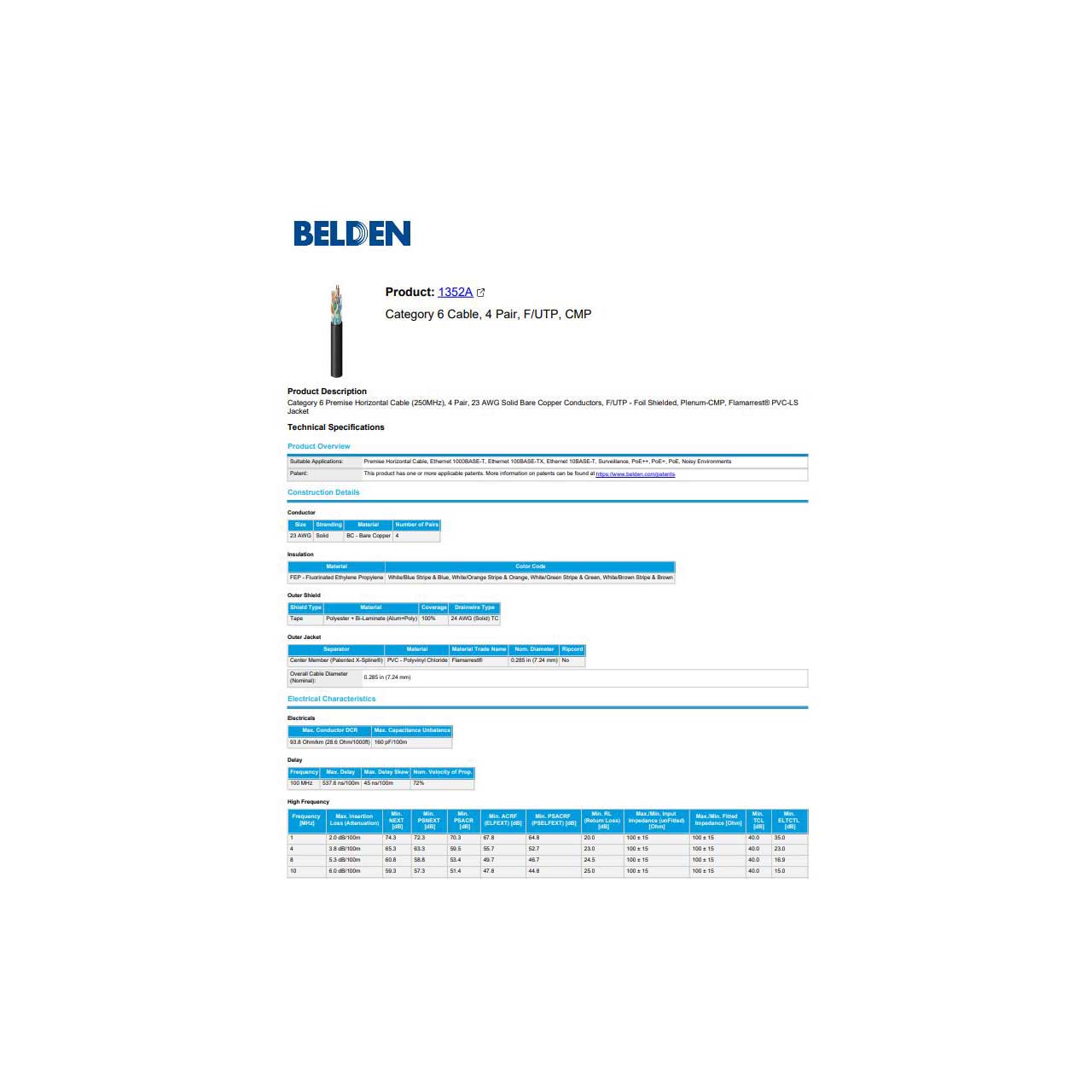

  • Specifications:

    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: FEP - Fluorinated Ethylene Propylene
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Outer Shield Type: Tape
    • Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 24 AWG (Solid) TC
    • Outer Jacket Separator: Center Member (Patented X-Spline®)
    • Outer Jacket Material: Flamarrest® PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.285 in (7.24 mm)
    • Ripcord: No
    • Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
    • Max. Conductor DCR: 93.8 Ohm/km
    • Max. DCR Unbalance: 3%
    • Max. Capacitance Unbalance: 160 pF/100m
    • Nom. Mutual Capacitance: 14 pF/ft
    • UL Voltage Rating: 300 V (CMP)
    • Storage Temperature Range: -20°C To ;75°C
    • Installation Temperature Range: 5°C To 50°C
    • Operating Temperature Range: -20°C To 75°C
    • Bulk Cable Weight: 49 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 25 lbs.
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 3 in.
    • Environmental Suitability: Plenum, Indoor
    • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
    • Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
    • Telecommunications Standards: Category 6 - TIA 568.C.2
    • Other Specification: UL Verified to Category 6


  • Item Includes:

    • Belden 1352A CMP/Plenum Cat 6 Premise Horizontal Cable - White - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825112488
