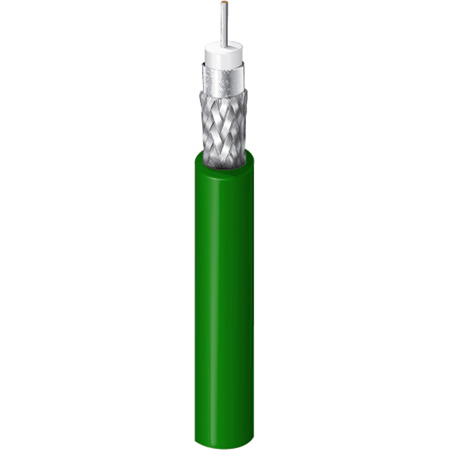

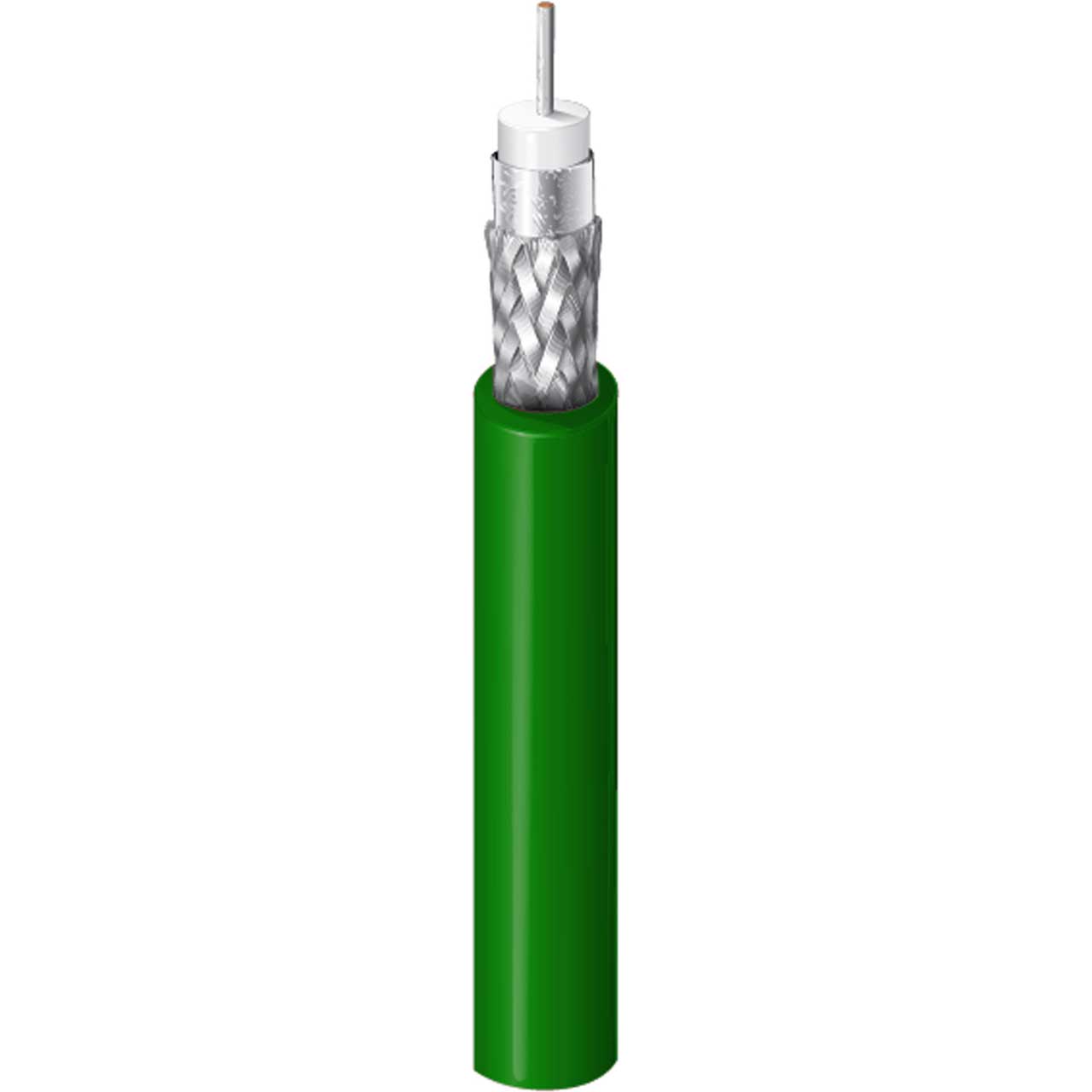

Belden 1505A CMR Rated 6G-SDI RG59 75 Ohm Digital Coaxial Video Cable 20AWG - Green - 1000 Foot

1505A N3U1000 - Overview

• Features:

  • Supports: 3Gb/s at 212 ft. (SMPTE ST 242 ) and 6Gb/s at 287 ft. (SMPTE 2081-1)
  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Number of Coax: 1
  • RG Type: 59/U
  • Overall Cable Diameter (Nominal): 0.233 in (5.92 mm)
  • Conductor Size AWG: 20
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil
  • Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Plenum (Y/N): N
  • Plenum Number: BL-1506A
  • Nom. Characteristic Impedance: 75 +/- 1.5O
  • Nom. Conductor DCR: 10 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.8 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
  • Nom. Impedence: 75 Ohm
  • UL Voltage Rating: 300 V (CMR, CMG)
  • UL Rating Temp: 60°C
  • Operating Temp: -20°C to +75°C
  • Bulk Cable Weight: 31 lbs/1000ft
  • Max. Pull Tension: 52 lbs
  • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
  • Sustainability: CA Prop 65
  • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4


• Item Includes:

  • 1505A Digital Coaxial Video Cable 20AWG - Green - 1000 Foot Reel


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825358374
