A New Standard

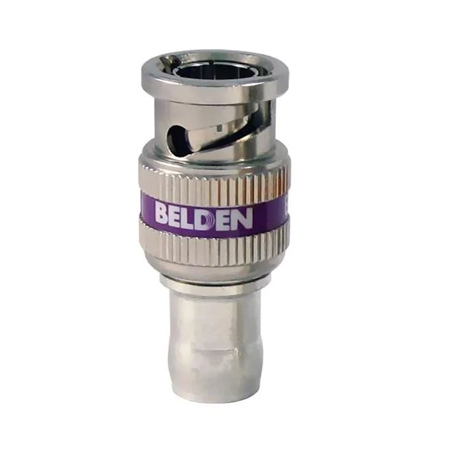

The Belden BL-1855ABHDL is a 1-Piece, 6GHz, BNC Locking Compression Connector for 1855A or 23 AWG Mini Coax. Designed specifically for Belden Brilliance Broadcast and Professional A/V Coaxial Cables, HD Brilliance Connectors maximize broadcast signal integrity, quality, performance and durability.
Locking 1-Piece HD Brilliance BNC Compression Connectors

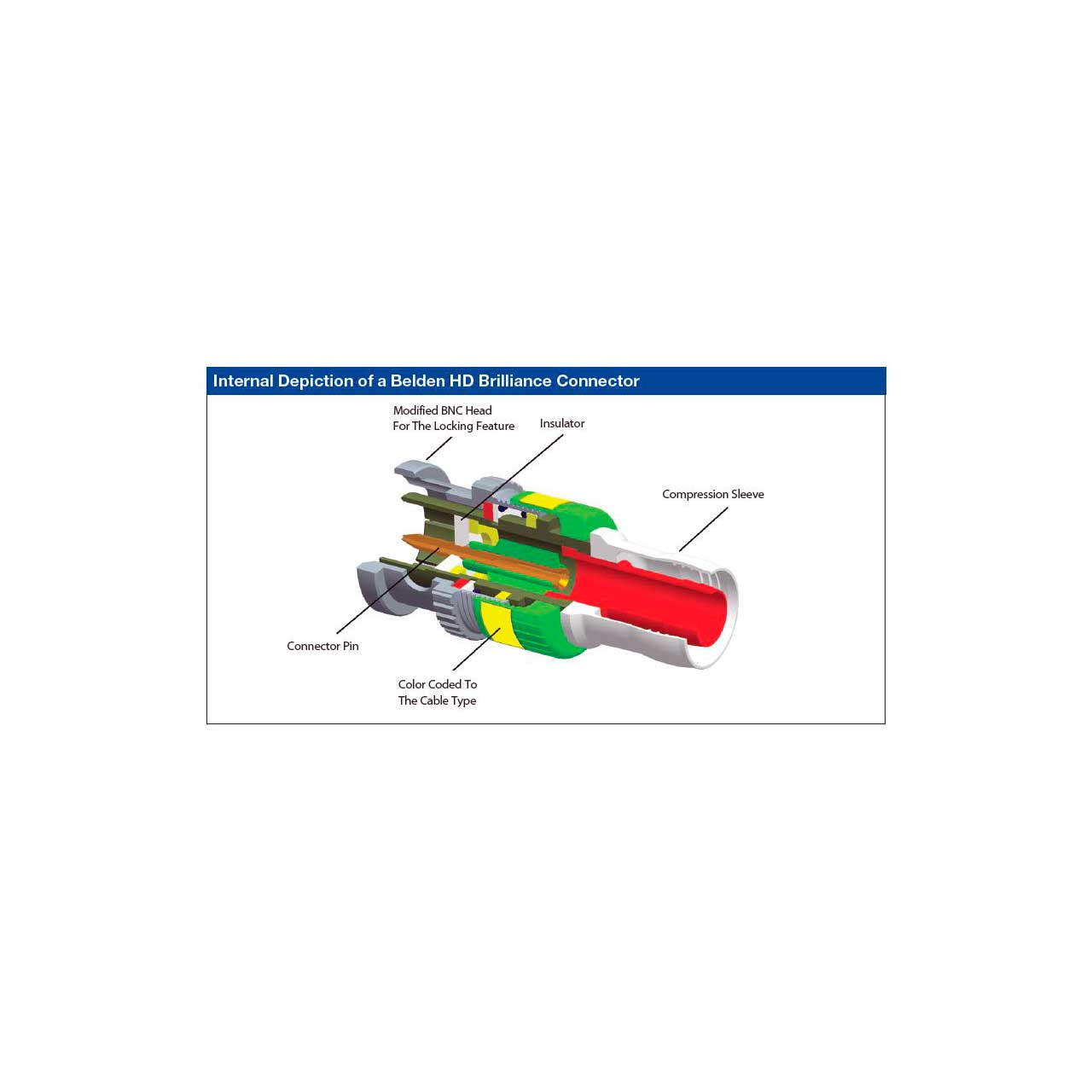

This Connector features a patent-pending locking design feature, a screw-lock collar to physically inch lockinch the bayonet nut of the BNC in position. This limits movement of the BNC head and creates coaxial alignment from the cable through the BNC center pin, delivering superior return loss performance.
The 1-piece design simplifies and speeds the installation by eliminating loose pins and sleeves. This allows for repeatable and consistent installations every time while delivering return loss performance on par with more time consuming, traditional 3-piece designs.
Applications
HD-SDI
Video
Digital Video
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P
