Belden 533945 New-Gen Coaxial RG6 Braided Shield Cable - 1000 Foot

Name: Belden 533945 New-Gen Coaxial RG6 Braided Shield Cable - 1000 Foot
Brand: Belden
SKU: BL-533945-1000
Price: 326.00 USD
Availability: PreSale

ITEM #: BL-533945-1000 MFG #: 533945 0101000

Belden

List Price:

$402.60

Our Price:

$326.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

533945 0101000 - Overview

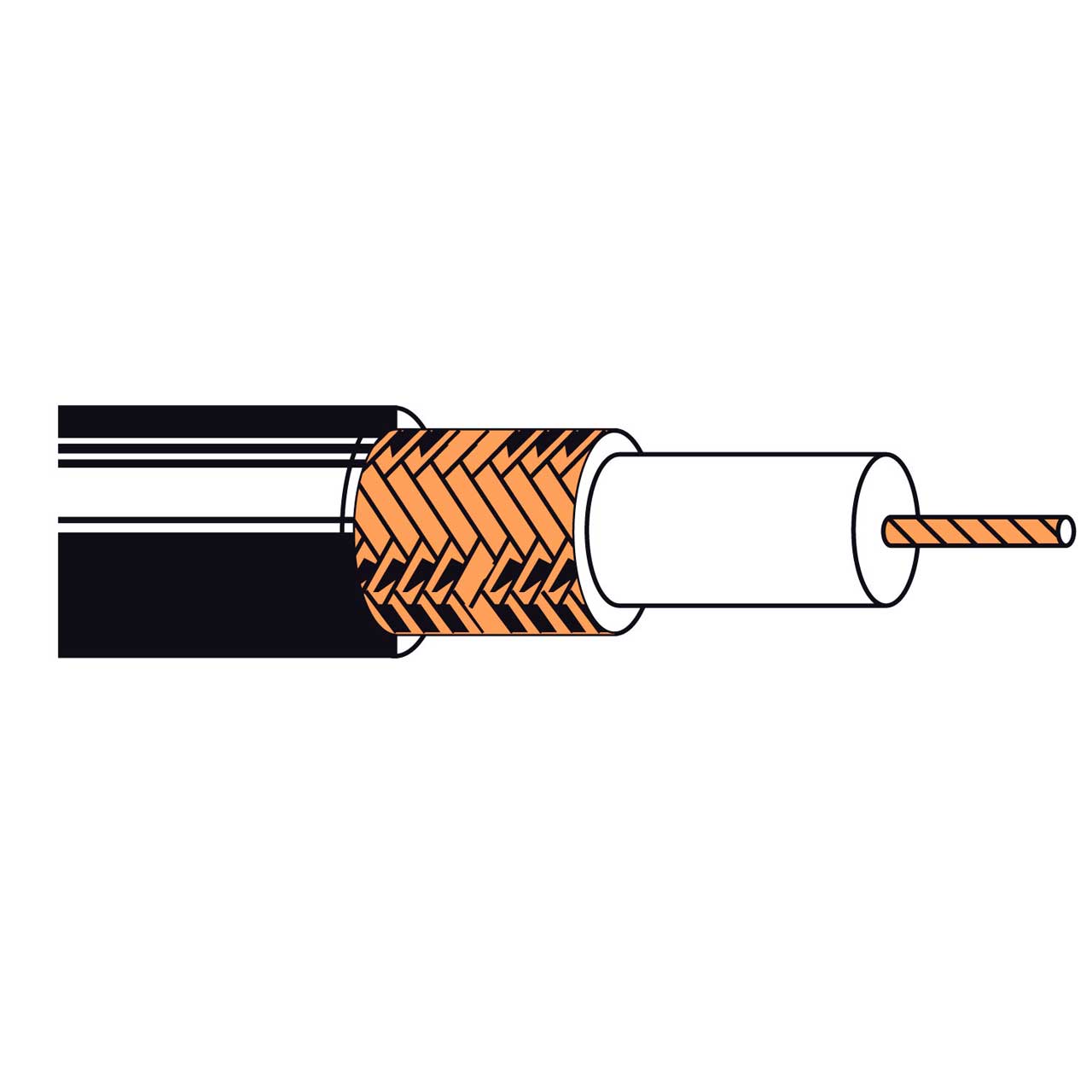

Belden 533945 New Gen coaxial features Bare Copper wire to carry video signals or used for powering devices such as cameras. Othe applications include Surveillance & CCTV Cable and Analog Video. RG6, Rated-CMG, 18 AWG solid bare copper, foamed polyolefin core, 95% bare copper braid, PVC jacket.

Specifications:
- AWG: 18
- Stranding: Solid
- MAterial: Bare Copper
- Nominal Diameter: 0.04 inch
- Number of Coax: 1
- Nominal Capacitance Conductor to Shield: 16.3 pF/ft
- Nominal Characteristic Impedance: 75 Ohm
- UL Voltage Rating: 300 V RMS
- UL Temp Rating: 75°C
- Operating Temp Range: -40°C to +75°C
- Bulk Cable Weight: 36 lbs/1000ft
- Max Recommended Pulling Tension: 69 lbs
- Min Bend Radius/Minor Axis: 2.75 in
- NEC Articles: 800
- NEC/(UL) Specification: CMG
- CEC/C(UL) Specification: CMG
- CPR Euroclass: Eca
- PMSHA Specification: P-07-KA110035-MSHA
- RG Type: 6/U Type
- Series Type: Series 6

  Frequency [MHz] Nom. Insertion Loss
- 1 MHz 0.24 dB/100ft
- 10 MHz 0.72 dB/100ft
- 50 MHz 1.5 dB/100ft
- 100 MHz 2 dB/100ft
- 200 MHz 2.9 dB/100ft
- 400 MHz 4.2 dB/100ft
- 700 MHz 5.6 dB/100ft
- 900 MHz 6.4 dB/100ft
- 1000 MHz 7 dB/100ft
GTIN:
0612825161059

533945 0101000 - Required Accessories

Belden 1694ABHD1 6G-SDI 1-Piece BNC HD Compression Connector for 1694A/RG6 Cable - Green Band - Each
BL-1694ABHD1
Our Price: $3.25
Belden FSNS6BNCU-25 Indoor/Outdoor ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - 25 Pack
BL-FSNS6BNCU
Our Price: $102.82
ICM Cable Pro PSA59/6 RG59/6 Adjustable Cable Stripper with RG6 Flaring Tool
ICM-PSA596
Our Price: $45.58

533945 0101000 - Recommended Accessories

ICM CPLCRBC-BR Cable Pro Radial Double Bubble Compression Tool - Blue
ICM-CPLCRBC-B
Our Price: $157.95
Rolls MA1705 70v Mixer Amplifier 70w
MA1705
Our Price: $379.00
Tenma 72-6948 Audio Impedance Meter & Tester
TEN-72-6948
Our Price: $192.95
ICM FSNS6U RG6/6 Quad F Compression Connector Nickel Green - Snap-n-Seal - 25pk
FSNS6U
Our Price: $23.27
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Triplett CTX200 PocketCAT RJ45 Ethernet - BNC COAX Network Cable Tester
BYB-CTX200
Our Price: $64.99
Securitytronix ST-ALLIN1-TEST2 7 Inch Touch Screen IP Camera Monitor and Tester with Li-ion battery
ST-ALLIN1-TEST2
Our Price: $795.00
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99
Thor Fiber F-M1SDI-Tx-Rx 1Ch SD/HD SDI Transmitter & Receiver Kit Over Singlemode Fiber ST/PC 20km Simplex
THR-M1SDI-TX-RX
Our Price: $429.00
Digital Forecast Bridge X-TS PACK V3 Video and Audio Troubleshooter and Cross Converter Hard Case Bundle
DF-X-TS-PACK-V3
Our Price: $1,424.00
Brother P-Touch PT-E110 Industrial Handheld Labeling Tool Kit
BRO-PTE110
Our Price: $55.63
3M Scotch Super 88 Heavy Duty Grade Vinyl Electrical Tape 3/4In.x44 Ft
3M-88-44
Our Price: $6.57
Allen Avionics HEC-2000 75 Ohm Hum Eliminator
HEC-2000
Our Price: $139.95

533945 0101000 - Reviews

533945 0101000 - Attachments

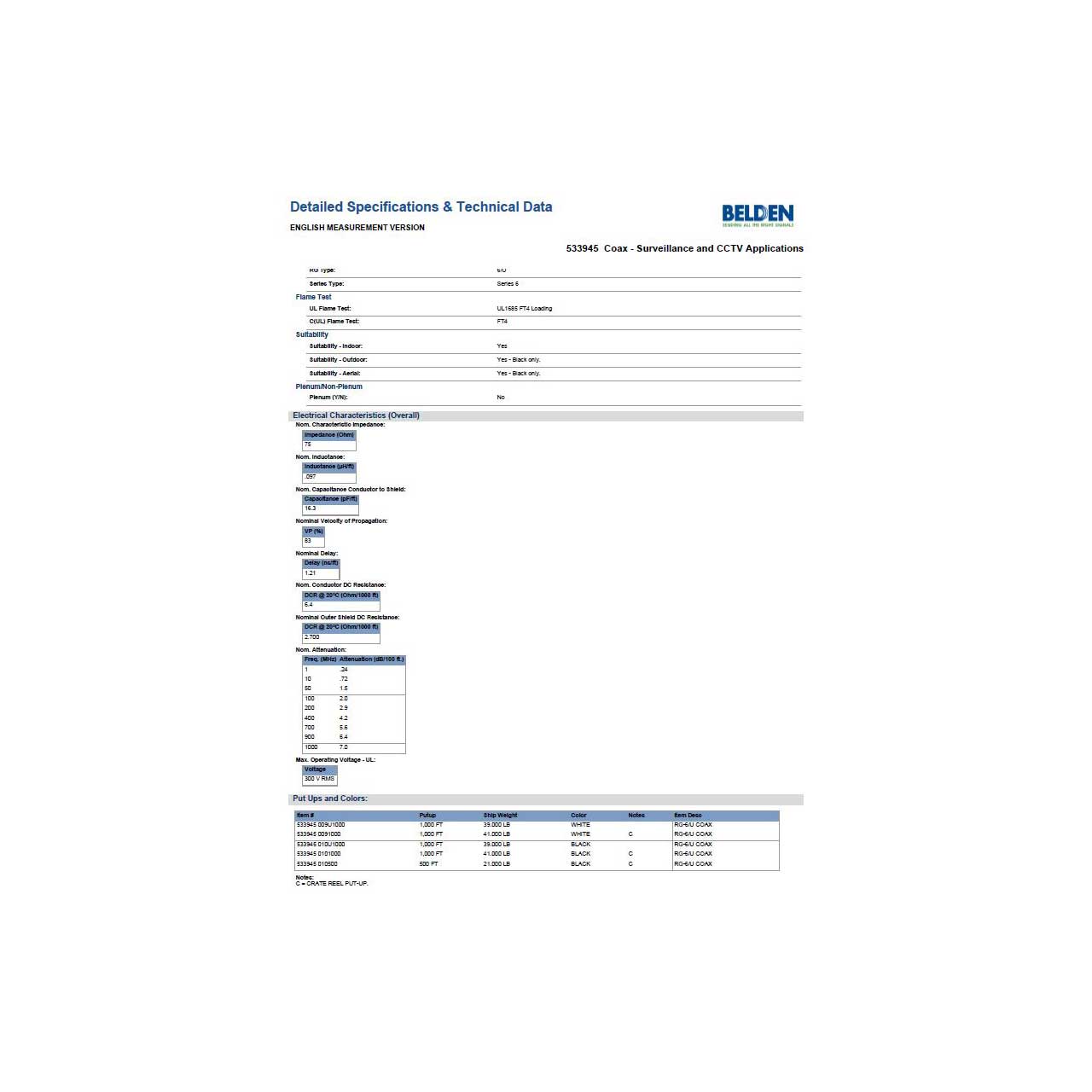

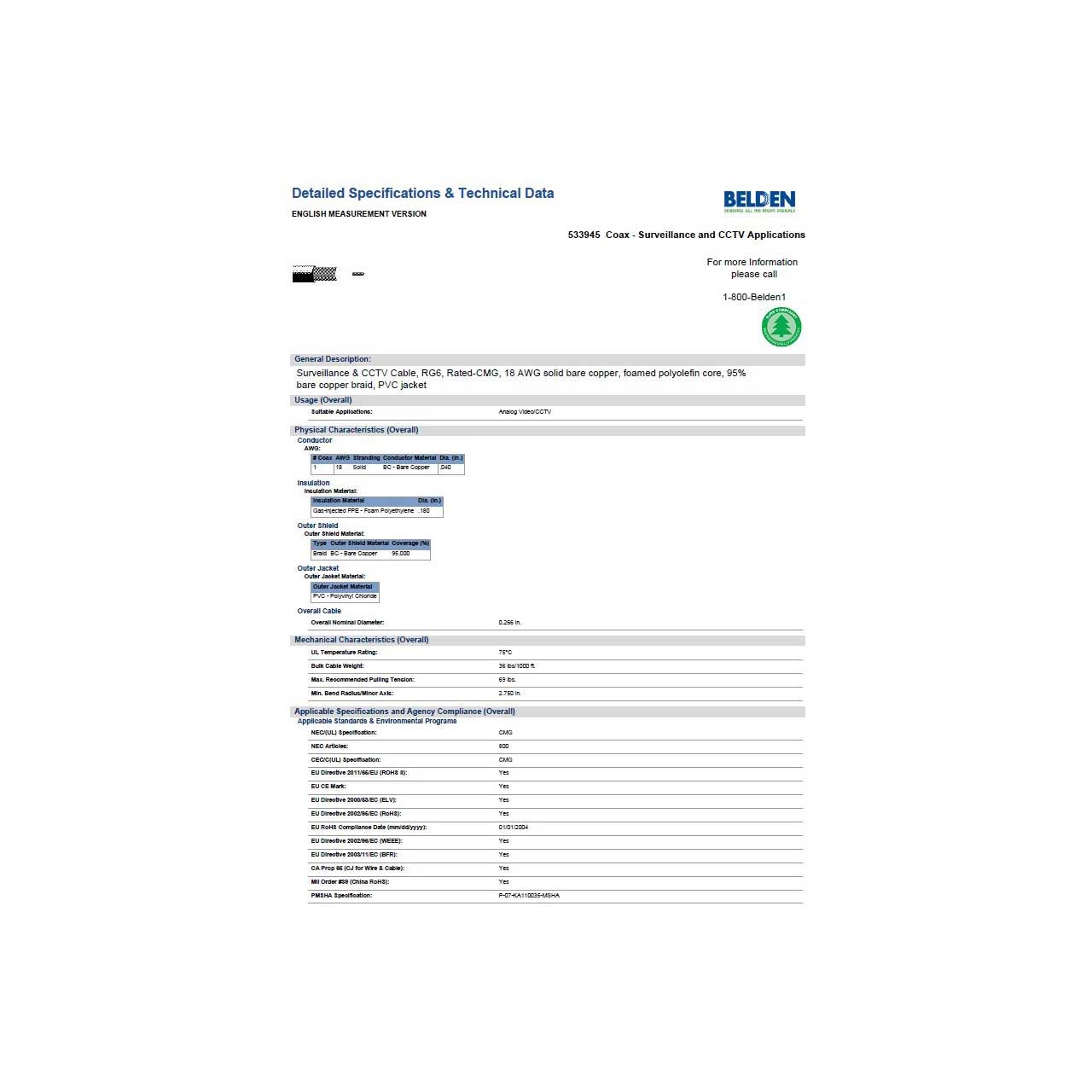

See Belden BL-533945-1000 Specifications (PDF)
