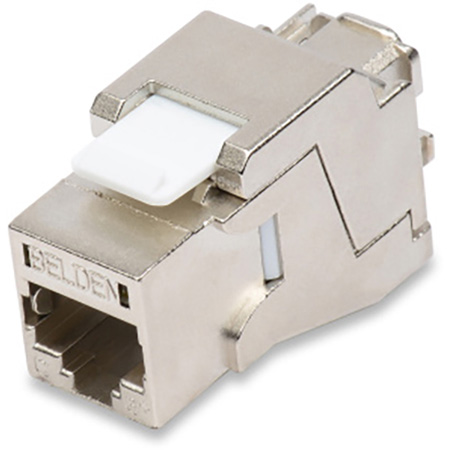

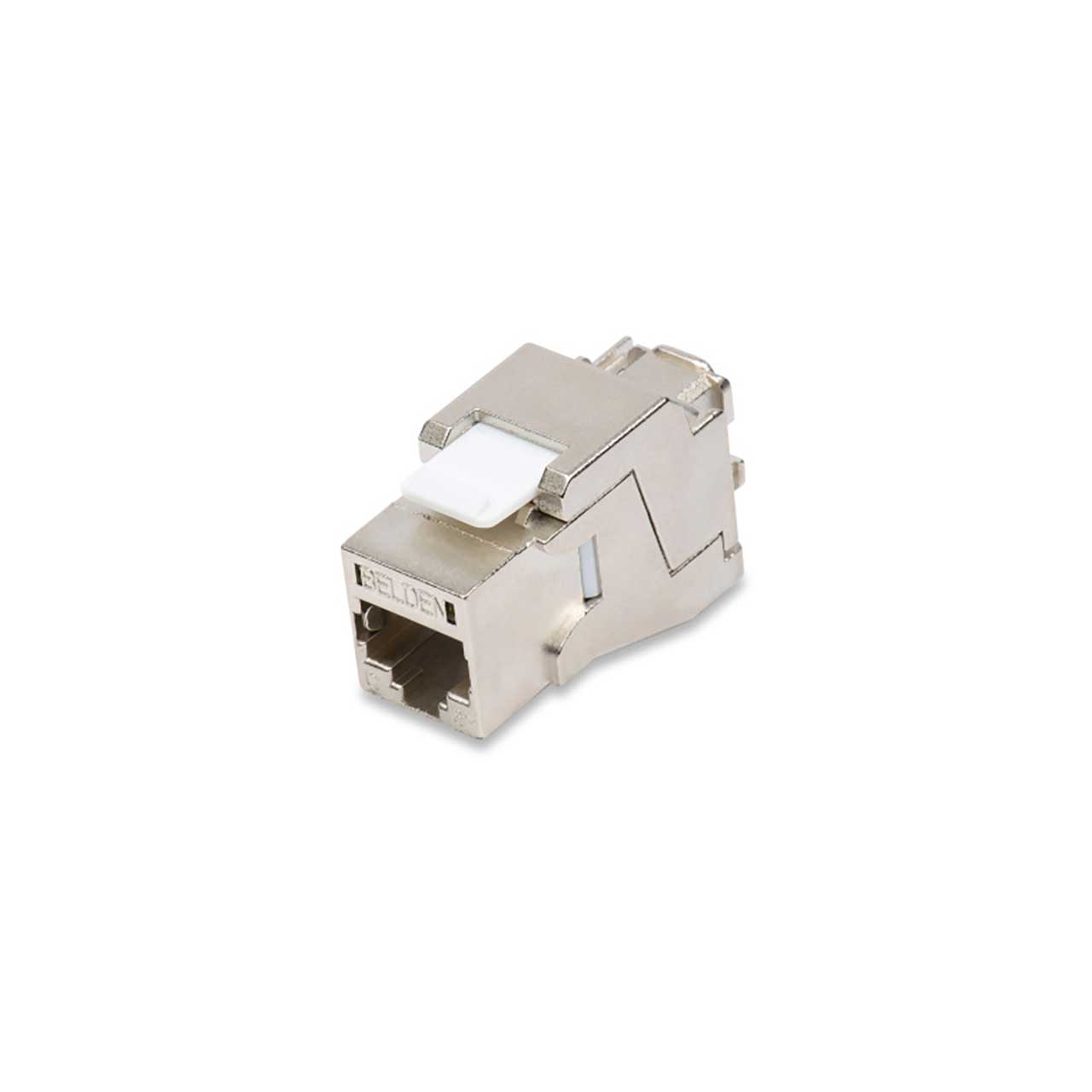

Belden AX104596 CAT6 Shielded KeyConnect Modular Jack Category 6 RJ45

Name: Belden AX104596 CAT6 Shielded KeyConnect Modular Jack Category 6 RJ45
Brand: Belden
SKU: BL-AX104596
Price: 14.52 USD
Availability: PreSale

ITEM #: BL-AX104596 MFG #: AX104596

Belden

List Price:

$15.86

Our Price:

$14.52

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AX104596 - Overview

Belden AX104596 CAT6+ Shielded KeyConnect Modular Jack, Category 6, RJ45. Suitable for IBDN Shielded System 2400, TIA Screened Category 6 , ISO Class E, 1000BASE-T Related Parts: Compatible with Shielded KeyConnect Patch Panels 24-p, and 48-p applications.

Related Parts: Compatible with Shielded KeyConnect Patch Panels 24-p , 48-p, See notes if using with Belden faceplates.

Notes: IDC Wire Gauge: 22~24 AWG. Max cable OD 8.55mm (0.336 in.) May not be compatible with all Belden faceplates. Please contact Belden Technical Support for
compatibility verification.

Specifications:
- Wiring Scheme: T568A/B
- Weight: 0.022 kg
- Included Parts: 1 Termination Bar, 1 cable Tie
- Packaging: Individually packaged in a plastic bag. Standard pack of 70 units.
- Footprint/Type: KeyConnect
- Plug / Jack Compatibility: RJ45, RJ11
- Cable/Connector Retention: 66.723 N
- Connector/Hardware Retention: 88.964 N
- Plug/Connector Retention: 50.042 N
- Storage Temperature Range: -40°C To +70°C
- Installation Temperature Range: -10°C To +60°C
- Operating Temperature Range: -10°C To +60°C
- Tool Compatibility: Tool Less
- Suitability - Indoor: Yes - Indoor
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
- Current Rating: 1.500 A
- Insulation Resistance: 500 M-Ohm Minimum
- Max. Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
GTIN:
0611589006873
