Belden 9221 - 75 Ohm Miniature Coax - Per Ft.

ITEM #: BL9221 MFG #: 9221 010500 PER FOOT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.10

Our Price:

$1.06

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9221 010500 PER FOOT - Overview

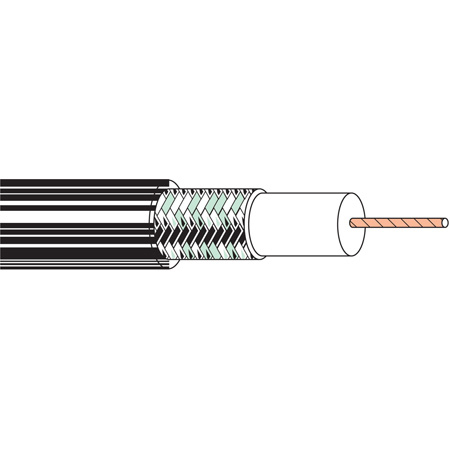

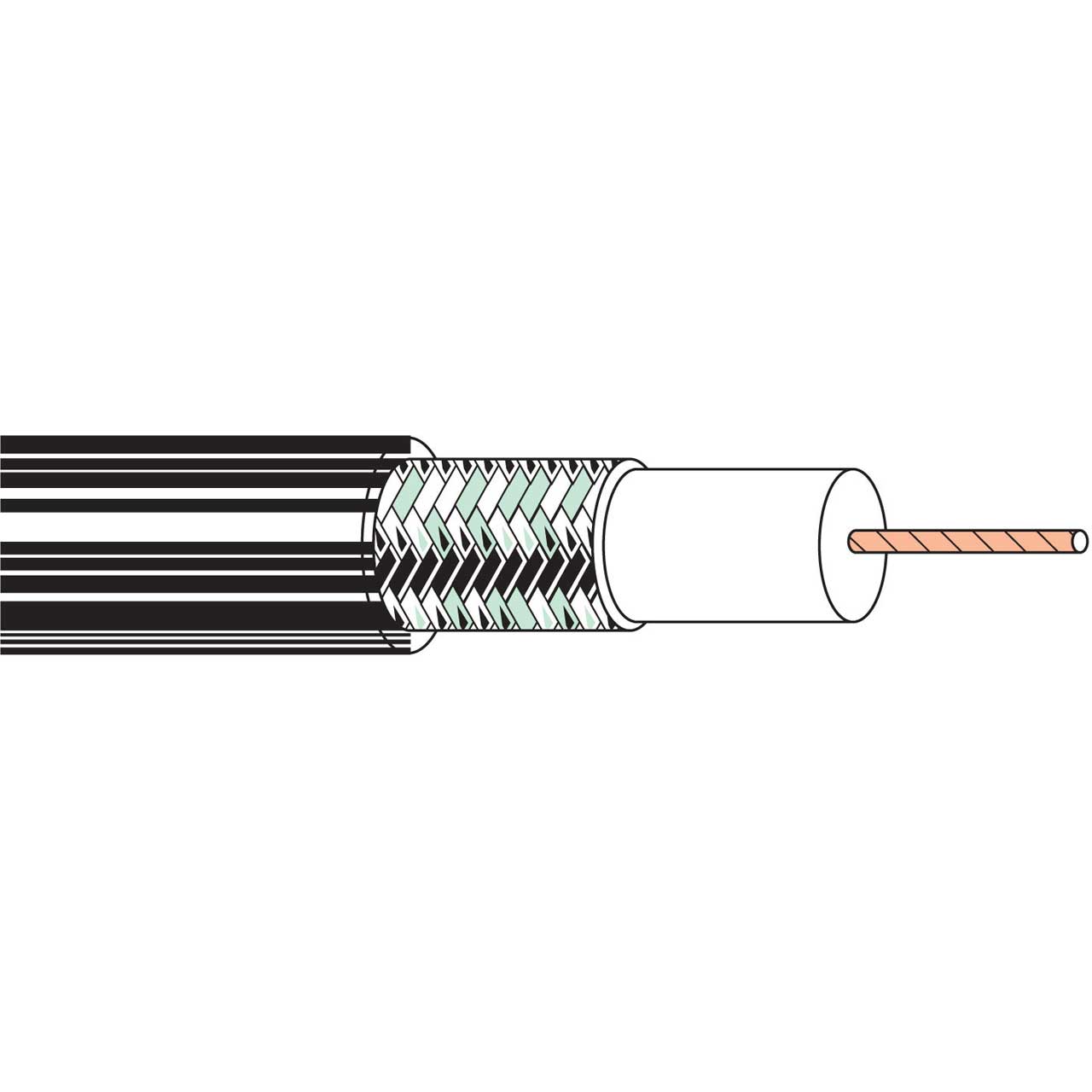

30 AWG stranded (7x38) .012" tinned copper conductor, foam HDPE insulation, tinned copper braid shield (90% coverage), PVC jacket.

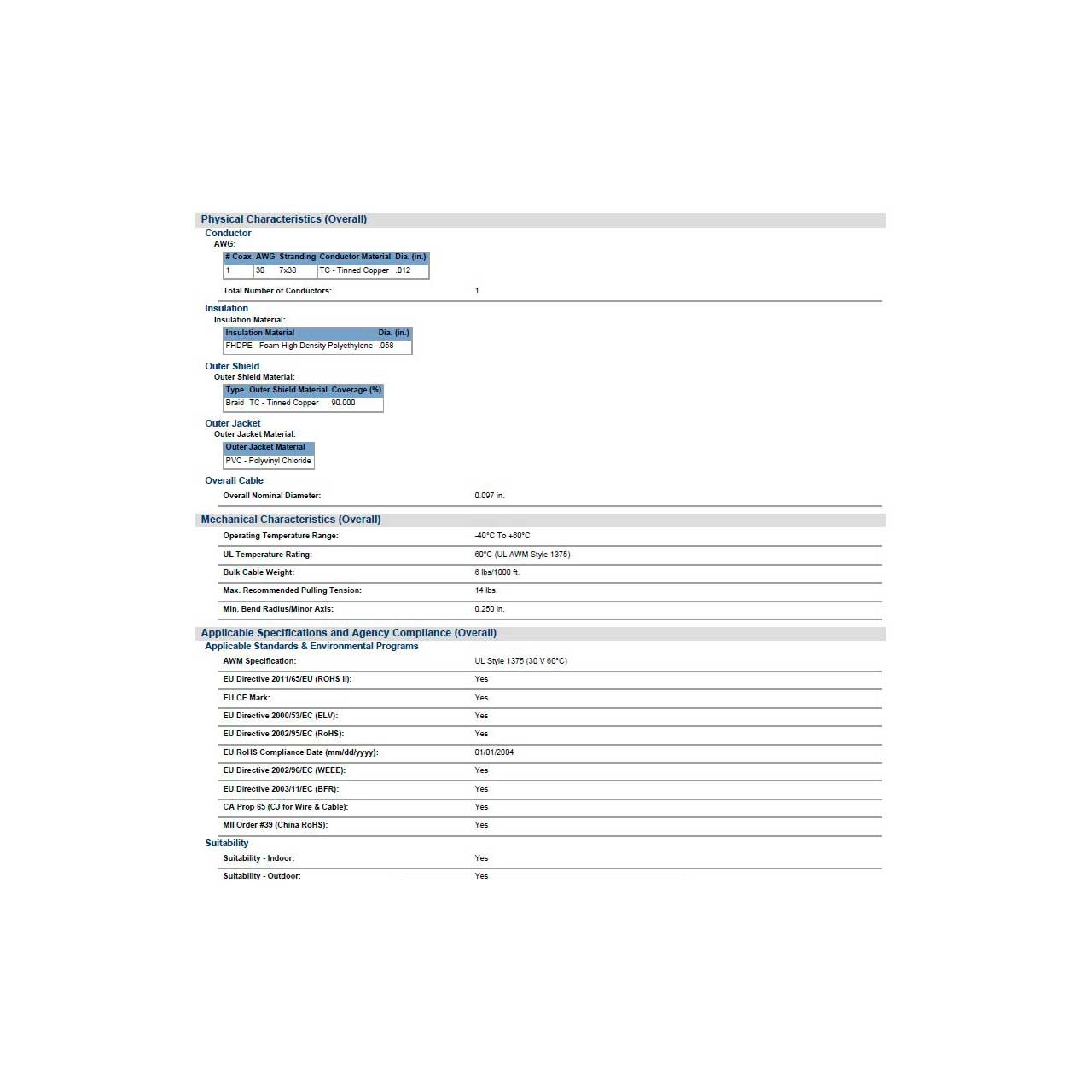

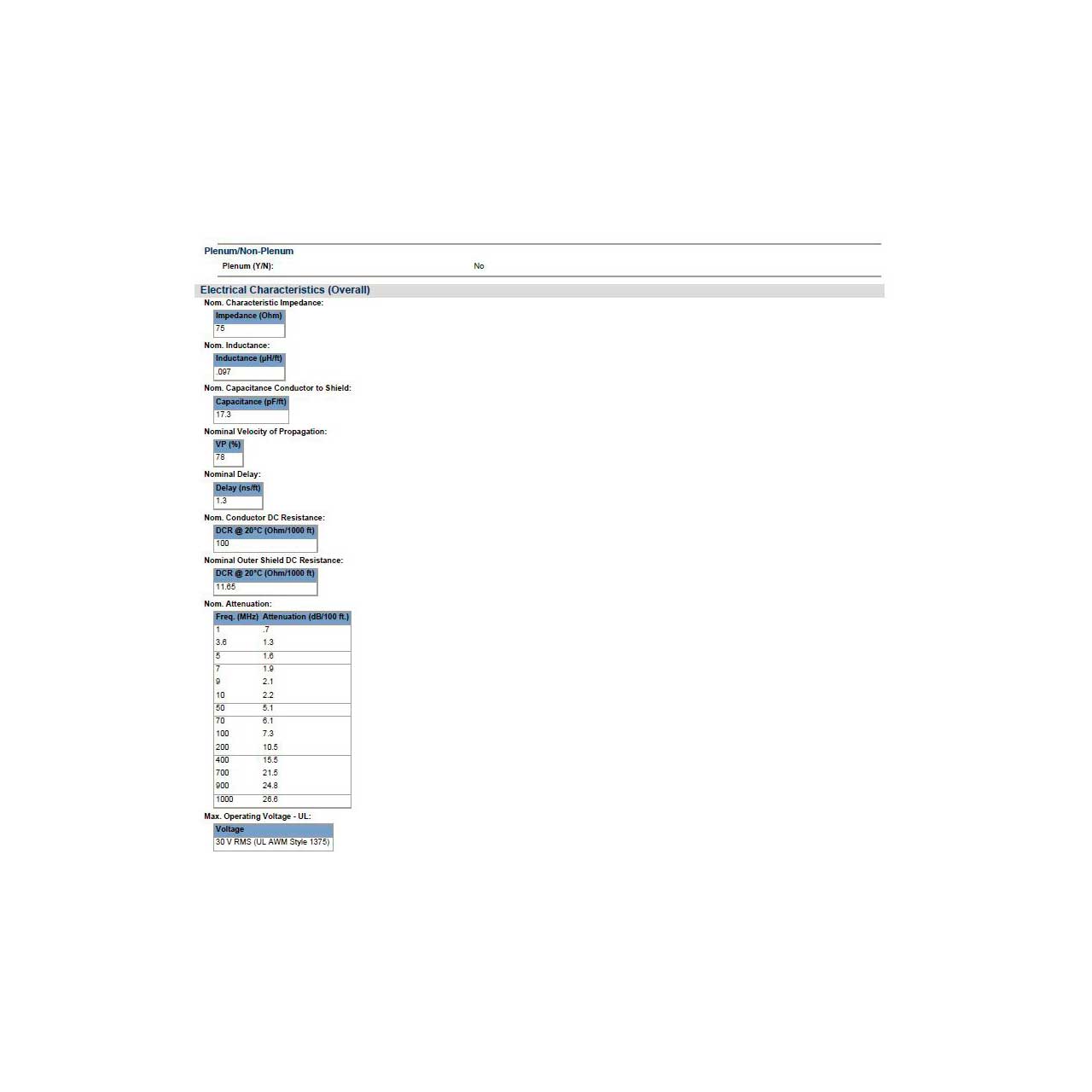

  • Specifications:

    • Conductor Impedance: 75Ω
    • Number of Coax: 1
    • Conductor AWG: 30
    • Conductor Stranding: 7x38
    • Conductor Material: TC - Tinned Copper
    • Conductor Nominal Diameter: 0.012 in
    • Insulation Material: FHDPE - Foam High Density Polyethylene
    • Insulation Nominal Diameter: 0.058 in
    • Outer Shield Type: Braid 90% Coverage
    • Outer Shield Material: TC - Tinned Copper
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • UL Voltage Rating: 30 V RMS
    • Plenum (Y/N): N
    • Environmental Space: Indoor/Outdoor
    • IEC Flammability: IEC 60332-1-2


  • Warranty:

    • Limited 10 Year Warranty
