Blustream C44KIT Contractor 4x4 HDBaseT Matrix Kit - 70m (4K 40m)

C44-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Extends HDMI up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232 and TCP / IP
  • Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers
  • 3rd Party drivers available for all major home control brands
  • 1U Design for 19"" rack mount integration - mounting kit included
  • Advanced EDID management
  • HDCP2.2 compliant
  • Supplied with 4 x HEX70B-RX receivers


• Specifications:

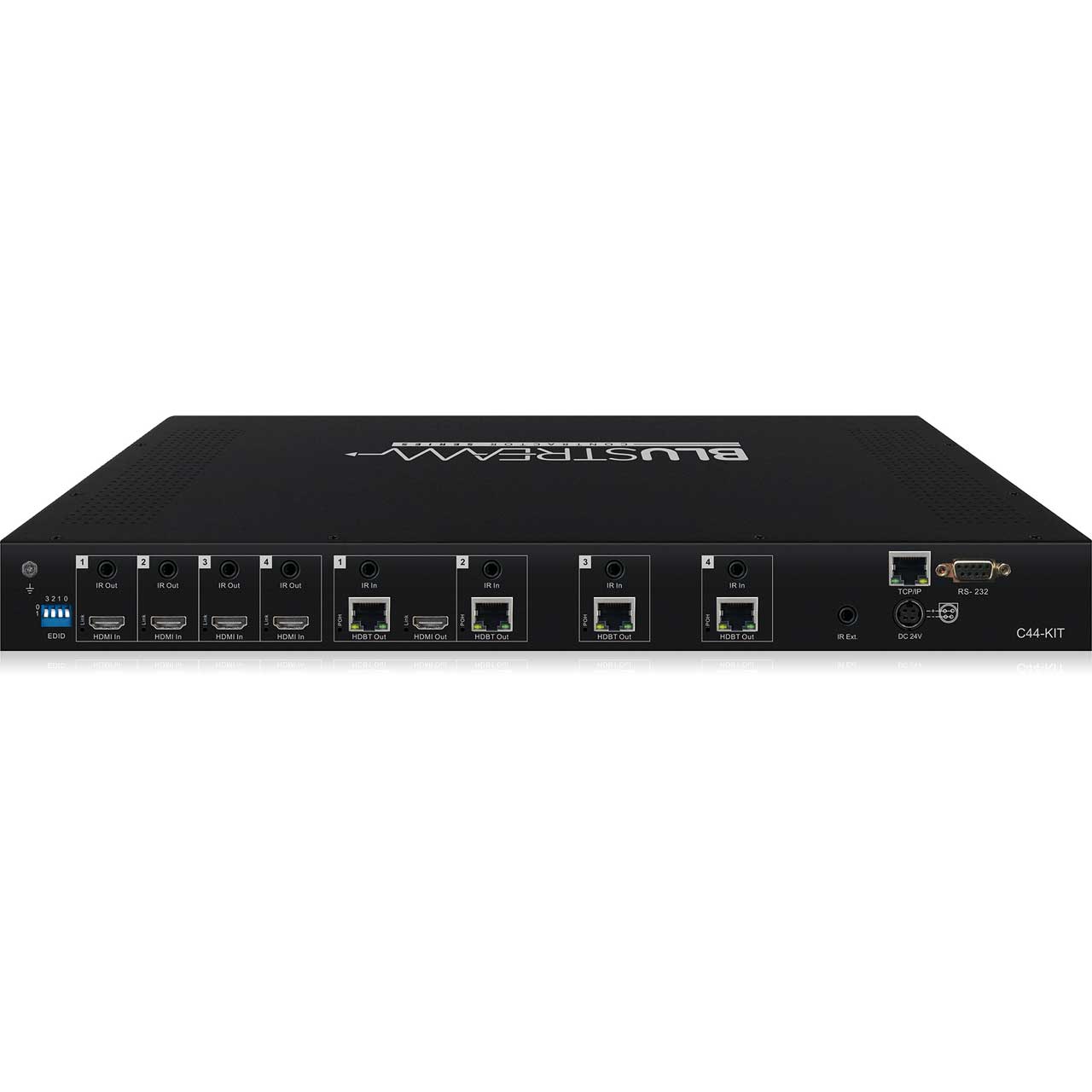

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x DB-9, female
  • TCP/IP Control: 1 x RJ45, female
  • IR Input ports: 5 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Rack-Mountable: 1U rack height, rack ears included
  • Case Dimensions (without feet) (W x D x H): 440mm x 202mm x 44mm
  • Dimensions (W x D x H): 440mm x 212mm x 52mm
  • Shipping Weight: 2.7kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1 x 24V/3.5A DC


• Item Includes:

  • 1x C44 matrix
  • 4x HEX70B-RX receivers
  • 1x Rack mounting kit
  • 4x Mounting kit for HEX70B-RX
  • 1x 24V/3.5A power supply
  • 1x IR remote control
  • 4x IR emitters
  • 5x IR receivers
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002280
