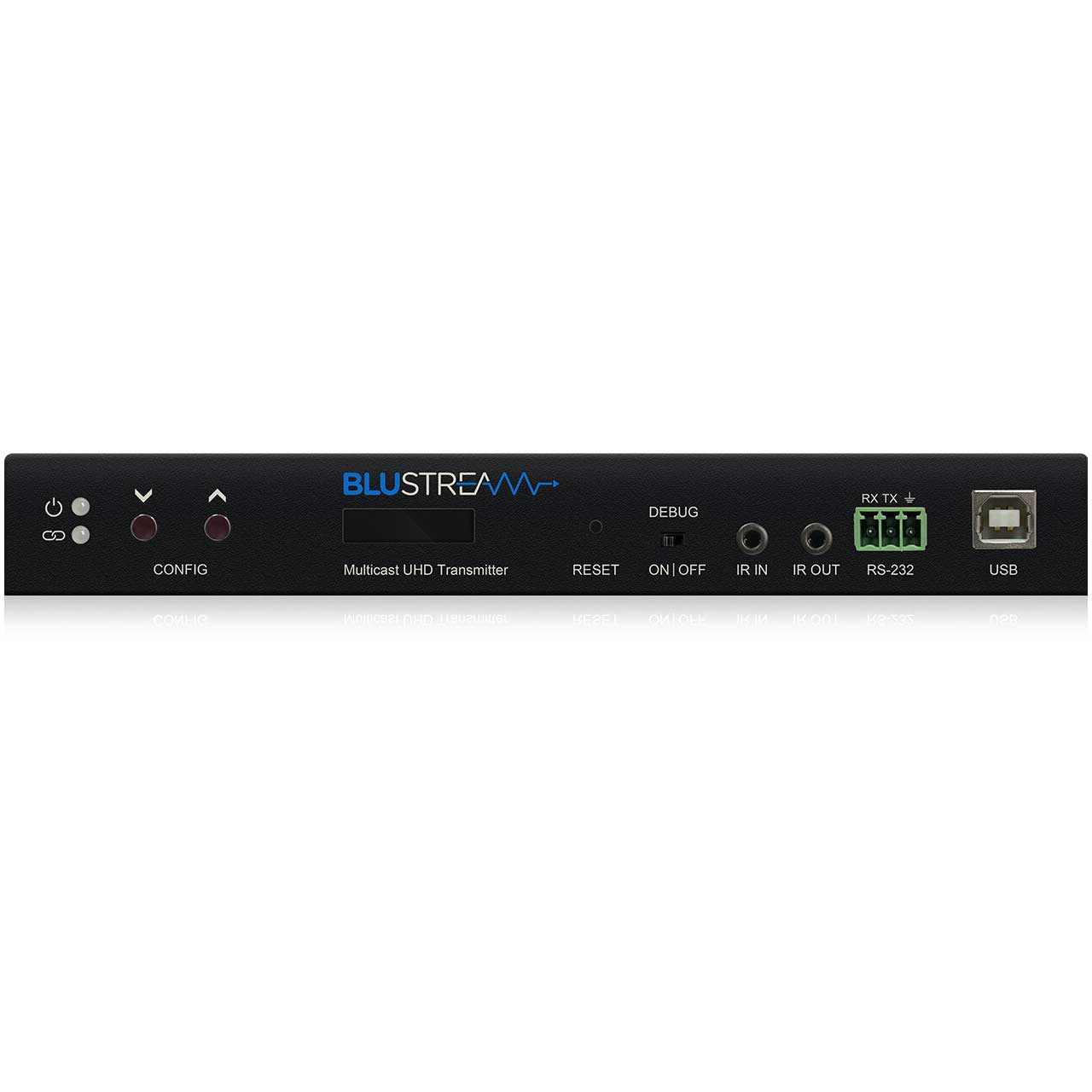

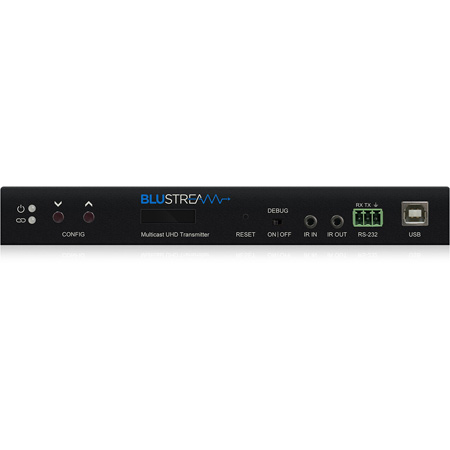

Blustream IP250UHD-TX IP Multicast HDMI UHD Video Transmitter over 1Gb Network with Bi-directional IR / RS-232 & USB

IP250UHD-TX - Overview

• Features:

  • Advanced UHD video over 1Gb Network
  • Operates as a stand-alone system, or together with existing IP200UHD products
  • Virtually unlimited system size
  • Extends HDMI and Dante up to a distance of 100m over a single CAT cable
  • Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
  • SFP port for independent or combined HDMI and Dante signal distribution over a single fiber cable
  • Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports HDR input @ 4K 30/25/24Hz
  • Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
  • In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analog audio input
  • In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analog audio output
  • Analog L/R audio embedding
  • Analog L/R audio outputs support both balanced and unbalanced audio signals
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
  • OLED front panel display for advanced system information and manual configuration
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • HDCP 2.2 compliant with advanced EDID management
  • Local 24V 1A power supply should Ethernet switch not support PoE (not included)


• Specifications:

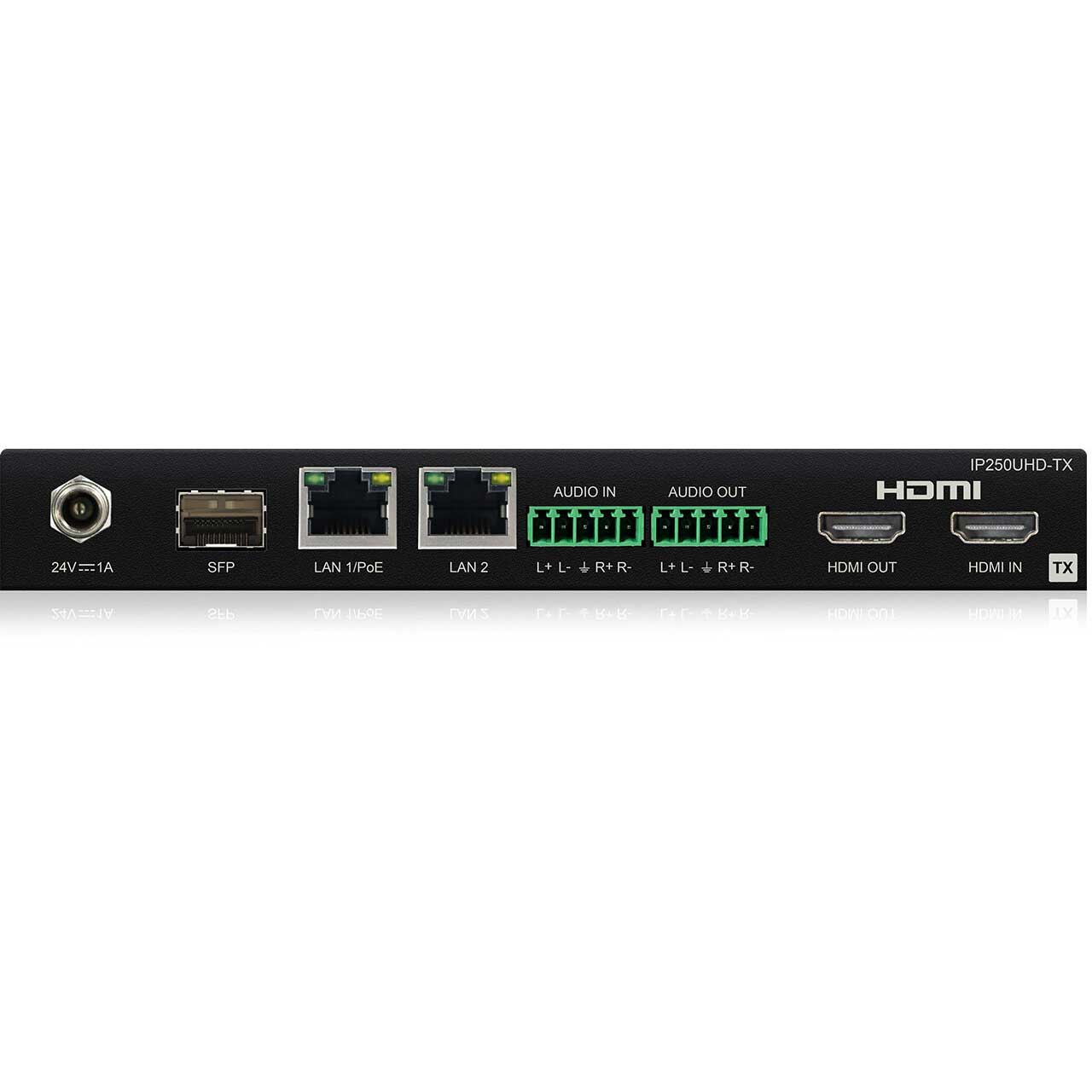

  • Video Input: 1 x HDMI Type A, female
  • Video Output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
  • Audio Input: 1 x 5-pin Phoenix connector
  • Audio Output Connectors: 1 x 5-pin Phoenix connector
  • Ethernet Port: 2 x LAN RJ45 connector
  • Fiber Port: 1 x SFP connector (fiber module not supplied)
  • RS-232 serial Port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB-Type B
  • IR Input: 1 x 3.5mm stereo jack
  • IR Output: 1 x 3.5mm mono jack
  • Firmware Update: 1 x Micro-USB
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Unit Dimensions (without connections): 190mm x 126mm x 25mm
  • Unit Dimensions (with connections): 190mm x 164mm x 25mm


• Item Includes:

  • 1x IP250UHD-TX
  • 1x IR Receiver
  • 1x IR Emitter
  • 1x Serial 3-pin Phoenix Connector
  • 1x Mounting Kit
  • 1x Quick Reference Guide
