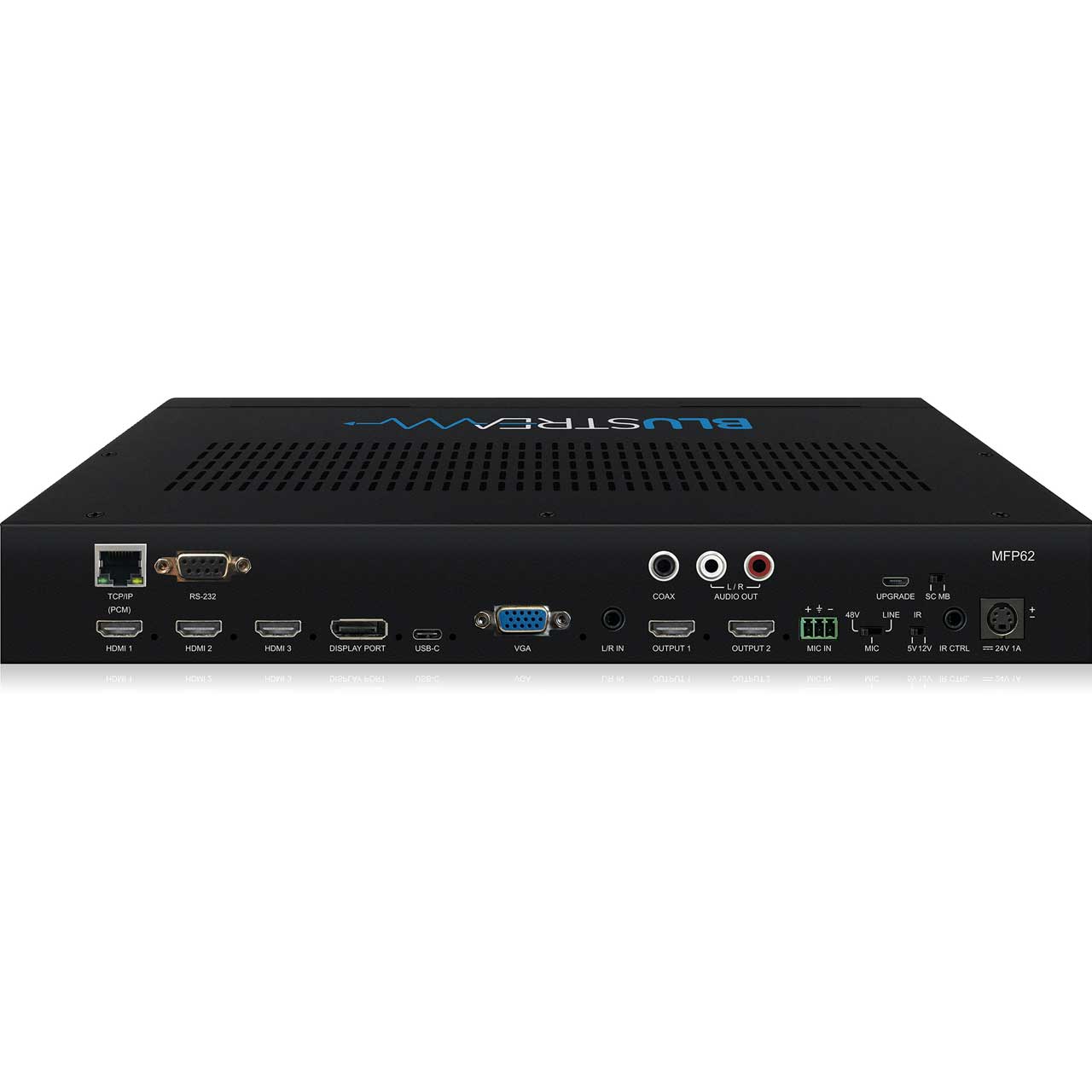

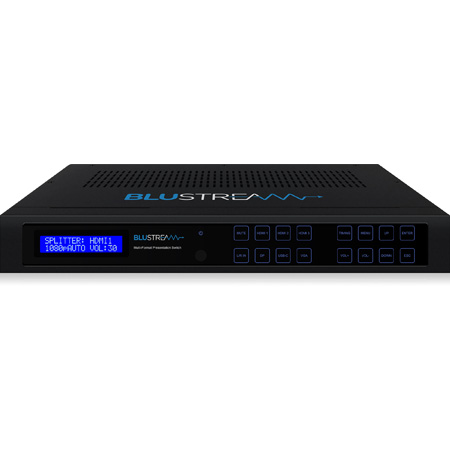

Blustream MFP62 6x2 Multi-Format Presentation Switcher

Name: Blustream MFP62 6x2 Multi-Format Presentation Switcher
Brand: Blustream
SKU: BLU-MFP62
Price: 1144.00 USD
Availability: InStock

ITEM #: BLU-MFP62 MFG #: MFP62

Blustream

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,144.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MFP62 - Overview

The Blustream MFP62 is an advanced 4K multi-format presentation switch featuring 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ and 1 x VGA input to dual HDMI outputs.

The MFP62 provides enhanced features Including video scaling on output, MIC input with phantom power and audio mixing. The MFP62 also features Web GUI for control and configuration, analog audio embedding, audio de-embedding, and control via front panel, IR, RS-232 and TCP/IP.

The MFP62 is an ideal product for your boardroom, classroom or huddle-space application.

Features:
- Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input which can be routed to dual HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports resolutions up to 4K UHD 60Hz 4:4:4
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Dual HDMI outputs with video scaling
- Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode
- Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
- Audio breakout to analog L/R audio and Coaxial (S/PDIF) digital outputs concurrently
- Features audio mixer with independent level adjustment
- Analog audio embedding
- MIC input supports line level, 48V Phantom power or 1ch balanced / un-balanced audio
- Web interface module for control and configuration of switch
- Control via front panel, IR, RS-232 and TCP/IP
- HDCP 2.2 compliant with advanced EDID management
Specifications:
- Video Input Connectors: 3 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x Display Port™, 1 x
  VGA
- Video Output Connectors: 2 x HDMI Type A, 19-pin, female
- Audio Input Connectors: 1 x analog left / right audio (3.5mm stereo jack)
- MIC Input Connectors: 1 x 3-pin Phoenix connector
- Audio Output Connectors: 1 x RCA (S/PDIF), 2 x RCA analog left / right
- RS-232 Serial Ports: 1 x 9-pin RS-232 connector
- TCP/IP Control: 1 x RJ45, female
- IR Input Ports: 1 x 3.5mm stereo jack
- Product Upgrade: 1 x Micro USB female
- Rack-Mountable: 1U rack height, rack ears included
- Casing Dimensions (W x H x D): 344mm x 44mm x 168mm, without feet
- Shipping Weight: 3kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 24V/1A DC
Item Includes:
- 1x MFP62
- 1x Remote Control
- 1x 24V/1A DC Power Supply
- 1x Rack Mounting Kit
- 1x IR Receiver
- 1x Quick Reference Guide
Warranty:
- 3 Year Warranty
GTIN:
9340242003232
