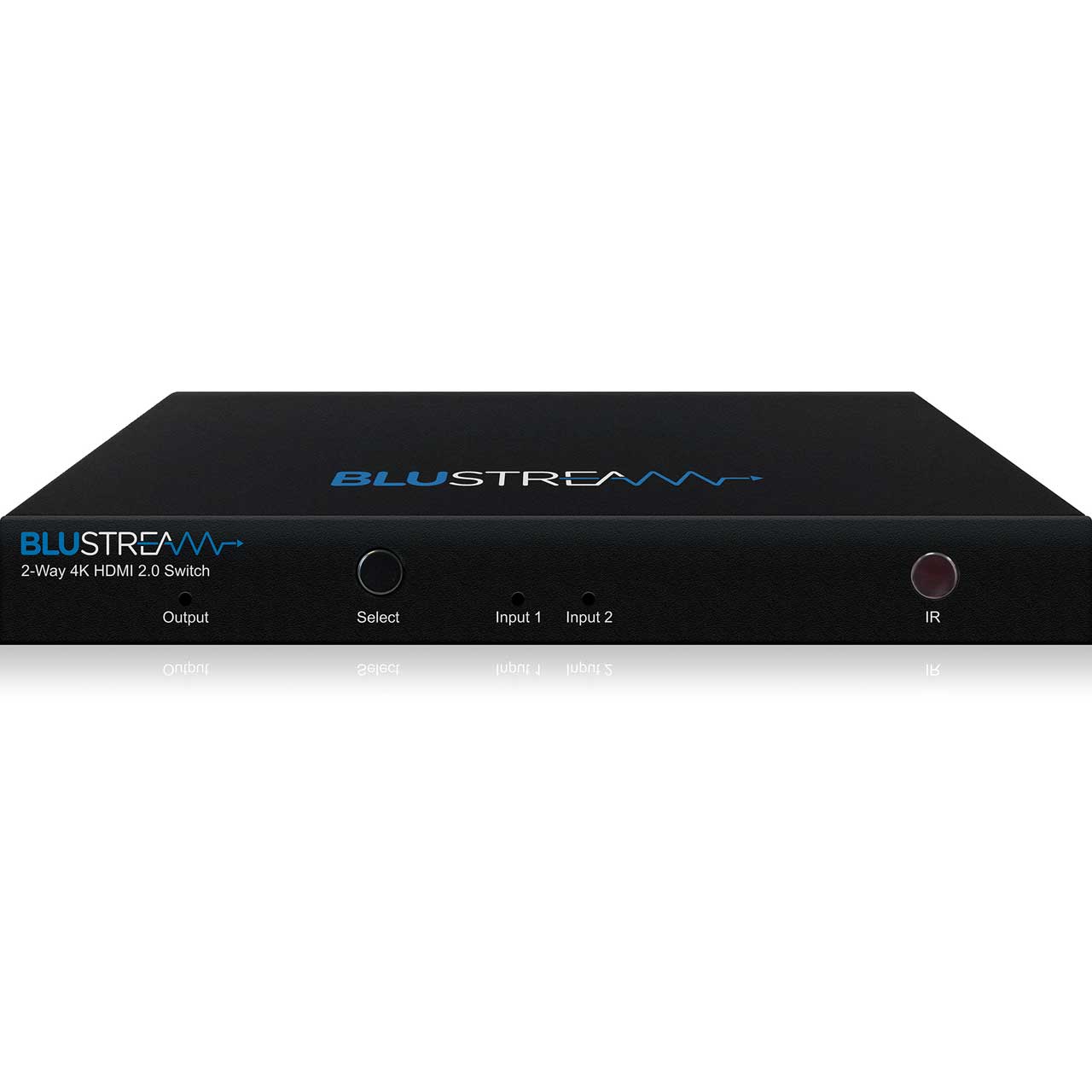

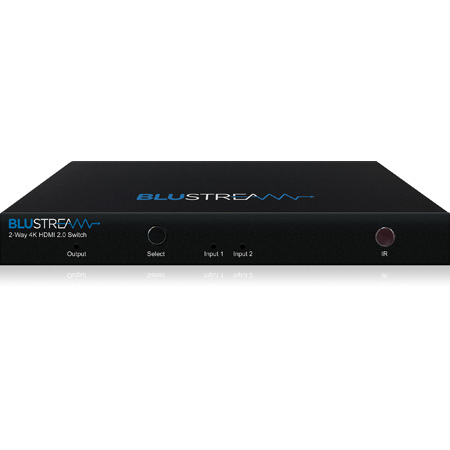

Blustream SW21AB-V2 2x1 HDMI 18G Switcher

SW21AB-V2 - Overview

• Features:

  • Features 2 x HDMI inputs which can be switched to a single HDMI output*
  • Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
  • HDCP2.2 compliant
  • Supports 3D signal display
  • Supports CEC bypass (Consumer Electronics Control)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analog L/R audio and Coaxial digital outputs concurrently
  • Control via front panel and IR (remote control included)
  • Advanced EDID management
  • *Please note: this unit is not auto signal sensing / switching


• Specifications:

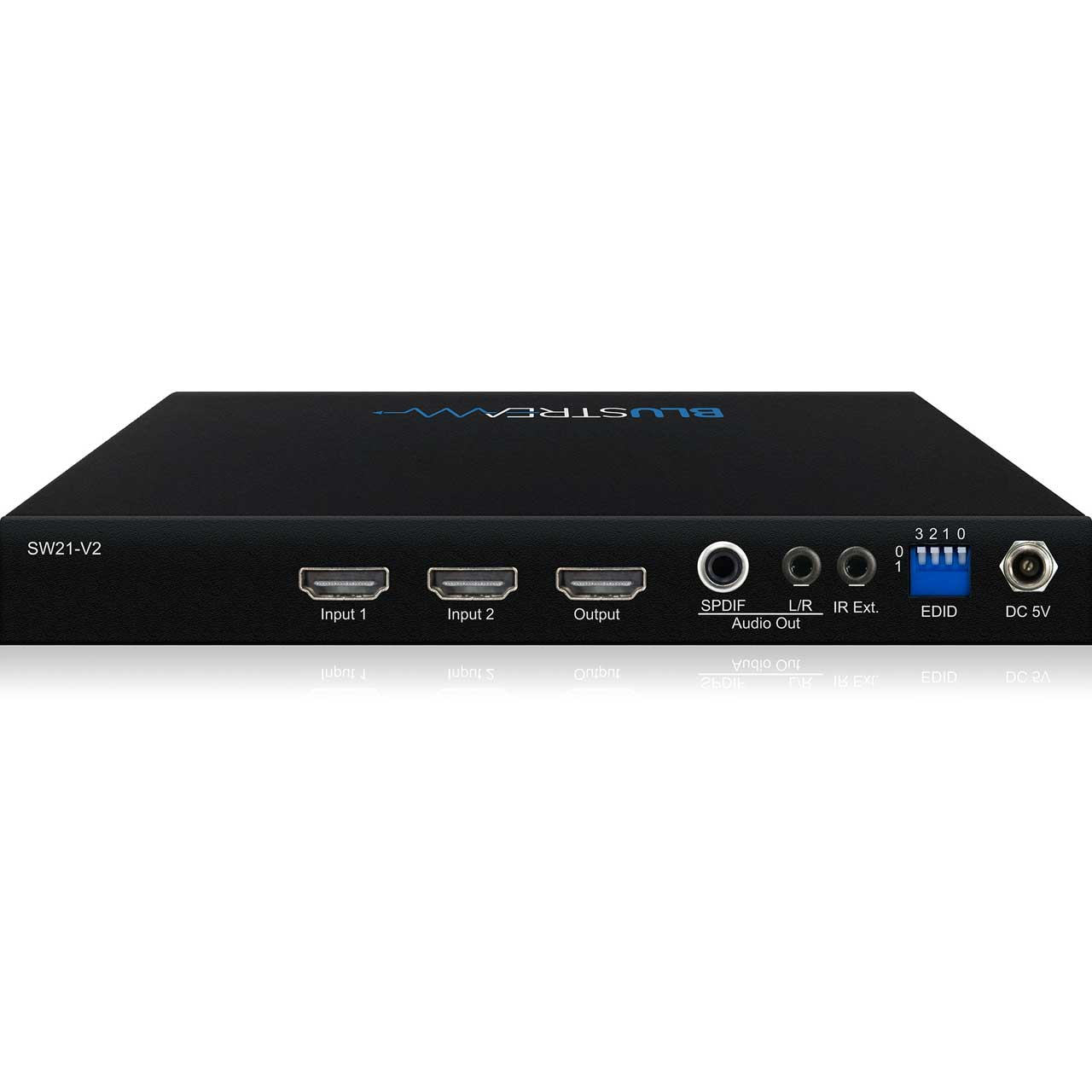

  • Video Input Connectors: 2 x HDMI Type A
  • Video Output Connectors: 1 x HDMI Type A
  • Audio Output Connectors: 1 x RCA (SPDIF) & 1 x Analog audio L/R (3.5mm stereo Jack)
  • IR Input Ports: 1 x 3.5mm stereo Jack
  • Product Dimensions (W x D x H): 196 x 104 x 32mm (with connections)
  • Product Dimensions (W x D x H): 196 x 94 x 23mm (without connections)
  • Product Weight: 0.45kg (excluding accessories)
  • Carton / Box Dimensions (W x D x H): 295 x 155 x 80mm
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/2A DC


• Item Includes:

  • 1x SW21AB-V2
  • 1x SW21-REMOTE
  • 1x 5V/2A DC power supply
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001658
