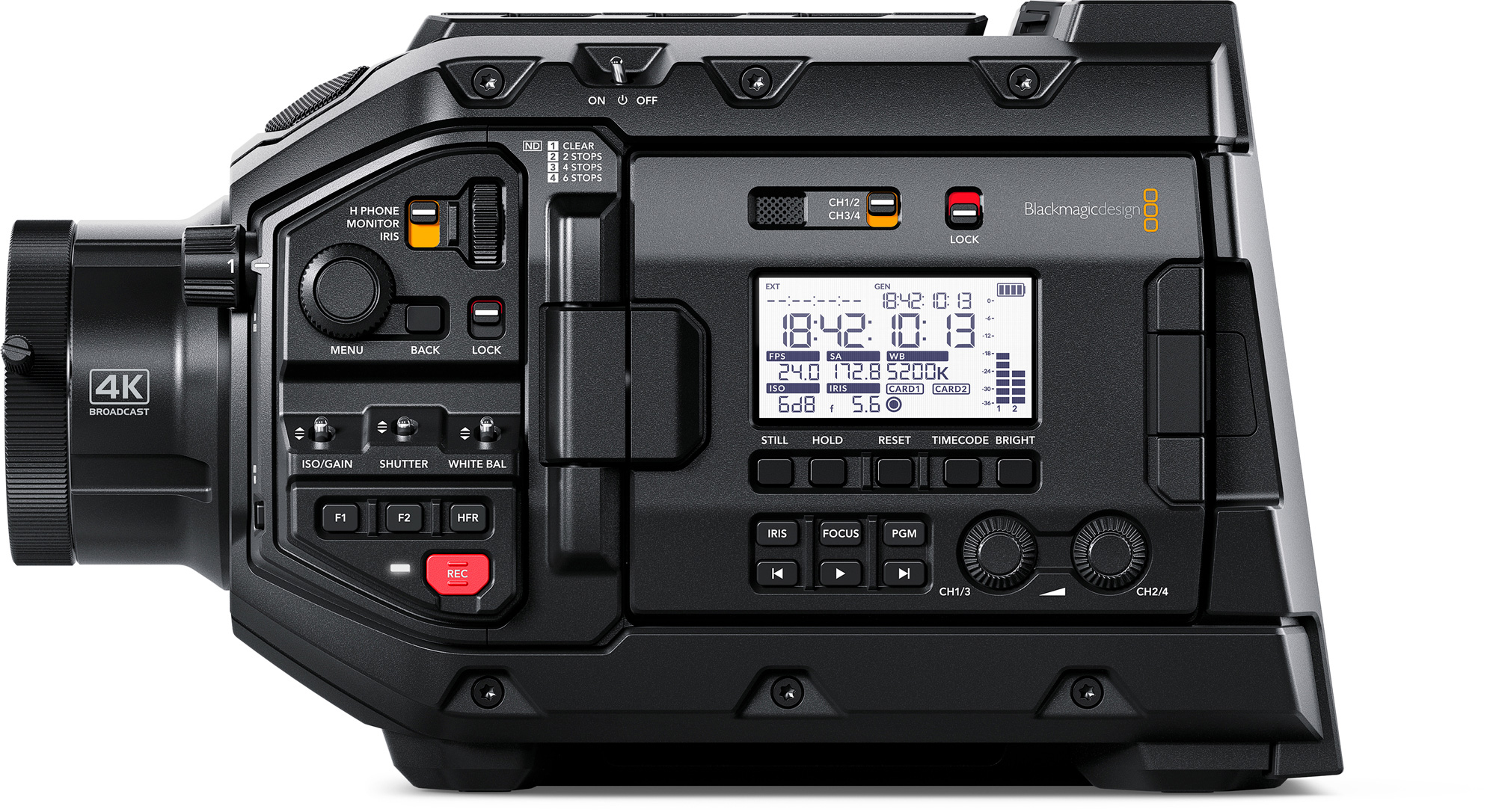

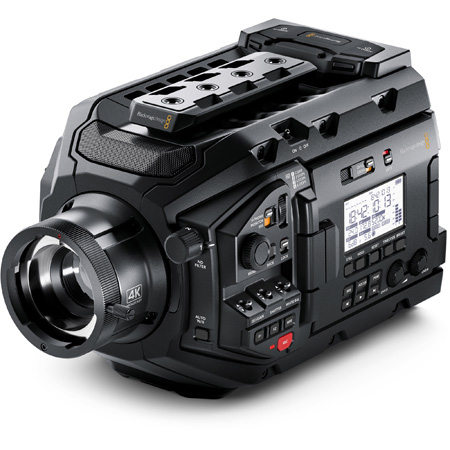

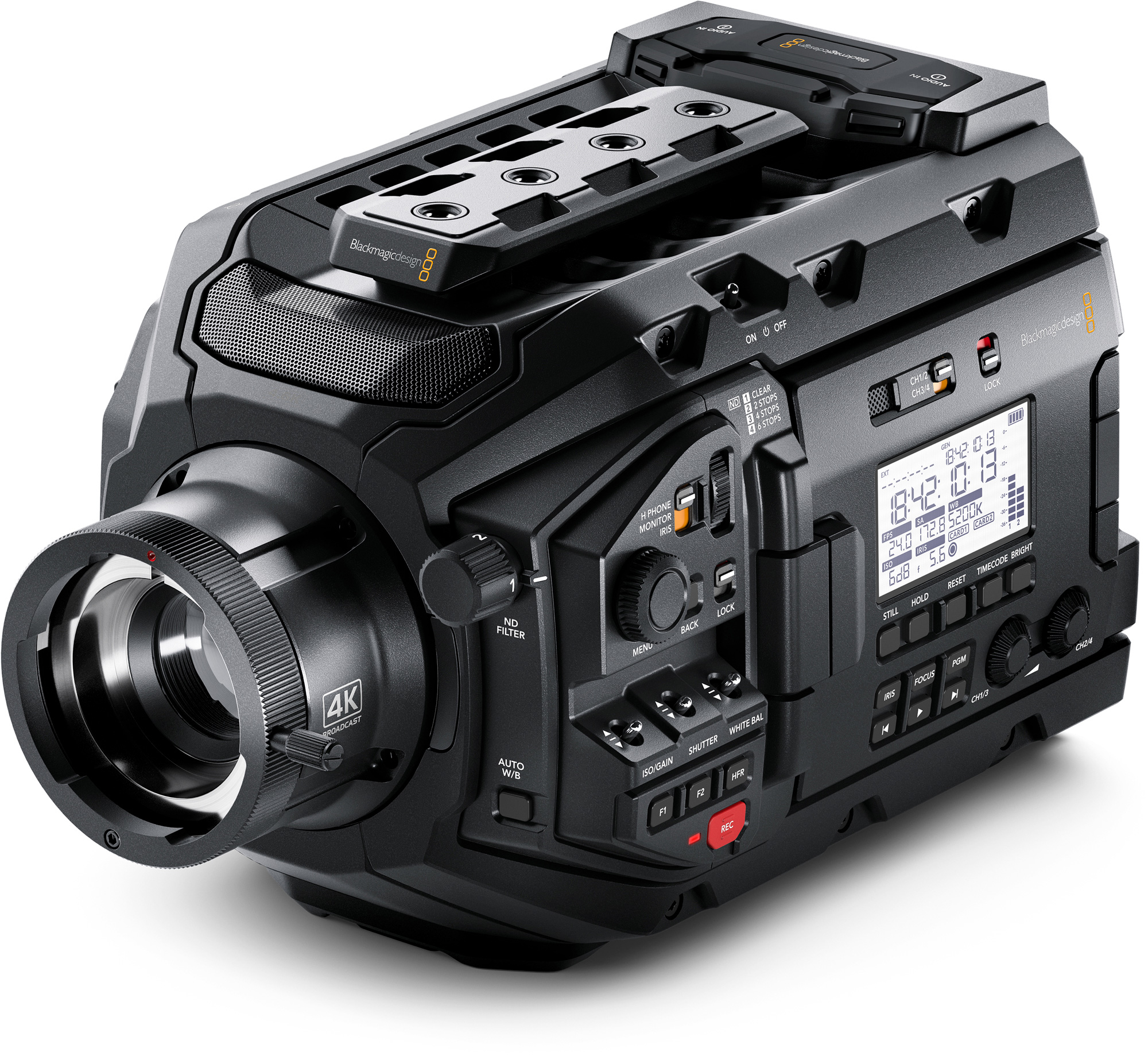

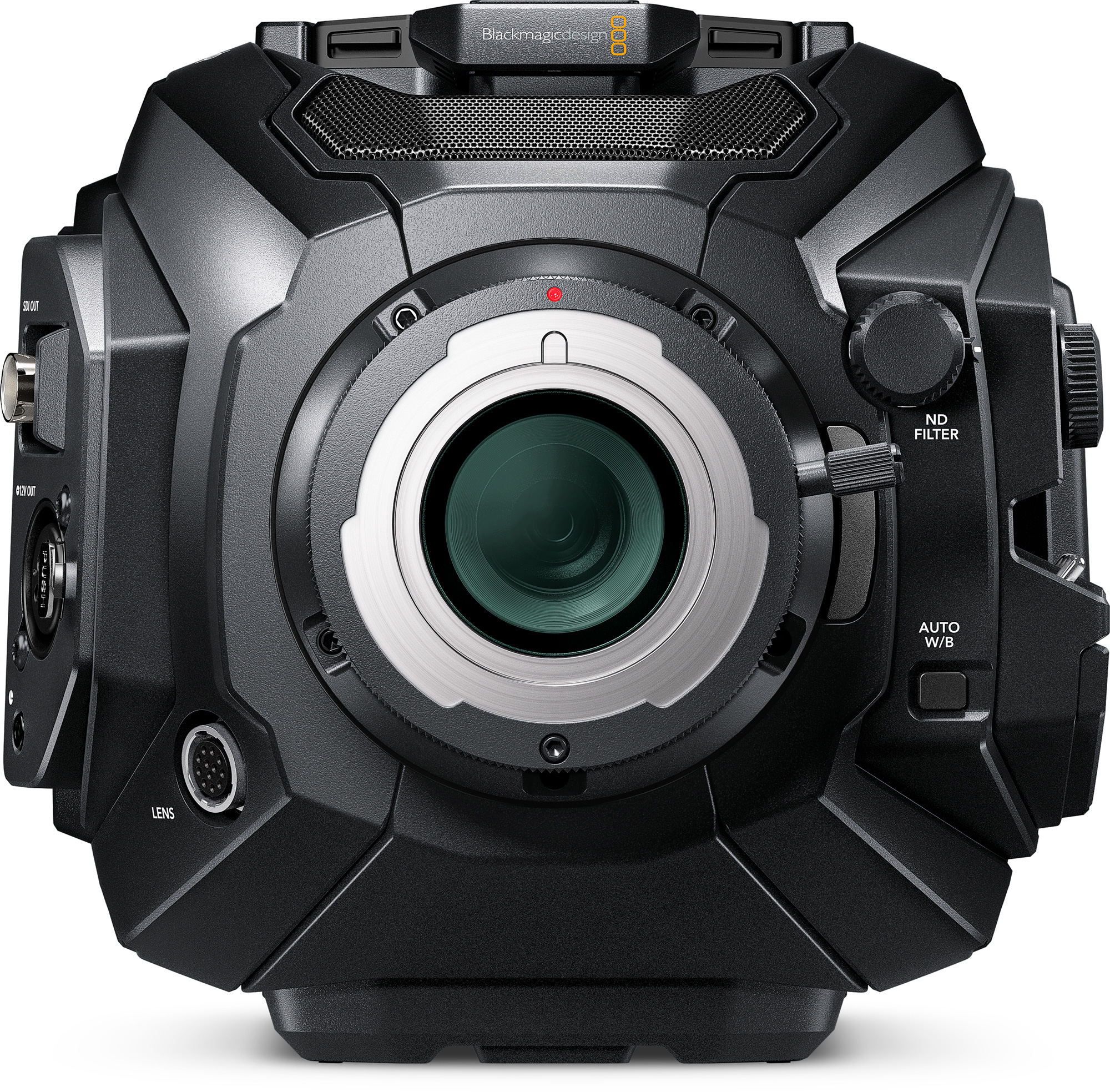

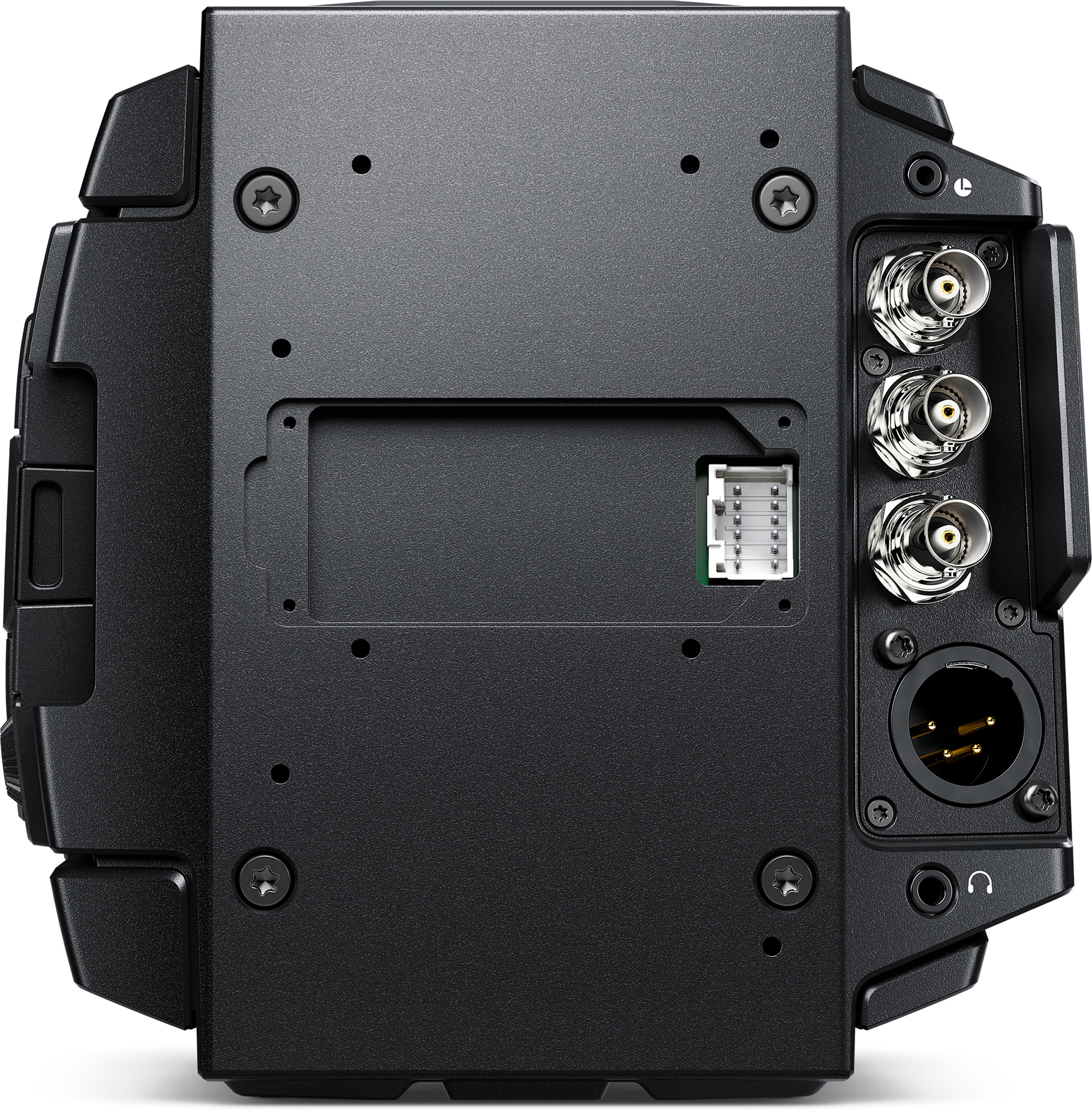

Blackmagic Design URSA Broadcast Camera 4K - Body Only

ITEM #: BMD-CINURSAMWC4K MFG #: CINEURSAMWC4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-CINURSAMWC4K

CINEURSAMWC4K - Overview

The world's most affordable and flexible professional broadcast camera for HD and Ultra HD!

Blackmagic URSA Broadcast Camera , the world's most affordable and flexible professional broadcast camera! URSA Broadcast is two cameras in one, an incredible field camera for ENG and programming work, as well as a professional studio camera! URSA Broadcast is perfect for traditional broadcasters because it uses the lenses and batteries you already own. Plus URSA Broadcast is perfect for web broadcasters because it works with both older after market HD lenses and inexpensive photo lenses. No other broadcast camera is more flexible and more affordable! It also eliminates weird media cards and file formats found on traditional cameras. It records onto regular SD cards and uses the same common file formats found on broadcast media management systems and most NLE software.

That makes URSA Broadcast the first professional broadcast camera designed to work with standard media cards and file formats and that makes it compatible with virtually all broadcast systems and editing software. URSA Broadcast records onto inexpensive standard SD cards, UHS-II cards and CFast cards, and records 1080i or 2160p video into standard .mov files. URSA Broadcast records using DNx145, DNx220X or ProRes so the files will work with your existing broadcast systems and workflows. You also get a B4 lens mount that works with your existing lenses, or you can swap it for optional EF, F and PL lens mounts so you can use standard photographic lenses. If you're building a complete broadcast camera chain, the optional URSA Viewfinder, URSA Studio Viewfinder and SMPTE fiber converters feature familiar controls and design, so they operate exactly as experienced camera operators expect.

Please Note! Both the CINURSPROTEF EF Mount and the CINEURSAMUPROTPL PL mount are compatible with this camera affording you a wide array of lenses to choose from!

  • Features:

    • Switch instantly between live work or field shooting!
    • Work faster by eliminating expensive media and video transcodes!
    • Use your existing high quality HD lenses or new Ultra HD lenses!
    • Incredible 4K image sensor for wide dynamic range and wide depth of field
    • High quality neutral density filters with IR compensation
    • Works with CFast and SD Cards
    • Extremely tough and lightweight magnesium metal design
    • Quickly change settings without taking the camera off your shoulder!
    • See critical shooting information in bright daylight!
    • Capture fast action with smooth flowing slow motion!
    • Built in broadcast quality sound recording

  • Specifications:

    • Camera Features
    • Effective Sensor Size: 2/3 inch sensor size when using 4K B4 mount (Actual sensor size 13.056mm x 7.344mm)
    • Lens Mount: B4 2/3 inch
    • Lens Control: Electronic control via 12-pin broadcast connector. Control possible via EF mount pins when using optional URSA Mini Pro EF Mount.
    • Lens Correction: In-camera correction of color fringing when using compatible B4 lenses.
    • Dynamic Range: 12 Stops
    • Shooting Resolutions: 3840 x 2160, 1920 x 1080
    • Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60p.
    • Built in ND Filters: Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.
    • Focus: Focus button turns on peaking, auto focus available using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
    • Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
    • Screen Dimensions: 4 inch
    • Screen Type: LCD capacitive touchscreen.
    • Metadata Support: Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
    • Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys on camera and 2 assignable shortcut keys (VTR and RET) on compatible B4 lenses.
    • Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

      Connections
    • Total Video Inputs: 1 x SDI
    • Total Video Outputs: 1 x SDI, 1 x SDI Monitoring.
    • SDI Rates: 1.5G, 3G, 6G, 12G.
    • Analog Audio Inputs: 2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
    • Analog Audio Outputs: 1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
    • Reference Inputs: Tri-Sync/Black Burst/Timecode.
    • Remote Control: 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
    • Computer Interface: USB Type-C for software updates.

      Audio
    • Microphone: Integrated stereo microphone.
    • Built in Speaker: 1 x mono speaker.

      Standards
    • SD Video Standards: None
    • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, Interlaced output via SDI 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Compliance: SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1
    • SDI Audio Sampling: 48 kHz and 24 bit

      Media
    • Media: 2 x CFast for 4K RAW and ProRes recording. 2 x SD UHS-II card slots for HD and Ultra HD recording.
    • Media Format: Can format cards to ExFAT for Windows and Mac or HFS+ for Mac (file systems).

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

  • Item Includes:

    • URSA Broadcast body
    • Turret dust cap
    • B4 lens mount
    • Power supply
    • SD card with software and manual

  • Warranty:

    • 12 Month

  • GTIN:

    9338716005059
