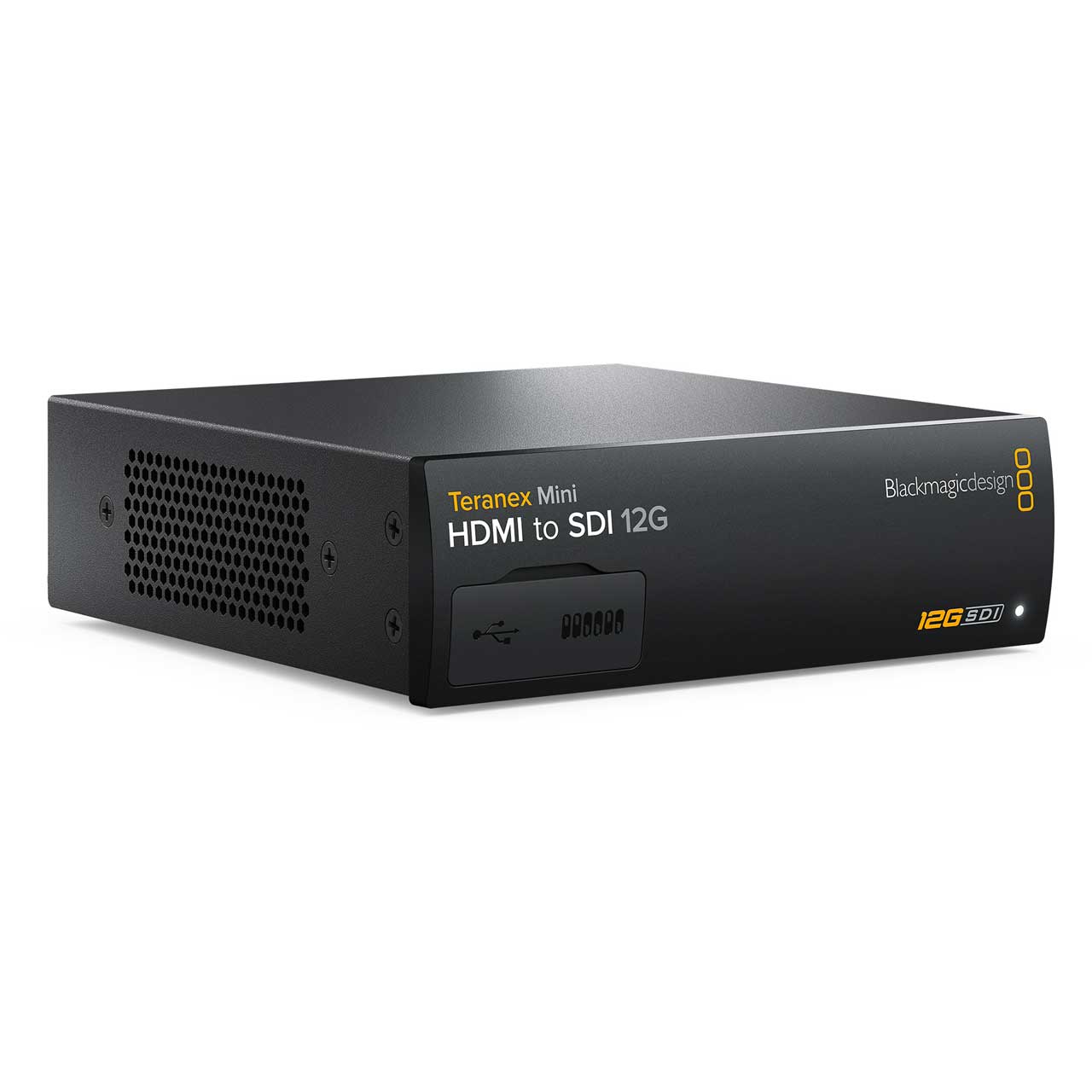

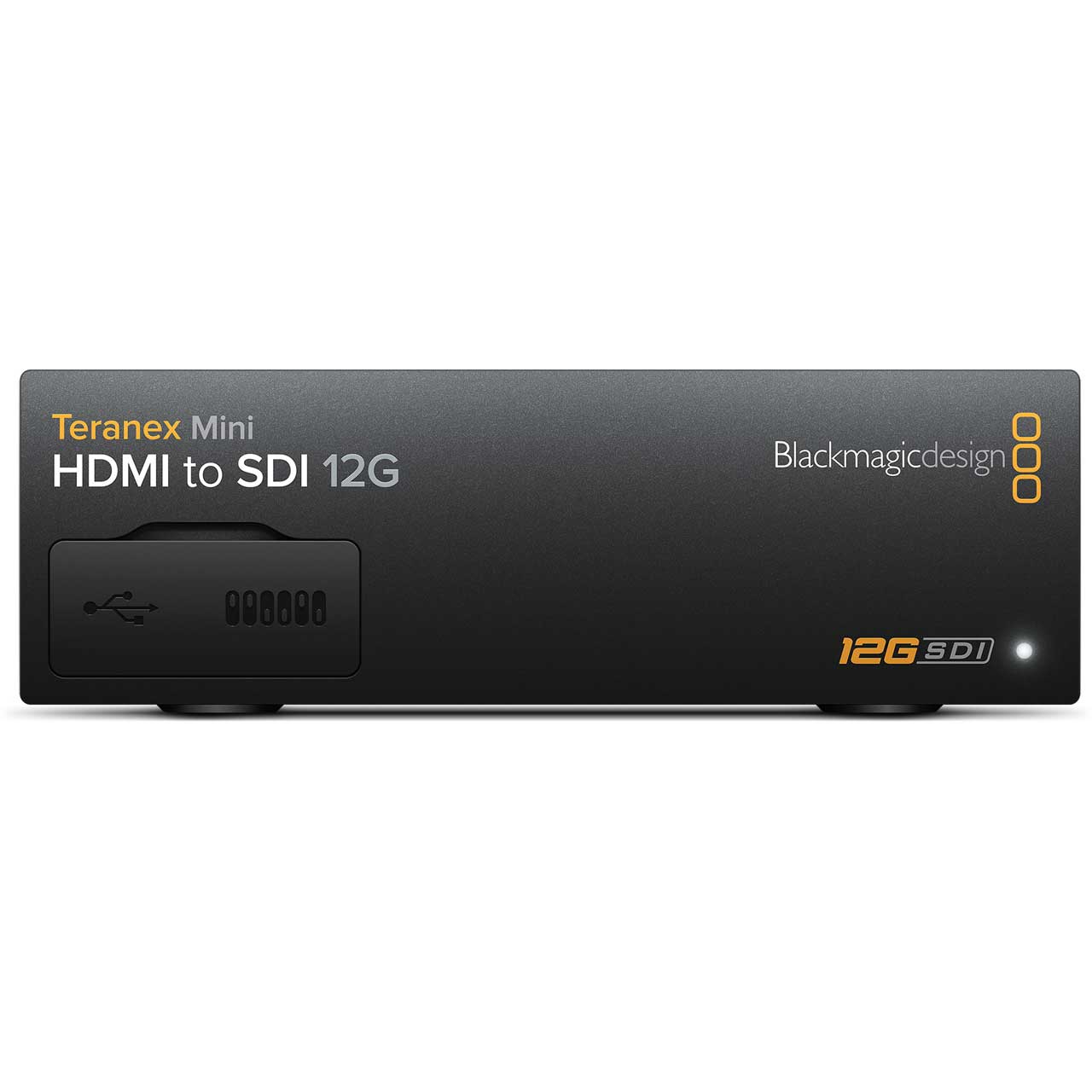

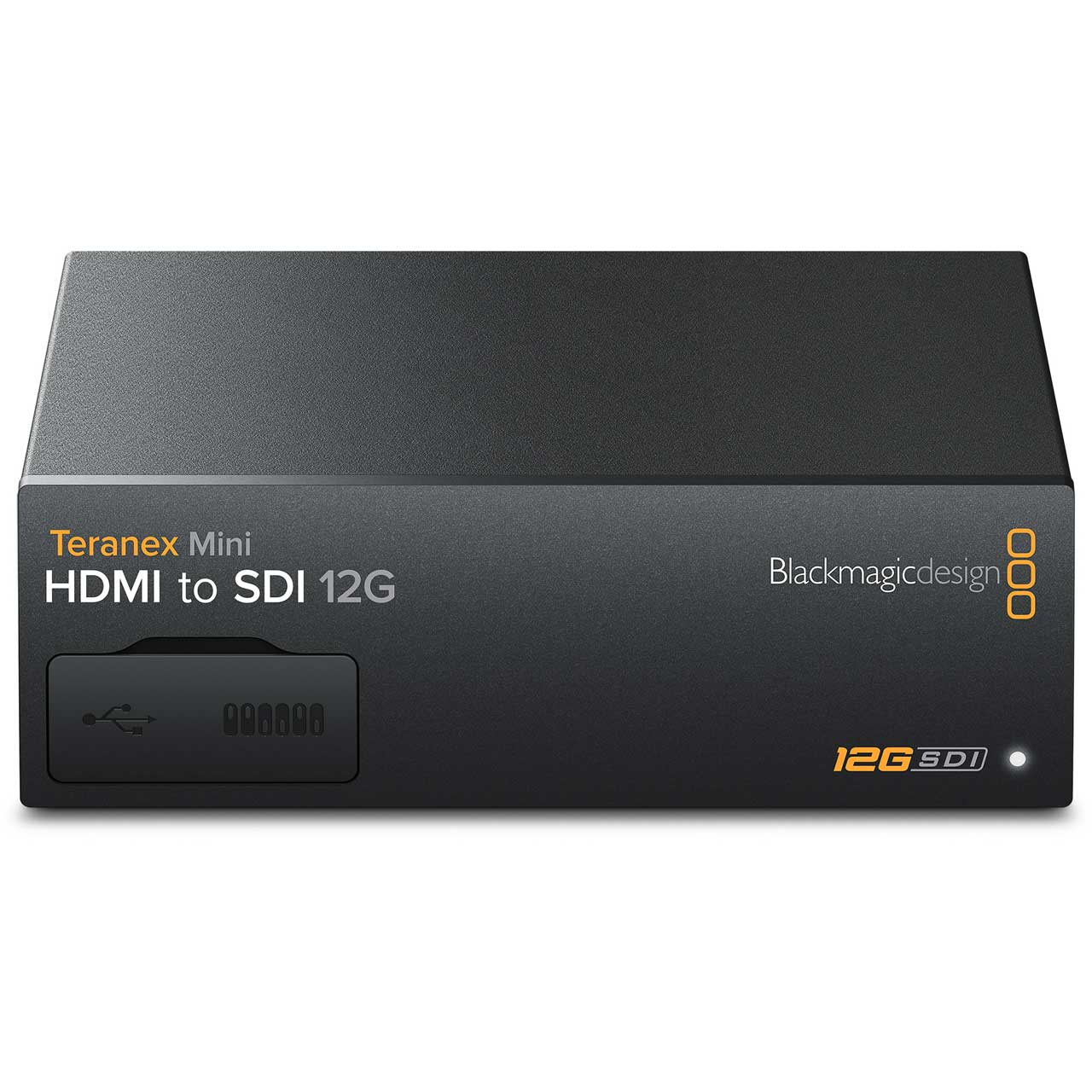

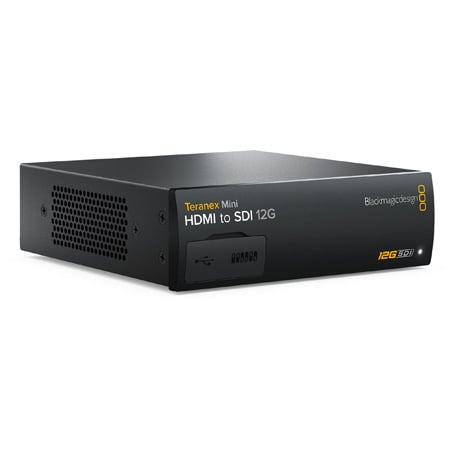

Blackmagic Design CONVNTRM/AB/HSDI Teranex Mini - HDMI to 12G SDI Converter

CONVNTRM/AB/HSDI - Overview

• Specifications:

  • Connections
  • SDI Video Output: Automatically matches the SD, HD and 12G-SDI HDMI video input.
  • XLR Audio Input: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
  • AES/EBU Audio Output: 4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
  • HDMI 2.0: 1 x HDMI type A connector with support for 2160p60.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB or Ethernet.
  • Re-Clocking: Yes

    Standards
  • SD Format Support: 525/29.97 NTSC, 625/25 PAL
  • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
  • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Precision: 4:2:2 and 4:4:4
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
  • HDMI Format Support: 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
  • HDMI Color Space: REC 601, REC 709
  • HDMI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

    Format Conversion
  • HD down conversion

    Software
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
  • Internal Software Upgrade: Via included updater application.

    Settings Control

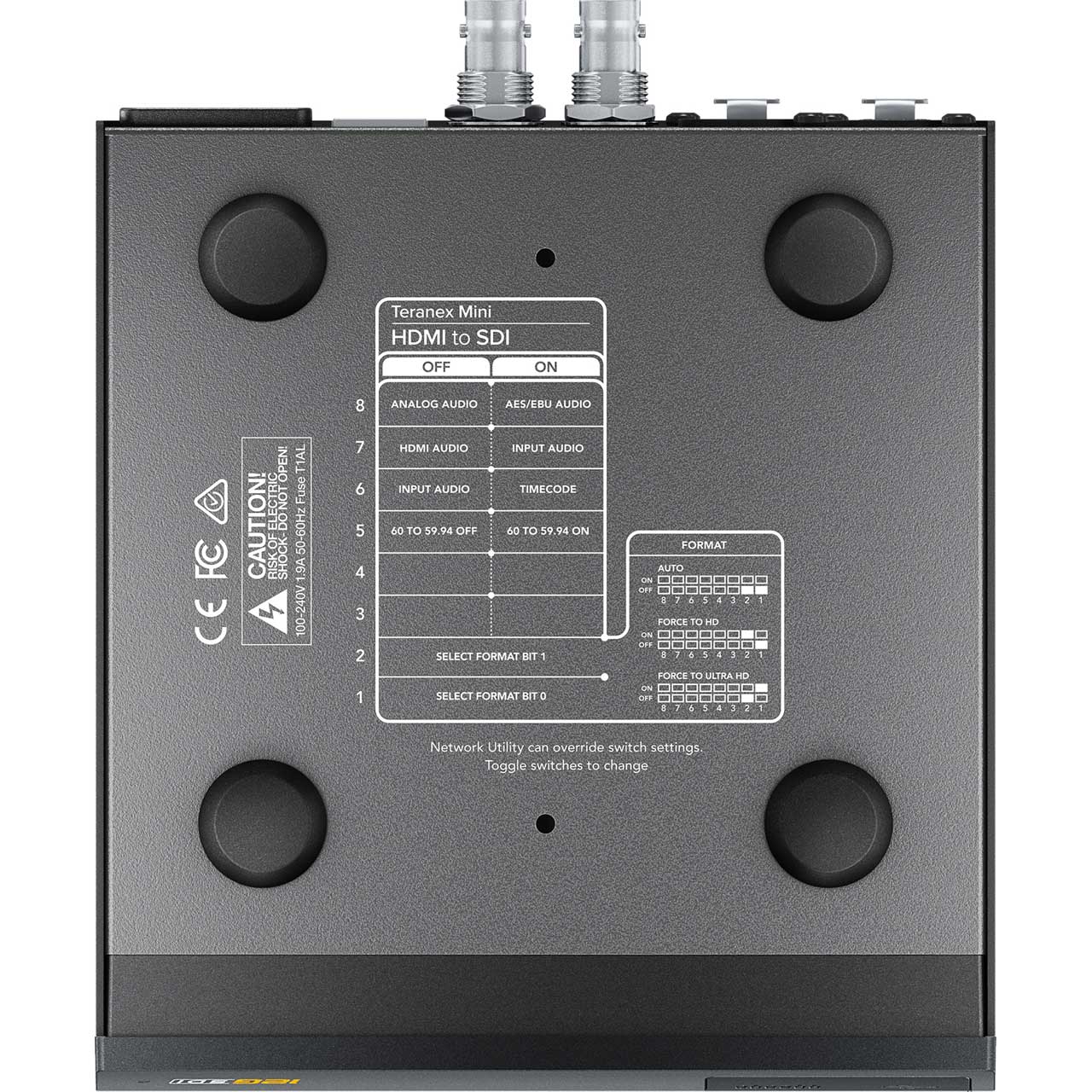

  • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
  • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

    Power Requirements
  • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
  • Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet).
  • Power Consumption: 15 Watts
  • Operational Voltage Range:90 - 240V AC


• Item Includes:

  • Teranex Mini - HDMI to SDI 12G
  • Software
  • SD Card


• Warranty:

  • 3 year Limited Manufacturer's Warranty


• GTIN:

  9338716003253
