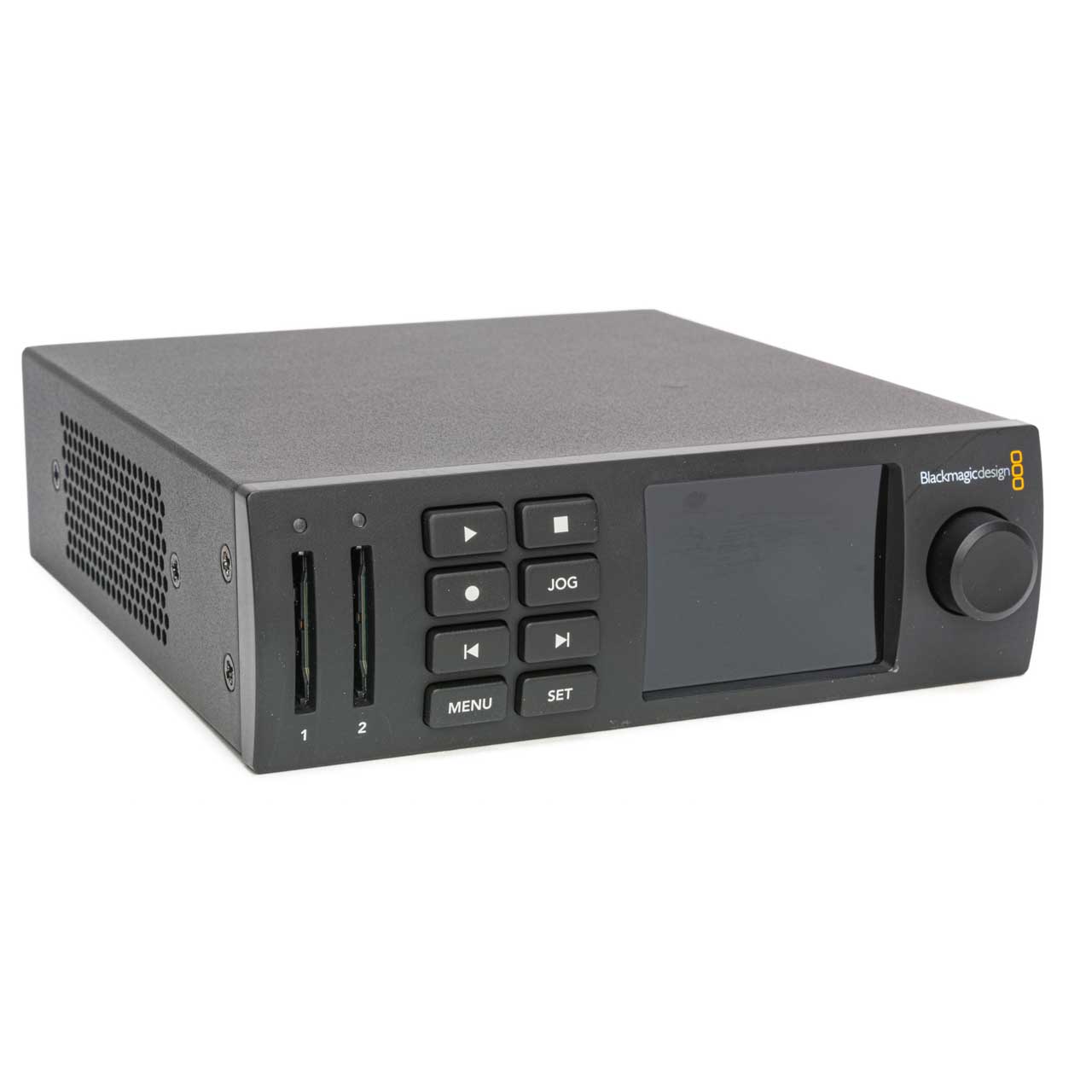

HyperDeck Studio Mini is a miniaturized broadcast deck that's so compact and portable you can use it anywhere! Even at this incredibly tiny size, you get a professional deck that records and plays back broadcast quality 10-bit video as ProRes files on commonly available SD and UHS-II cards. It's packed with features like 6G-SDI for working with all formats up to 2160p30, HDMI 2.0 for monitoring, dual SD card slots for non-stop recording and a reference output with built in sync generator that lets you daisy chain and synchronize multiple decks together! The Dual Link 6G-SDI out can even be used to playback 720 and 1080 HD 4:4:4:4 files to separate fill and key outputs! HyperDeck Studio Mini includes industry standard RS-422 deck control, a built in power supply and ethernet with PoE+ for custom control solutions and uploading media via FTP!
The Mini features dual SD card recorders, professional connections, ethernet, built in power and much more, all miniaturized into an elegant 5.5 inch wide compact and modular design. You can rack mount it using the optional Teranex Mini Rack Shelf and combine it additional modules to create a customized deck! For example, if you need to work with analog material, you can combine it with a Teranex Mini Analog to SDI converter on the input and a Teranex Mini SDI to Analog converter on the output to create an analog deck! To create a deck with eight mirrored outputs, use it with a Teranex Mini SDI Distribution 12G. If you're not using it in a rack, HyperDeck Studio Mini's elegant design also looks great when used on the desktop. It's the world's most sd-card professional deck!

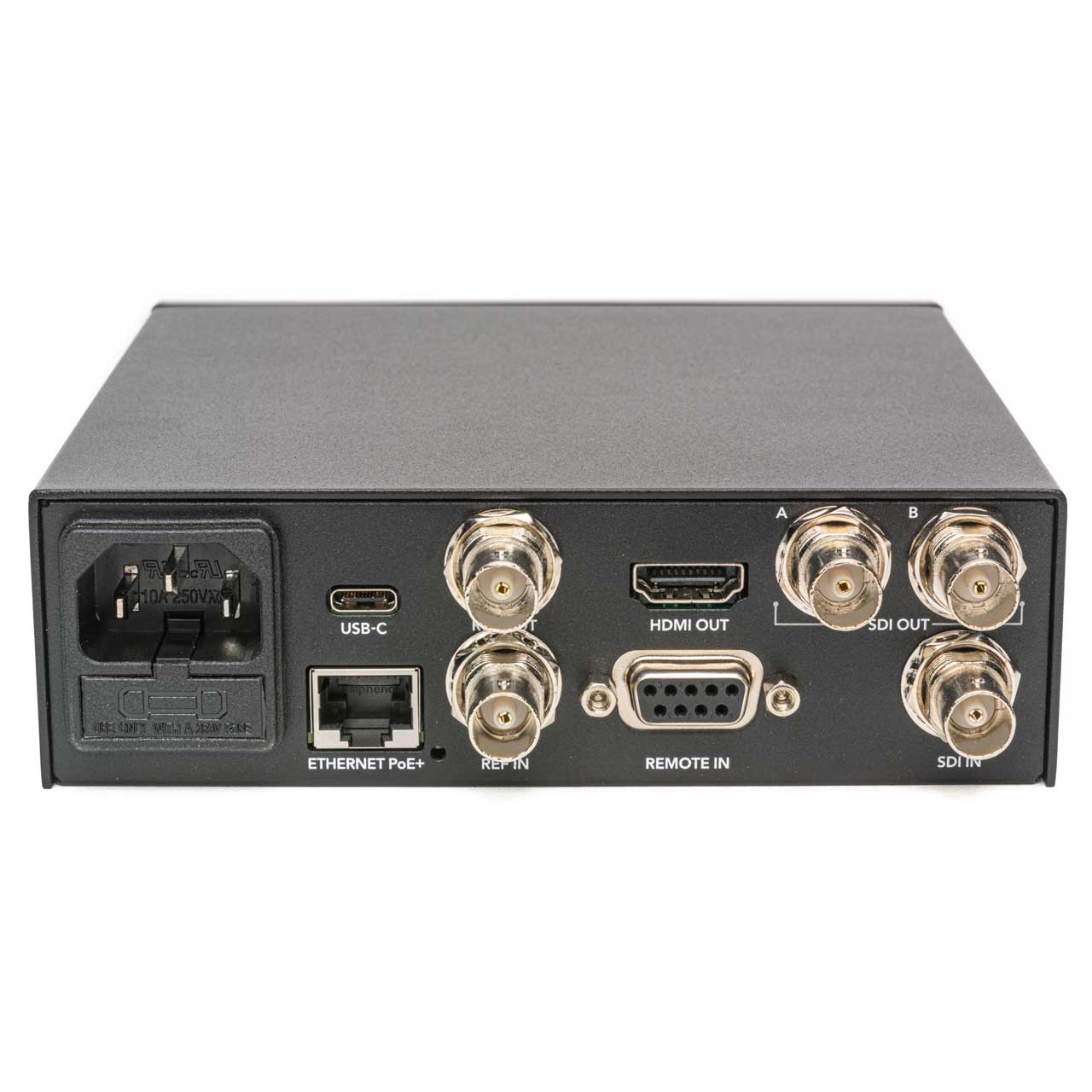

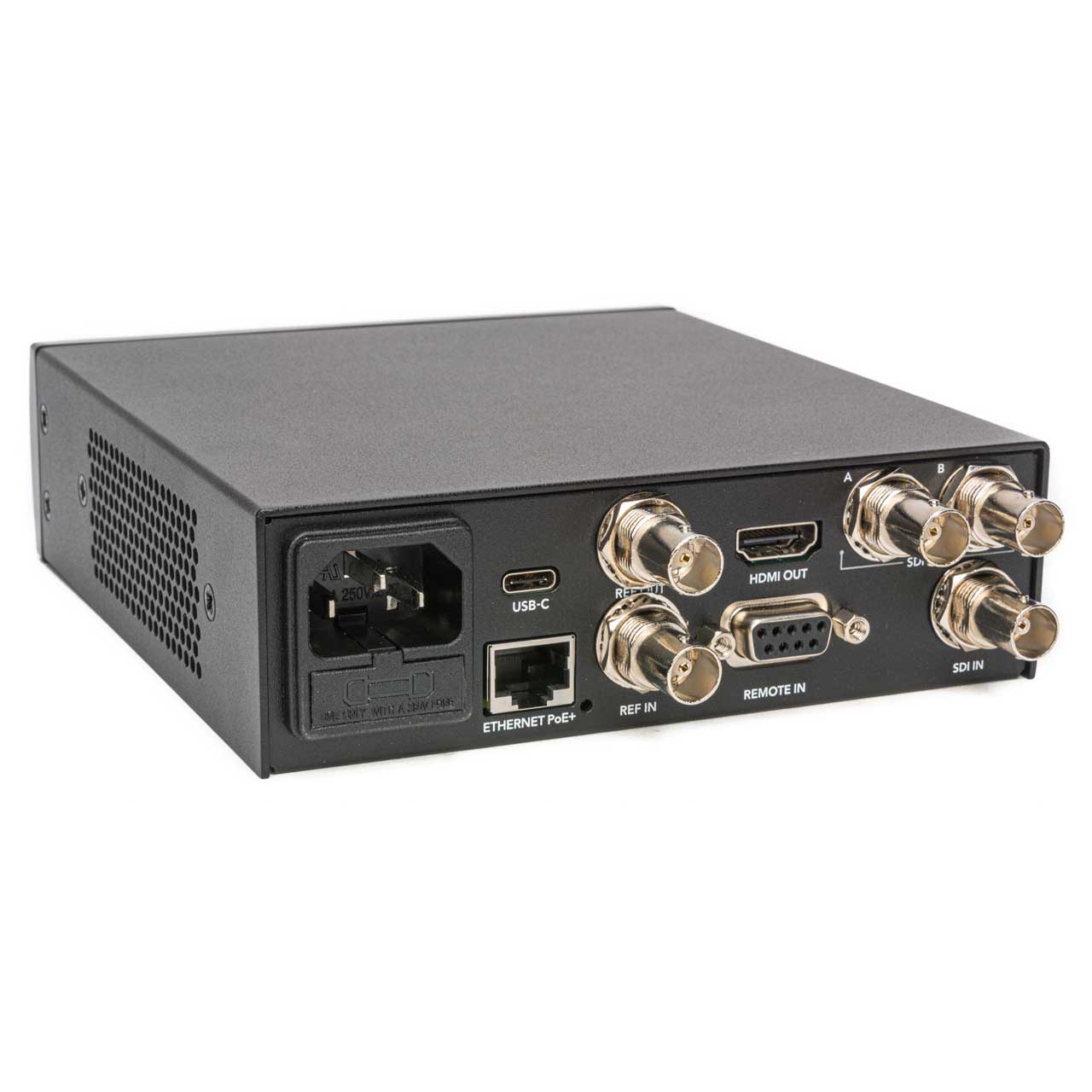

With features like multi rate 6G-SDI connections, you can connect to virtually any camera, monitor or SDI router and work with all SD, HD and Ultra HD formats up to 2160p30. You get an SDI input, reference input and two SDI outputs that can be used as dual link or fill and key outputs. The high quality HDMI connection lets you play back to big screen televisions, digital projectors and more! In addition, there's an RS-422 deck control connection, ethernet for uploading files to it via FTP and a built in 110-240V AC power supply. There's even an SDK and easy to use ethernet protocol documented in the instruction manual that lets you integrate HyperDeck Studio Mini into your custom systems and software!
SD Cards are commonly available, inexpensive and extremely reliable, which makes them perfect for use as professional broadcast media storage. Best of all, they're solid state so unlike disk or tape based systems, you get instantaneous transport ballistics so you never have to wait for media to cue. That means you can play back any frame from any card at any time! HyperDeck Studio Mini records to both regular SD cards and high performance UHS-II cards. You can use standard SD cards for SD and HD video, and UHS-II cards when you want to record in Ultra HD. In addition, SD cards don't deteriorate over time and are incredibly tiny, so you can create an entire archival library of your content that takes up a fraction of the space required by older types of media! And if that wasn't enough how about Non-Stop Recording! Swap out full cards while recording. HyperDeck Studio Mini features dual media slots for non stop recording. When the recording card becomes full, recording automatically continues onto the next card. That means you'll never have to worry about missing an important shot.
The Blackmagic Design HyperDeck Studio Mini can handle SDI Rates of 270Mb, 1.5G-SDI, 3G-SDI up to 6G-SDI but consider futureproofing your rig or studio with 12G-SDI as it is fully backwards compatible, simplifies cabling and with the correct tools, can move your current infrastructure forward smoothly and simply.
Please Note: The unit was used and repaired by vendor
