    B9-418 - Overview

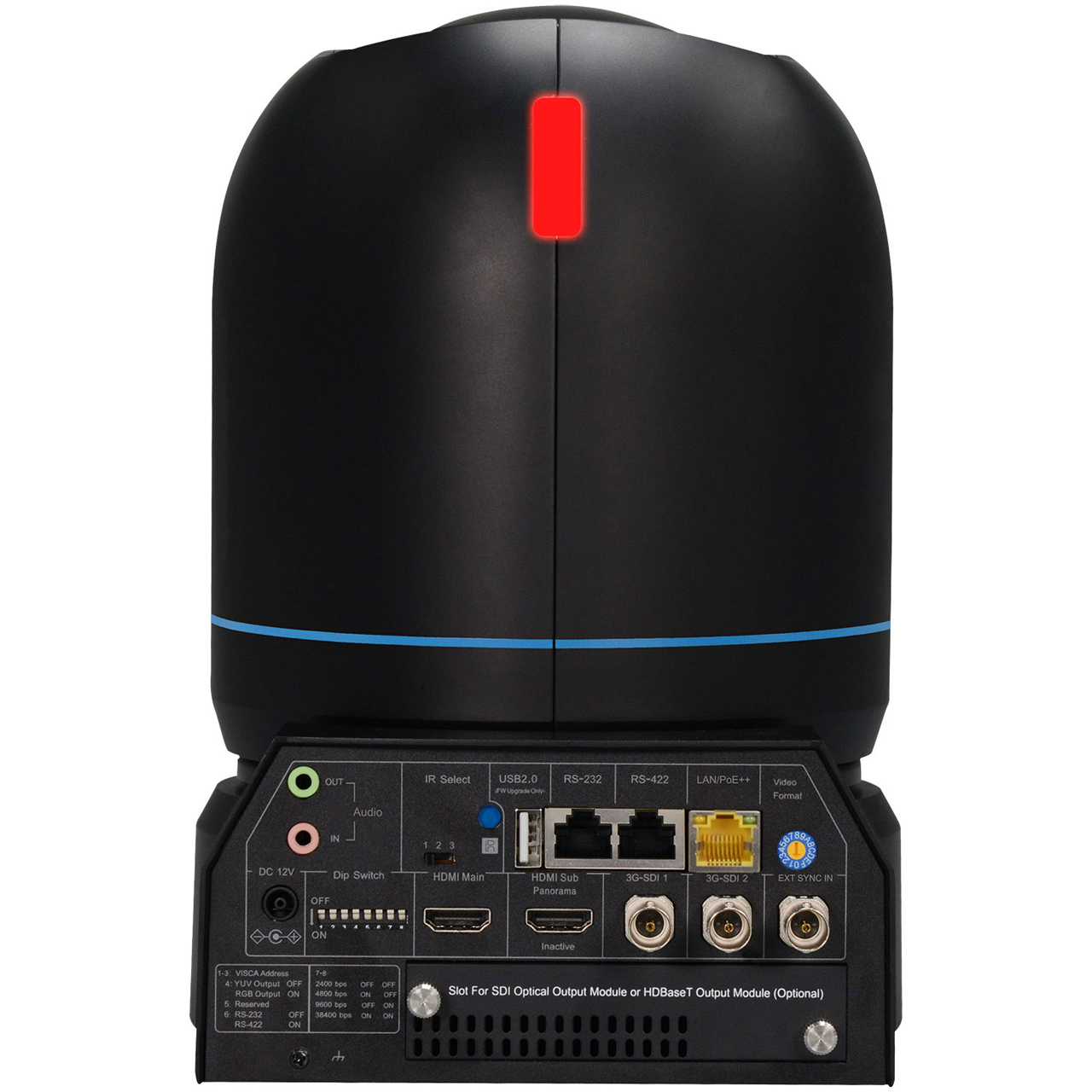

    The Bolin B9-418 is a professional-grade PTZ camera at an affordable price, featuring a full Sony image block providing a high-quality 4K image with 18X zoom range, outstanding low-light performance with its 1" sensor, and optical image stabilization for the vibration-prone environments. It has multiple simultaneous outputs, including dual 3G-SDI, HDMI 2.0, Optical SDI with an optional expansion card, HDBaseT with an optional expansion card, and IP Streams. Further adding to its capabilities, the camera supports audio input through a 3.5mm line-in port, and Genlock In. By default, the camera is available in black.

    Super High Resolution with Full HD 1080p60 Frame Rate Image
    SDI: SMPTE compliant broadcast and ProAV workflow standards. HDMI: Provision of an HDMI video interface simplifies direct connection with a compatible video conferencing system, PC or HD video monitor.

    PTZ Movement
    Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset: Image parameter settings restored with presets and quick access operation.

    Remote Control and Setup PTZ Camera
    Image parameter adjustments includes exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, image stabilizer, flip/mirror and more with configurable video settings.

    Full Resolution Frame Rate and Cinematic Pictures
    Resolution supports up to 4K(2160P/29.97/23.98), 1080p60/59.94, 1080i59.94; The camera can also operate in Cinematic 24p mode, for video footage with a rich, filmic look.

    Made for Broadcast Use
    Black Level, Color Matrix fine tune, Trace Memory, ND filter and comprehensive image parameter setting and tally lights for Broadcast-friendly use and Pro AV applications.

    • Features:

      • Sony Image Block with 1" Sensor
      • 18X Zoom Range
      • Optical Image Stabilizer
      • ND Filter

    • Specifications:

      • Camera
      • Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
      • Number of effective pixels: 3840x2160, 8.29MP
      • Zoom: 18X(4K), 24X(FHD)
      • Focal Length: f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)
      • Aperture: F2.8 Constant (W)~(T), 16 Steps
      • Horizontal Angle of View: 64.6° (Wide) - 6.1° (Tele)
      • Min. object distance: 80mm (Wide), 1000mm (Tele)
      • Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off)
      • Shutter Speed: 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25)
      • Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,
      • White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
      • Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
      • Image Adjustment: Brightness, Color(Saturation), Contrast, Sharpness, HUE
      • WDR: YES(130dB), Shown as VISIBILITY ENHANCER in OSD
      • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
      • S/N Ratio: ≥50db

        Mechanical
      • Pan Movement: Horizontal:±170 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°-100°/S )
      • Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°-50°/S)
      • Speed Proportional: Pan/Tilt Speed proportional to zoom range
      • Preset Position: 255 positions, Speed 150°/s, Accuracy: 0.05° 6 presets on remote controller
      • Preset Speed: 0~5 Level Adjustable
      • Quietness: NC35 or less

        HDMI Signal System
      • Video Format - HDMI: 3840x2160p/29.97/23.98/24; 1920x1080p/60/59.94/50/30/29.97/25/24/23.98; 1920x1080i/60/59.94/50; 1280x720p/60/59.94/50
      • Color Format: 10bit(HDMI), YCbCr
      • Color Space: YUV, RGB

        SDI Signal System
      • SDI Video Format: 1920x1080p/60/59.94/50/30/29.97/25/24/23.98; 1920x1080i/60/59.94/50; 1280x720p/60/59.94/50
      • Color Precision: 10bit(SDI), YCbCr, 4:2:2
      • Color Space: YUV
      • Standard: 3G-SDI, SMPTE424/SMPTE292,TE 425-A(3Gb/s) standard / 75 Ω (BNC x 1), With SMPTE352 SDI Metadata Supported
      • True Dual Output: SDI has no signal when HDMI outputs 4K, SDI and HDMI has same video format when HDMI outputs FHD and lower.

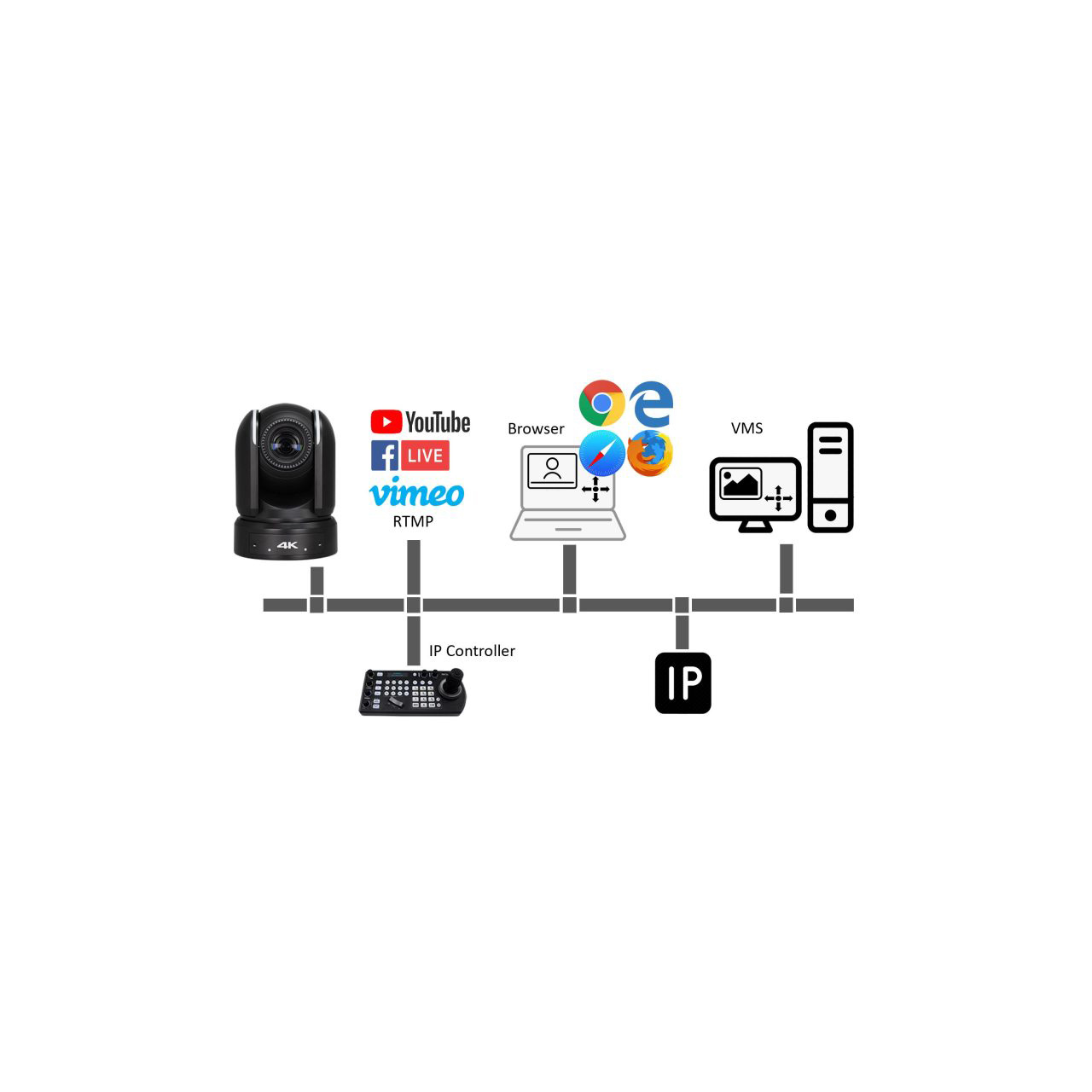

        Network-IP Streaming
      • Video Codec: AVC/HEVC-H.264/265 by SoC
      • Network Interface: RJ45 port-Standard 1Gbps Ethernet
      • IP Video - 1st Stream: 3840x2160p30/25,1920x1080p/60/50/30/25,1280x720p60/50/30/25;
      • IP Video - 2nd Stream: 704x576, 640x480, 640x360, 576x480, 352x228, 320x240, 320x180; P60/50/30/25; Frame Rate P60/50/30/25
      • True Dual Output: Video resolution and framerate: IP and HDMI can be output with different format (SDI and HDMI will be the same, SDI is the same or lower than HDMI, USB is the same as IP)
      • IP Protocols: TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP
      • Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT
      • Multi-stream: 2 Streams (Up to 20 viewers at the same time)

        Physcial
      • Weight: 10.58 lbs
      • Dimensions (LxWxH): 14.17 in x 10.55 in x 11.97 in

    • Item Includes:

      • 1x B9-418 4K PTZ Camera
      • 1x IR Remote Controller
      • 1x 12V, 2A Power Supply with International Plugs
      • 1x RS422 RJ45 Adaptor
      • 1x Lens Cap

    • Warranty:

      • 2-Year Limited Warranty

    • GTIN:

      6973775121758
