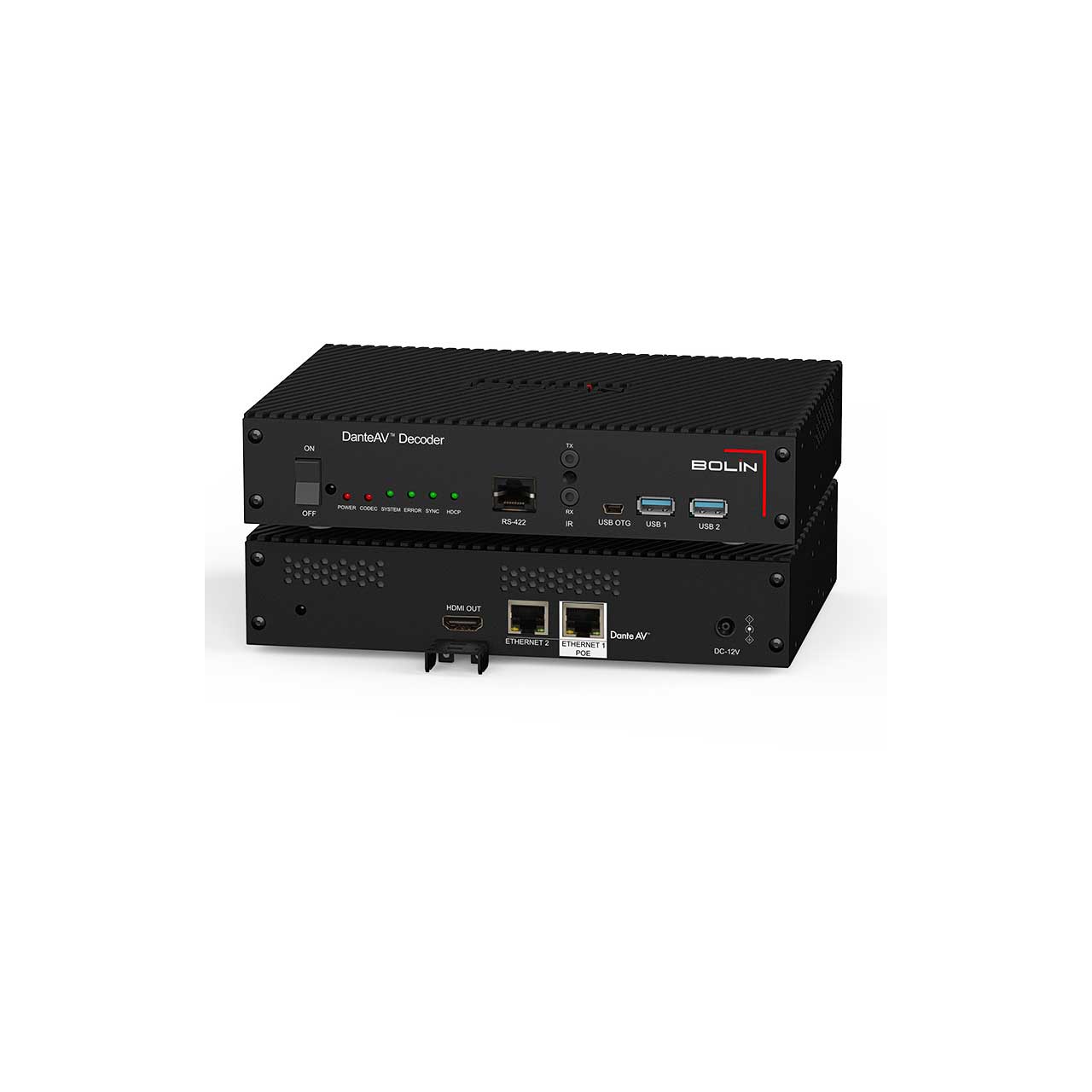

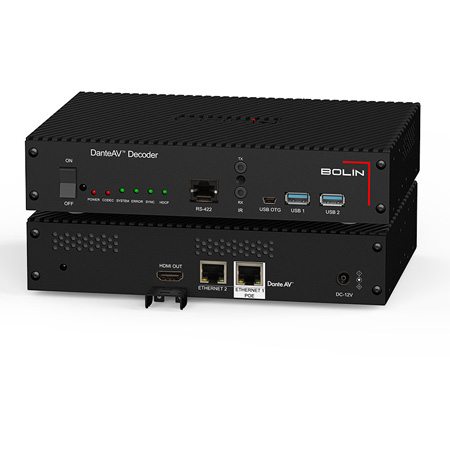

Bolin D10H Dante AV to HDMI Decoder for D412/D220 DanteAV PTZ Cameras

ITEM #: BOL-D10H MFG #: D10H

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOL-D10H

D10H - Overview

The Bolin D10H(HDMI) decoder is part of Bolin DanteAV camera systems. Over standard Gigabit network, a single-channel networked AV decoder outputs baseband video HDMI 2.0, which not only works with Bolin DanteAV PTZ camera but also works with standard DanteAV video device within Dante eco system.

It transports up to UHD/4K60 4:4:4 video output with ultra low latency and lossless quality. It supports HDCP, plus IP PTZ camera control and embedded audio and RS-RS422/IR control pass-through.

As part of Dante Audio over IP eco family, using standard Gigabit Ethernet network switches and CAT5e UTP wiring, D Series decoder delivers a high-performance virtual video matrix routing solution for presentation of multimedia, and live camera images, Dante 4k video content application such as demanding conference room and classroom applications.

Powered By DanteAV Module
Pair with Bolin D412/D220 DanteAV PTZ camera, Powered by DanteAV module, D Series decoder video output achieves lossless video and extremely low latency with video and audio synchronization. Designed to seamlessly integrate into an existing Dante audio ecosystem, the D Series decoder is managed using the Dante Controller Software with flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues.

100% Synchronized video and audio
D Series DanteAV decoder integrated Dante's sub-microsecond synchronization to video and audio, a Dante single network clock keeps the camera video in sync regardless of the number of endpoints, making Lip-Sync problem a thing of the past.

HDMI output EDID supported
The D10H provides decoded image to output via HDMI 2.0 which supports EDID. Integrated high-performance scaling engine provides upscaling and downscaling to the encoded source for a wide array of UHD, HD resolutions to match the different capabilities and requirements of sources, displays, codecs, and other equipment.

Remote Control & Monitoring
The D Series has built-in serial (RS-422), which can be used for serial port PTZ joystick controller via Dante Serial Over IP control running Visca protocol. Also has IR over IP to control connected display or other devices.

  • Features:

    • 4K60 4:4:4 video over standard Gigabit Ethernet
    • Ultra low latency real-time video performance over the network
    • 32-bit wide video interface capable of processing code streams 200-800 Mbps
    • HDMI 2.0 and/or 12G-SDI output
    • Eight audio channels from 44.1 kHz to 192 kHz
    • Bit depths: 24, 16 and 32 bits per audio sample
    • Tunable audio delay to facilitate lip-sync control
    • Dante Audio over IP, AES67 RTP audio transport format
    • Support unicast and multicast for 8 audio flow and 1 video flow
    • Full support of Dante audio and video protocols
    • Supported by Dante Controller
    • Instant compatibility with over 2000 existing Dante-enabled audio products
    • Fully time-aligned and separately routable audio and video streams


  • Specifications:

    • Decoding
    • Video Codec: Optimized implementation of JPEG2000 codec in FPGA, Licensed By IntoPIX
    • Video Resolutions: Up to 4096x2160@60Hz; RGB 4:4:4 @ 8 bit YCbCr 4:4:4 @ 8 bit YCbCr 4:2:2 @ 8/10/12 bit
    • Color Depth: 8-bit, 10-bit, 12-bit
    • Audio Formats: Dante Audio over IP
    • Bit Rates: 200 to 800 Mbps
    • Copy Protection: HDCP 2.2, HDCP 2.3 for network,
    • Latency: 0.5 frame (e.g. 2160p @ 60 Hz latency is < 8 ms between encoder and decoder), Note: Overall latency may increase depending on network configurations
    • Dante Ecosystem Friendly: Instant Dante Ecosystem compatibility with existing Dante-enabled products; Unified control of audio and video using Dante tools - Dante Controller

      HDMI Output
    • Format: HDMI 2.0: HDCP 2.2, EDID
    • Supported resolutions: 4096x2160p, 3840x2160p, 1920x1080p, 1920x1200, 1600x1200, 1280x720p, 1280x1024, 1024x768, 800x600, 720x576p, 720x480p, 640x480
    • Frame rates (Hz): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • Colour space: RGB, YCbCr
    • Component bit width: 8-bit, 10-bit, 12-bit
    • Colour sub-sampling: 4:4:4, 4:2:2, 4:2:0
    • EDID: YES, Only with D10H

      Audio
    • Audio transport formats: Up to eight channels at 44.1, 48, 88.2 or 96kHz. HDCP sourced audio channels limited to 48kHz. HDMI 7.1 embedded audio.
    • Bit depths: 24, 16 and 32 bits per audio sample
    • Embedded audio over HDMI output: 2 channels from DANTE
    • Output sample rate: 48K and 96K, PCM24(24, 16 and 32 bits)

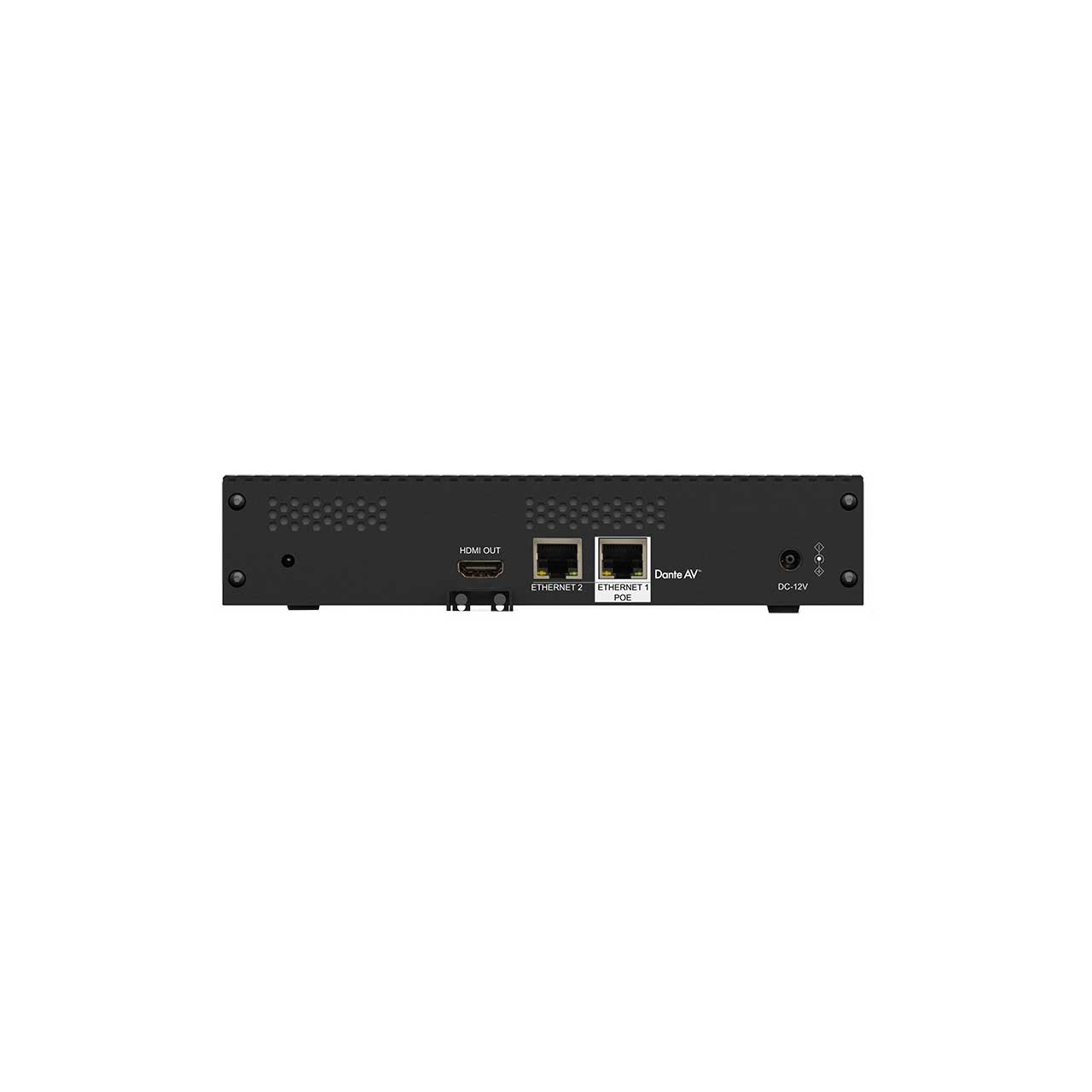

      Connections
    • Ethernet 1 POE: IEEE 802.3ab compliant 1000BASE-T Ethernet port, IEEE 802.3bt Type 3 compliant, PoE++ Class 4 (60W)
    • Ethernet 2: IEEE 802.3ab compliant 1000BASE-T Ethernet port
    • HDMI Output: HDMI Type A connector, female; HDMI digital video/audio output

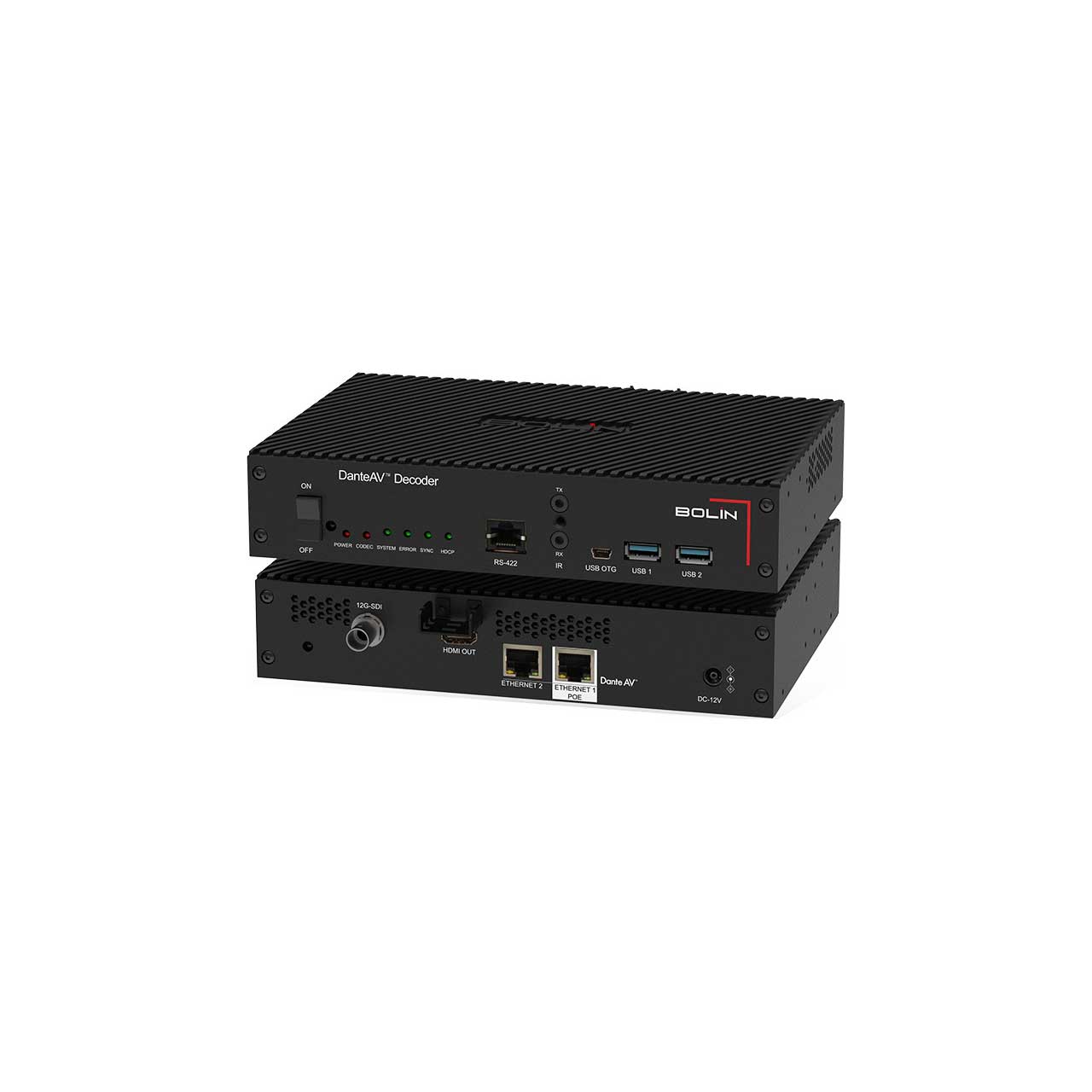

    • SDI Output (D20S): BNC, 75O,
    • USB 1, USB 2: USB Type-A connector, female; USB 2.0 host port; USB signal extender port for connection to a mouse, keyboard; Available Power: 500 mA at 5 VDC.
    • USB OTG (On The Go): Host computer Mouse (Dante AV transmitter)
    • Serial Control: RJ45, RS-422 compatible with Visca control PTZ camera
    • IR TX, IR RX: 2-pin 3.5 mm, Carrier frequency:38 kHz; Supply voltage: 3.3V to 5V.
    • LED Indicator: Power, Codec, System, Error, Sync, HDCP

      Network Interface
    • Standard 1Gbps Ethernet
    • Audio Channels x8,Flow x15 (unicast or multicast)
    • Video Flow x1 (unicast or multicast)
    • Hardware time-stamping, supporting sample-accurate playback

      General
    • Power Consumption: Power input @ 4K60: 38W (D20S); 25W (D10H)
    • PoE (D10H): PoE+, IEEE 802.3at Type 3 class 5 compliant
    • PoE (D20S): PoE++, IEEE 802.3bt Type 3 class 5 compliant
    • Power Adaptor: Input: 1.5 A maximum @ 100-240 VAC, 50/60 Hz, Output: 4A @ 12 VDC. 12V DC IN has priority over Ethernet 1 POE. Ethernet 1 POE will become active a fraction of a second after 12V DC IN is disconnected.
    • Storage Temperature: -40 to 100°C
    • Operating Temperature: 32° to 104° F
    • Humidity: 10% to 90% (non-condensing)
    • Heat Dissipation: Cooling fan speed adjustable, 3 Level
    • Acoustic Noise: NC35 or less, variable with cooling fan speed adjustment
    • Regulatory compliance: CE, IC, FCC Part 15 Class B digital device
    • Body Color: Metallic Black

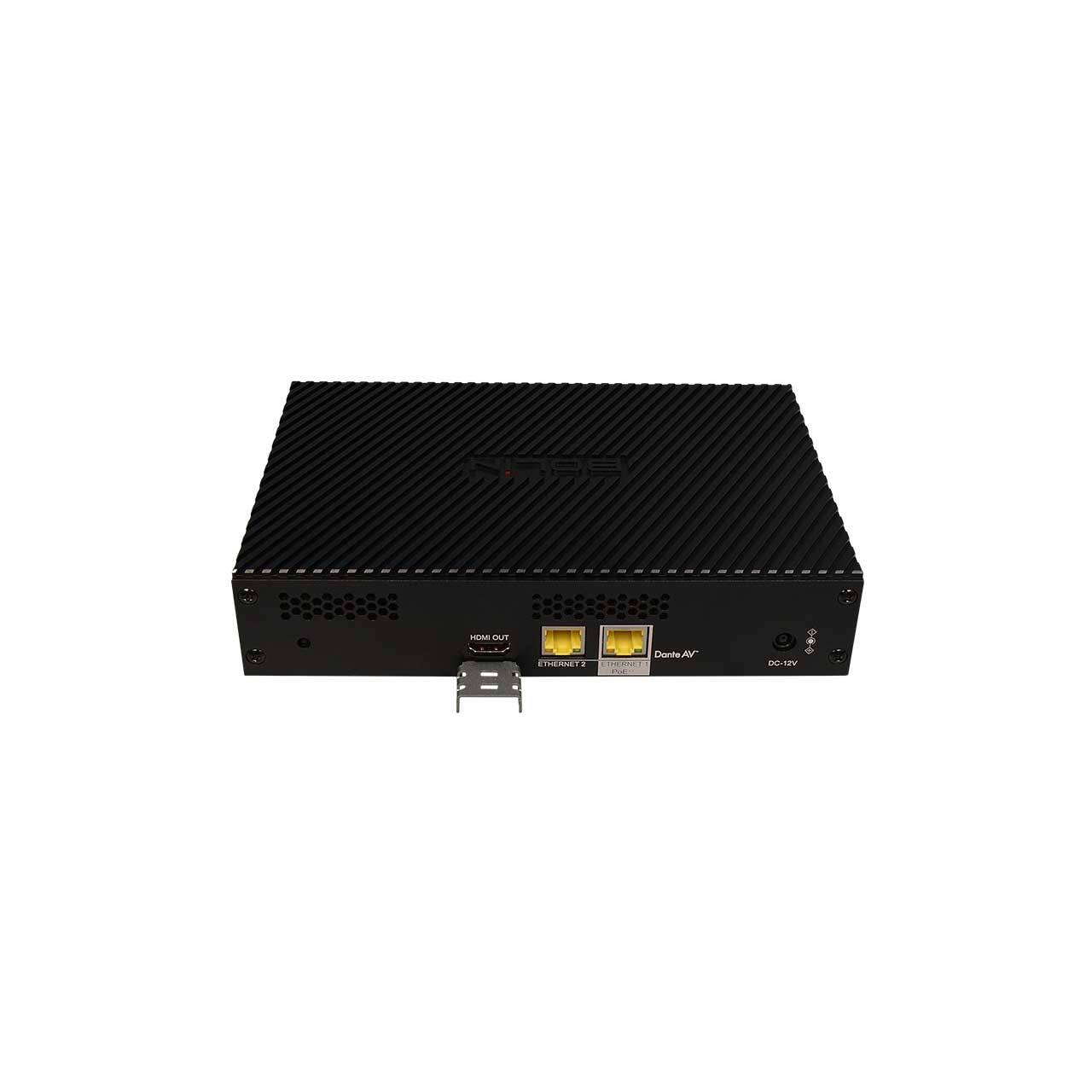

    • Mounting (Included): HDMI cable secure mount, surface mount for TV display, base mount.

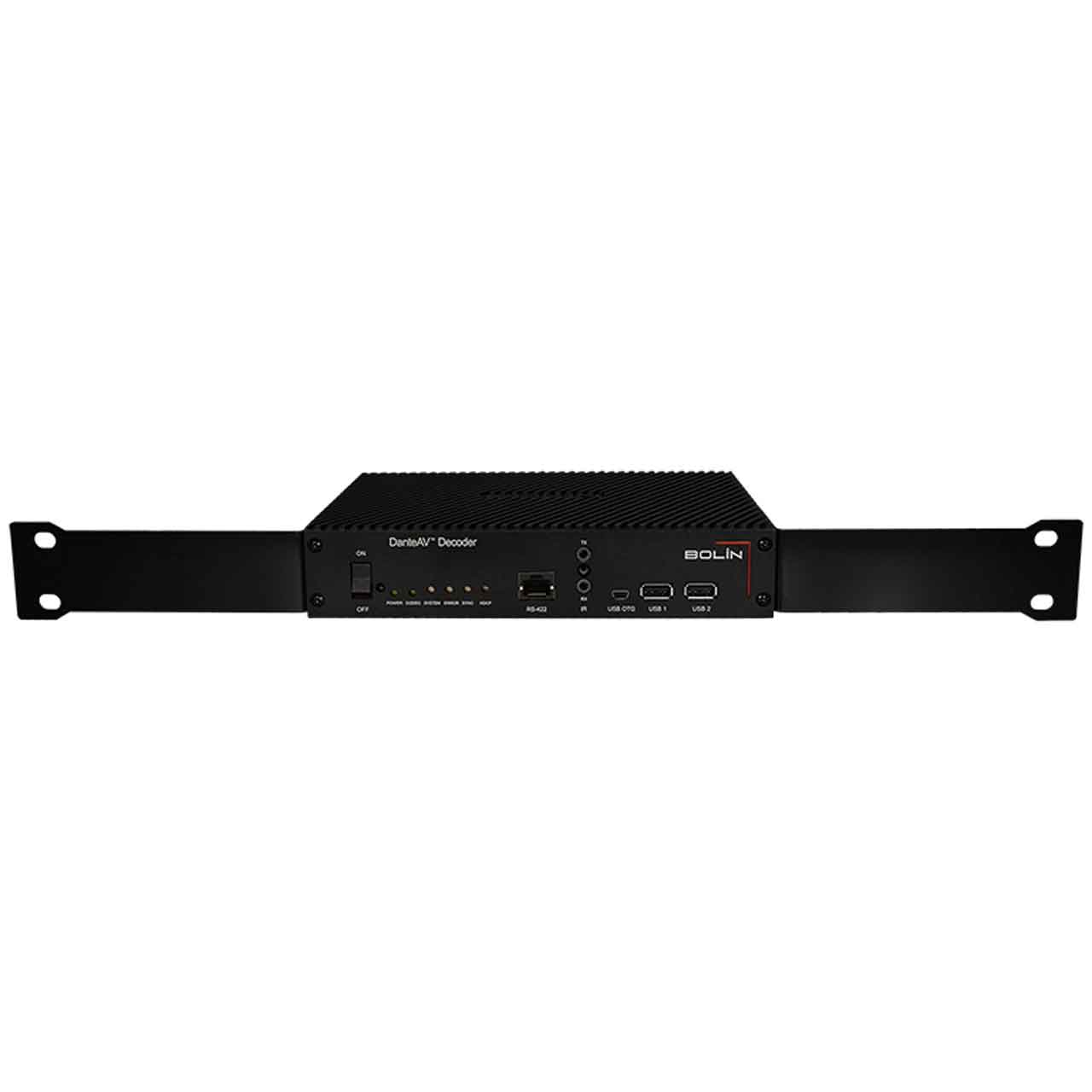

    • Mounting (Optional): 19 inch single rack mount, 19 inch dual rack mount, Din rail mount
    • Dimension: 216.5x148.35x44mm (LxWxH)
    • Weight: 2.5 lb (Net weight)


  • Item Includes:

    • 1x Dante AV Decoder
    • 1x Power Adaptor
    • 3x Power Cord
    • 1x RJ45 to RS422 Control Cable
    • 1x Desktop Mounting Kit
    • 1x VESA and Velcro Mount Kit
    • 8x M2 Screws
    • 2x M3 Screws
    • 4x M4 Screws
    • 4x M5 Screws
    • 1x Mini Pole Bracket
    • 4x Cable Ties
    • 1x HDMI Cable Mount


  • GTIN:

    6973775120751
