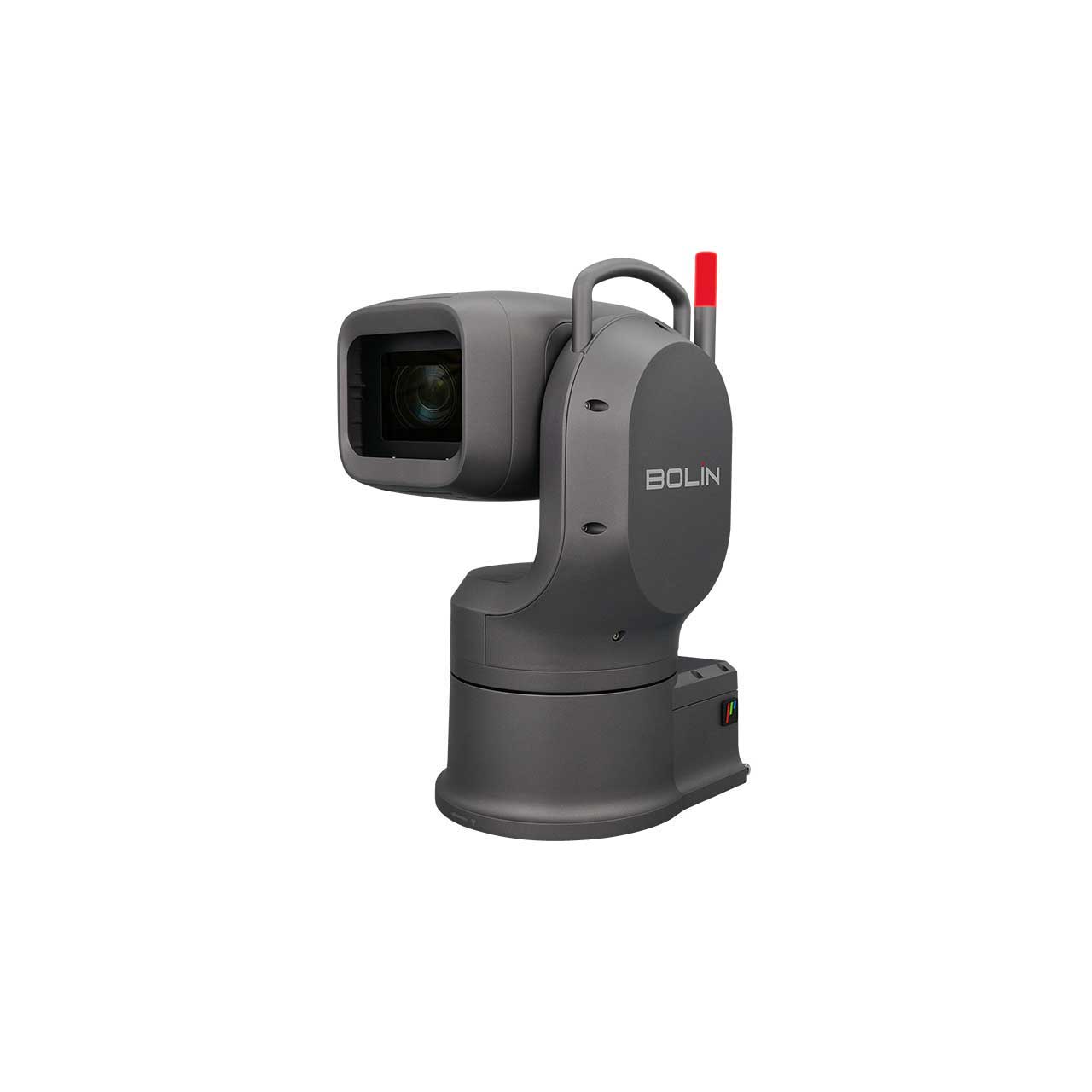

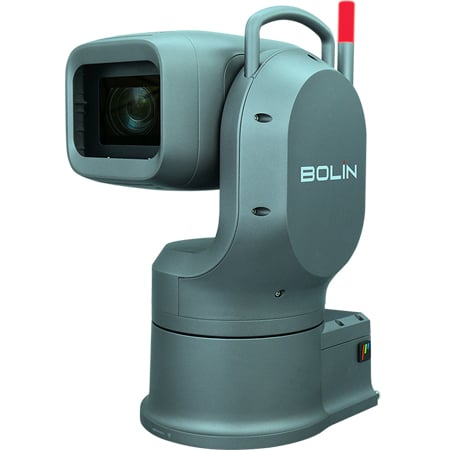

Bolin EX-ULTRA FHD 3G-SDI Outdoor PTZ Camera with 30X Zoom - Dark Gray

EXU230H/G - Overview

• Features:

  • 1/1.8 inch STARVIS II sensor
  • Enhanced High Resolution image quality
  • 30X 8M High Resolution optical zoom lens
  • Advanced AF performance, Spot Focus, Spot AE, Spot AWB
  • Wide Dynamic Range (Wide-D)
  • Visibility Enhancer (VE)
  • Super low light in color performance
  • Super image stabilizer
  • PAN: 340° (-170° to +170°); Fully proportional, speed 0.01° to 60°/s
  • TILT: 210° (-90° to +120°); Fully proportional, speed 0.01° to 60°/s
  • Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
  • Picture Profile Preset
  • Motionless Preset
  • PTZ Trace Memory
  • Quietness less than NC35
  • ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
  • Smooth and Accurate Movement


• Specifications:

  • Image:
  • Image Sensor: CMOS image sensor 1/1.8-type STARVIS 2 sensor
  • Number of effective pixels: 2712 x 1538, 4.17M [pixels]
  • Picture elements: 2688 x 1520, 4.09M [pixels]
  • Lens: Enhanced optical zoom 30X
  • Digital Zoom: 12X
  • Horizontal Angle of View: 58.1° (Wide) - 2.3° (Tele),
  • Vertical Angle of View: 34.9° (Wide) - 1.7° (Tele),
  • Focal Length: f= 6.5 mm (WIDE) to 162.5 mm (TELE)
  • Min. object distance: 100mm (Wide), 1200mm (Tele)
  • Aperture: F1.6 (Wide) to F4.8 (Tele), 16 steps
  • Min. Illumination: ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
  • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
  • Focus: Spot Focus, Auto / Manual / One Push Trigger /Full Scan one push trigger / Near Limit / Spot Light Avoidance
  • White Balance: Auto / ATW / Indoor / Outdoor / One Push WB / Manual / One push Triger / Outdoor Auto / Sodium Vapor Lamp Auto / Sodium Vapor Lamp / Sodium Vapor Lamp Outdoor Auto
  • Exposure: Full Auto / Gain Limit Setting / Shutter Priority / Iris Priority / Manual / EV compensation
  • Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
  • WDR: Yes
  • Image Stabilizer: Yes, Super, Super+
  • Color Gain: Yes (15 step)
  • Color Hue: Yes (15 step)
  • Gamma: Standard / Straight gamma
  • Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
  • S/N Ratio: ≥50db
  • HLC: Yes
  • E-Flip: Yes
  • Privacy Zone Masking: Yes
  • Defog: Yes, (off, low, mid, high)
  • High Sensitivity: Yes
  • Slow AE Response: Yes
  • Day/Night: Yes
  • Backlight Compensation: Yes
  • Low Latency Mode: Yes

    General
  • Operating Temperature: -40 °C to 60 °C(-40°F to 140°F), (Preheating will be processed when -20°C (-4°F) or less)
  • Operating Humidity: 100% Suitable for Use (no condensation)
  • Power Input: AC 24V.DC+24V.PoE++(Compatible with IEEE802.3bt, Type 4 Class8)
  • IP Protocols: Suggest that not to use POE when environment temperature is -15°C lowel
  • Power Consumption: Min: 30W(Static state with no movement); Max: 60W(Fully loaded operation with heater on)
  • Installation Method: Stand-alone (Upright) or suspended (Pendent), To ensure safety, the unit must be secured using the mount bracket supplied.
  • Mount: Ceiling mount, Wall mount, Heavy duty tripod
  • Handle: Built-in for portable use application
  • Wiper: Yes, hidden type
  • Size of Tripod Screw Hole: 1 x 3/8", 1 x 1/4" + secure lock point
  • Body Color: Dark Gray, White
  • Dimension-Camera: PAN: φ 400 mm TILT: φ 480 mm
  • Weight: 10kg (22lb)
  • Mass: Approx. 12kg (26.5lbs)


• Item Includes:

  • 1x IR Controller
  • 1x Drop-prevention wire
  • 1x Drop-prevention wire mounting screw
  • 1x Cable cover
  • 12x Seal ring
  • 4x Quick install panel bolt


• Warranty:

  • 1 Year Warranty
